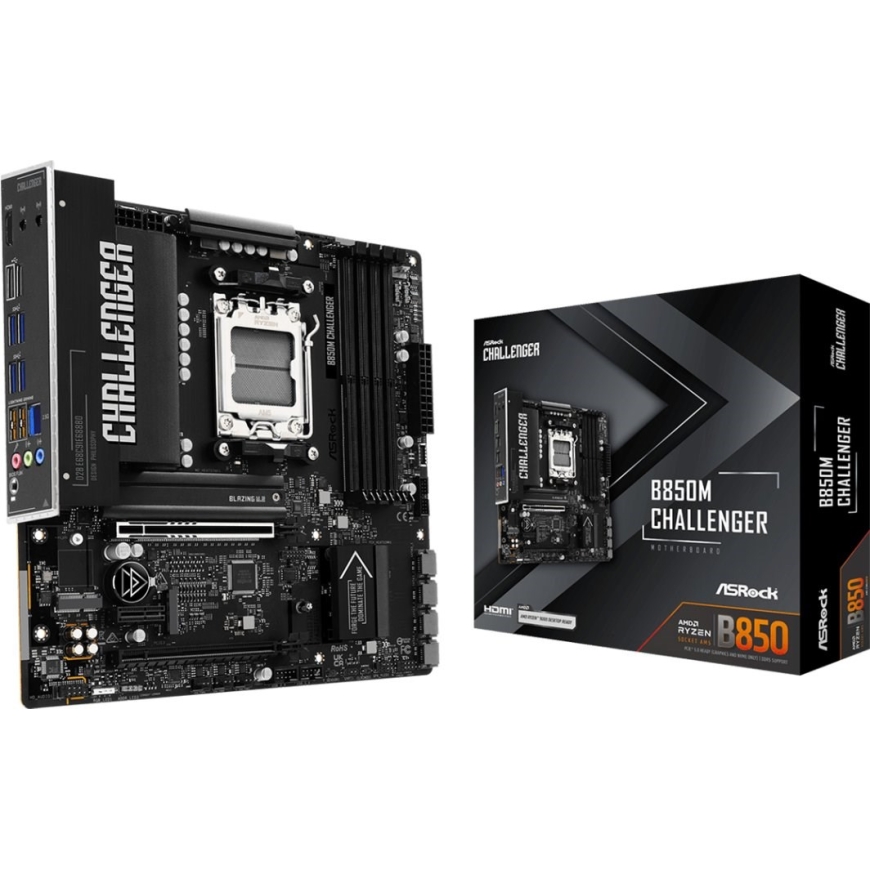

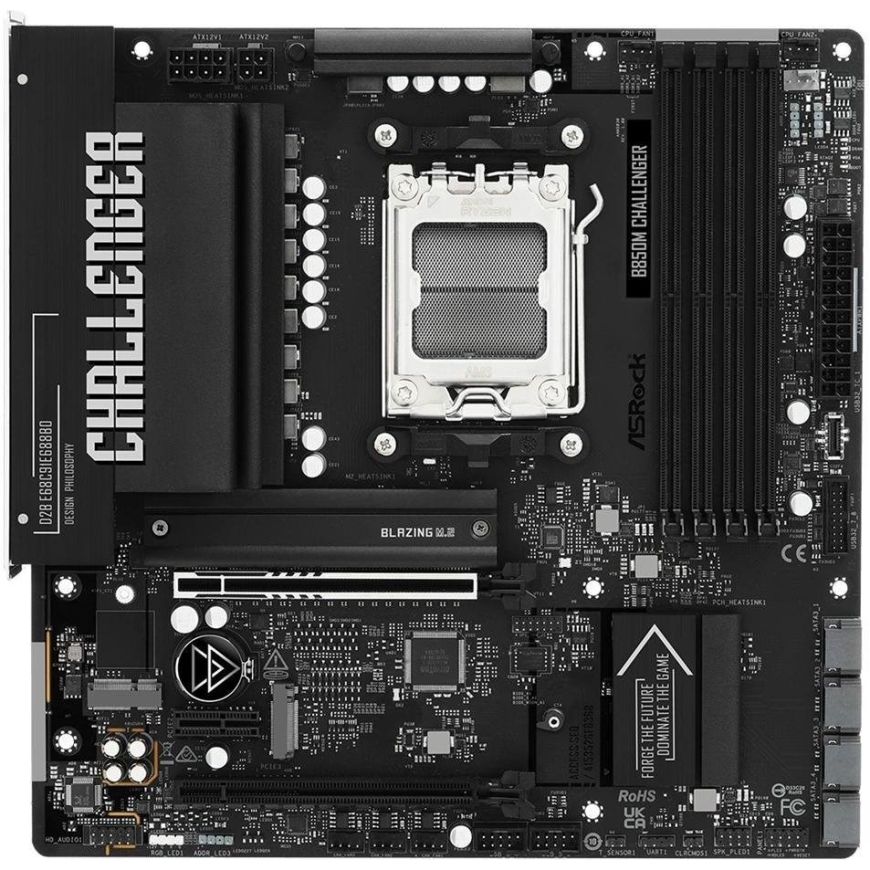

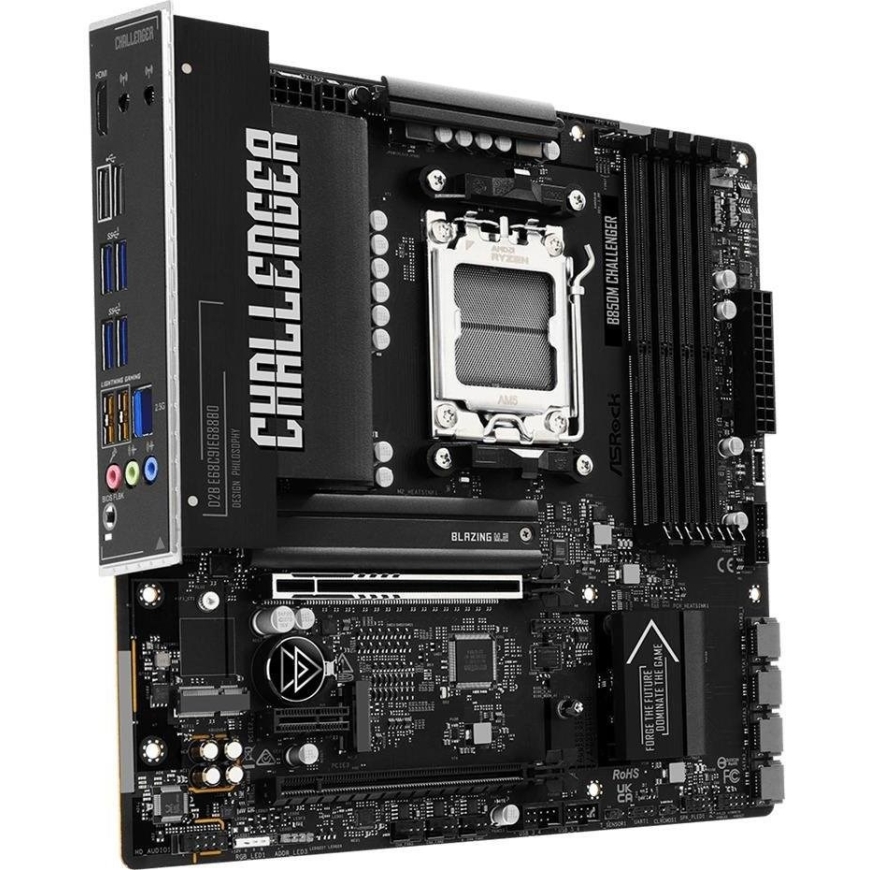

Asrock B850M CHALLENGER motherboard
4536748 B850MCHALLENGER
4711581494121
Shipping 2-3 b.d.
All about the product
| Description | Forge the Future Dominate the Game |
| Summary | Asrock B850M Challenger WiFi. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slot types: DIMM. Supported storage interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Main Wi-Fi standard: Wi-Fi 7 (802.11be). Components for: PC, Motherboard format: Micro ATX, Motherboard chipset family: AMD |
| URL | https://asrock.com/mb/AMD/B850M%20Challenger%20WiFi/index.asp#Specification |
| Category Code | MBA |
| Unit Box Height | 0.265 |
| Unit Box Length | 0.295 |
| Unit Box Width | 0.06 |
| Motherboard chipset | AMD B850 |
| Audio chip | Realtek ALC897 |
| Components for | PC |
| Motherboard format | Micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Supported Windows operating systems | Windows 10 x64/Windows 11 x64 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Maximum number of CPUs for SMP | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot types | DIMM |
| Memory channels | Dual-channel |
| ECC compatibility | ECC and non-ECC |
| Maximum internal memory | 256 GB |
| Supported storage interfaces | M.2,SATA III |
| RAID support | Yes |
| RAID levels | 0/1/10 |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of case fan connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| RGB LED contact connector | Yes |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| Number of Ethernet LAN ports ( RJ-45) | 1 |
| Number of HDMI ports | 1 |
| Line in | Yes |
| Headphone output jacks | 1 |
| Microphone line input | Yes |
| Ethernet connection | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Yes |
| Main Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| PCI Express x1 slots (generation 4.x) | 1 |
| PCI Express x16 slots (Gen 4.x) | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Antenna included | Yes |
| Cables supplied | SATA |
| Weight in packaging | 1.36 kg |
| Weight without packaging | 1 kg |
| Quantity in transportation packaging | 10 |
| Volume | 0.005357 m3 |
| Unit Width | 6 cm |
| Weight of packaging | 13.6000003814697 kg |
| Unit Depth | 29.5 cm |
| Height of packaging | 32 cm |
| Unit Height | 26.5 cm |
| Depth of packaging | 54 cm |
| Width of packaging | 31 cm |
| Name | MB AMD B850 SAM5 MATX/B850M CHALLENGER ASROCK |
