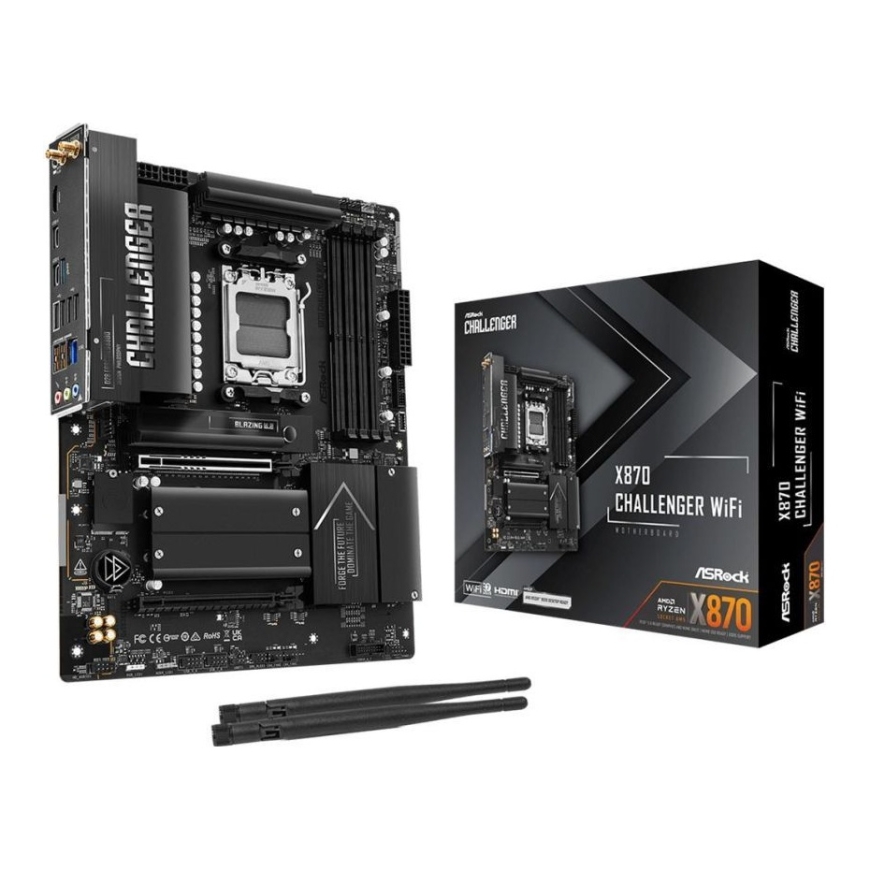

Mainboard||AMD X870|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|X870CHALLENGERWIFI
4532410 X870CHALLENGERWIFI
4711581492370
Shipping 2-3 b.d.
All about the product
| Description | The Challenger Series motherboard represents fearless play, bold breakthroughs, and relentless evolution. With solid specs, Wi-Fi 7, and gamer-focused features like Lightning Gaming Ports and toolless installation, it’s a perfect choice for gamers. |
| Summary | Asrock X870 Challenger WiFi. Processor Manufacturer: AMD, Processor Socket: Socket AM5, Compatible Processor Series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported Memory Types: DDR5-SDRAM, Maximum Internal Memory: 256 GB, Memory Slot Types: DIMM. Supported Storage Interfaces: M.2, SATA III, RAID Levels: 0, 1, 10. Ethernet Interface Type: 2.5 Gigabit Ethernet, LAN Controller: Dragon RTL8125BG, Main Wi-Fi Standard: Wi-Fi 7 (802.11be). Components for: PC, Motherboard Form Factor: ATX, Chipset Family: Intel |
| URL | https://www.asrock.com/MB/AMD/X870%20Challenger%20WiFi/index.asp#Specification |
| Category Code | MBA |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.28 |
| Audio Output Channels | 7.1 channels |
| Components for | PC |
| Supported Windows Operating Systems | Windows 10 x64/Windows 11 x64 |
| Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Motherboard Chipset | AMD X870 |
| Maximum Number of CPUs for SMP | 1 |
| Processor Manufacturer | AMD |
| Compatible Processor Series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor Socket | Socket AM5 |
| ECC compatibility | ECC and non-ECC |
| Memory Channels | Dual-channel |
| Number of Memory Slots | 4 |
| Maximum Internal Memory | 256 GB |
| Unbuffered Memory | Yes |
| Supported Memory Types | DDR5-SDRAM |
| Memory Slot Types | DIMM |
| Supported Storage Interfaces | M.2,SATA III |
| RAID Support | Yes |
| RAID Levels | 0/1/10 |
| HDCP | Yes |
| HDCP Version | 2.3 |
| EPS Power Connector (8-pin) | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| RGB LED header | Yes |
| TPM connector | Yes |
| Front Panel Audio Connector | Yes |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 3 |
| CPU fan connector | Yes |
| ATX Power Connector (24-pin) | Yes |
| USB 2.0 Connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
| Line In | Yes |
| Number of HDMI ports | 1 |
| Number of Ethernet LAN ports (RJ-45) | 1 |
| Number of USB 2.0 ports | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 2 |
| Microphone Line In | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 7 (802.11be) |
| Bluetooth Version | 5.4 |
| LAN Controller | Dragon RTL8125BG |
| Main Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Ethernet Connection | Yes |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 Slots (Generation 3.x) | 1 |
| BIOS Memory Size | 512 Mbit |
| BIOS Type | UEFI AMI |
| Depth | 244 mm |
| Width | 305 mm |
| Antenna Included | Yes |
| Included Cables | SATA |
| Weight Without Packaging | 2 kg |
| Weight With Packaging | 2.28 kg |
| Packaging Weight | 11.3999996185303 kg |
| Packaging Height | 31 cm |
| Packaging Depth | 40 cm |
| Quantity in Transport Packaging | 5 |
| Volume | 0.008928 m3 |
| Packaging Width | 36 cm |
