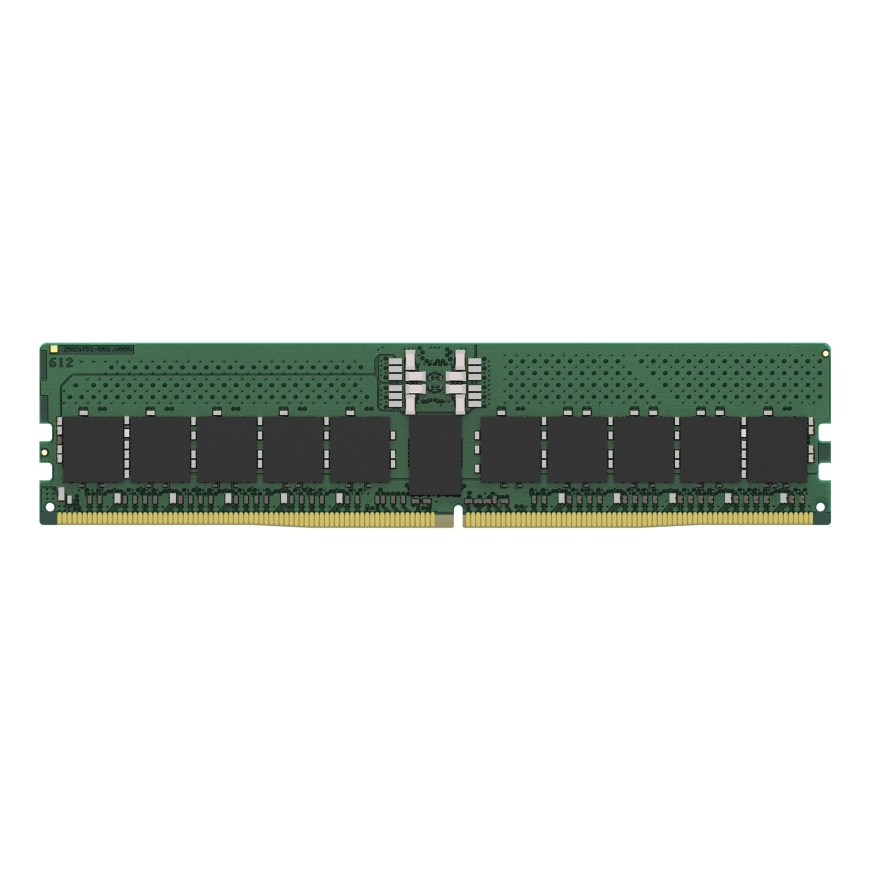

Kingston Technology 32GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx8 Micron H
1 051.21 €
Monthly payment from 27,97 €
4531492 KSM56R46BD8-32MH
0740617360325
4-6 b.d.
You are interested in this product?
All about the product
Kingston's KSM56R46BD8-32MH is a 4G x 80-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components.The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Features | |
| ECC | Yes |
| Module configuration | 4096M x 80 |
| Internal memory type | DDR5 |
| CAS latency | 46 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Memory voltage | 1.1 V |
| SPD profile | Yes |
| Memory form factor | 288-pin DIMM |
| Memory ranking | 2 |
| Component for | Server |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Row Precharge Time (TRP) | 16 |
| JEDEC standard | Yes |
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| Memory data transfer rate | 5600 MT/s |
Operational conditions | |
| Operating temperature (T-T) | 0 - 95 °C |
| Storage temperature (T-T) | -55 - 100 °C |
Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
Sustainability | |
| Compliance certificates | RoHS |
