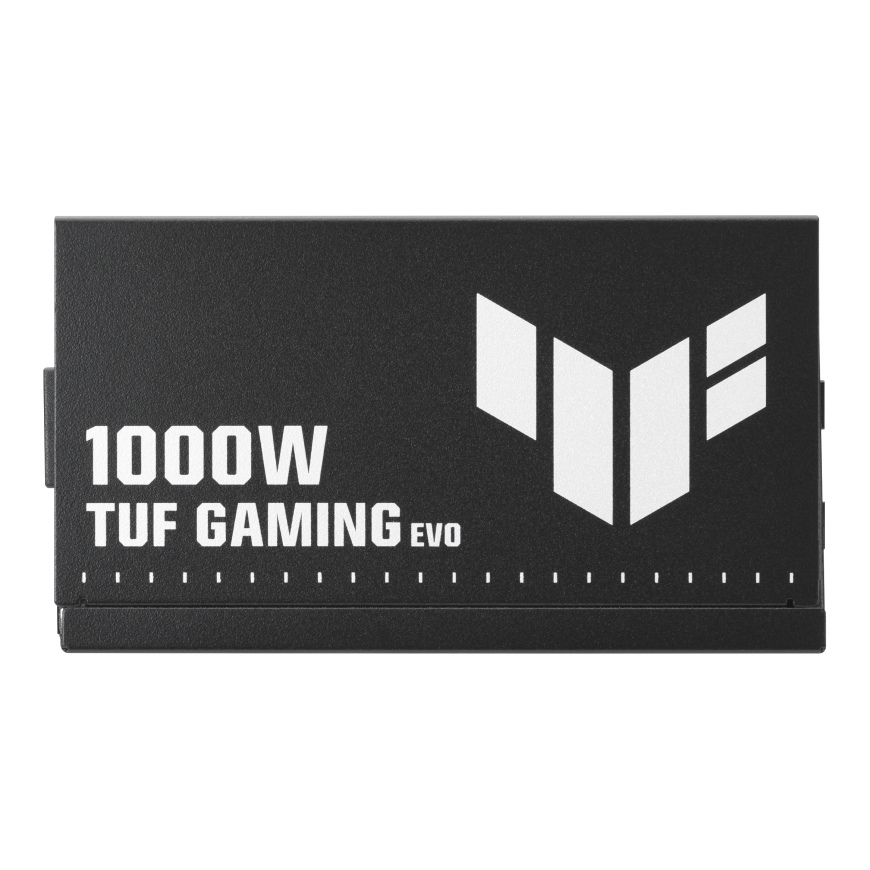

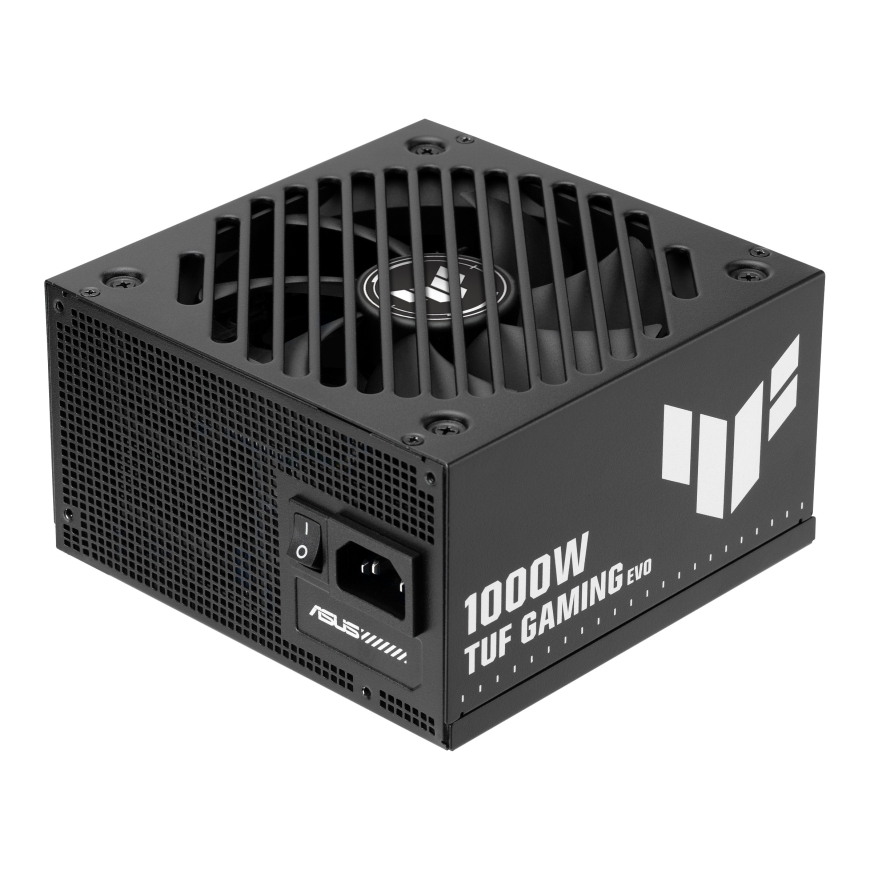

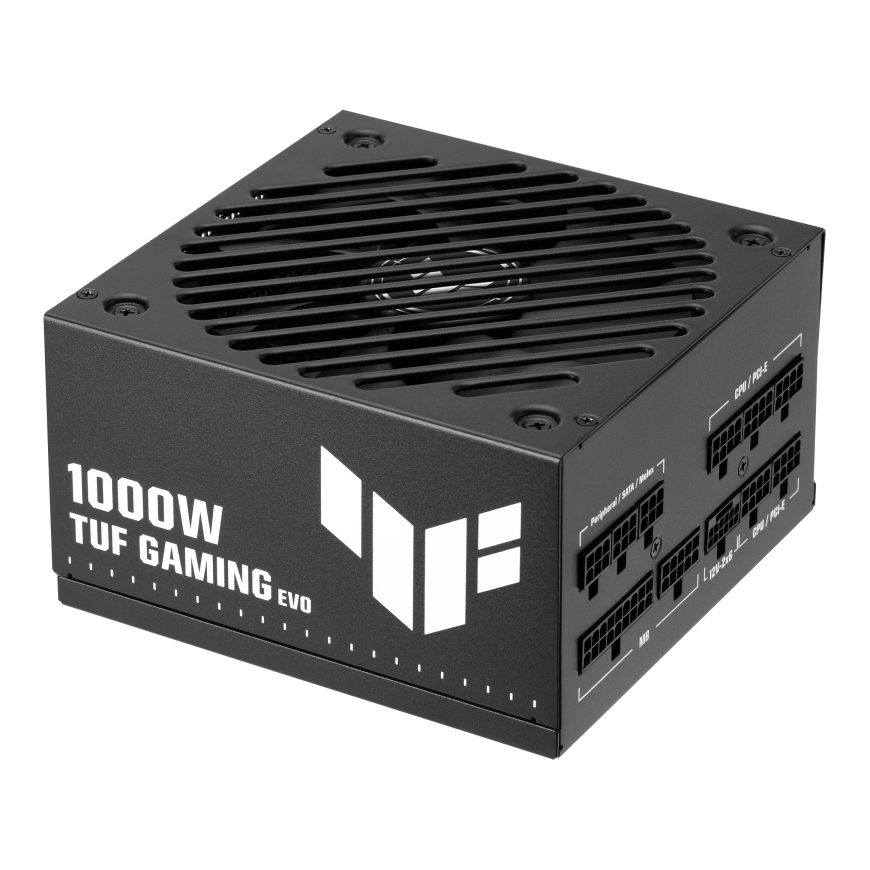

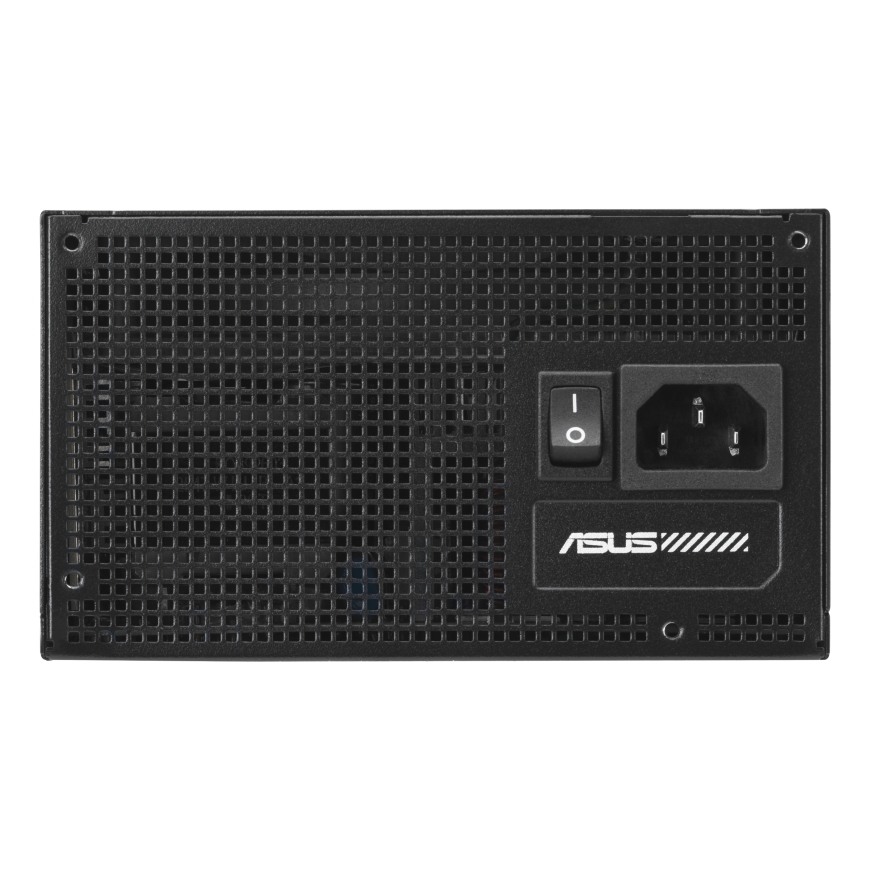

ASUS TUF Gaming 1000W Gold EVO power supply unit 20+4 pin ATX ATX Black
172.06 €
Monthly payment from 5,33 €
4528550 90YE00SE-B0NA00
4711636490368, 0199291490369
Goods will arrive at the Tallinn warehouse on 22.09.26
You are interested in this product?
All about the product
Built For The Long HaulThe ASUS TUF Gaming 1000W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Premium Durability
Military-Grade Capacitors
Engineered for exceptional durability, the TUF Gaming Gold EVO series features TUF 5K black metallic capacitors, offering a 52% wider temperature tolerance and up to a 2.5X longer lifespan than standard capacitors.
Latest Standards
ATX 3.1 & PCIe 5.1 Compatible
The TUF Gaming Gold EVO series meets the stringent requirements of the ATX 3.1 standard and supports PCIe 5.1 graphics cards. It supports total power excursions up to twice the rated power and graphics card power excursions up to three times the rated power, helping to ensure rock-solid stability for your PC.
EFFICIENCY CERTIFICATION
80 PLUS Gold Efficiency
The TUF Gaming Gold EVO series achieves 80 PLUS Gold certifications by leveraging low-ESR Japanese capacitors that deliver stability and efficiency, leading to improved power consumption, heat generation, acoustics and reliability.
PREMIUM ETCHED CABLES
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management.
PROTECTION
To make sure the entire system can operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| On/off switch | Yes |

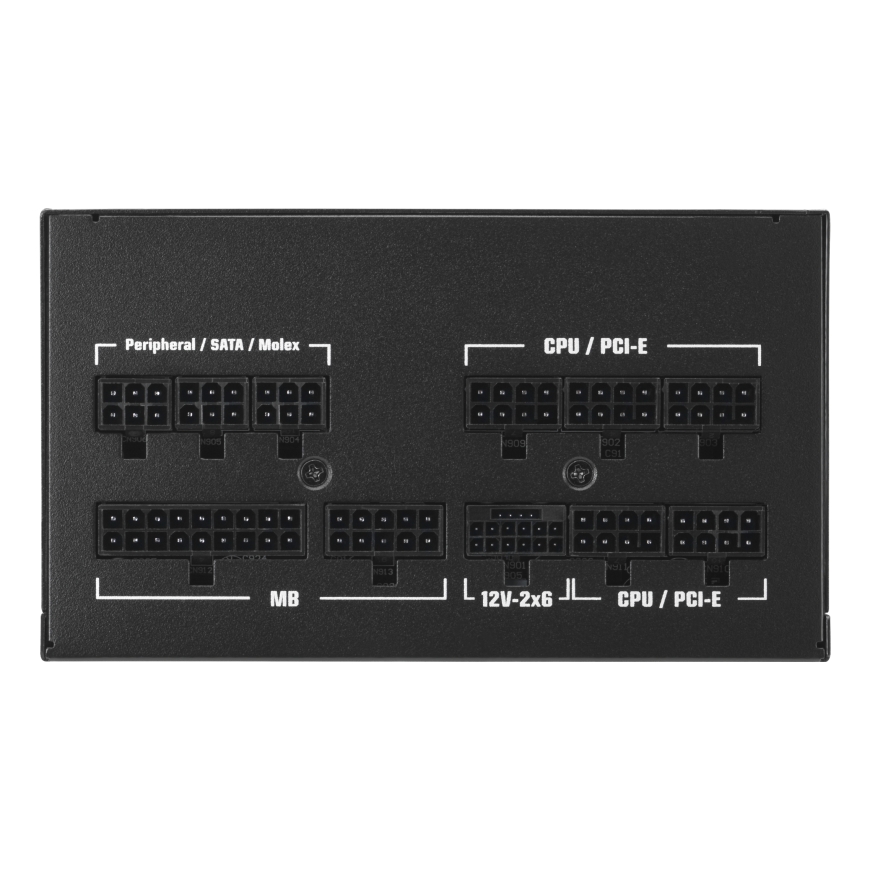

Ports & interfaces | |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 1.72 kg |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 3.17 kg |
| Package type | Box |
| Package height | 127 mm |
| Package width | 282 mm |
| Package depth | 182 mm |
Logistics data | |
| Warranty period | 8 year(s) |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
Certificates | |
| Compliance certificates | RoHS |
