ASUS ROG -THOR-1000P3-GAMING-E power supply unit 1000 W 20+4 pin ATX ATX Black
486.38 €
Monthly payment from 13,42 €
4527664 90YE00V8-B0NA00
4711636457866
2026-09-29
You are interested in this product?
All about the product
Ultimate Power. Unmatched StabilityThe ROG Thor 1000W Platinum III delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1000W Platinum III also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Platinum Series ensures your high-end rig has the power to conquer any challenge.

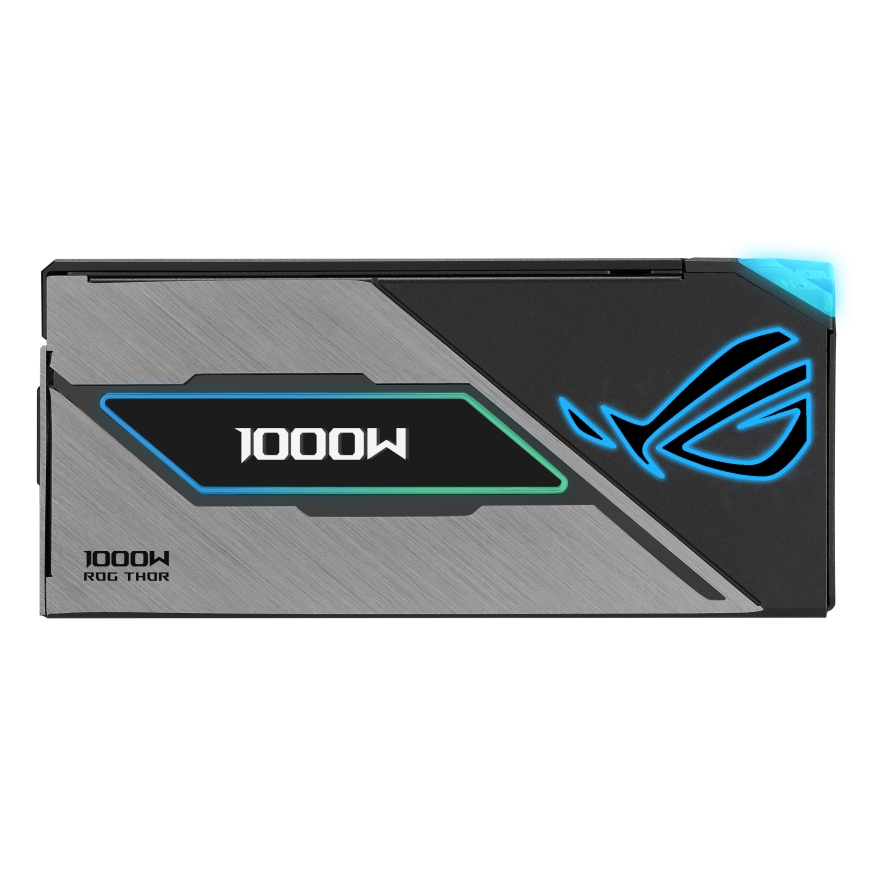

The ROG Thor 1000W Platinum III retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | DBB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |

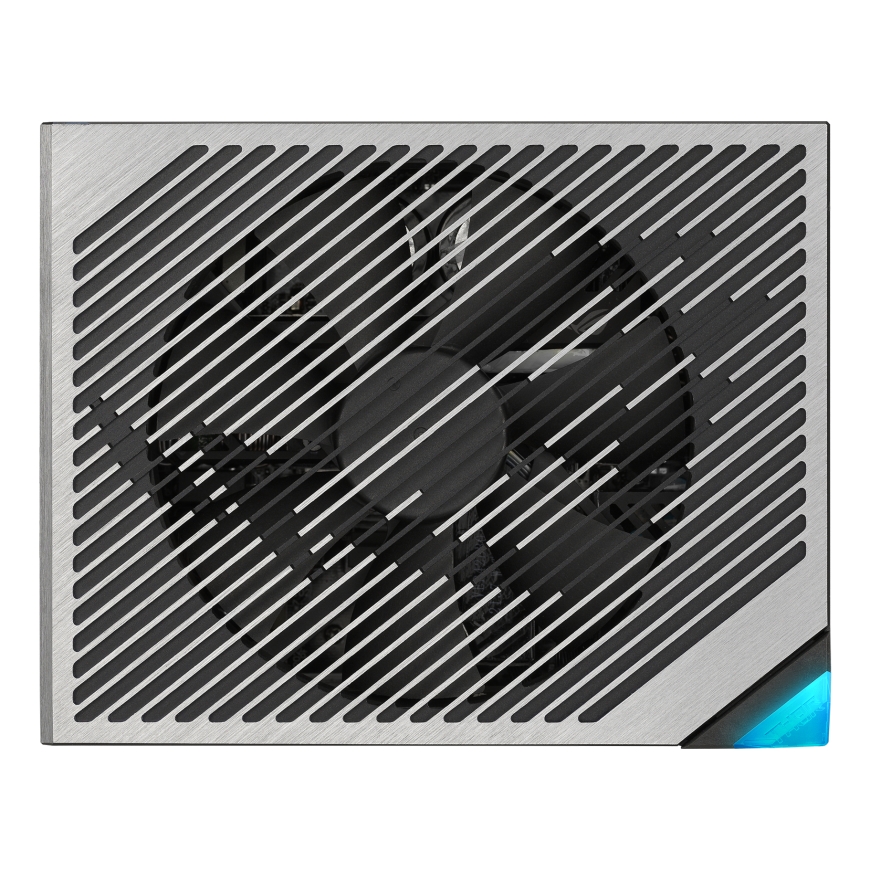

| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| Cooling type | Active |
| On/off switch | Yes |

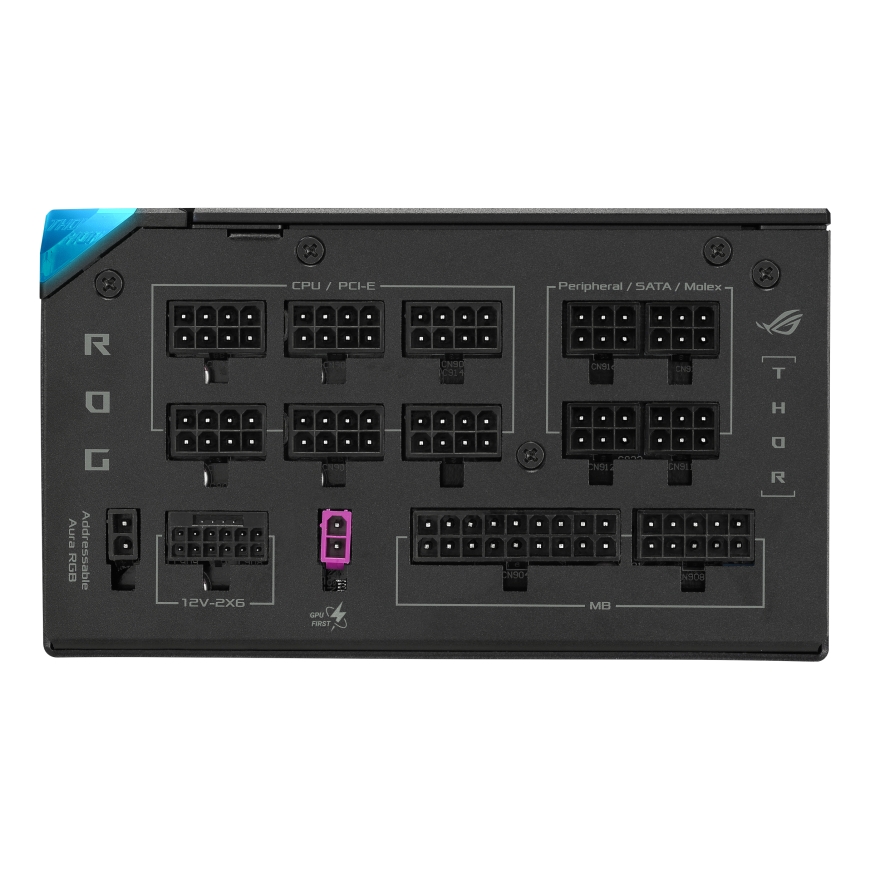

Ports & interfaces | |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 61 cm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 100 cm |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 2.37 kg |
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 5.17 kg |
| Package type | Box |
| Package height | 127 mm |
| Package width | 379 mm |
| Package depth | 241 mm |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
