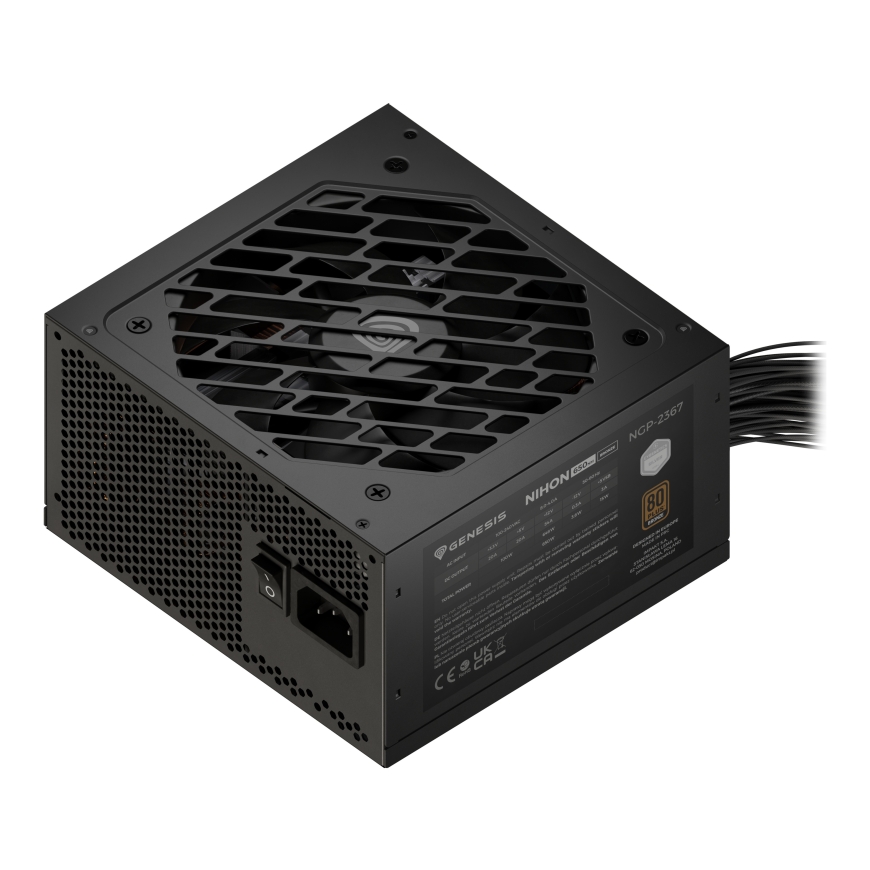

GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
60,35 €
59.94 €
Monthly payment from 2,44 €
4525841 NGP-2367
5901969449853
2026-09-29
You are interested in this product?
All about the product
Cybenetics Silver and 80 PLUS Bronze certifications - high efficiency and culture of operationGENESIS Nihon 650 W is a power supply that combines high energy efficiency with quiet and stable operation. This is confirmed by the 80 PLUS Bronze and Cybenetics Silver certifications. What do they tell us in practice? An average efficiency of more than 88% at 230V translates into lower energy losses and less heating of components even under heavy load, keeping your computer safe. In addition, the Cybenetics LAMBDA Standard++ rating indicates good operating culture and low noise levels.
Stable and future-ready with ATX 3.1 standard and powerful 12-volt line
The Nihon 650 Watt power supply is designed in accordance with the ATX 3.1 standard, so it can easily cope with the demands of modern components, including high-performance graphics cards. Support for momentarypower excursions, reaching up to 200% of the GPU’s nominal demand, allows the computer to maintain stable operation even during dynamic load changes. A powerful 12-volt line, the quality of which was confirmed in the aforementioned Cybenetics tests, is responsible for stable power supply of key components - the power supply showed very good voltage regulation and low ripple levels. This is a solid base for today’s and future configurations of your gaming PC.
12V-2x6 connector compliant with PCIe 5.1 standard
GENESIS Nihon 650 W is equipped with a state-of-the-art 12V-2x6 connector, which is the successor to the earlier 12VHPWR standard and complies with the PCIe 5.1 specification. Its improved design improves connection security and reduces the risk of incomplete cable plugging problems. In turn, the included 12+4 pin PCIe 12V-2x6 cable is made of Tinned Copper, which allows it to handle up to 450 watts of power, making the unit ready to power the most efficient compatible graphics cards using a single connector. It’s a practical solution that will work perfectly in your computer.
Japanese main capacitor = durability without compromise
When designing NIhon Series Power Supplies, we used capacitors rated for up to 105°C, including a high-end Japanese main capacitor in the primary section. Such selected components further promote stable operation of the unit, improve the durability of the power supply system and help maintain reliability during long-term loading. This is an important design element that distinguishes the power supply from the basic solutions used in budget units. At GENESIS, we do not recognize compromises.

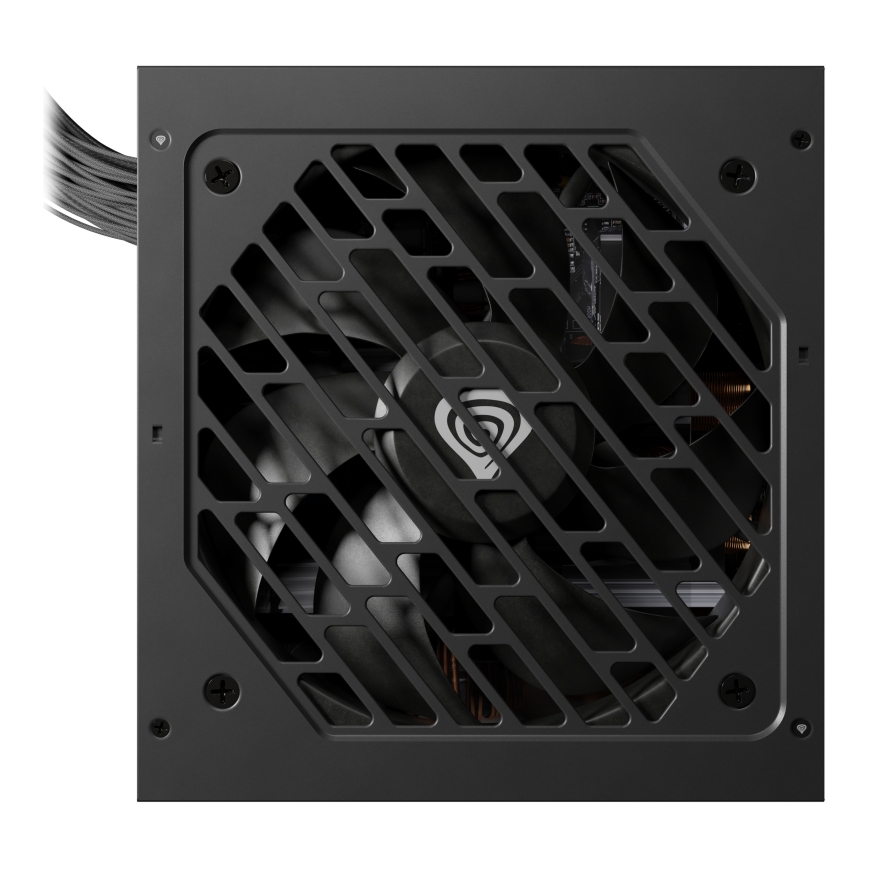

Premium cooling thanks to FDB fan
We used a Fluid Dynamic Bearing(FDB) fan in the Nihon 650 W power supply unit, designed for quiet and long-lasting operation. This allows the unit to effectively dissipate heat under load, while maintaining a good operating culture and supporting the life of the components used. And you? You don’t worry about unnecessary noise and high temperatures.
Maximum security
At GENESIS, we realize how important security is. That’s why the Nihon 650 W offers an extensive set of protections: OCP, OPP, OTP, OVP, SCP, SIP, UVP and NLO, which support the protection of the unit and other computer components in typical emergency situations. All of this highlights the quality of workmanship and the reliability of the design, which we guarantee.
Compatibility with networks around the world
The GENESIS Nihon 650 Watt Global version supports a wide input voltage range of 100-240 V, allowing it to work with power grids used in different countries around the world. Compared to units that only support the 200-240 V range, the Global version offers greater versatility and a more extensive input circuit with APFC and noise filters that help reduce the impact of power grid interference on the power supply’s operation. And less interference means fewer problems.
Aesthetic wiring and accessories for arrangement
We’ve used knurled, round braid-like cables in Nihon power supplies that combine flexibility, durability and easy routing inside the case. The included cable combs and Velcro make it easy for you to arrange your cabling aesthetically and help keep your finished setup neat and tidy.
Power | |
| Efficiency | 88% |
| Input current | 8 - 4 A |
| Power protection features | Over current, Overload, Overheating, Short circuit, Under voltage, Surge and inrush, No load operation, Surge & inrush protection (SIP), Surge & inrush |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 650 W |
Performance | |
| Noise level | 24.7 dB |
| Mean time between failures (MTBF) | 80000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Cybenetics certification | Silver |
| Cybenetics noise rating | Standard++ |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Illumination | No |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 450, 550, 650 |
| Peripheral (Molex) power cable length | 750 mm |
| PCI Express power cable length | 67 cm |
| CPU power cable length | 85 cm |
| Number of EPS connectors | 2 |
| Number of SATA power cables | 2 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.96 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.36 kg |
| Package height | 125 mm |
| Package width | 240 mm |
| Package depth | 290 mm |
Logistics data | |
| Country of origin | China |
Packaging content | |
| Cables included | AC |
| Packaging content | User guide, Set of assembly elements, Velcro bands, Cable combs |
Certificates | |
| Compliance certificates | CE, RoHS, UKCA |
