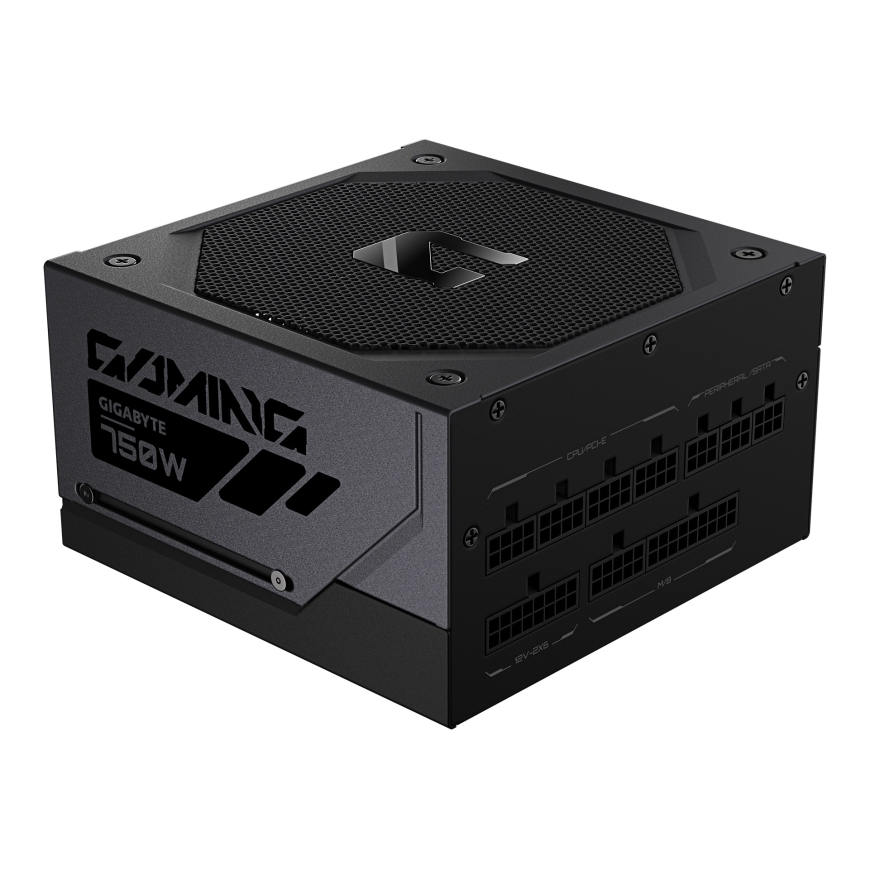

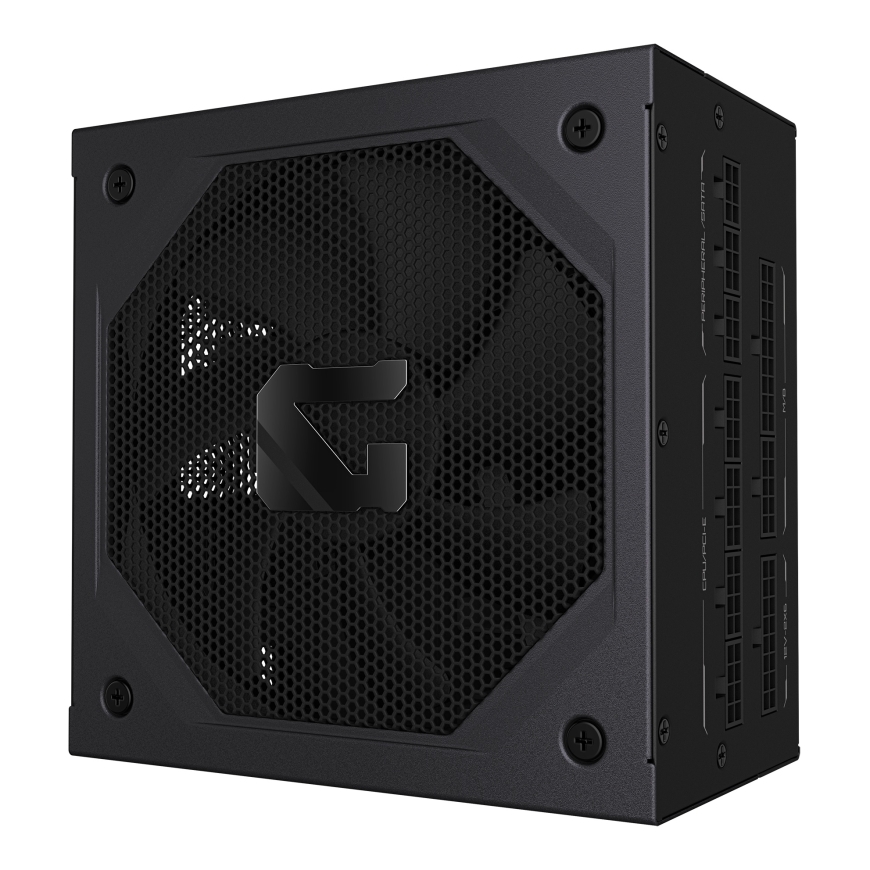

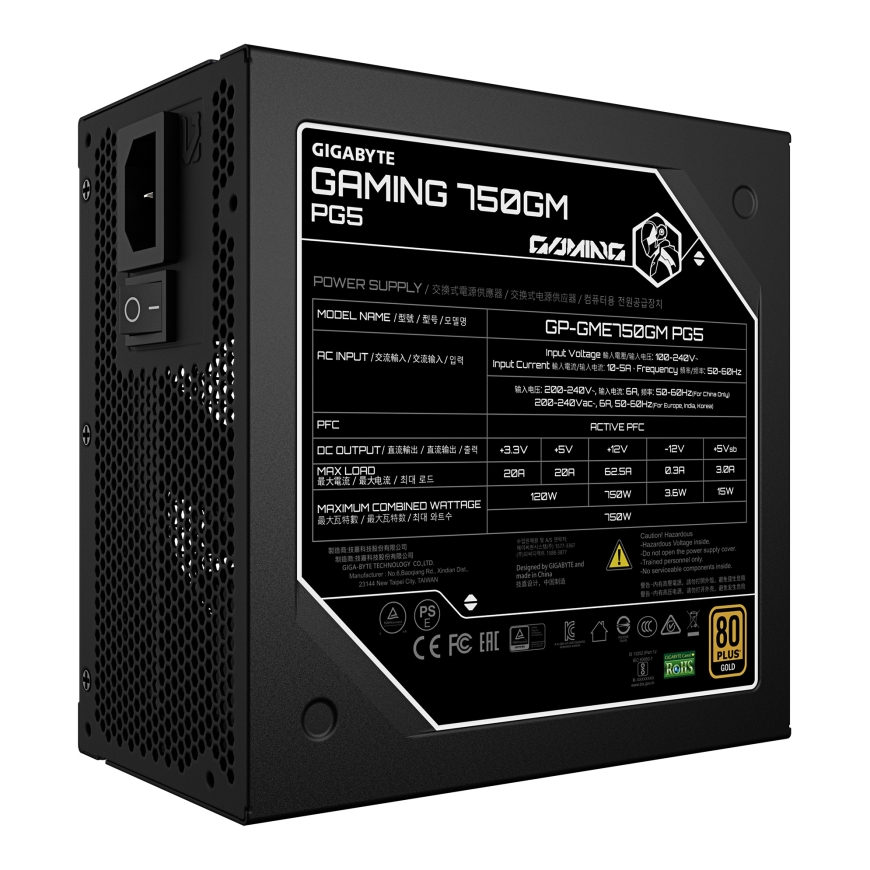

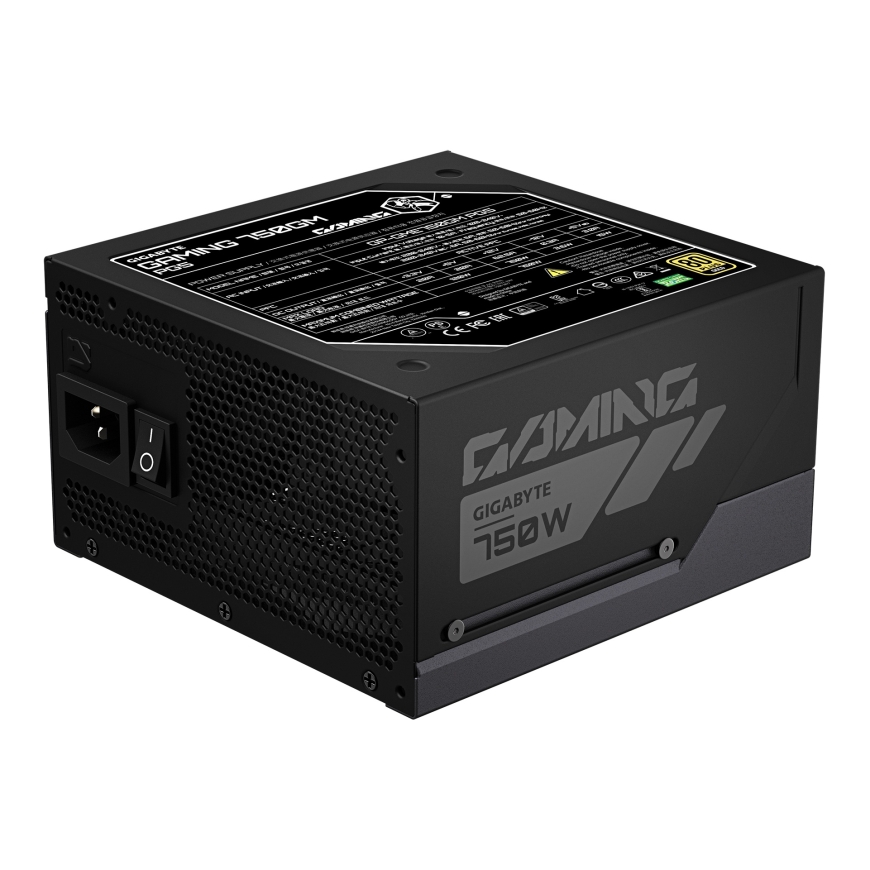

GIGABYTE GAMING 750GM PG5 power supply unit
139.00 €
Monthly payment from 4,48 €
4525308 GP-GME750GM PG5 EU
4719331557140
Goods will arrive at the Tallinn warehouse on 22.09.26
You are interested in this product?
All about the product
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.Power | |
| Hold time | 17 ms |
| Efficiency | 90% |
| Input current | 10 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, No load operation, Surge & inrush protection (SIP) |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Good signal delay range | 100 - 150 ms |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |

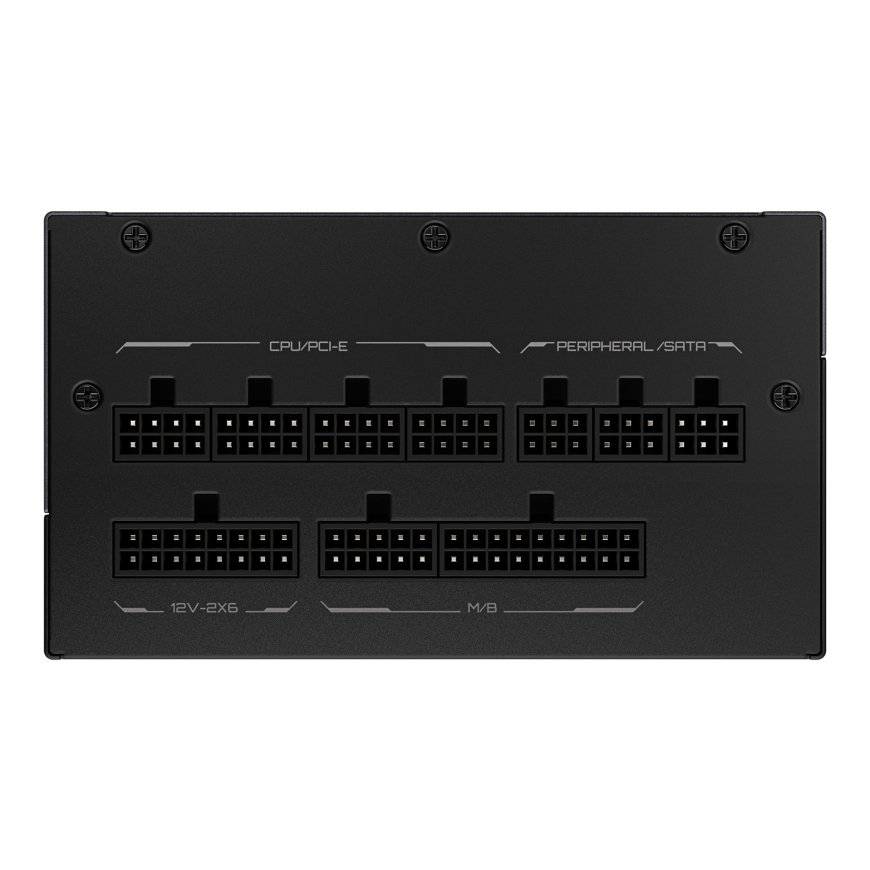

Ports & interfaces | |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 61 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 1 |
| Number of EPS connectors | 2 |
| Number of SATA power cables | 2 |
Weight & dimensions | |
| Weight | 2.49 kg |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 3.1 kg |
| Package type | Box |
| Package height | 129 mm |
| Package width | 302 mm |
| Package depth | 184 mm |
Logistics data | |
| Warranty period | 10 year(s) |
