Uni-T UT315A Vibration Tester
4409327 UT315A
6935750531518
Shipping 3-5 b.d.

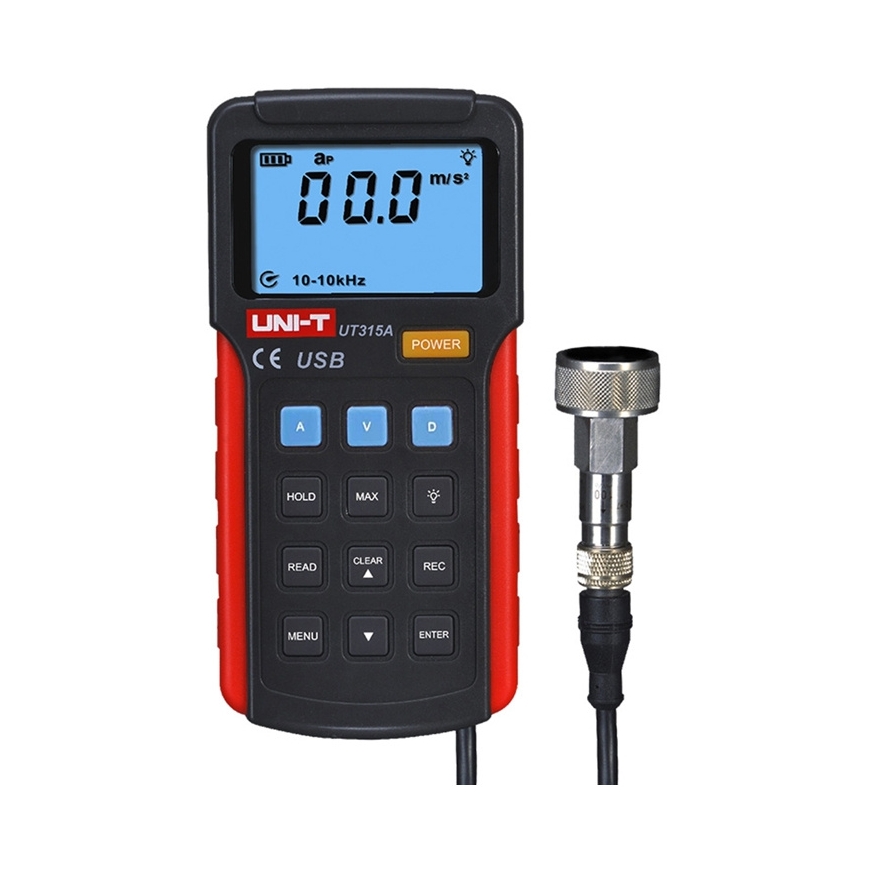

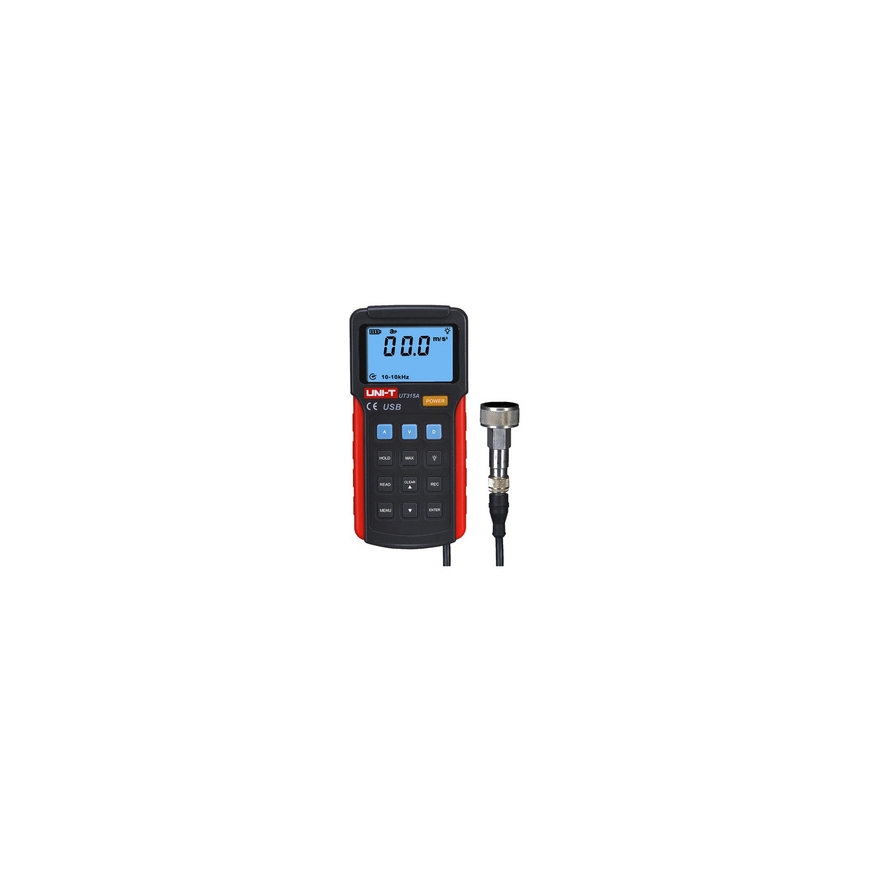

Uni-T UT315A Vibration Tester
The Uni-T UT315A vibration tester is a portable device for rapid diagnostics of rotating and reciprocating machinery, measuring acceleration (0–199.9 m/s²), vibration velocity (0–19.99 cm/s RMS), and displacement (1–1.999 mm P-P). A wide frequency range (up to 10 kHz for acceleration) and good accuracy allow for a realistic assessment of equipment condition and the detection of abnormalities at an early stage. The device offers practical features for daily use, such as result hold, auto-off, and low-battery warning, and operates for over 8 hours on a single 9V battery. It is a tool that performs well in both service and maintenance applications.
Precise measurements and a wide operating range
The UT315A measures three key vibration parameters, allowing you to select the appropriate diagnostic method for a specific machine. Thanks to its wide frequency range, you can analyze both slow and fast vibrations, which translates to more reliable results and better control over the technical condition of equipment. In practice, this means faster detection of play, imbalance, or component wear.
Features that make daily work easier
The device was designed with user convenience in mind. The Data Hold function allows you to freeze the result on the screen, making it easier to read in difficult conditions, while the automatic shut-off saves battery life. The clear display with a resolution of 2000 counts ensures good data visibility, and the compact housing fits comfortably in the hand and performs well in the field.
Robust construction and portability
The UT315A is lightweight and handy, making it easy to take along for inspections or service calls. Powering it with a common 9V battery simplifies operation, and the included carrying case protects the equipment during transport. CE and UKCA certifications confirm compliance with standards, ensuring safe use.
Included in the set
- Uni-T UT315A vibration tester
- 9V battery (6F22)
- Storage case
- User manual
- Manufacturer’s packaging
| Manufacturer | Uni-T |
|---|---|
| Model | UT315A |
| Acceleration measurement | 0 ~ 199.9 m/s² |
| Frequency range (acceleration) | 10 Hz ~ 10 kHz |
| Accuracy (acceleration) | ±(5% + 0.2 m/s²) |
| Velocity measurement | 0 ~ 19.99 cm/s (RMS) |
| Frequency range (velocity) | 10 Hz ~ 1 kHz |
| Accuracy (velocity) | ±(5% + 0.02 cm/s) |
| Displacement measurement | 1 ~ 1.999 mm (P-P) |
| Frequency range (displacement) | 10 Hz ~ 500 Hz |
| Accuracy (displacement) | ±(5% + 0.002 mm) |
| Display | 2000 counts |
| Functions | Data Hold, auto power off, low battery indicator |
| Power supply | 9V battery (6F22) |
| Weight | 395 g |
| Dimensions | 166 × 80 × 30 mm |
| Certifications | CE, UKCA |
