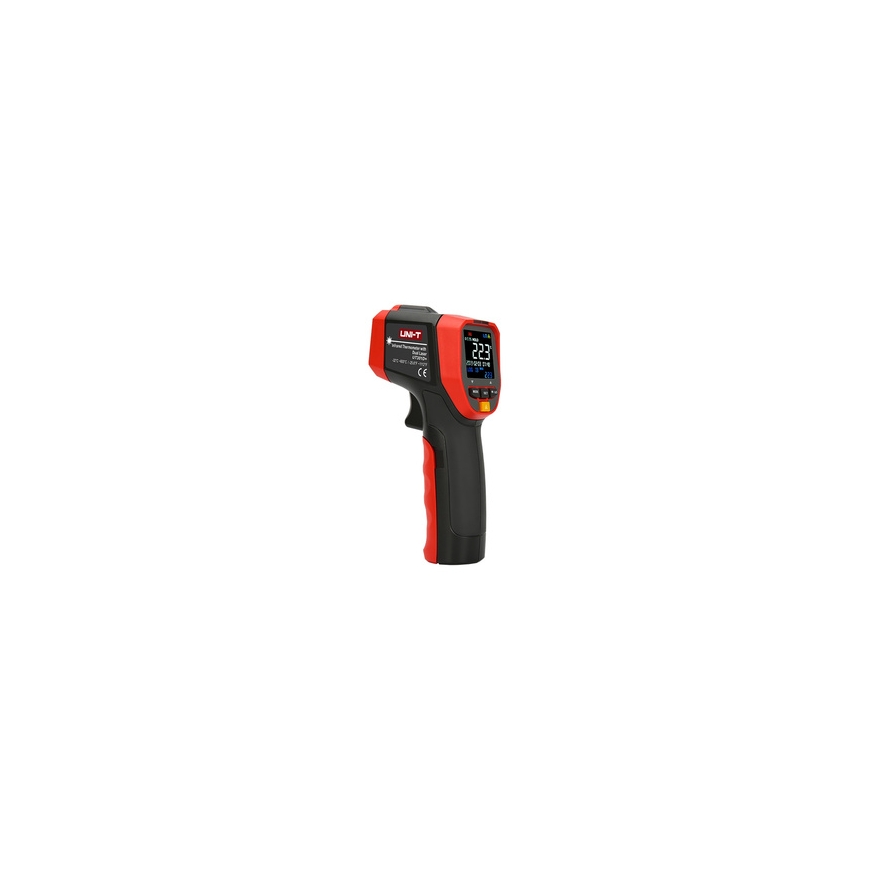

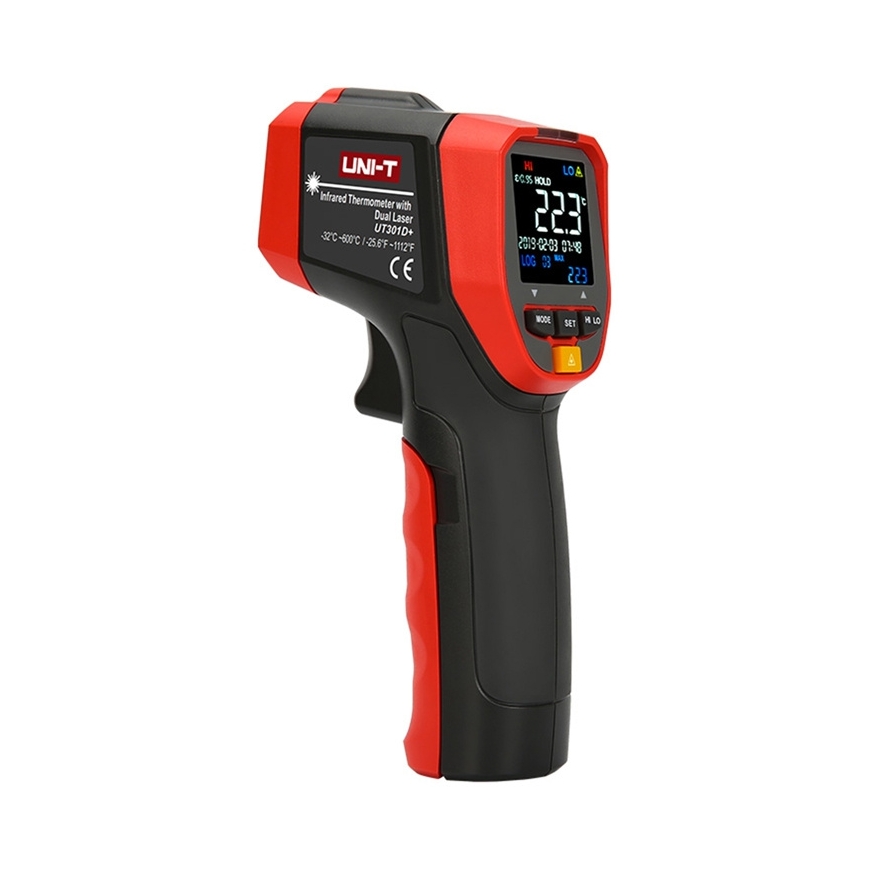

Uni-T UT301D+ Infrared Thermometer
4407201 UT301D+
6935750573013
Shipping 3-5 b.d.
Uni-T UT301D+ Infrared Thermometer
The Uni-T UT301D+ infrared thermometer is a practical tool for non-contact temperature measurement across a wide range from -32°C to 600°C, making it ideal for maintenance, diagnostics, and system monitoring. The device offers high repeatability (0.7%) and a fast response time of less than 250 ms, allowing for efficient detection of deviations. It is worth noting the varying measurement accuracy—for temperatures above 0°C, it is ±1.5°C or ±1.5%, while for sub-zero temperatures, it increases according to the formula ±(1.5°C + 0.1°C/°C), which translates to a larger margin of error at very low temperatures. Adjustable emissivity (0.1–1.0) with the ability to save 5 settings and a dual laser facilitate obtaining more reliable results on various surfaces.
Accurate measurement and quick analysis
The UT301D+ allows for quick and convenient temperature checks without contact with the object. The short response time means the result appears almost instantly, which is useful when working with electrical installations or HVAC systems. Thanks to the MAX/MIN/AVG/DIFF modes, the user can more easily analyze temperature changes and detect anomalies, while the HOLD function allows the result to be frozen on the screen for further analysis.
Features for Enhanced Control and Convenience
The device is equipped with a clear color EBTN display and adjustable visual and audible alarms that notify the user when set temperature thresholds are exceeded. The ability to store up to 99 measurements and the cyclic measurement function facilitate the monitoring of processes over time. Additional features, such as backlighting, a low-battery indicator, and the option to mount the device on a tripod, enhance user comfort in various working conditions.
Included in the set
- Uni-T UT301D+ thermometer
- 9V battery
- Carrying case
- User manual
- Manufacturer’s packaging
| Manufacturer | Uni-T |
|---|---|
| Model | UT301D+ |
| Temperature range | -32°C to 600°C |
| Accuracy | >0°C: ±1.5°C or ±1.5%; ≤0°C: ±(1.5°C + 0.1°C/°C) |
| Repeatability | 0.7°C or 0.7% |
| Response time | ≤250 ms |
| D:S ratio | 12:1 |
| Emissivity | 0.1–1.0 (adjustable, 5 presets) |
| Spectral response | 8–14 µm |
| Laser | Dual Laser |
| Measurement memory | up to 99 results |
| Modes | MAX/MIN/AVG/DIFF |
| Alarms | visual and audible (adjustable) |
| Display | color EBTN |
| Power supply | 9V battery |
| Operating temperature | 0°C to 50°C |
| Storage temperature | -20°C to 60°C |
| Operating humidity | <90% RH (non-condensing) |
| Drop resistance | 1 m |
| Dimensions | 160 × 74 × 48 mm |
| Weight | 204 g |
