Gigabyte H810M S2H GEN5 | Processor family Intel | Processor

All about the product

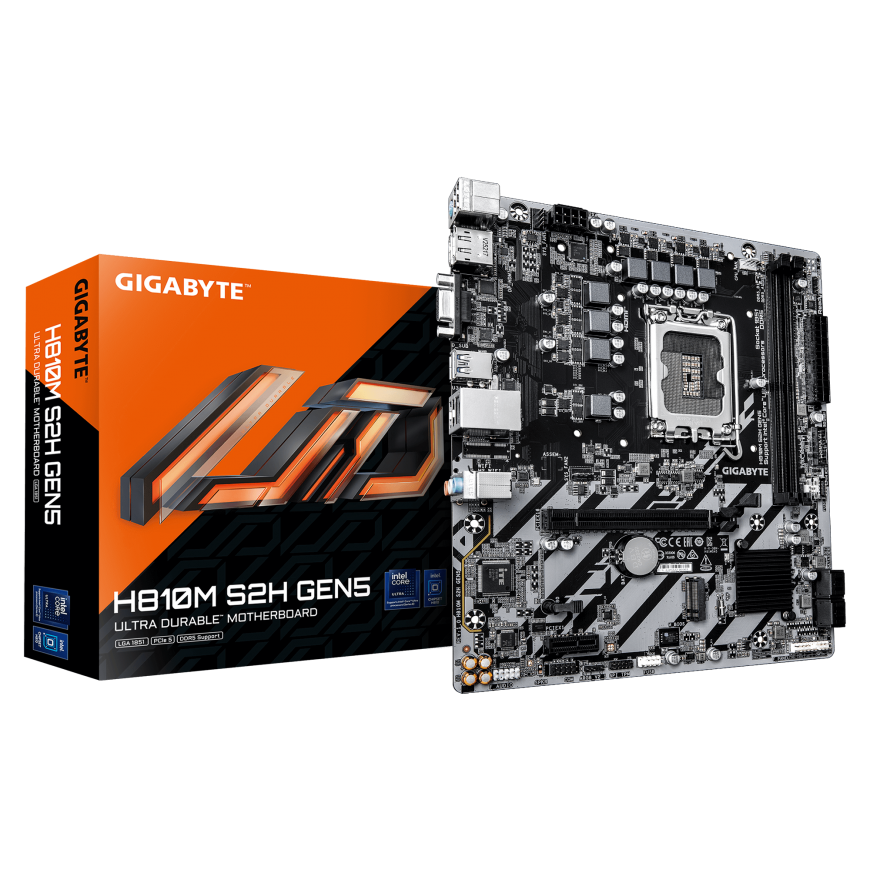

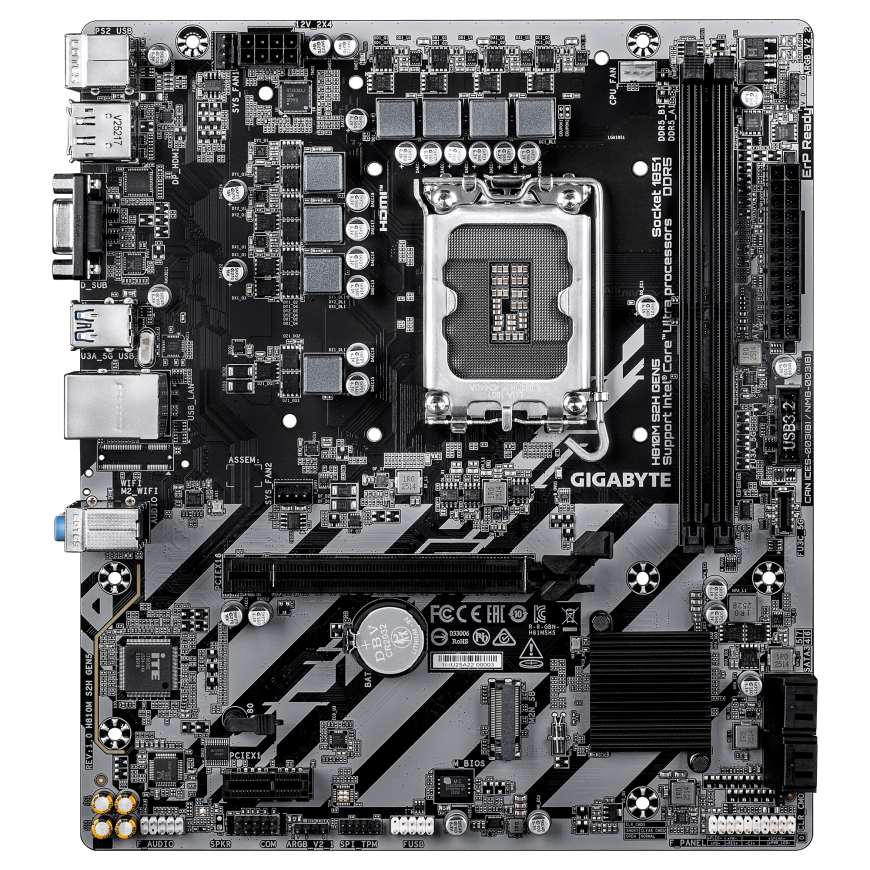

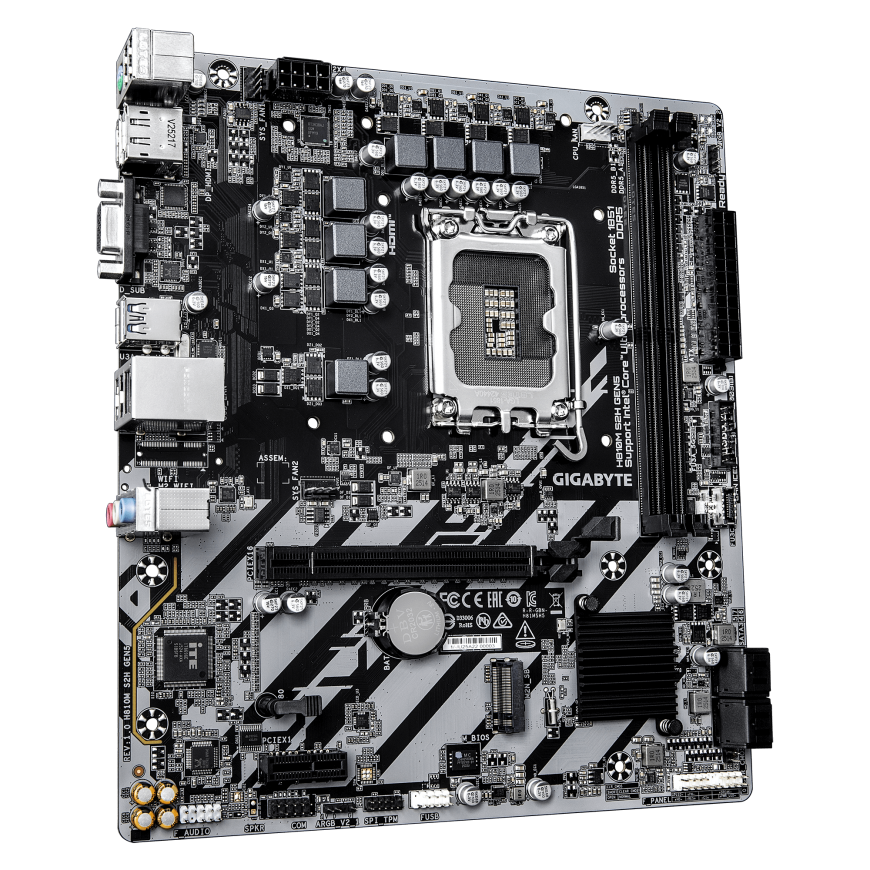

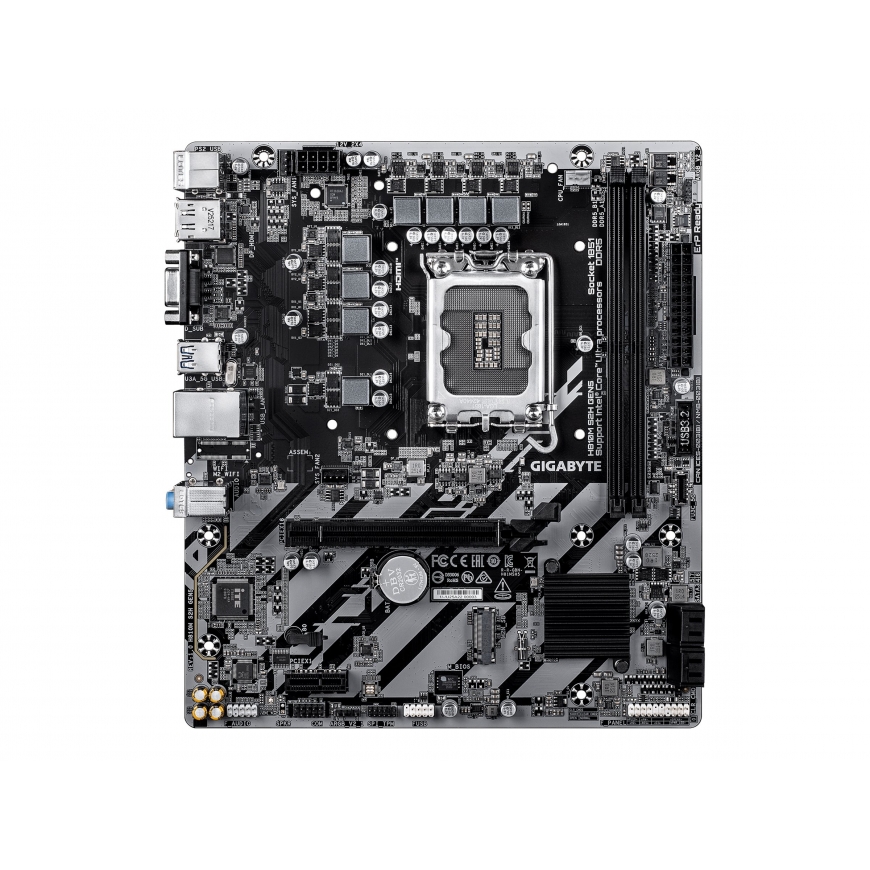

GIGABYTE H810M S2H GEN5 Motherboard: Intel® H810 Express Size: Micro ATX (244x215 mm) Processor support: Intel® Core™ Ultra Processor socket: LGA1851 Memory: 2x DIMM slots supporting up to 128 GB, DDR5 6400/5600 MT/s memory modules Dual channel memory architecture Support for Extreme Memory Profile (XMP) memory modules Graphics ports: 1x HDMI with a maximum resolution of 4096x2160 at 60 Hz – supports HDMI 2.1 and HDCP 2.3 1x DisplayPort with a maximum resolution of 3840x2160 at 60 Hz – supports DisplayPort 2.1 version 1x D-Sub port with a maximum resolution of 1920x1200 at 60 Hz Audio chip: Realtek® Audio High Definition Audio Codec 2/4/5.1/7.1 channel Ethernet: Realtek® GbE LAN WLAN + Bluetooth: no Expansion slots: 1x PCI Express x16, supporting PCIe 5.0 and operating x16 (PCIEX16) 1x PCI Express x1, supporting PCIe 3.0 and operating x4 (PCIEX1) RAID controller: no Storage: 1x M.2, M key, type 2280 – PCIe 4.0 x4/x2, supporting SSD, 4x SATA 6Gb/s USB: Rear USB 1x USB 3.2 Gen 1 5x USB 2.0/1.1 Front USB 1x USB Type-C® header with USB 3.2 Gen 1 support 1x USB 3.2 Gen 1 header – supports 1 additional USB 3.2 Gen 1 1x USB 2.0/1.1 header – supports an additional 1 USB 2.0/1.1 Internal headers: Power 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connectors Fan and cooling related 1x CPU fan header 2x system fan headers related to memory, 1x M.2 slot (M key), 4x SATA 6Gb/s port, USB, 1x USB Type-C® header, 1x USB 3.2 Gen 1 header, 1x USB 2.0/1.1 header, others: 2x addressable RGB Gen2 LED strip headers, 1x front panel header, 1x front panel audio header, 1x Trusted Platform Module header (for GC-TPM2.0 SPI V2 module only), 1x serial port header, 1x CMOS clear jumper. Rear panel connectors: 1x PS/2 keyboard/mouse, 1x HDMI, 1x DisplayPort, 1x D-Sub, 1x USB 3.2 Gen 1, 5x USB 2.0/1.1, 1x RJ-45, 3x audio jack, BIOS: 1x 256Mb flash memory, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Manufacturer's website link: https://www.gigabyte.com/Motherboard/H810M-S2H-GEN5
