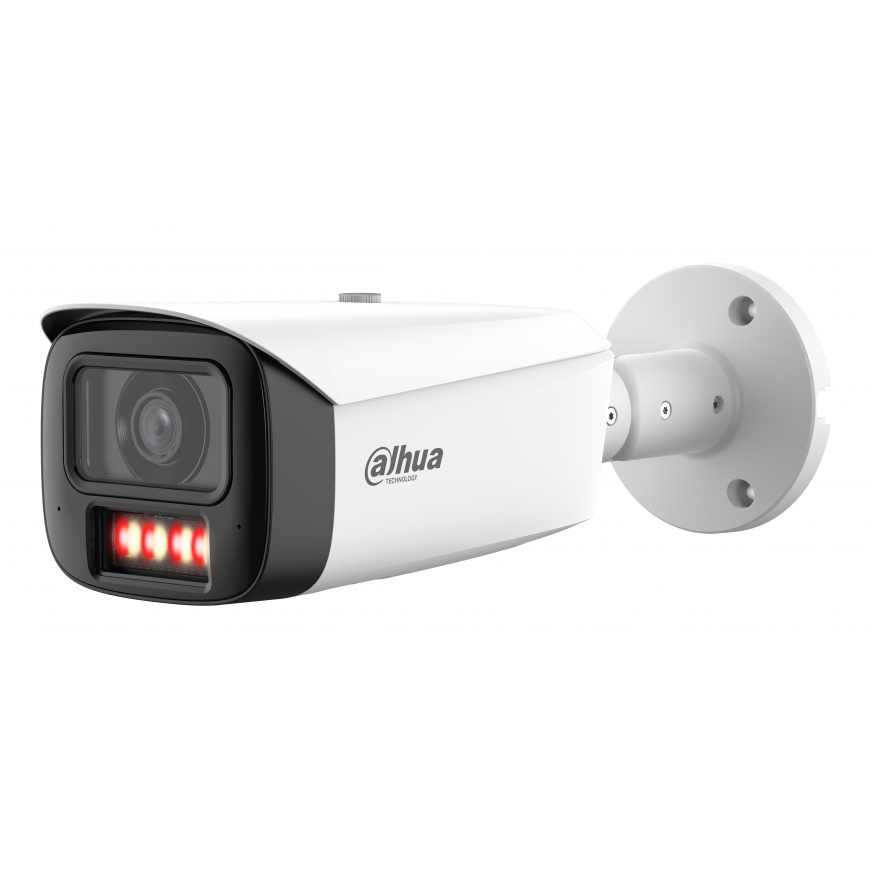

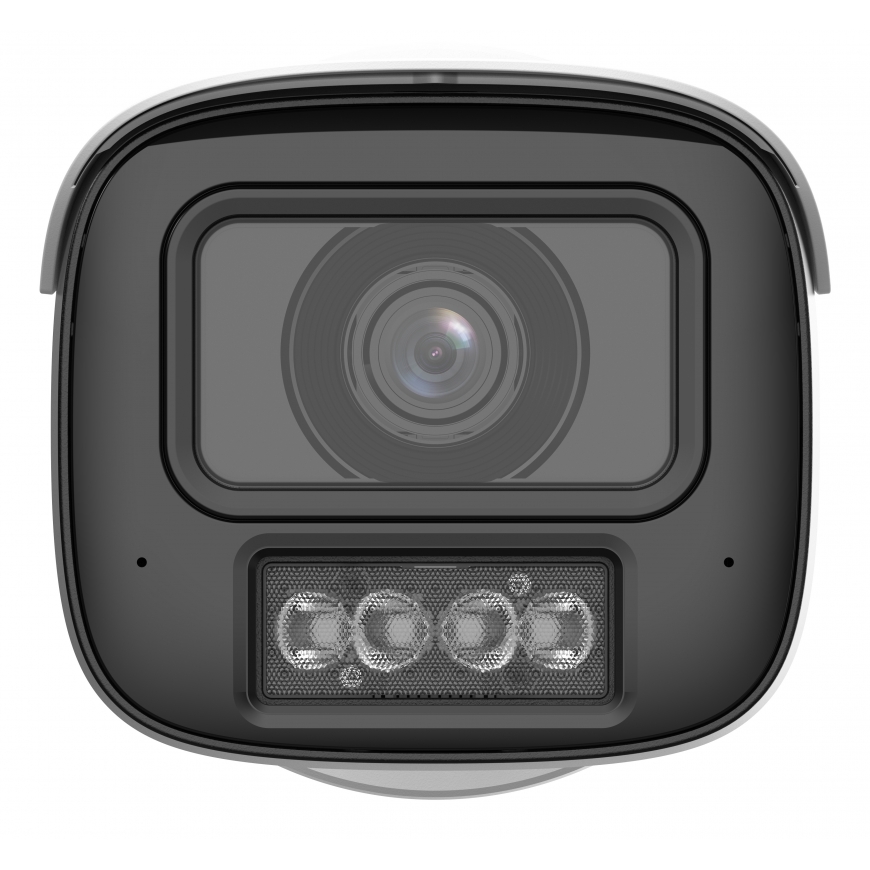

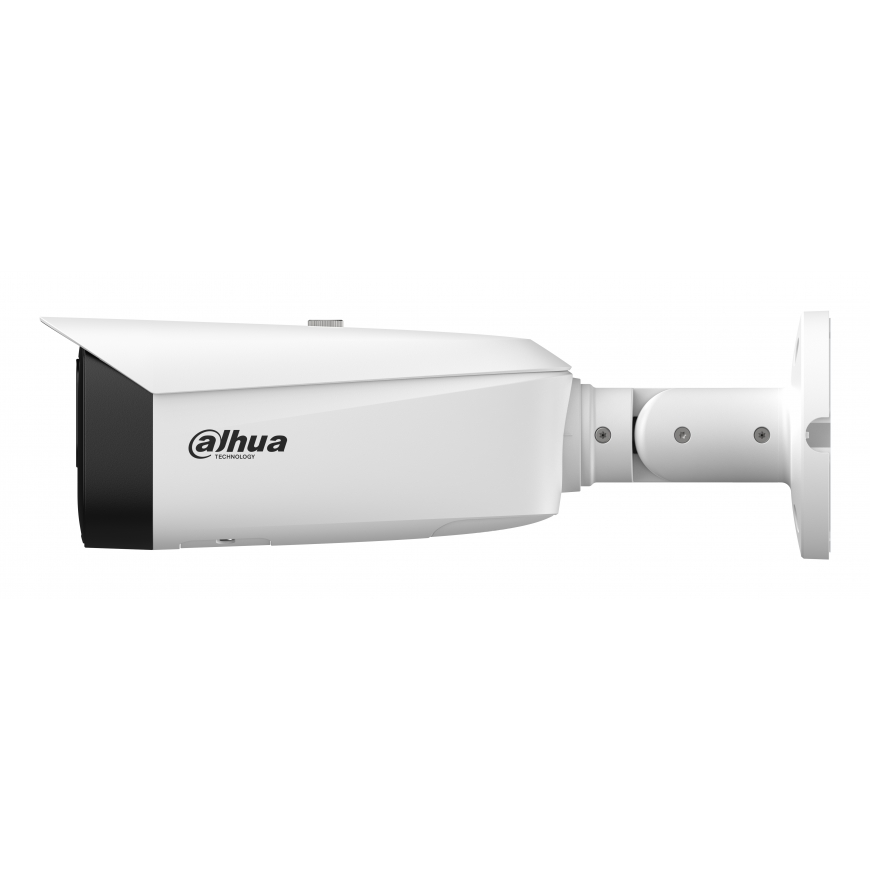

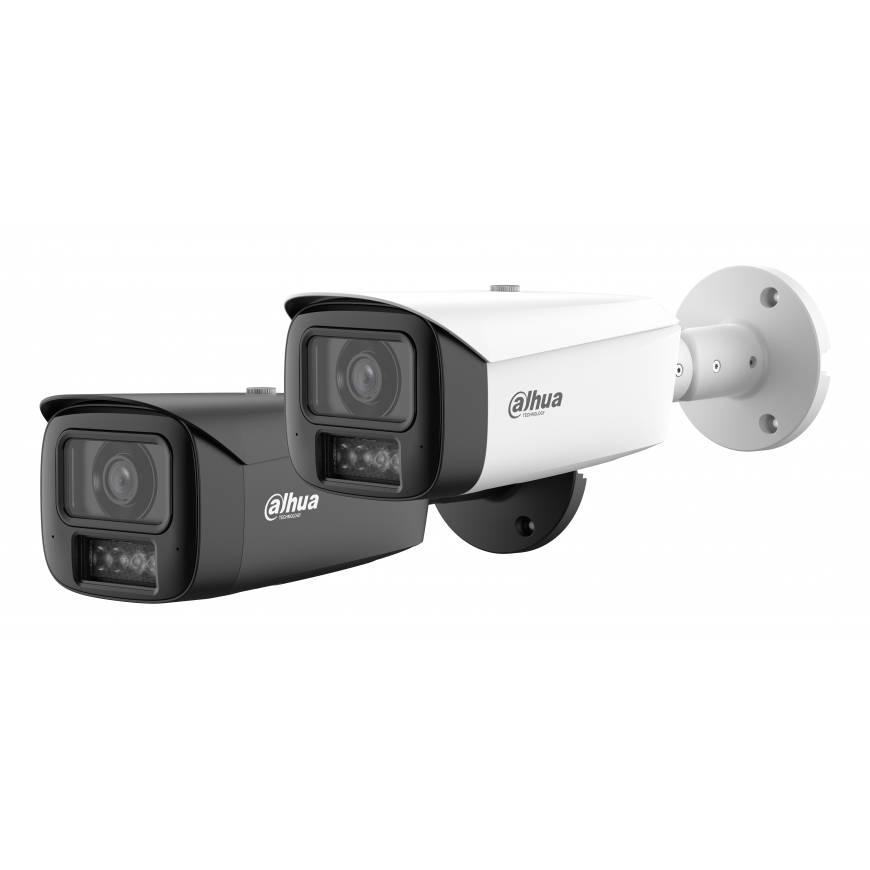

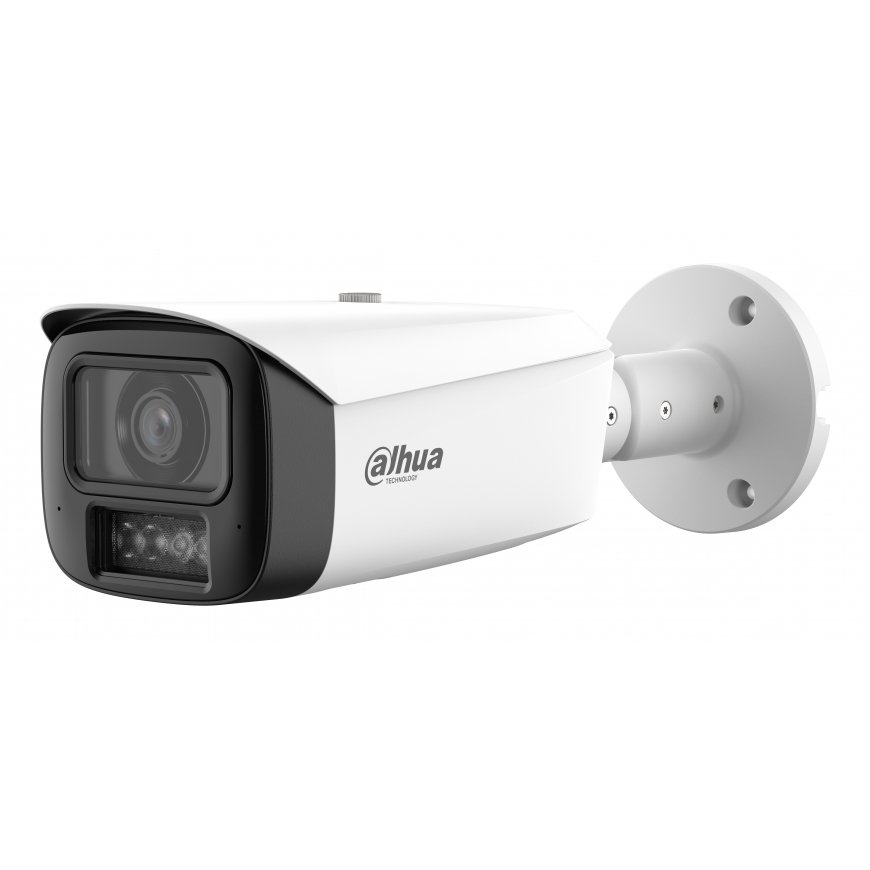

Dahua Technology WizMind IPC-HFW5659T1-ASE-PV-PRO Bullet IP security camera Outdoor 3072 x 2048 pixels Ceiling/Wall/Pole
598,00 €
Monthly payment from 16.30 €
4279318 IPC-HFW5659T1-ASE-PV-0360B-PRO
6937552411050
Shipping 2-3 b.d.
You are interested in this product?
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Series Overview
With its deep learning algorithms, the WizMind 5 Series camera offers advanced analytical capabilities for both audio and video. It integrates intelligent features such as video metadata, AcuPick, face detection, perimeter protection, and people counting. Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions. Equipped with AI-ISP imaging technology, it offers excellent night vision performance. The series is designed for durability, being dust-proof, waterproof, and vandal-proof, in compliance with IP67 and IK10 standards, though support for these certifications may vary across models.
Xinghan Large-Scale AI Models-Vision
Xinghan Large-Scale AI Models-Vision seamlessly expands the storage and operational capacity of algorithmic models through the powerful integration of edge AI model algorithms and NPU computing power. Engineered with a lightweight transformer architecture and enhanced by model distillation and quantization techniques, it optimizes the computing power consumption of ViT operators. This enables the system to collaborate on multiple tasks simultaneously through joint inference between small and large models optimized for edge devices.
Self-Learning
Empowered by deep learning technology, the device recognizes different types of targets and their statuses through learning and analyzing target features to detect targets and filter out false alarms.
WizColor Technology
Dahua WizColor Technology seamlessly combines with the powerful AI-ISP, large pixel size sensor and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances.
AcuPick
This industry-leading search technology effectively utilizes both front-end and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dustproof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Performance | |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| People counting function | Yes |
| Dynamic range | 130 dB |
Design | |
| Housing material | Plastic, Metal |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Form factor | Bullet |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0.0001 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| White balance | Auto, Manual, Outdoor, Natural, Street lamp, Regional custom |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 93° |
| Lens viewing angle, vertical | 50° |
| Lens viewing angle, diagonal | 111° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 1 |
| Closest focusing distance | 3.2 m |
| Detect distance | 85.6 m |
| Observe distance | 34.3 m |
| Recognize distance | 17.1 m |
| Identify distance | 8.6 m |
Video | |
| Maximum resolution | 3072 x 2048 pixels |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265, M-JPEG, H.264B, H.264H |
| Noise reduction | Yes |
| Video streaming | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 6 MP |
| Video recording | Yes |
Audio | |
| Audio formats supported | PCM, G.726, G.711 A-law, G.711 μ-law, G.723 |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Built-in speaker(s) | Yes |
| Number of microphones | 2 |
Network | |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast |
| Bluetooth | No |
Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 1 TB |
| ROM capacity | 4000 MB |
| RAM capacity | 2000 MB |
Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security | |
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire, People counting |
| Mirror | Yes |
| Digital watermark | Yes |
| Human and vehicle targets classification | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Network access storage (NAS) | Yes |
Power | |
| Power consumption (typical) | 4.1 W |
| DC output voltage | 12 |
| Power consumption (max) | 21.6 W |
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
| Power source type | DC |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions | |
| Weight | 1.09 kg |
| Width | 94.4 mm |
| Depth | 288.4 mm |
| Height | 84.7 mm |
| Length | 288.4 mm |
Packaging content | |
| Manual | Yes |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 4 |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 80 m |
System requirements | |
| Mobile operating systems supported | Android, iOS |
Packaging data | |
| Package weight | 1.39 kg |
| Package type | Box |
Sustainability | |
| Compliance certificates | CE |
