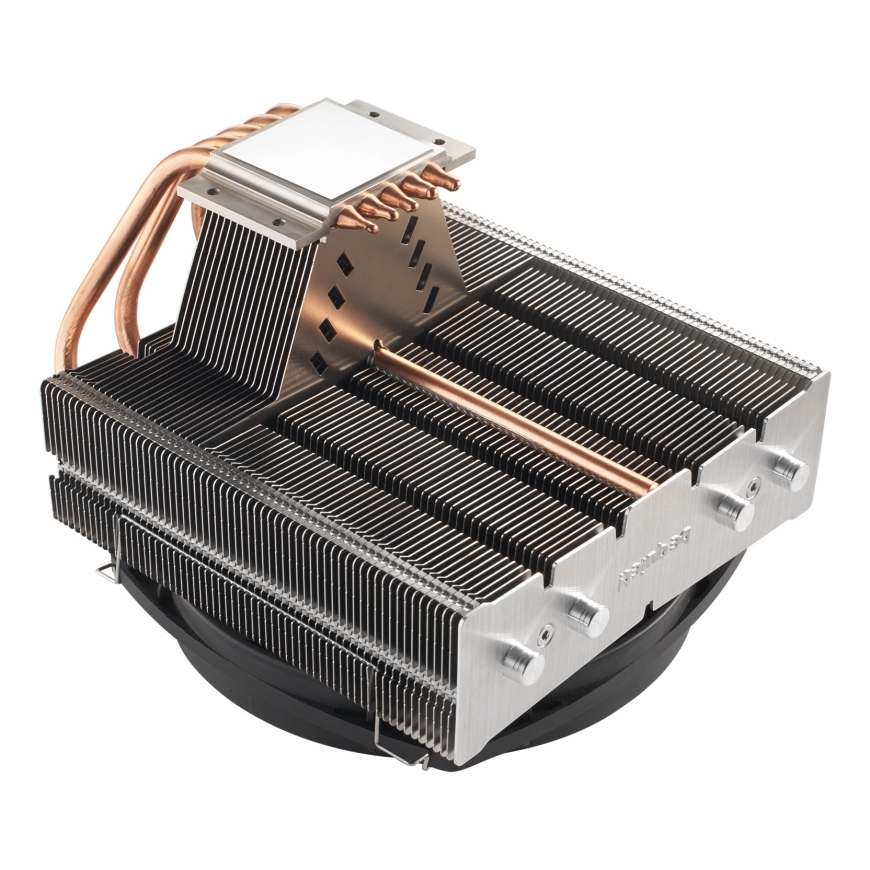

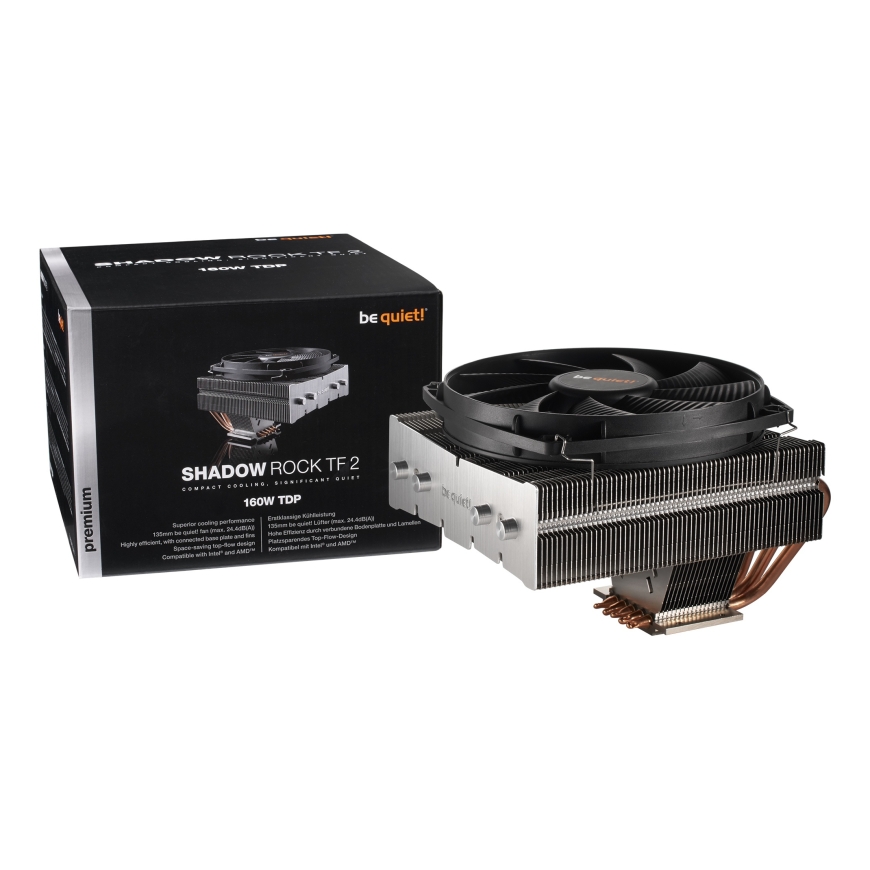

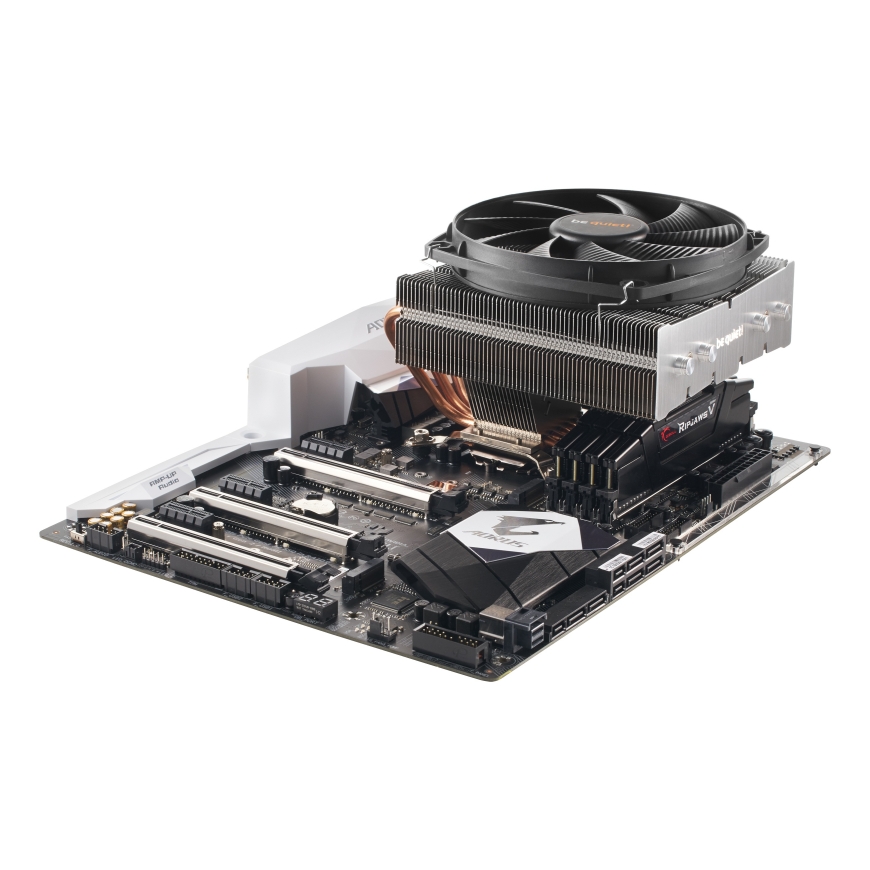

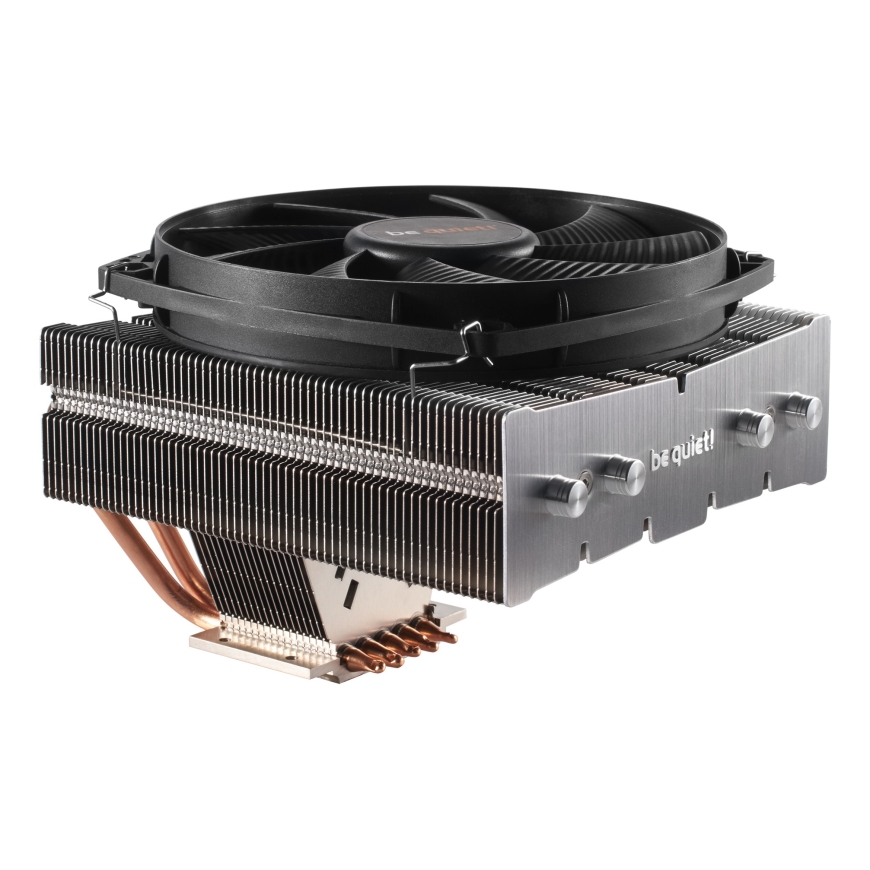

be quiet! Shadow Rock TF 2 Processor Cooler 13.5 cm Black, Copper, Silver
425444 BK003
4260052185391
Shipping 13-14 b.d.
All about the product
HIGH-PERFORMANCE HEAT PIPES

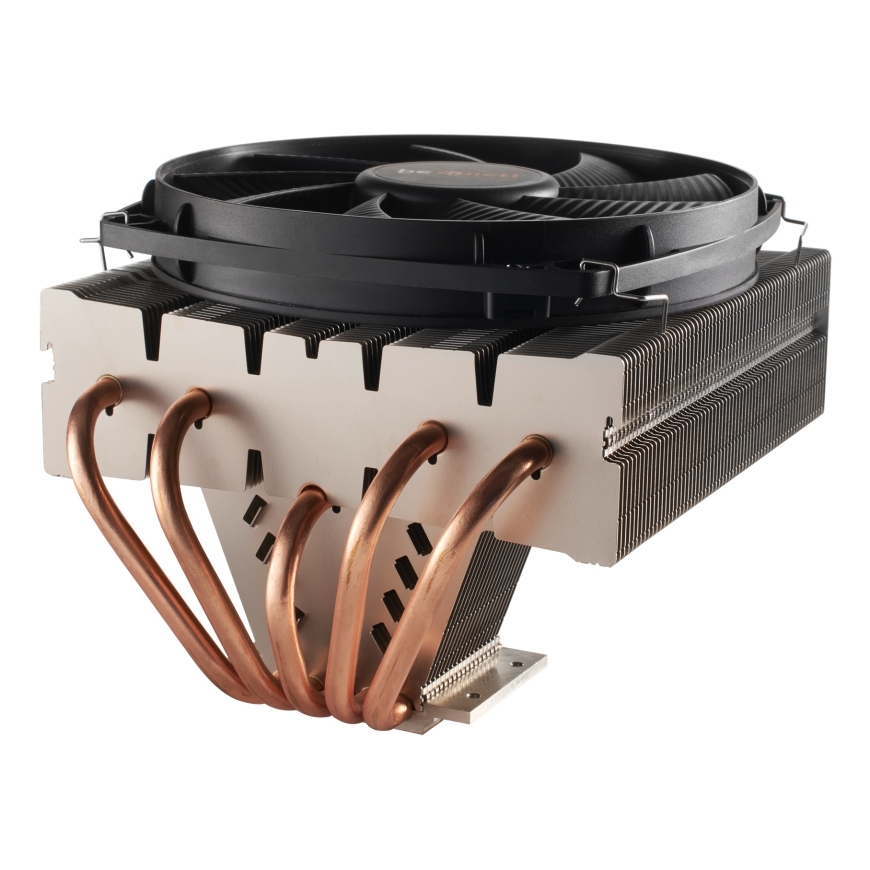

Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.
DIRECT CONNECTION OF BASEPLATE AND FINS
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.
EXTREMELY SILENCE-OPTIMIZED OPERATION
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM3+, Socket AM4, Socket FM2+, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2+, Socket FM1, LGA 1200 (Socket H5), LGA 1366 (Socket B) |
| Type | Cooler |
| Fan diameter | 13.5 cm |
| Airflow | 113.8 m³/h |
| Maximum airflow | 67.8 cfm |
| Maximum air pressure | 2.1 mmH2O |
| Noise level (low speed) | 11.9 dB |
| Noise level (high speed) | 24.4 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 1400 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Rifle bearing |
| Suitable location | Processor |
Design | |
| Product colour | Black, Silver, Copper |
| Material | Aluminium, Copper |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 5 |
| Illumination LED | No |
| Fan connector | 4-pin |
| Number of fins | 57 |
| Fins material | Aluminium |
| Number of fan blades | 9 |
| Display type | Not applicable |
Power | |
| Rated current | 0.11 A |
| Power supply | 1.32 W |
| Rated voltage | 12 V |
Weight & dimensions | |
| Weight | 680 g |
| Package weight | 1.09 kg |
| Height | 112 mm |
| Width | 137 mm |
| Depth | 165 mm |
| Cable length | 0.2 m |
| Heat pipes diameter | 6 mm |
| Package height | 130 mm |
| Package width | 178 mm |
| Package depth | 203 mm |
| Fan dimensions (W x D x H) | 135 x 135 x 22 mm |
Packaging content | |
| Screws included | Yes |
| Thermal pad included | Yes |
Other features | |
| Heatsink dimensions (W x D x H) | 165 x 137 x 87 mm |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
