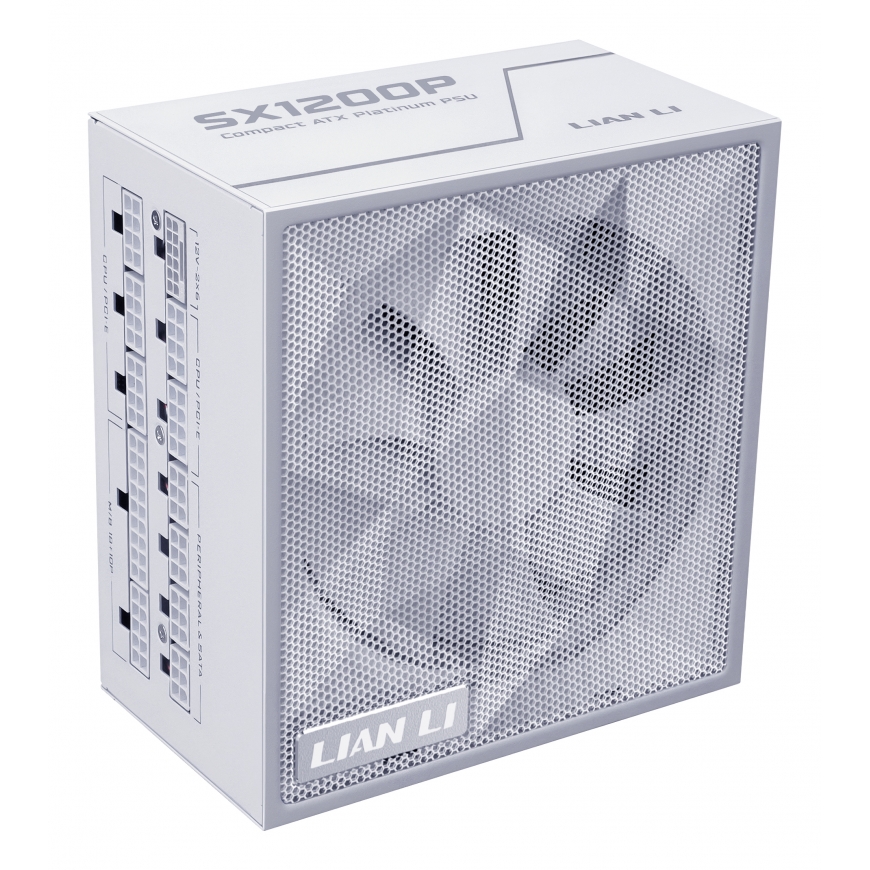

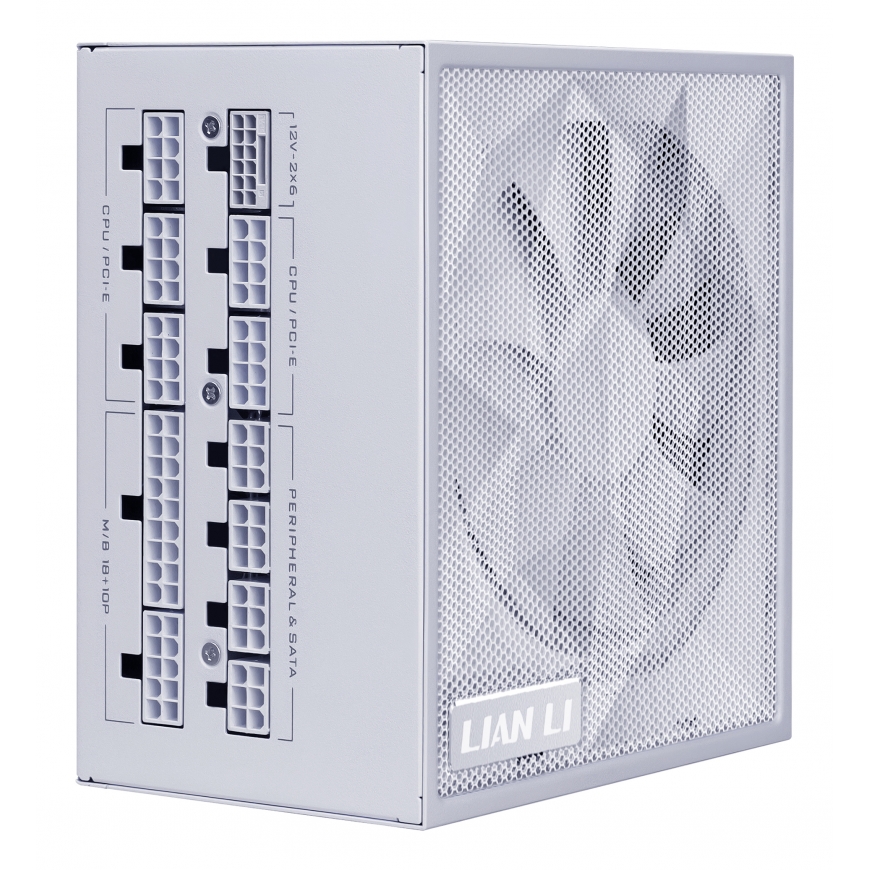

Lian Li SX1200P power supply unit 1200 W 20+4 pin ATX ATX White
219,00 €
Monthly payment from 6.54 €
4251678 SX1200P WHITE
4718466021304
2026-07-28
You are interested in this product?
Available in 1200W, 1000W, and 850W, in both black and white finishes. Choose the style and wattage that best fits your build.
Platinum Certified
Experience next-level performance with the SX Platinum Series, featuring 80 PLUS® Platinum and PPLP Platinum certifications and full compliance with ATX 3.1 and PCIe 5.1 standards. It delivers stable +12V power, whisper-quiet fanless cooling up to 40% load, and exceptional durability with premium Japanese capacitors backed by a 10-year warranty.
80 PLUS PLATINUM EFFICIENCY
The SX Platinum Series delivers up to 94% conversion efficiency at 50% load, achieving 80 PLUS® Platinum-level performance and reducing AC losses and heat, allowing your system to run cooler, quieter, and more cost-effective over time.
Smart Stop/Start for Quiet Operation

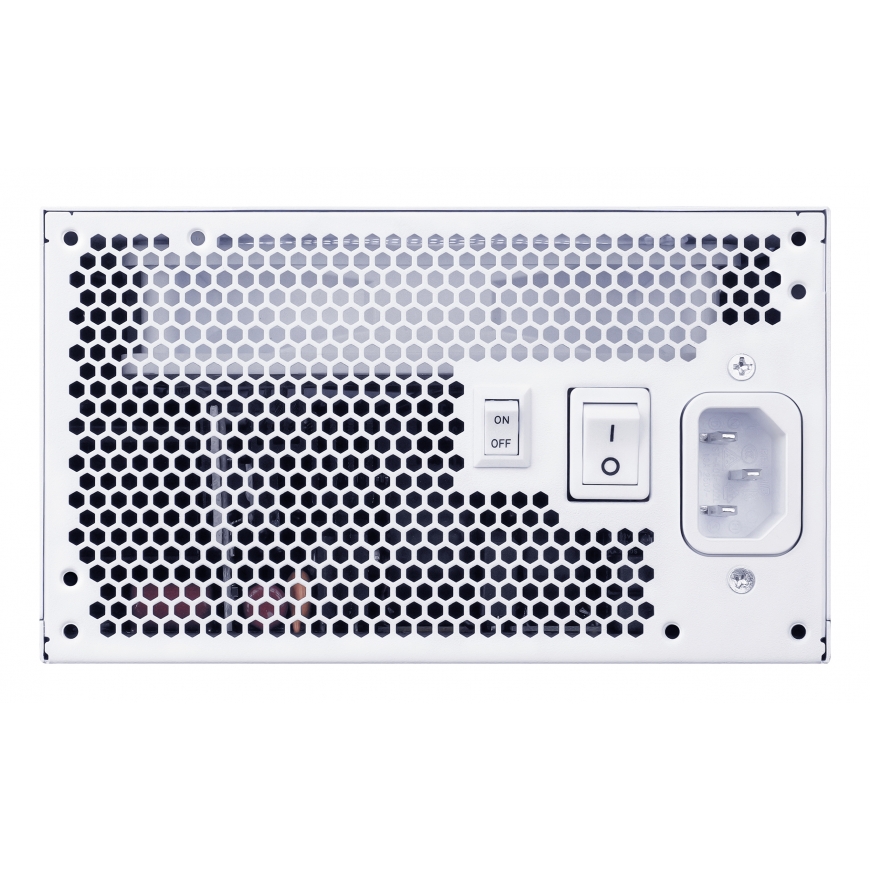

When the PSU load is at or below 40%, the fan enters its smart stop/start mode to keep the system quiet under low loads. This feature can also be enabled or disabled using the switch on the rear of the unit.

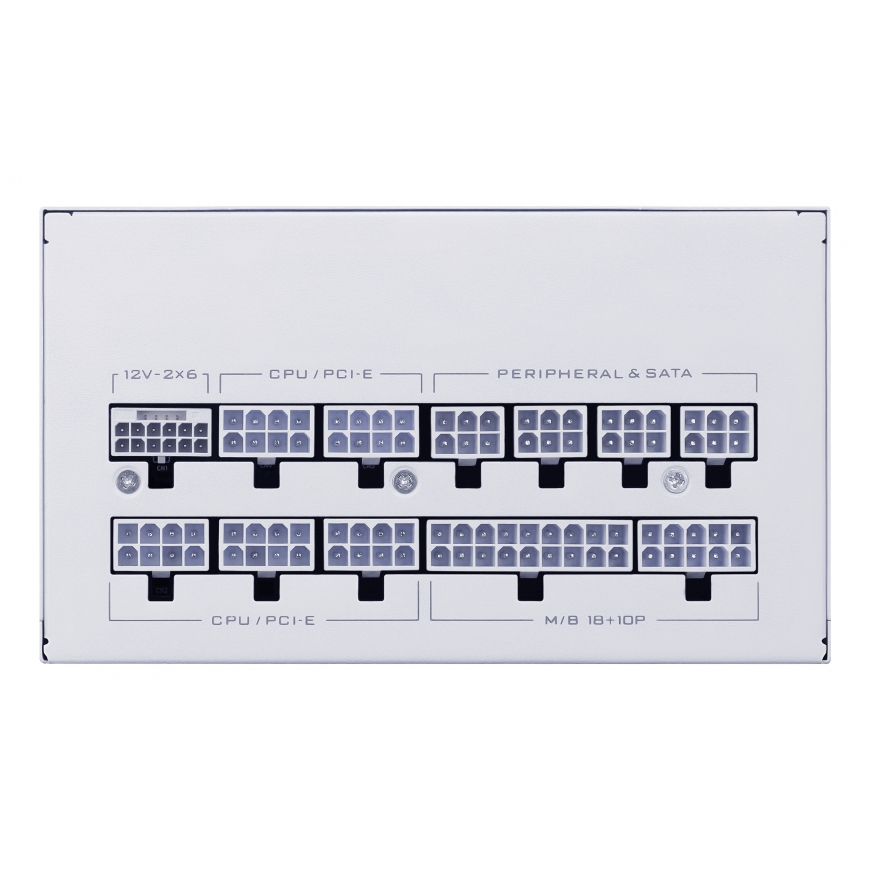

Fully Modular
A fully modular design gives you the freedom to install only the cables your setup calls for, keeping your system neat, optimized, and ready to showcase.
Braided Cables for a Finished Look
The SX Platinum Series includes braided cables and cable combs to enhance both appearance and durability, making cable management easier and giving your build a clean, professional finish.
ATX 3.1 and PCIe 5.1 Standards
Supporting power excursions up to 200% of its rated output, it delivers stable power for high-performance systems, ensuring smooth and reliable gameplay.
Stable Dual-Color PCIe 5.1 Connector
Equipped with a 12V-2×6 copper-alloy terminal for safe and efficient power delivery, enhancing system stability and performance.
Ample PCIe 6+2 Power Support
Includes three PCIe 6+2 cables, plus two additional 12V-2×6 to dual PCIe 6+2 Pin cables on the 1000W and 1200W models, providing reliable support for multiple devices.
TRIPLE PCIe 6+2 pin GPU SUPPORT
Provides up to five PCIe 6+2 connectors (four on the 850W model), meeting the power needs of high-end AMD graphics cards. This flexible design makes it an ideal choice for users planning future performance upgrades.
100% Japanese Rubycon 105°C Capacitors
All electrolytic and solid capacitors are sourced from leading Japanese brands, Rubycon, Nippon Chemi-Con, or Nichicon, and are 105°C-rated components. These high-grade capacitors ensure stable voltage regulation, lower ripple, and long-term reliability even under high-temperature operation.
Standard Size for Better Case Compatibility
The SX Platinum Series uses a highly compatible standard ATX form factor with a length of only 140 mm, fitting a wide range of cases and leaving more interior space during installation.
Ideal for users looking to install an ATX PSU in an mATX case, the 140 mm standard length offers better compatibility, frees up cable-routing space, and enhances the overall building experience.

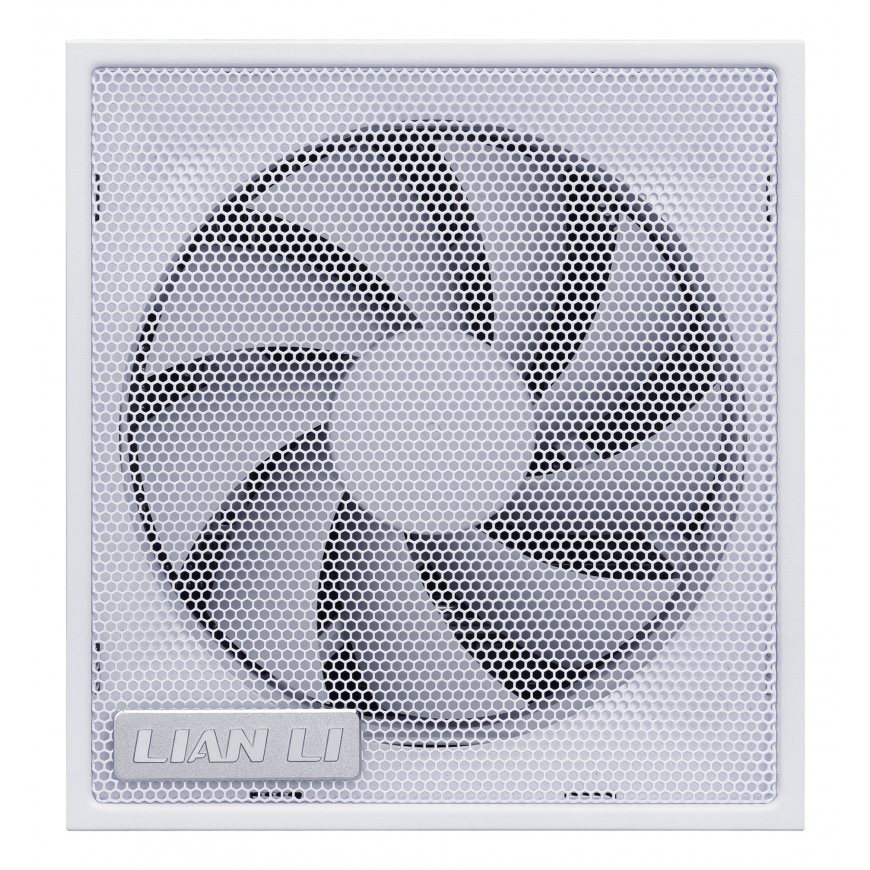

Vented Front Panel for Better Airflow
The patterned open-mesh front panel boosts both the PSU’s appearance and cooling performance.
Comprehensive Protection
Equipped with OCP, OVP, OTP, OPP, SCP, UVP, NLP, and SIP protection to guard against overcurrent, overvoltage, overheating, overload, and short-circuit conditions for reliable operation.
Power | |
| Input current | 7.5 - 14.8 A |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage, Overcharge, Surge & inrush protection (SIP) |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 1200 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | White |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 700, 400, 550, 850 |
| Peripheral (Molex) power cable length | 400, 550, 700, 850 |
| PCI Express power cable length | 55 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (16-pin) | 2 |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
