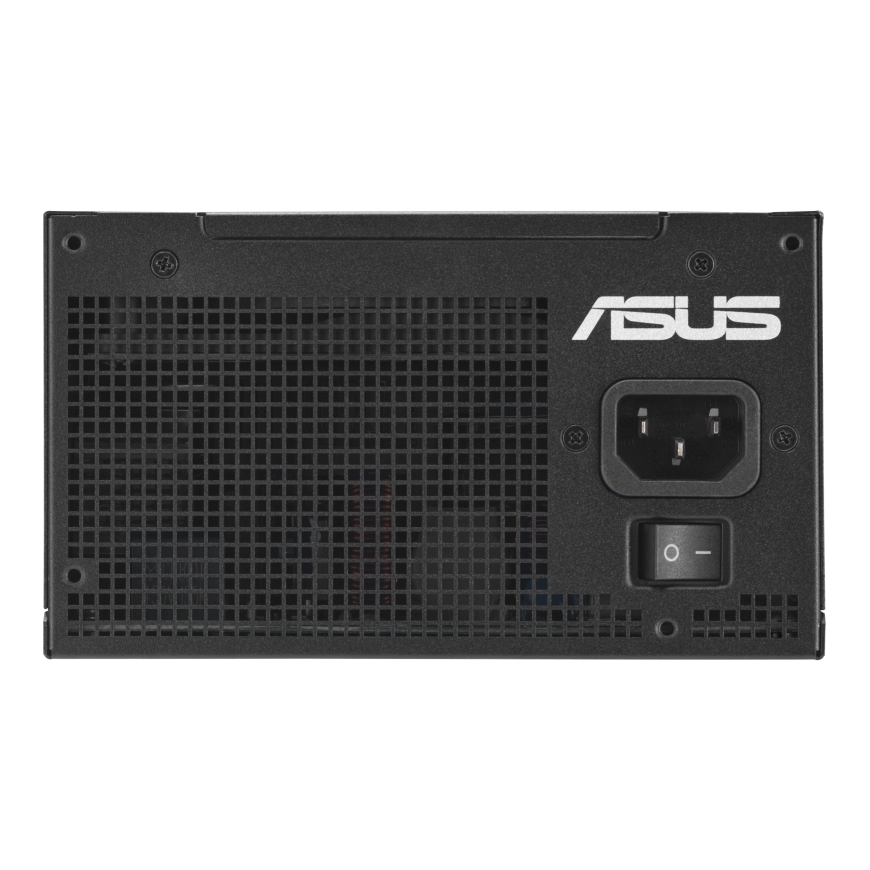

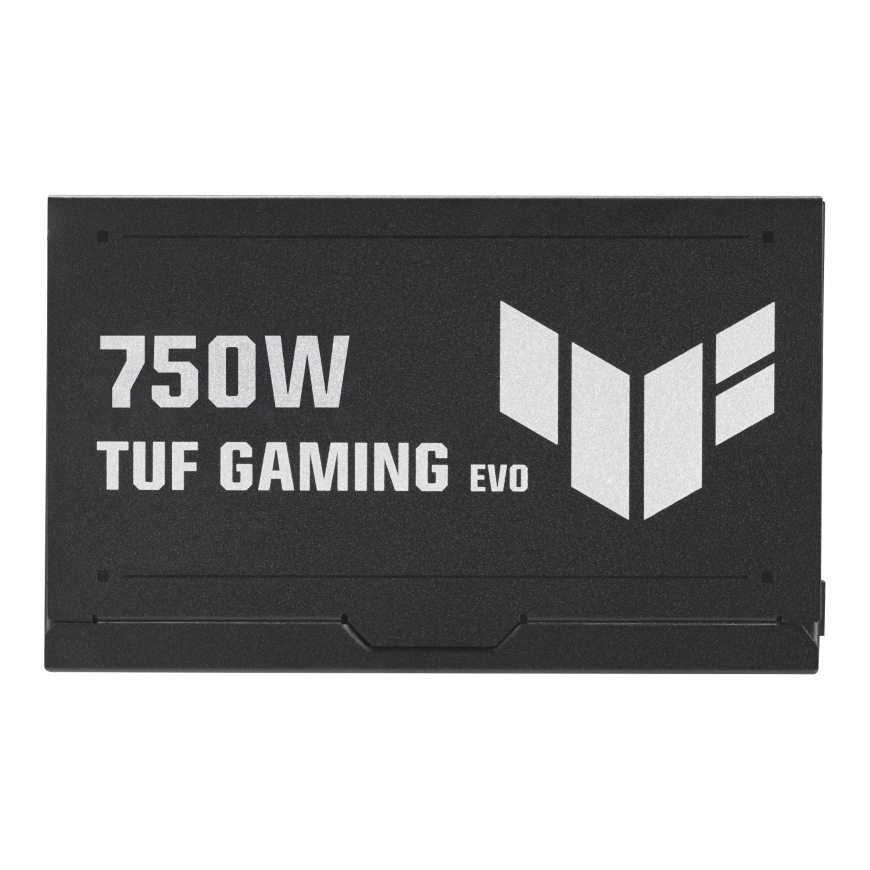

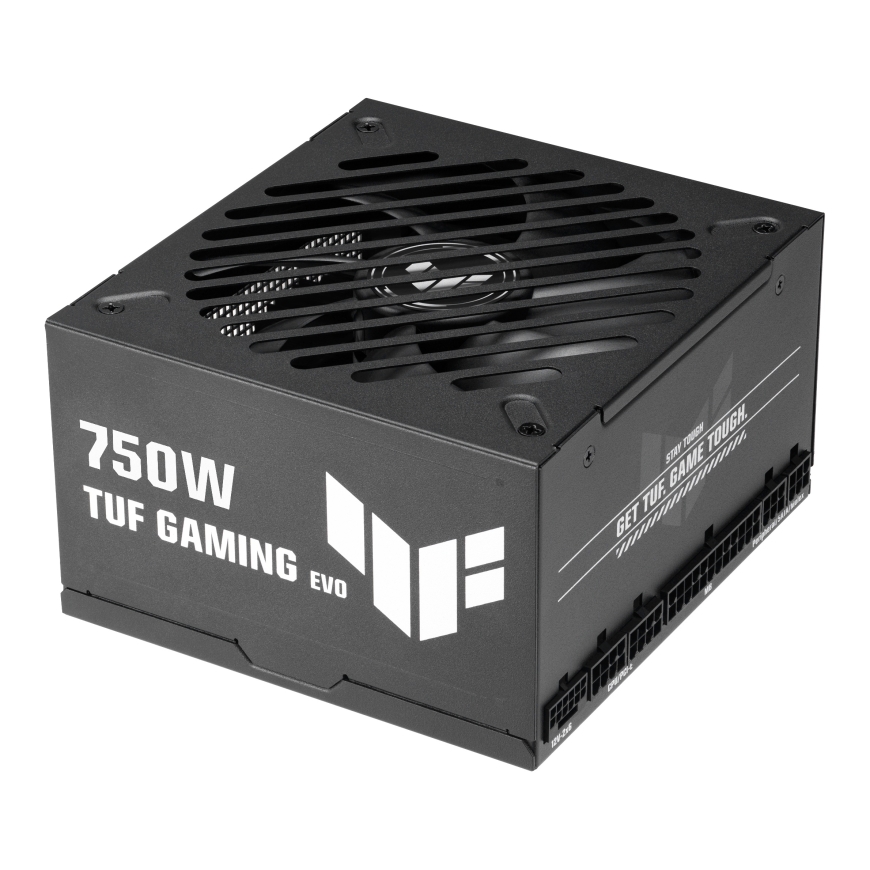

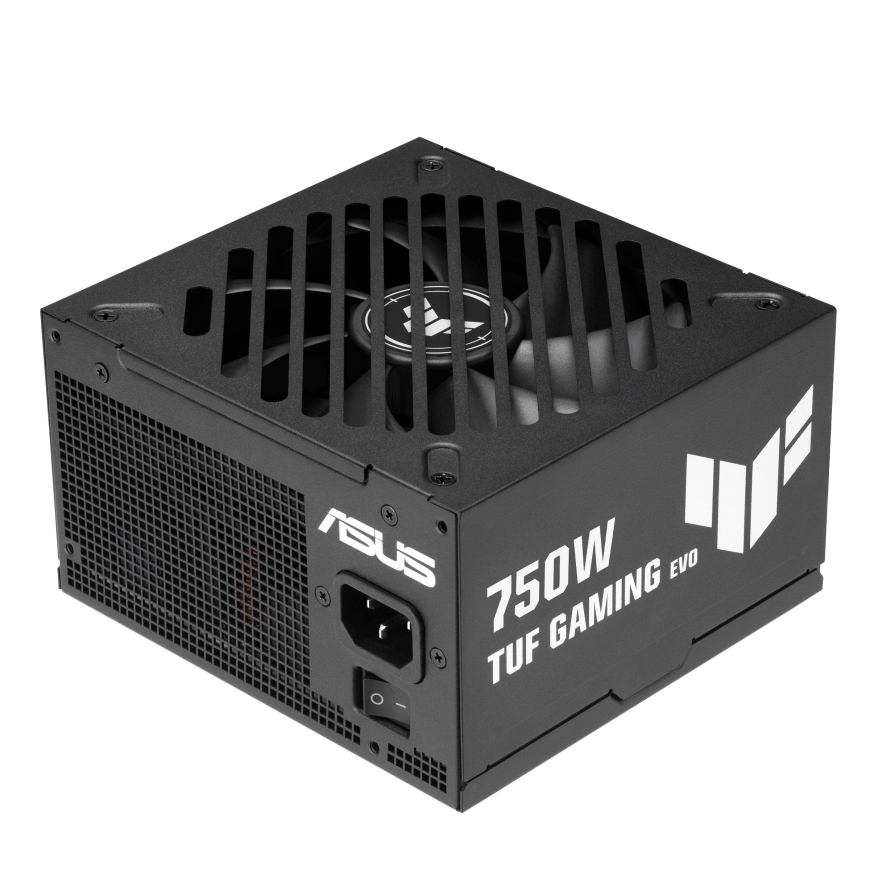

ASUS TUF-GAMING-750G-EVO power supply unit 750 W 20+4 pin ATX ATX Black
159.01 €
Monthly payment from 4,99 €
4239856 90YE00SB-B0NA00
4711636287876, 0199291287877
Shipping 4-6 b.d.
You are interested in this product?
All about the product
TUF Gaming Gold EVO SeriesBuilt For The Long Haul
The ASUS TUF Gaming 750W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | DBB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |

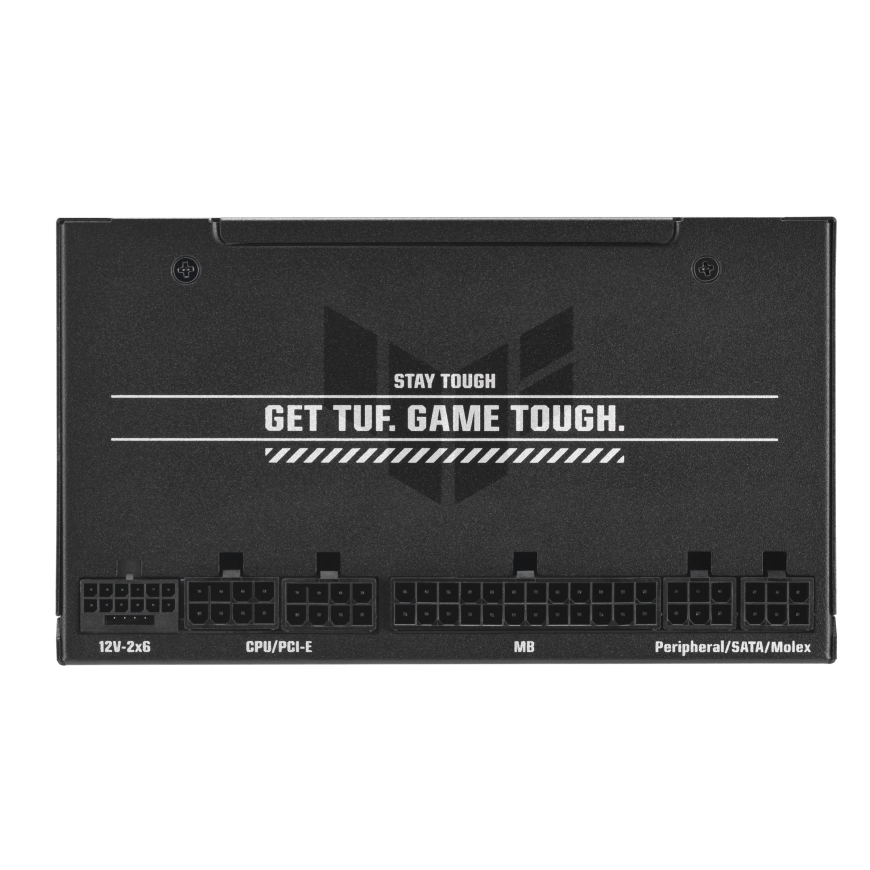

| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 400, 120 |
| Peripheral (Molex) power cable length | 400, 120 |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 1.32 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.06 kg |
| Package type | Box |
| Package height | 127 mm |
| Package width | 320 mm |
| Package depth | 182 mm |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
