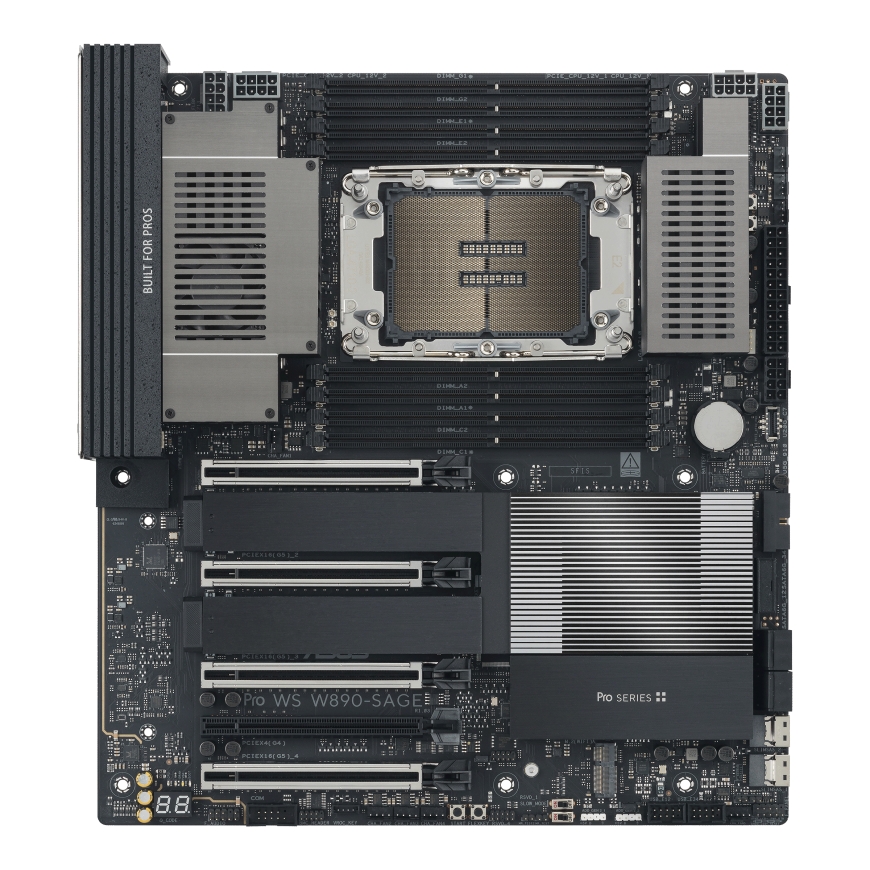

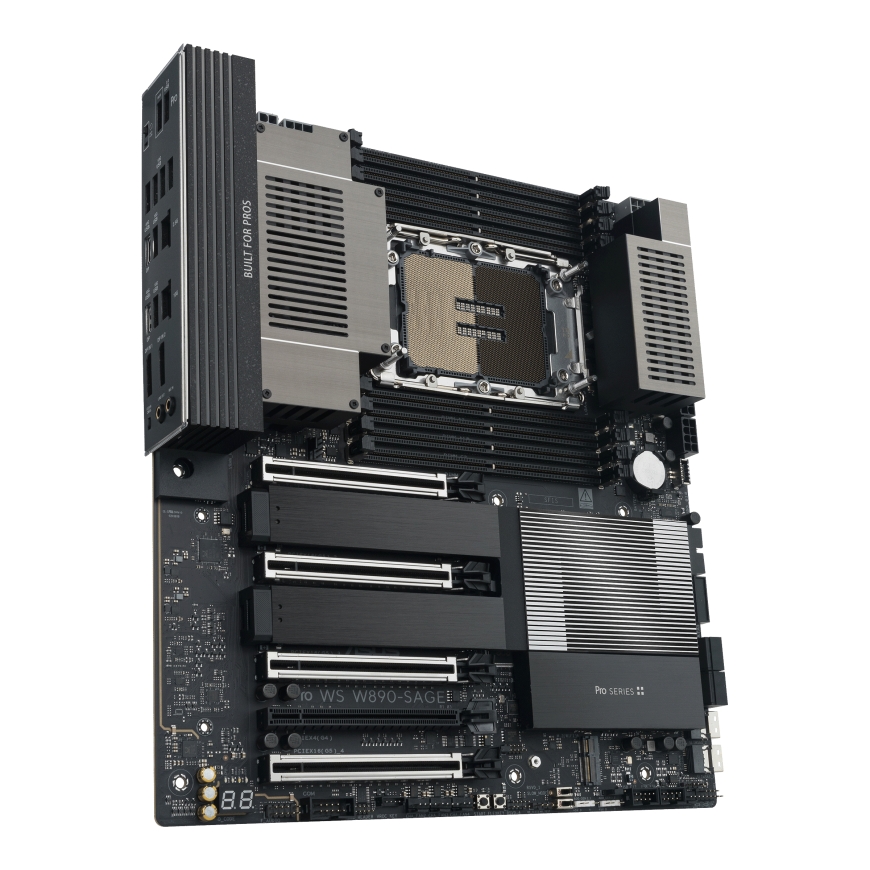

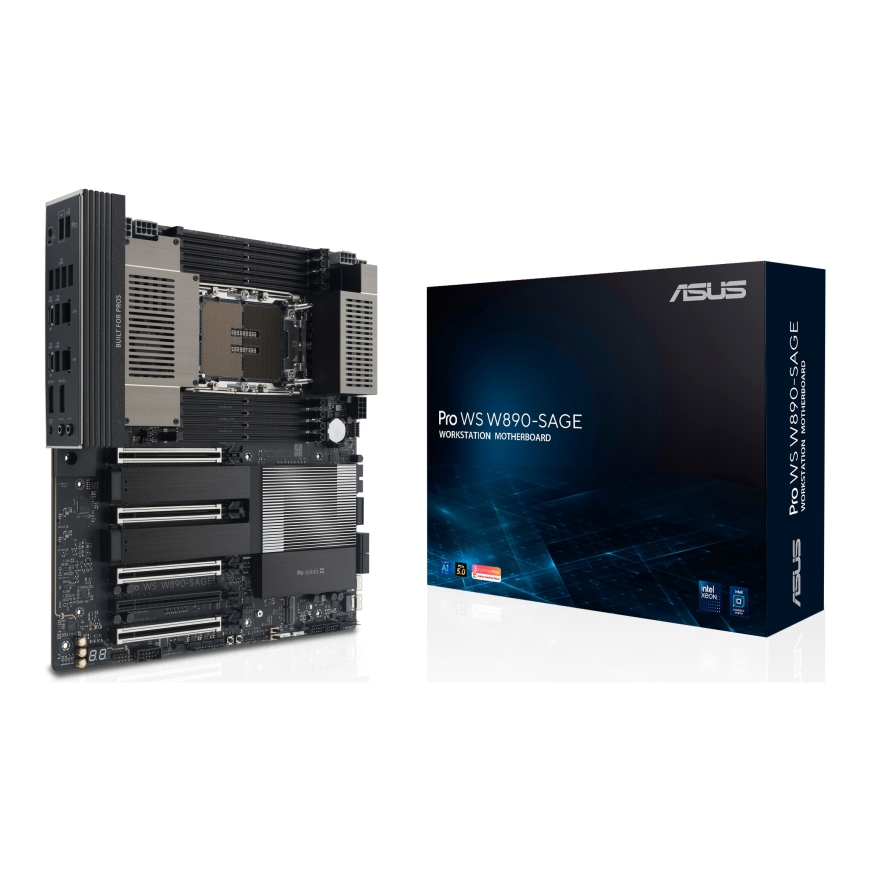

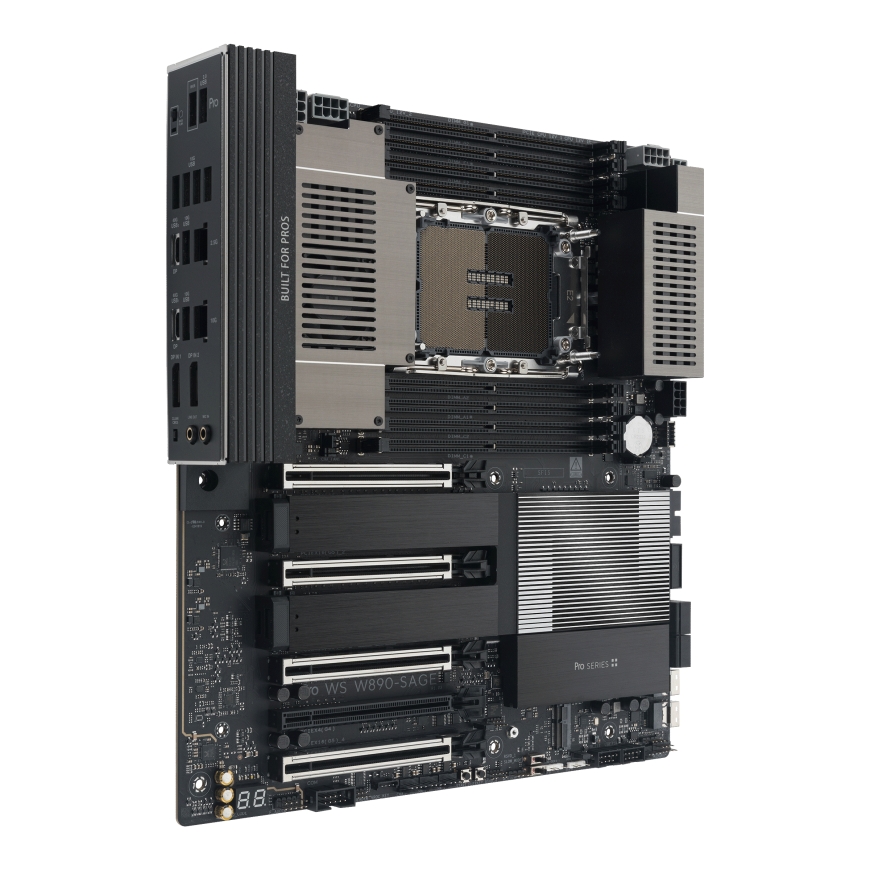

ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB
1 099,00 €
1 079.00 €
Monthly payment from 28,68 €
4233155 90MB1MW0-M0EAY0
4711636390453, 0199291390454, 0199291390478
Shipping 13-14 b.d.
You are interested in this product?
All about the product
The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
Processor | |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 4710-2 |
| Supported processor sockets | LGA 4710-2 |
| Processor manufacturer | Intel |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Quad-channel |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| ECC сompatibility | ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of storage drives supported | 10 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Integrated SAS ports | 2 |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 2 |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 5 |
| Number of temperature sensor headers | 1 |
Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 2 |
| Line-in | Yes |
Network | |
| Ethernet interface type | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | CEB |
| Motherboard chipset | Intel W890 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Component for | Workstation |
| Windows operating systems supported | Windows 11 |
| Power source type | ATX |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| BIOS flashback button | Yes |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 280 mm |
| Height | 50 mm |
Other features | |
| Weight | 2.75 kg |
| Number of M.2 (E) slots | 1 |
Packaging content | |

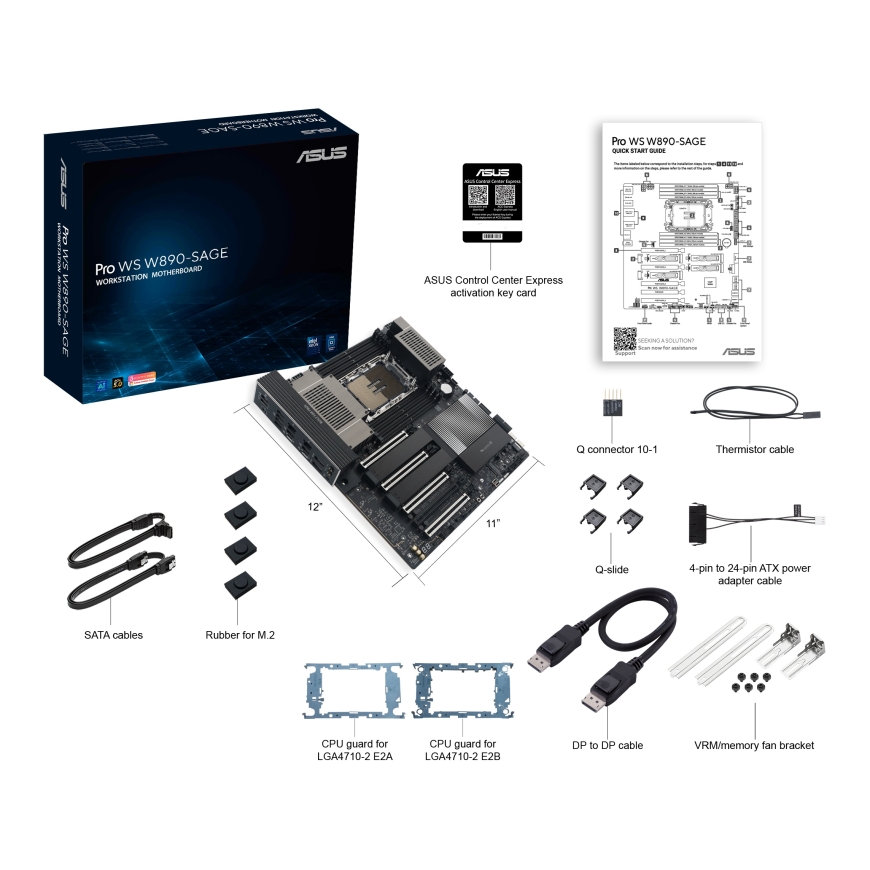

| Cables included | SATA, DisplayPort |
| Screws included | Yes |
Packaging data | |
| Package width | 376 mm |
| Package depth | 320 mm |
| Package height | 100 mm |
| Package weight | 4.12 kg |
