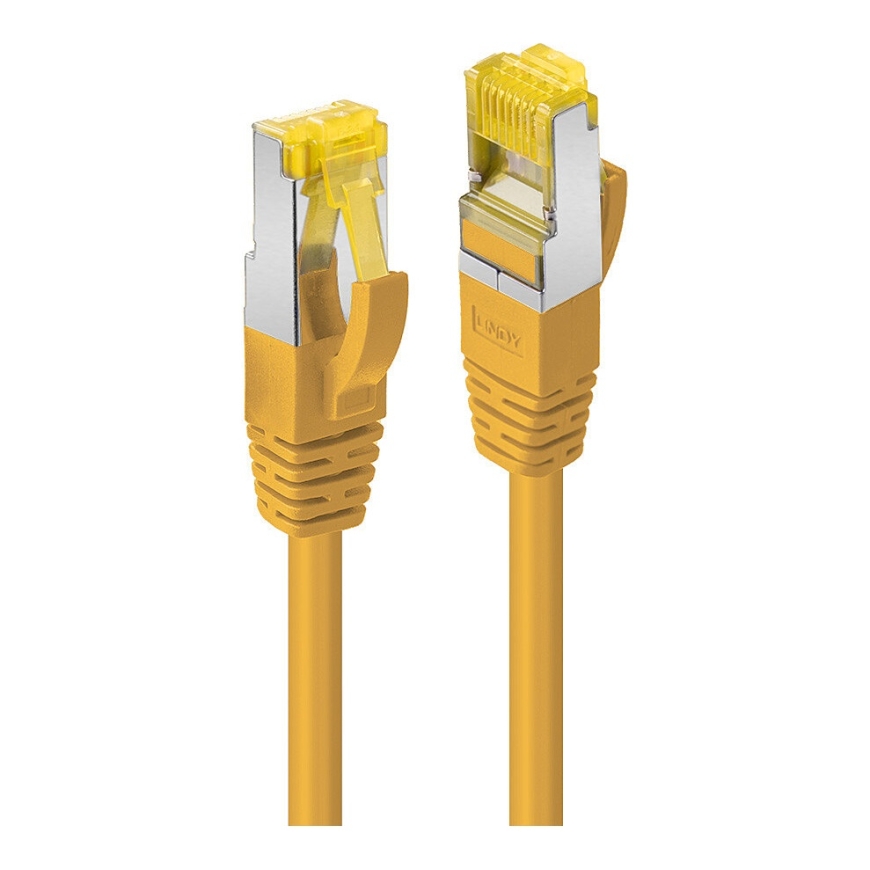

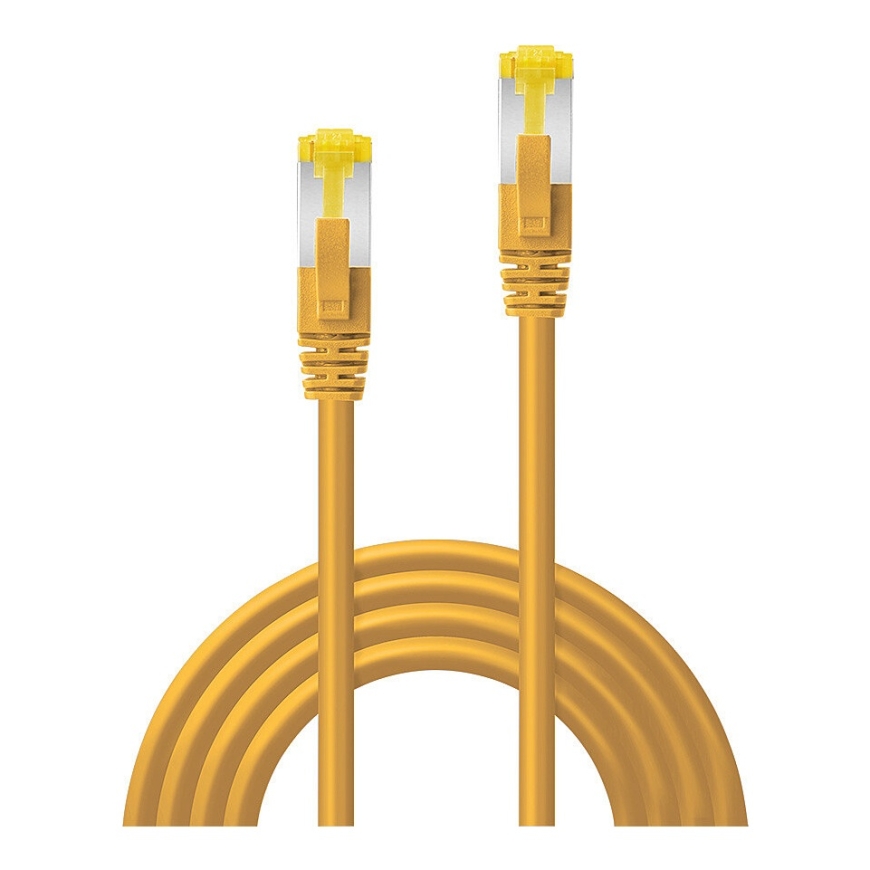

Lindy 47667 networking cable Yellow 10 m Cat7 S/FTP (S-STP) Round
49.00 €
Monthly payment from 2,16 €
4214935 47667
4002888476676
Shipping 7-9 b.d.
You are interested in this product?
All about the product
Cat.7 S/FTP LSZH network cable with Cat.6A connectors supports bandwidth up to 600MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.The Cat.7 cable material for operating frequencies up to 600MHz with taotal braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: Cat.6A S/FTP patch cords with 600MHz raw cable .
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White.
Features | |
| Cable length | 10 m |
| Cabling technology | 10GBase-T |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat7 |
| Cable shielding | S/FTP (S-STP) |
| Plug and Play | Yes |
| AWG wire size | 26 |
| Frequency | 600 MHz |
| Snagless cable boot | Yes |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Cable shape | Round |
| Product colour | Yellow |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
Weight & dimensions | |
| Bend radius (min) | 7.8 cm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Width | 11.6 mm |
| Outer diameter | 6.5 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Logistics data | |
| Quantity per box | 1 pc(s) |
| Warranty period | 10 year(s) |
Certificates | |
| Compliance certificates | RoHS, REACH |
| Certification | RoHS, REACH, UL, California Proposition 65 |
