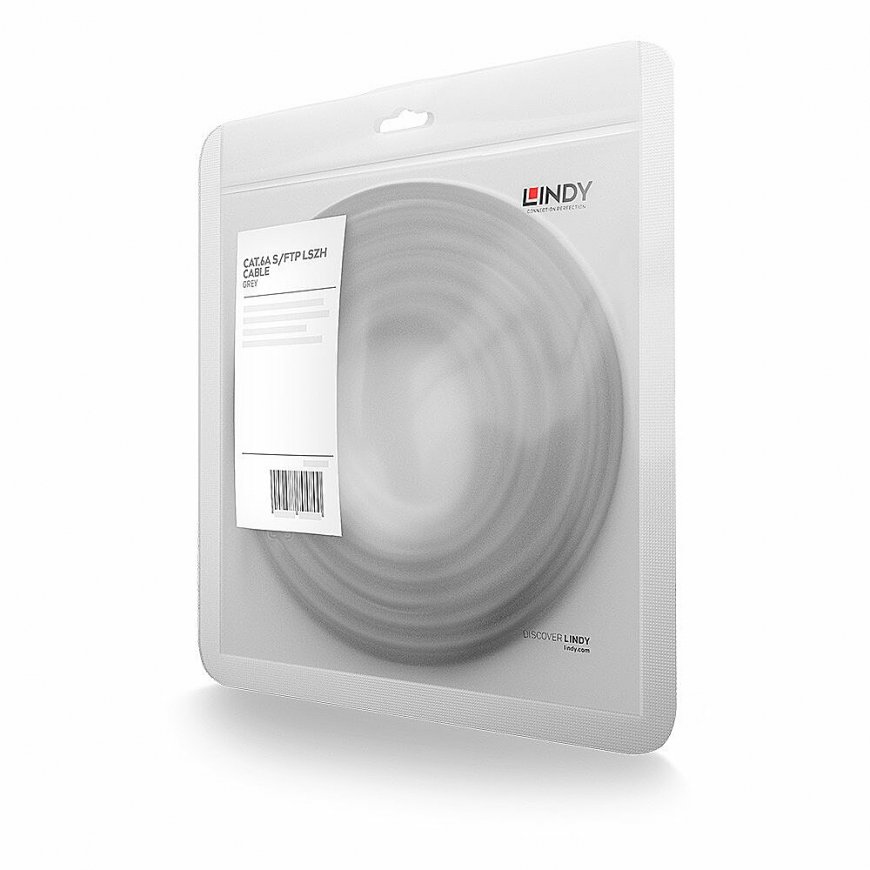

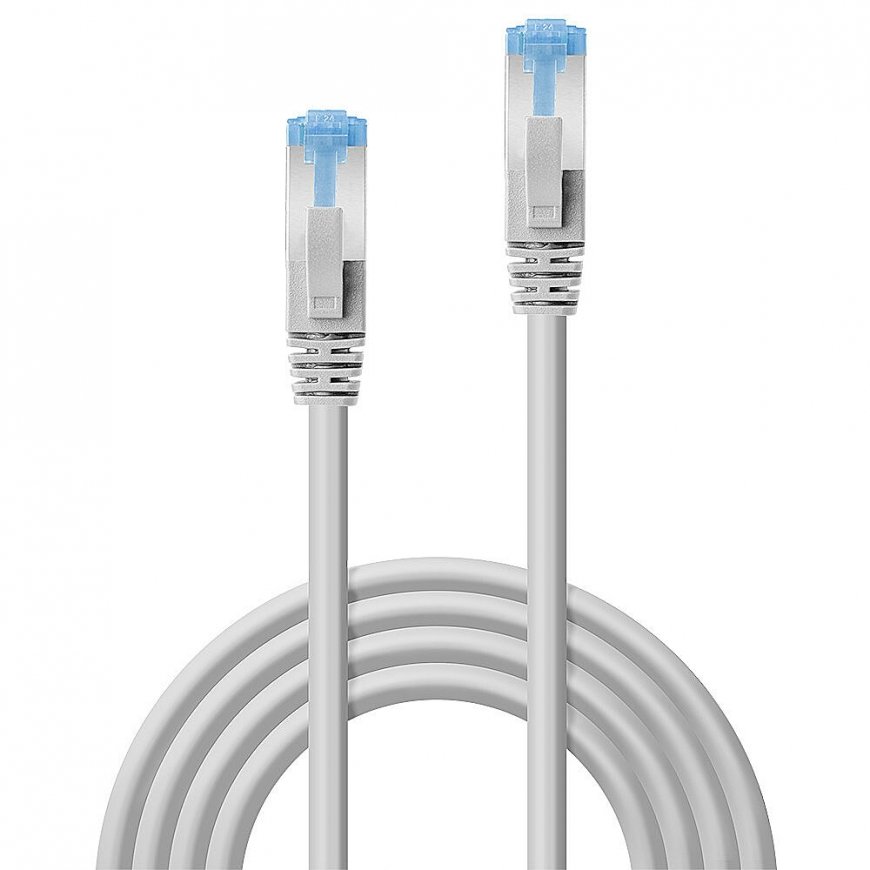

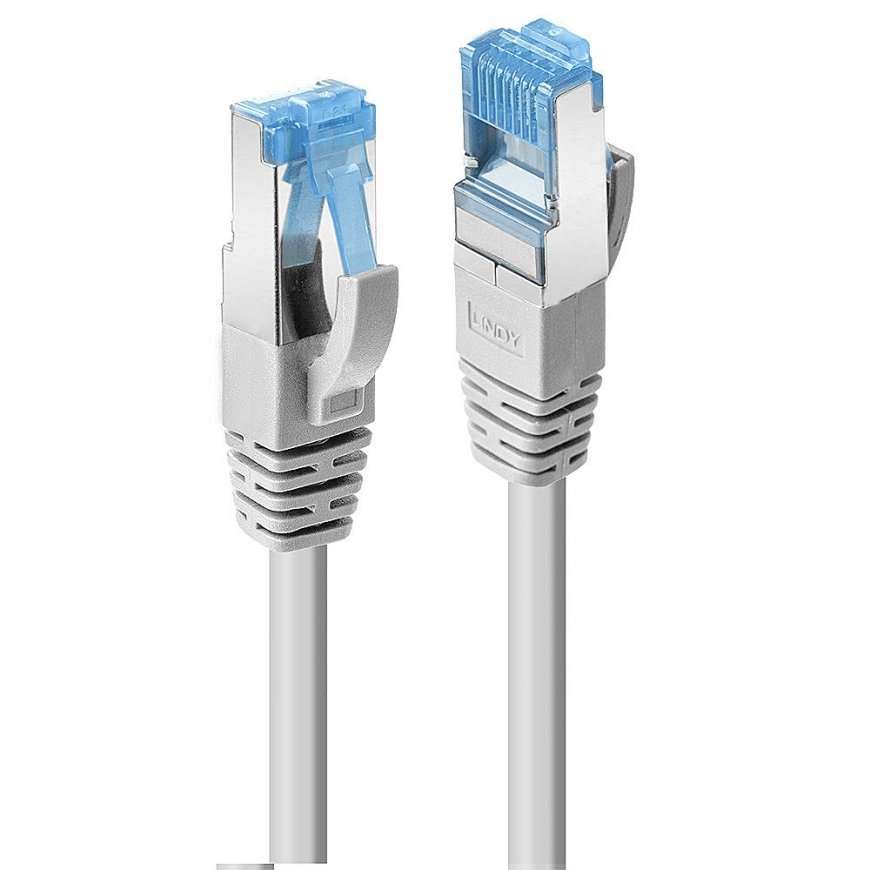

Lindy 2m Cat.6A U/UTP LSZH Cable, Grey
19.00 €
4205466 47614
4002888476140
Shipping 24-26 b.d.
You are interested in this product?
All about the product
Cat.6A U/UTP LSZH network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.Cat.6A cable for operating frequencies up to 500MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m
Features | |
| Cable length | 2 m |
| Cabling technology | 10GBase-T |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat6a |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Cable shape | Round |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
Weight & dimensions | |
| Bend radius (min) | 6.9 cm |
| Depth | 22.8 mm |
| Height | 8.3 mm |
| Width | 11.6 mm |
| Outer diameter | 5.8 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
Sustainability | |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Logistics data | |
| Warranty period | 10 year(s) |
Certificates | |
| Compliance certificates | RoHS, REACH, UL |
| Certification | RoHS, REACH, UL, California Proposition 65 |
Packaging content | |
| Manual | Yes |
