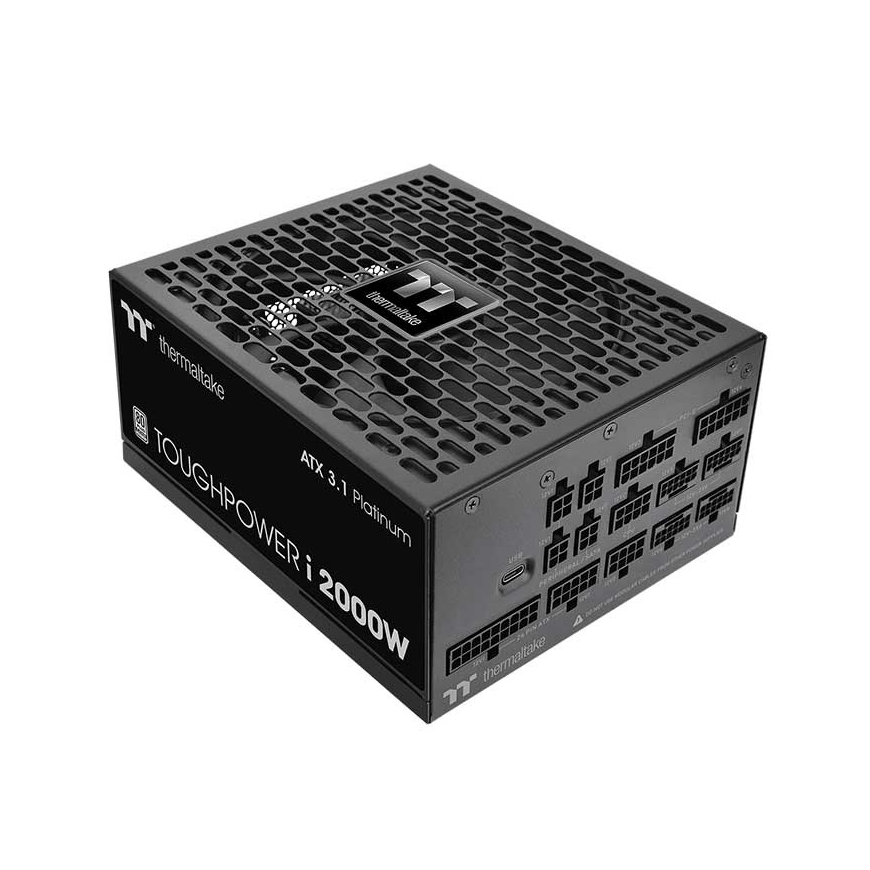

Thermaltake Toughpower i2000W power supply unit 2000 W 24-pin ATX ATX Black
578.46 €
Monthly payment from 15,80 €
4199292 PS-TPI-2000FNFDPE-1
4711658544995
Shipping 15-16 b.d.
You are interested in this product?
All about the product
Smart Digital ControlBuilt on a powerful digital platform, the Toughpower i2000W lets you monitor wattage, voltage, efficiency, and temperature in real time via the TT RGB PLUS software on desktop or mobile. Stay in control. Stay protected.
Smarter Control, Safer Power.
With real-time monitoring, single/ multi rail mode switching, and Smart Zero Fan control via TT RGB PLUS software, you gain full command over performance, efficiency, and protection.
Smart Monitoring, Flexible Protection
Monitor power usage in real time for PCI-E, CPU, and 12V-2x6 outputs via software, while switching between single and multi rail modes to optimize protection for overclocking or multi GPU setups.
ATX 3.1 Ready
Toughpower i2000W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.
Be Smart, Stay Quiet

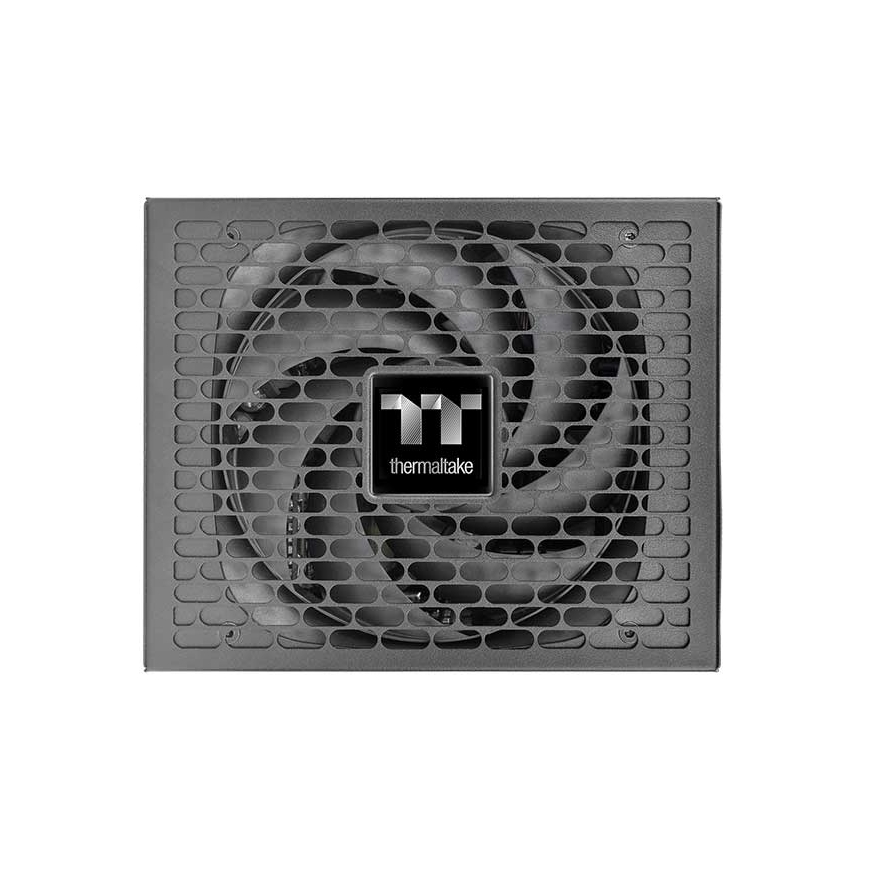

Featuring an ultra-quiet 140mm fan with Smart Zero Fan technology to provide efficient and silent cooling. Fully modular low-profile cables let users to have cleaner builds and optimize airflow.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides extremely stable operation and enhanced voltage regulation.
Smart Power in the Cloud
Monitor and analyze real time power data across devices with DPS G software. Upload key information to the cloud and easily share reports through mobile or social platforms.
Built-in Industrial Grade Protection
To protect your hardware, Toughpower i2000W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
Fully Modular Low-Profile Cables
Offers users more flexibilities for PSU installation. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.
80 PLUS Platinum Certified
80 PLUS Platinum(230V EU) certified, the 2000W model delivers up to 92% energy efficiency, minimizing power loss and heat generation even under full load.
Power | |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1999.92 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 166.67 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@220V) | 15 A |
| Total power | 2000 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Cooling type | Active |
| On/off switch | Yes |

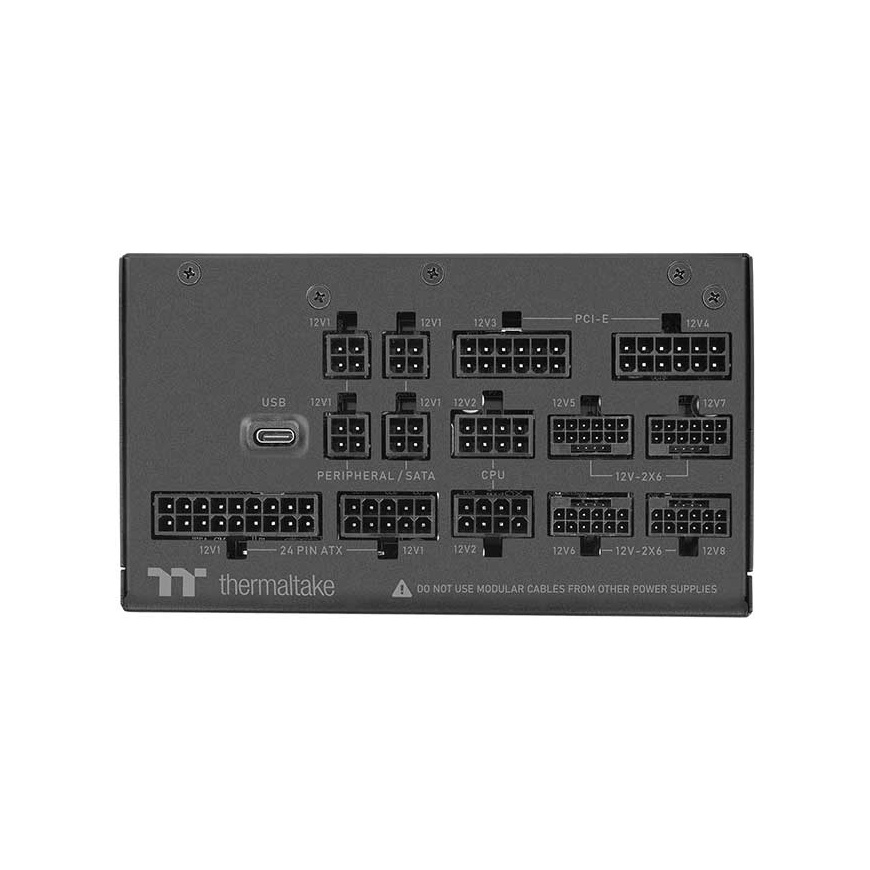

Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12+4 pin) | 4 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| Number of SATA power cables | 12 |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
