TP-Link Omada 300Mbps Wireless N Outdoor Access Point
54.14 €
Monthly payment from 2,29 €
419581 EAP110-OUTDOOR V3
6935364097752, 0845973092832, 6935364097769
Shipping 13-14 b.d.
You are interested in this product?
All about the product
Enjoy Wi-Fi Outside, FinallyOmada EAP110-Outdoor
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas

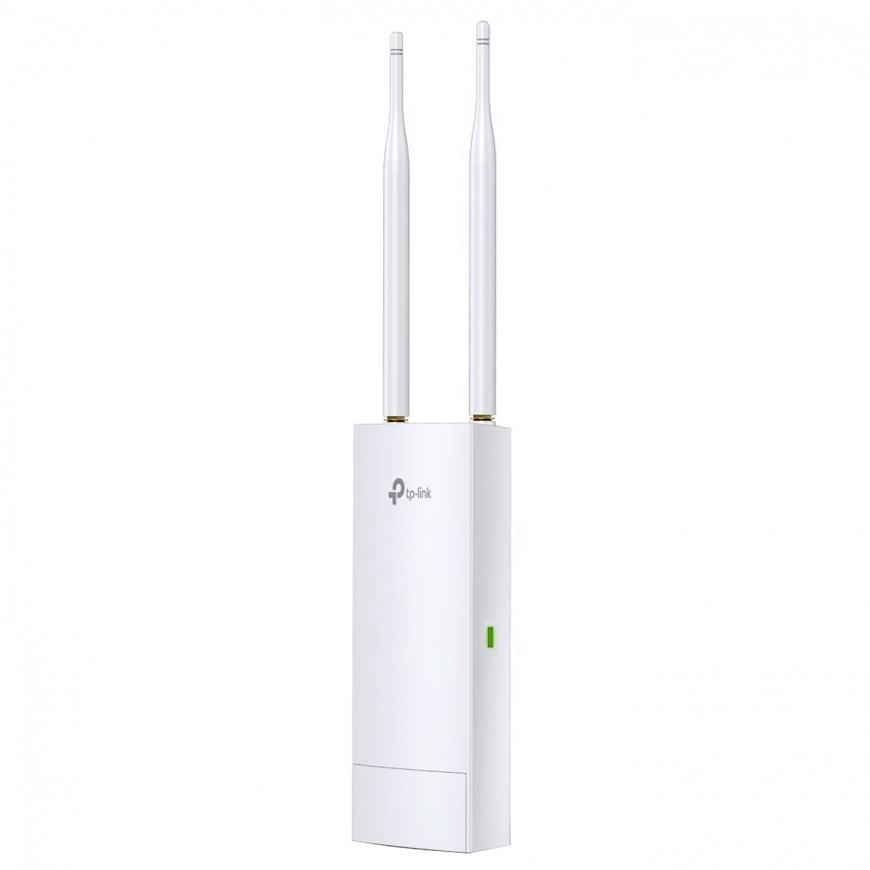

EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications

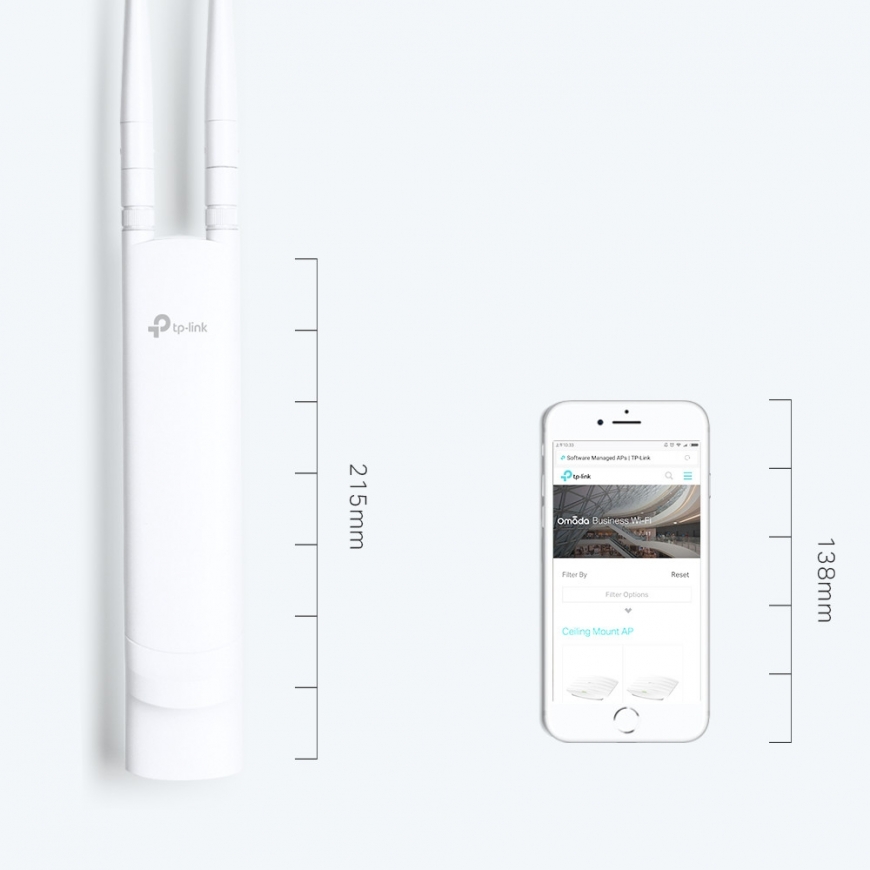

EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.
Flexible Deployment

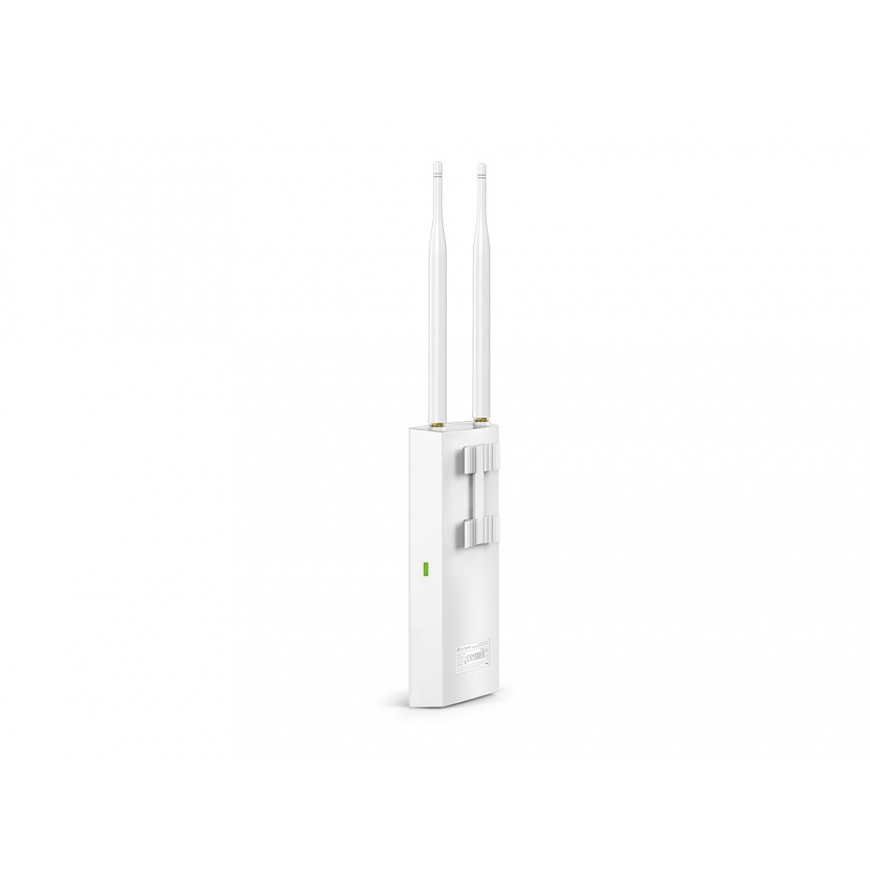

EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10, 100 |
| Automatic channel selection | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security | |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
Protocols | |
| Management protocols | HTTP/HTTPS, SNMP, Telnet |
Design | |
| LED indicators | Power |
| Product colour | White |
| International Protection (IP) code | IP65 |
Antenna | |
| Antenna gain level (max) | 3 dBi |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Antenna type | External |
Power | |
| Output voltage | 24 V |
| Output current | 0.6 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 216 mm |
| Depth | 46 mm |
| Height | 27 mm |
Packaging data | |
| Package width | 140 mm |
| Package depth | 270 mm |
| Package height | 100 mm |
| Package weight | 620 g |
| Package type | Box |
Other features | |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Frequency band | 2.4 GHz |
| Maximum data transfer rate | 300 Mbit/s |
Certificates | |
| Certification | CE, FCC, RoHS |
Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Logistics data | |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| Cables included | AC |
| Antenna included | Yes |
| Mounting kit | Yes |
Sustainability | |
| Sustainability compliance | Yes |
