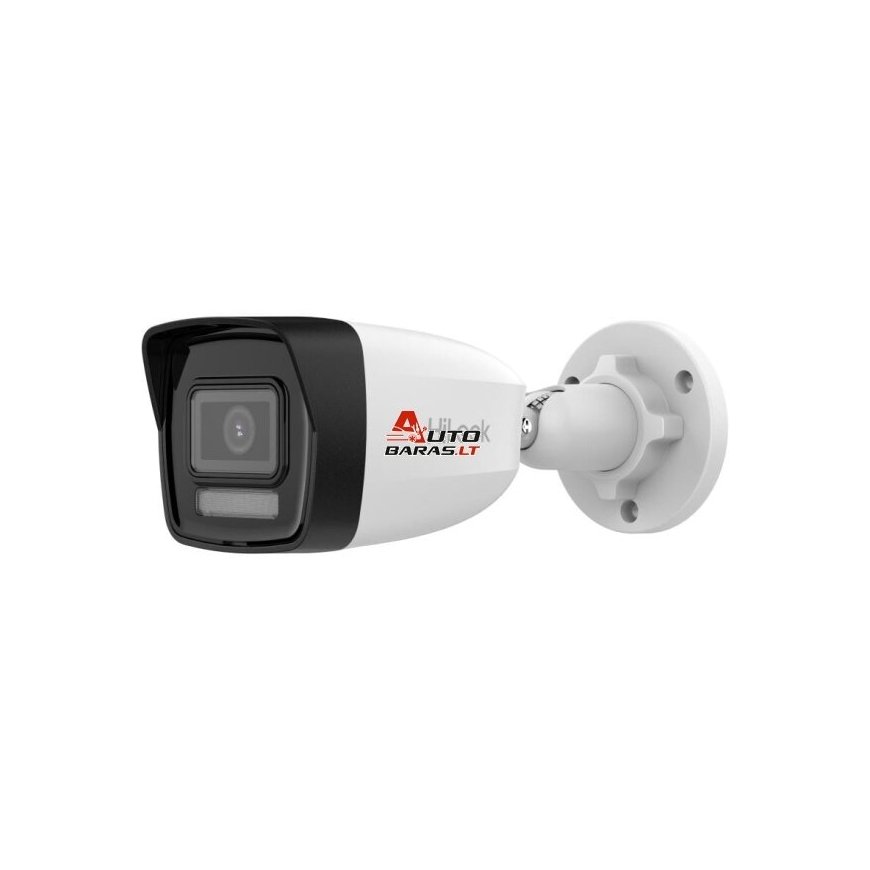

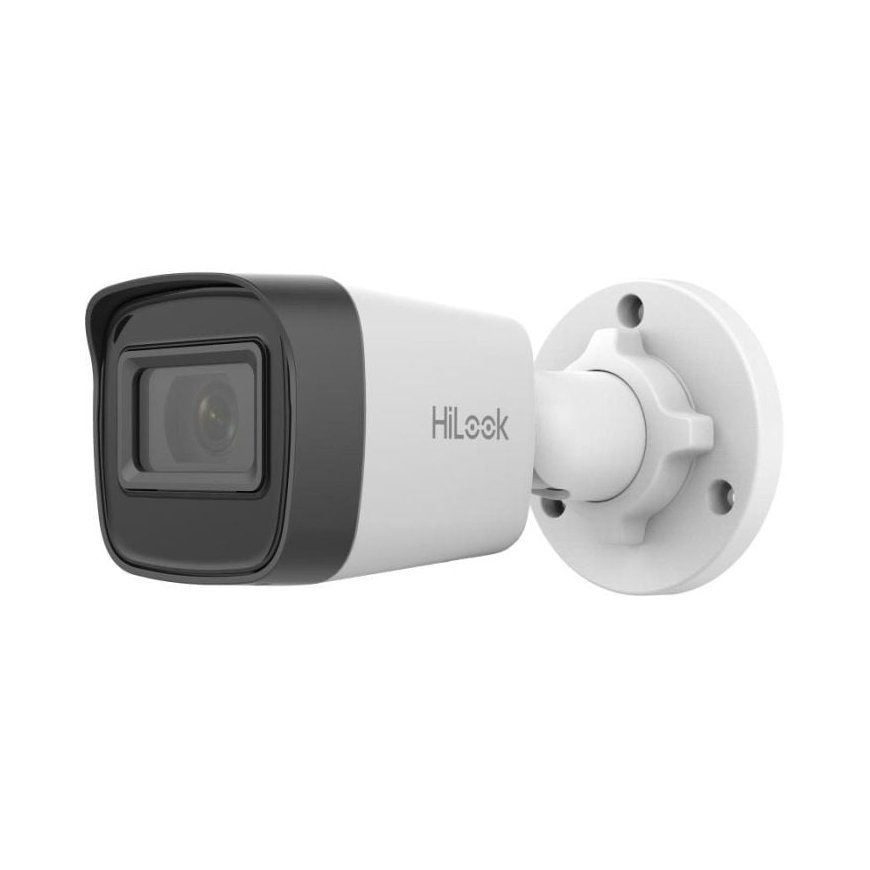

HiLook bullet IPC-B141H-C F2.8 (white, 4 MP, 20 m IR)

All about the product

• Certifications
• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, KC: KN32: 2015, KN35: 2015
• Environmental Protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection IP67: IEC 60529-2013
• Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

• Camera
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
• Day and Night IR cut filter
• Image Sensor 1/2.8" Progressive Scan CMOS
• Maximum Resolution 2560 × 1440
• Minimum Illumination Color: 0.01 Lux @ (F2.2, AGC ON), black and white: 0 Lux with IR
• Shutter Speed 1/3 s to 1/100,000 s

• DORI
• DORI 2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m; 4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

• Functions
• Main Event Motion detection (supports alarm signal activation based on specified target type (human)), exception
• Interface Notify monitoring center, send email, activate recording

• General
• Dimensions 138.8 mm × 60.9 mm × 57.9 mm (5.46" × 2.4" × 2.3")
• Main Features Heart rate, anti-banding, mirror image, password protection, password reset via email
• Language English, Ukrainian
• Material Plastic
• Package Size 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
• Power 12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power connector, reverse polarity protection, PoE: IEEE 802.3af, Class 0, max. 6.5 W
• Operating Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (no condensation)
• Storage Conditions -30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (no condensation)
• Weight Approx. 175 g (0.4 lb.)
• Weight with Packaging Approx. 265 g (0.6 lb.)

• Illumination
• IR Wave Length 850 nm
• Smart Additional Illumination Yes
• Additional Illumination Range Up to 20 m
• Additional Illumination Type IR

• Image
• Day/Night Switch Day, Night, Automatic, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• Video Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable client software or web browser
• Privacy Mask 1 programmable polygonal privacy mask
• SNR ≥ 52 dB
• Wide Dynamic Range (WDR) Digital WDR

• Interface
• Internet interface 1 RJ45 10 M/100 M auto-negotiation Ethernet port

• Lens
• Aperture F2.2
• Depth of field 2.8 mm: 0.9 m to ∞; 4 mm: 1.1 m to ∞
• Focal length and field of view 2.8 mm, horizontal field of view 104°, vertical field of view 57°, diagonal field of view 123°; 4 mm, horizontal field of view 82°, vertical field of view 45°, diagonal field of view 98°
• Aperture type Fixed
• Lens mount M12
• Lens type Fixed focal length lens, selectable 2.8 and 4 mm

• Network
• API ONVIF (Profile S, Profile T), ISAPI, SDK
• Client iVMS-4200
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
• Security Password protection, complex password, watermark, user and summary authentication HTTP, security audit log, host authentication (MAC address)
• Live viewing Up to 6 channels
• User/Port Up to 32 users; 3 user levels: administrator, operator, and user
• Browser Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11

• Image
• Bitrate control CBR, VBR
• H.264 type Baseline Profile, Main Profile, High Profile
• H.265 type Main Profile
• Main stream 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Region of Interest (ROI) 1 fixed area for main stream
• Sub stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video bitrate 32 Kbps to 8 Mbps
• Video compression Main stream: H.265+/H.265/H.264+/H.264, sub stream: H.265/H.264/MJPEG
