All about the product

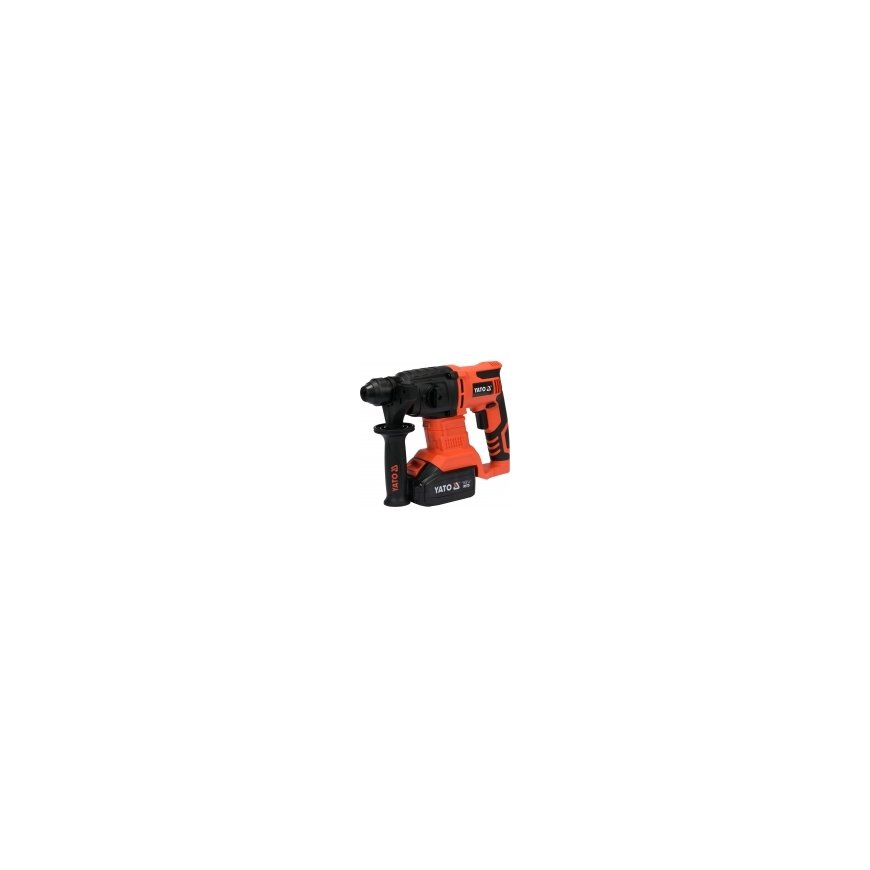

Cordless Hammer Drill | 18V SDS-PLUS 2x4.0AH (YT-827722)

The cordless hammer drill is designed for drilling, impact drilling, chiseling, and chisel positioning for installation and construction work. The tool operates on an 18 V Li-Ion battery system, features an SDS-Plus chuck, a brushless motor, 2.5 J of impact energy and is supplied with 2 batteries of 4 Ah each and a charger.

Features

• Product type: cordless hammer drill
• Functions: chiseling, drilling, impact drilling, chisel positioning
• Tool holder type: SDS-Plus
• Motor type: brushless
• Power supply: 18 V d.c.
• Battery type: Li-Ion
• Number of batteries: 2
• Battery capacity: 4000 mAh
• Battery energy: 72 Wh
• Charger included: yes
• Charging time: 2 h
• Revolutions: 0–1400 min⁻¹
• Impact energy: 2.5 J
• Impact frequency: 0–5000 min⁻¹
• Maximum hole diameter in concrete: 22 mm
• Impact function: yes
• Rotation direction switch: yes
• Electronic speed control: yes
• Working mode switch: yes
• Tool positioning in the chuck: yes
• Working area illumination: LED
• Fast charging: yes
• Charge level indicator: yes
• Electrical insulation class: III
• Protection degree: IPX0
• Acoustic pressure: 94.3 ± 3.0 dB(A)
• Acoustic power: 102.3 ± 3.0 dB(A)
• Vibration: 11.364 ± 1.5 m/s²
• Weight: 2 kg
• Brand: Yato
• Series: GRF
• Symbol: YT-827722

Package contents

• 1 cordless hammer drill
• 1 additional handle
• 1 drilling depth limiter
• 2 batteries, 18 V, 4 Ah
• 1 charger

Usage

• Suitable for pin installation and drilling installation holes
• Suitable for drilling in wood and metal without impact
• Used for impact drilling in concrete, bricks, and hard mineral bases
• Chiseling function is suitable for tasks requiring an SDS-Plus chisel
• Chisel positioning allows choosing a more convenient chisel angle in hard-to-reach areas
• LED lighting helps to see the work area in poorly lit zones

You can find cordless hammer drills, SDS-Plus accessories, and other installation work tools
