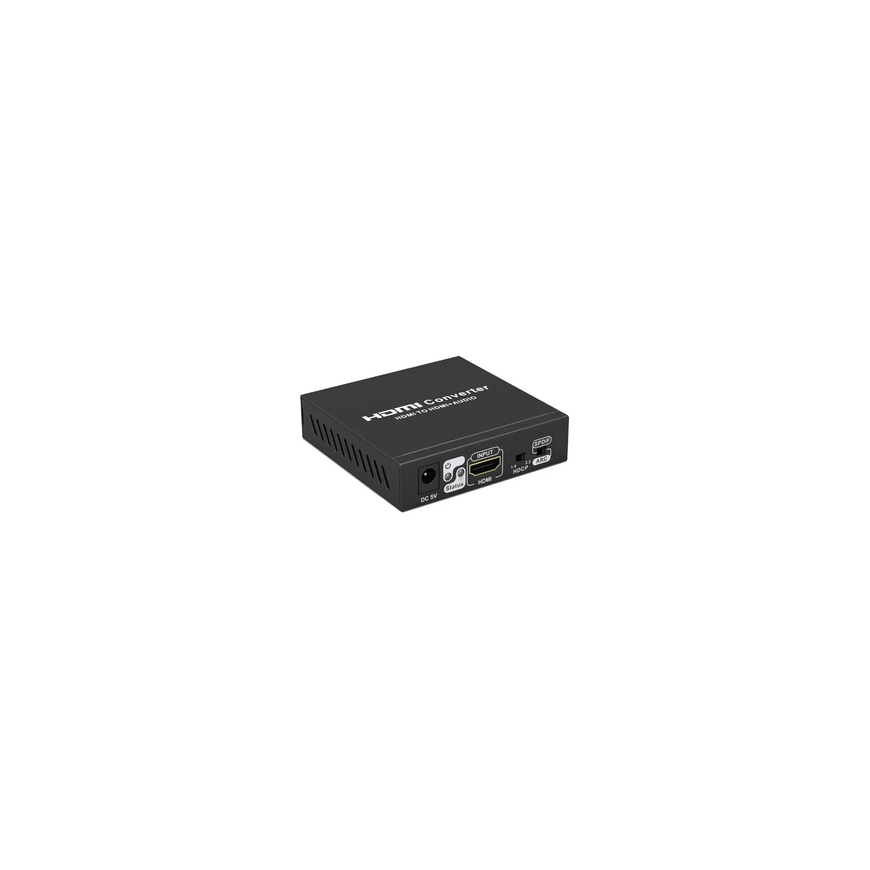

Spacetronik HDMI-Audio Extractor SPDIF R/L Socket ARC SPH-AE04
4183393 5903031014426
Shipping 8-11 b.d.
All about the product
Main Information
HDMI audio extractor with analog L/R, coaxial, Toslink, and 3.5 mm jack outputs. Allows simultaneous control of all outputs. The ATC switch lets you choose the audio source: HDMI ARC, Toslink, or coaxial. Supports HDMI 2.0, HDCP 2.2, resolution up to 4K 60Hz, YUV 4:4:4 HDR, Dolby Digital AC3, DTS, LPCM, 5.1. Power source: DC 5V/1A.
Application
Designed to convert and split audio signals from HDMI, Toslink, or coaxial connections into analog and digital audio outputs. Suitable for AV systems, televisions, audio equipment, and devices that require various audio output formats.
Specification
Specification
Audio Inputs
HDMI ARC
Toslink
- Coaxial
Audio Outputs
- Analog L/R
- Coaxial
Toslink
- 3.5 mm jack
Standards and Services
HDMI 2.0
- HDCP 2.2
- Full HD 1080P, 4K x 2K 60 Hz, YUV 4:4:4 HDR
Dolby Digital AC3, DTS, LPCM, 5.1
Additional Features
- ATC input selection switch
- Simultaneous operation of all outputs
- Power source DC 5V/1A
