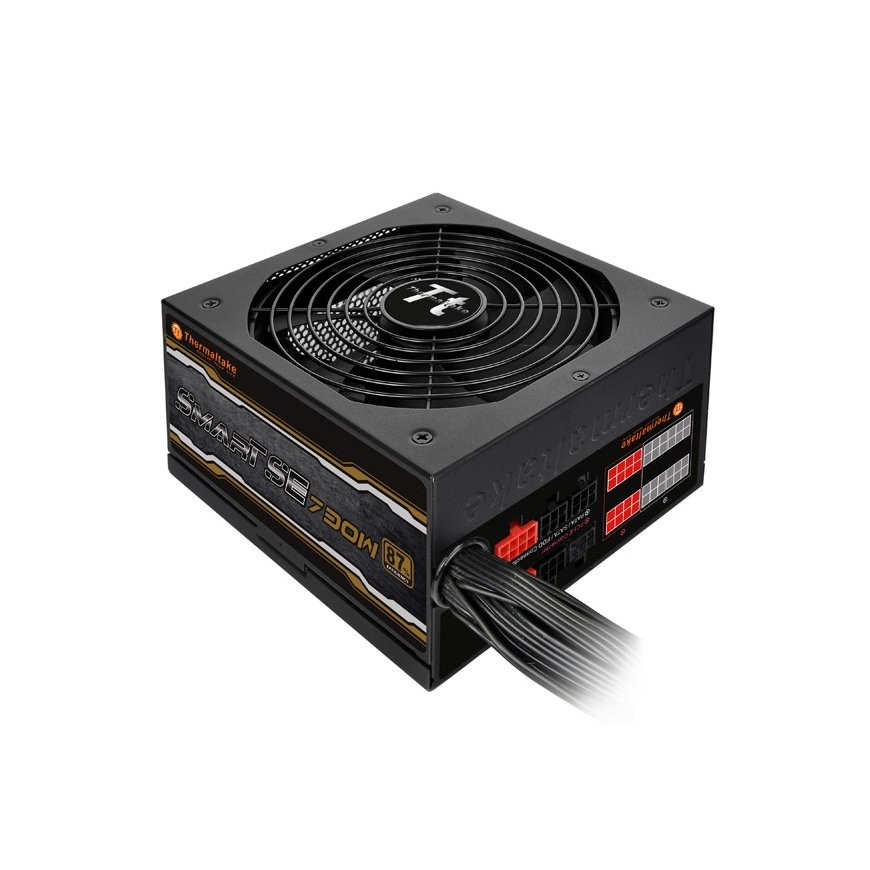

Thermaltake SPS-730M power supply unit 730 W 20+4 pin ATX ATX Black
79.24 €
Monthly payment from 2,94 €
415926 SPS-730MPCBEU
4713157529916, 0733115884462
Shipping 11-12 b.d.
You are interested in this product?
All about the product
730 Watt Bronze Power Supply:Stabilizing power usage for daily bases
The latest presentation from Thermaltake in the essence of mainstream systems – the SMART SE Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 530 to 730W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
87% Efficiency
Deliver up to 87% efficiency at 20-100% load under real world load conditions to cut down electric cost and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
Flat & Low Profile Cable
All low-profile flat modular cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

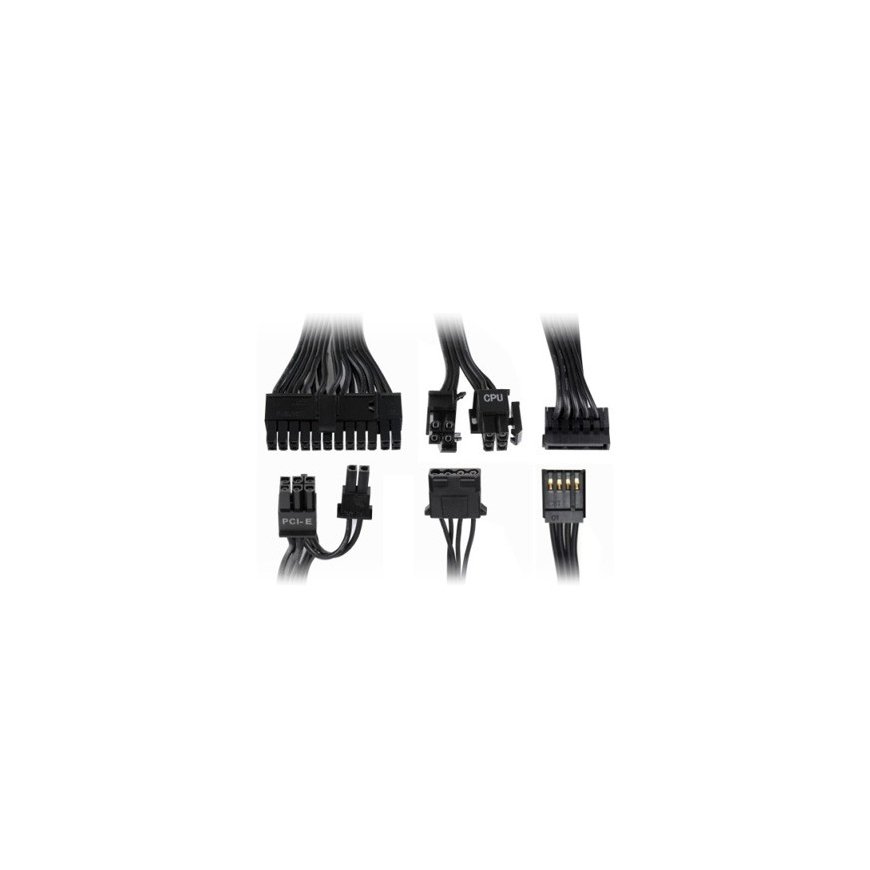

Modular cable
Customizing concept of Smart SE 530/630/730W enables user to maximize available power and make set-up easy. It is a semi-modular power supply that offered cable selection for users while powering system at a healthy voltage.
Top Quality made Capacitor
High quality main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
Smart Fan Control

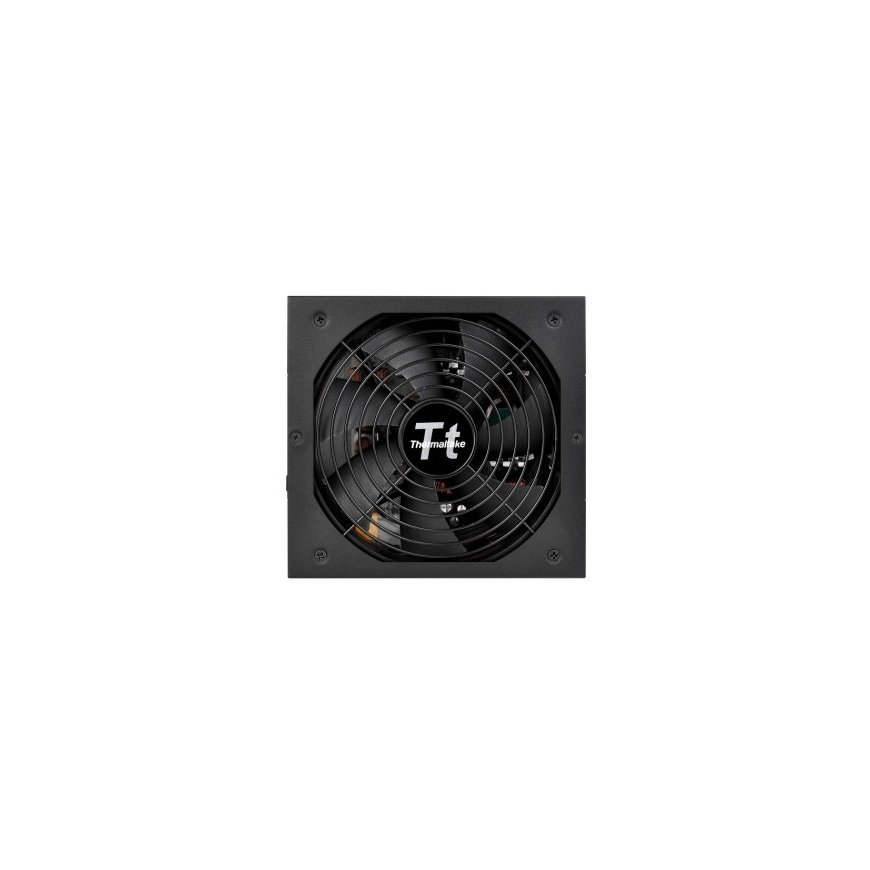

Large 140mm cooling fan, built-in with intelligent temperature control device can automatically detect the power load for fan speed adjustment and maintain optimal mute performance.
Power | |
| Hold time | 16 ms |
| Efficiency | 87% |
| Input current | 5.5 A |
| Peak power | 830 W |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 730 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
Design | |
| LED indicators | No |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| Fan location | Top |
| Fan speed | 1900 |
| Illumination | No |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Semi-Modular |
| PCI Express connector | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Safety regulation & standards | |
| Safety | CE, TUV, GOST |
