The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

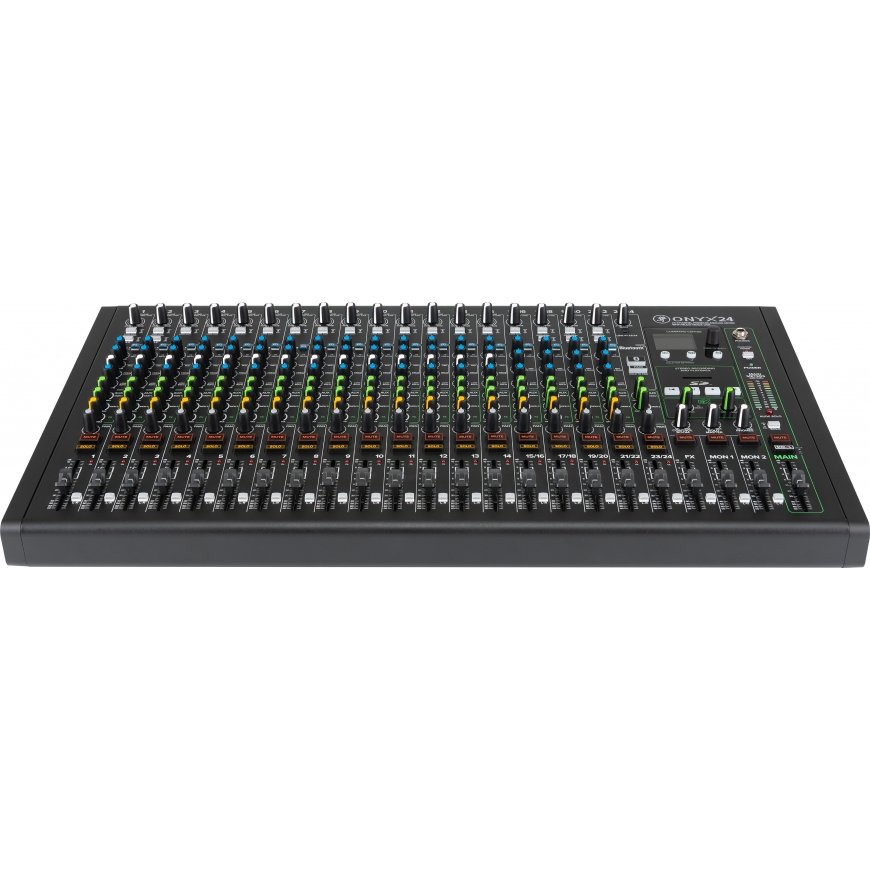

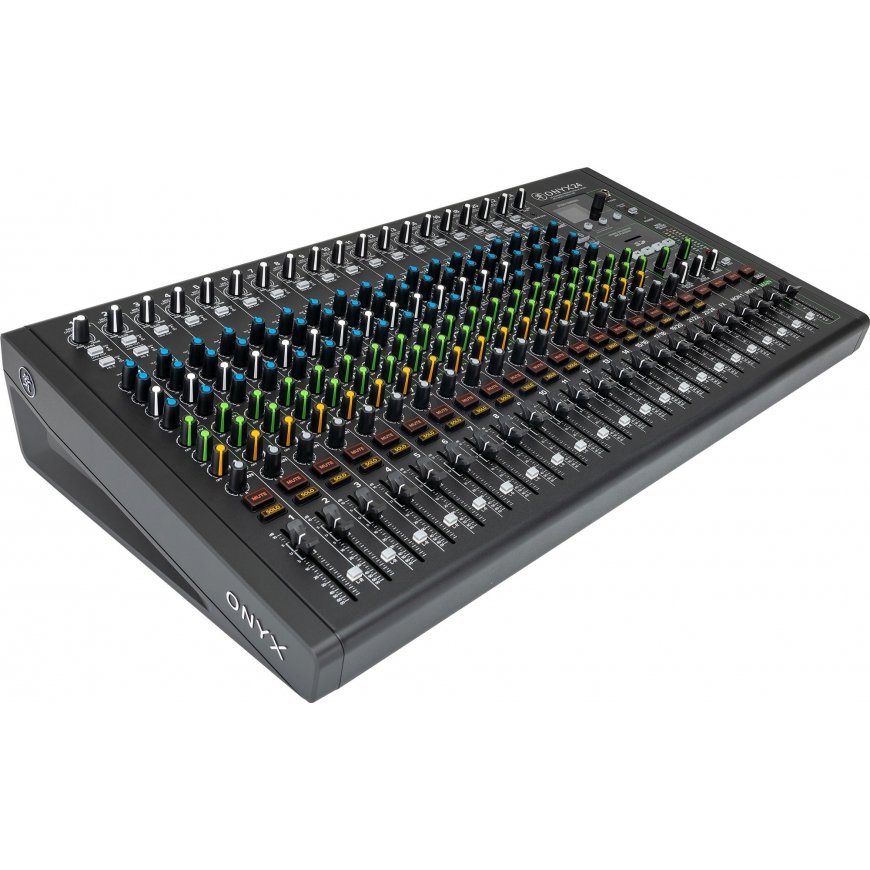

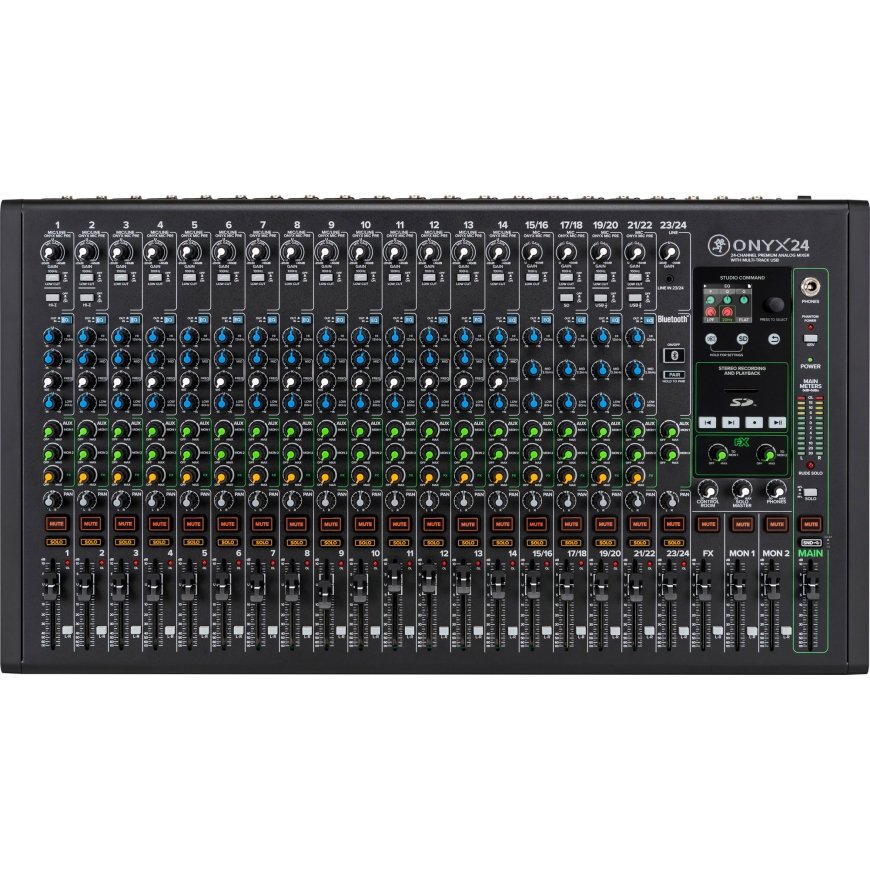

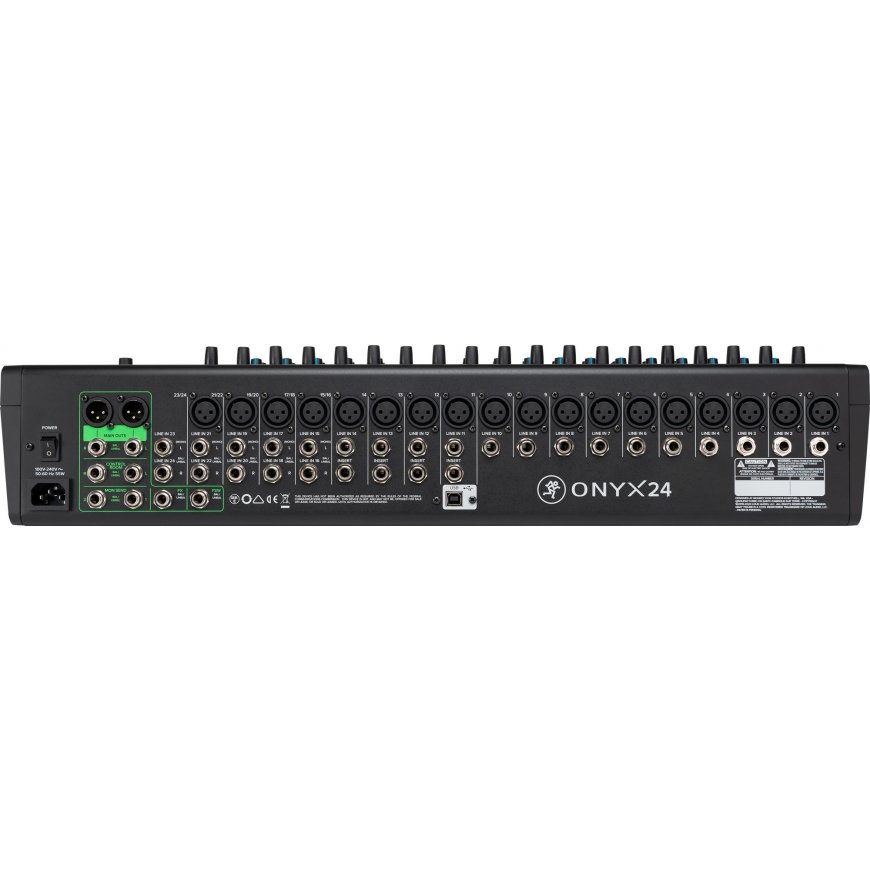

Mackie ONYX 24 18 channels 20 - 30000 Hz Black
757.39 €
Monthly payment from 20,40 €
4155285 2051993-01
0663961061048
Shipping 10-14 b.d.
You are interested in this product?
All about the product
Whether you’re in the studio or hitting the big stage, you need a highly capable mixer on your side. Every detail of the Mackie Onyx24 is geared towards recording at a professional level, from our award-winning Onyx preamps to the Perkins “British Style” EQs inspired by classic desks from the ‘60s and ‘70s.ONYX MIC PREAMPS
The Mackie Onyx24 features 18 low-noise microphone preamps with 60dB of clean gain. Combined with sophisticated analog circuitry, you’ll get rich sound for studio production, theatre and house of worship.
PERKINS EQ
Onyx24 mixers feature an enhanced 3-Band “British Style” EQ based on the same circuit used on classic mixing consoles from the ‘60s and ‘70s. This version designed by Mackie has greater filter control, minimum phase shift and allows you to pinpoint specific frequency ranges.
To create the Perkins EQ, Cal Perkins started with the Wien Bridge circuit topology inspired by the hallowed “British” desks of the ‘60s and ‘70s. This design essentially trades boost/cut capability for a wider, highly musical Q filter. After a mind-numbing amount of math, Cal was able to specify capacitor and resistor values that would give the EQ an extra 6dB of control (±15 dB) without excessively narrowing the “Q” or bandwidth of the filters. It's what we call a win-win.
24-BIT / 96KHZ MULTITRACK RECORDING
Working on an album? Have a big video project on the horizon? Get high-resolution multitrack recording through your DAW. Connect your Mackie Onyx24 mixer to Mac or PC via USB to record at resolutions up to 24-Bit / 96kHz. To keep it simple, you also have the option of recording a full stereo mix straight to an SD card.
QUICKGRIP SIDE HANDLES
A 24-channel mixer can be pretty hefty, but rugged QuickGrip side handles make it easy to carry your mixer between gigs. Mackie Onyx24 mixers are road-ready and built to last, thanks to the heavy-duty steel chassis and sealed rotary knobs.
BUILT-IN FX
The more plugins the better, right? Get creative and customize your sound with professional built-in effects. The professional high-resolution FX processor gives you limitless control over a robust collection of unique digital effects, including a dedicated equalizer to shape your mix to perfection.
Features
| Bluetooth | Yes |
| Product colour | Black |
| Weight | 9.2 kg |
| Width | 640 mm |
| Depth | 356 mm |
| Height | 137 mm |
| Package width | 310 mm |
| Package depth | 787 mm |
| Package height | 549 mm |
| Package weight | 12.7 kg |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 55 W |
| On/off switch | Yes |
| Built-in display | Yes |
| AC input frequency | 50 - 60 Hz |
| Frequency range | 20 - 30000 Hz |
| Microphone input impedance | 3300 Ω |
| Channels quantity | 18 channels |
| Input impedance | 10000 Ω |
| Line inputs (RCA) | 19 |
| Number of EQ bands per channel | 3 |
