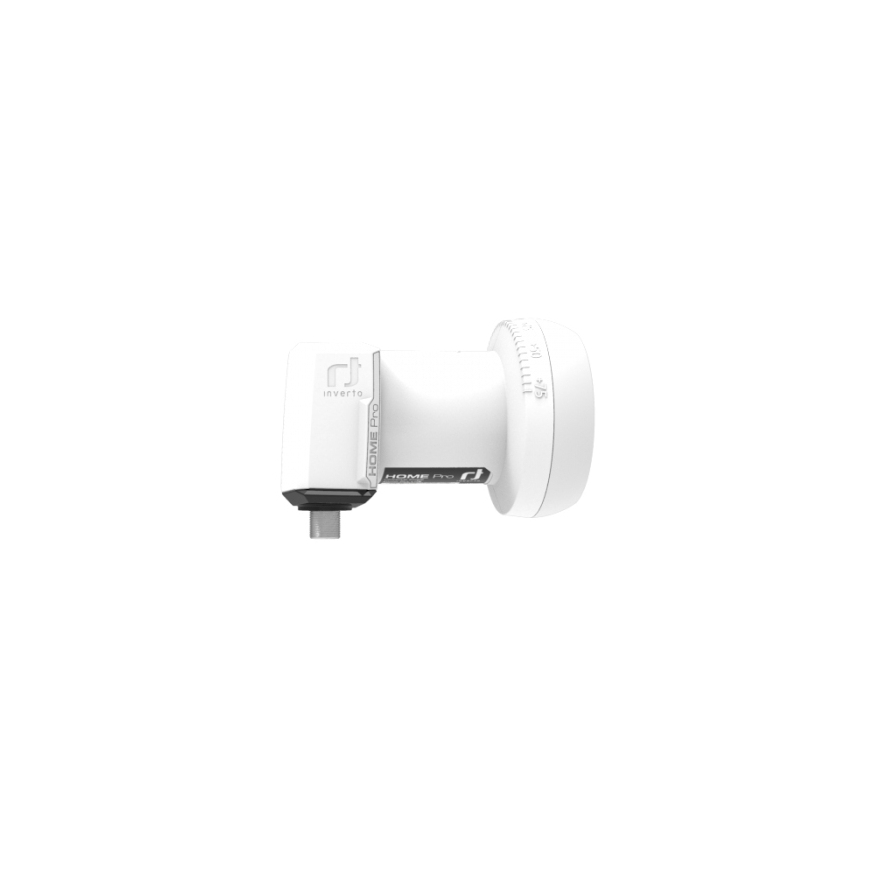

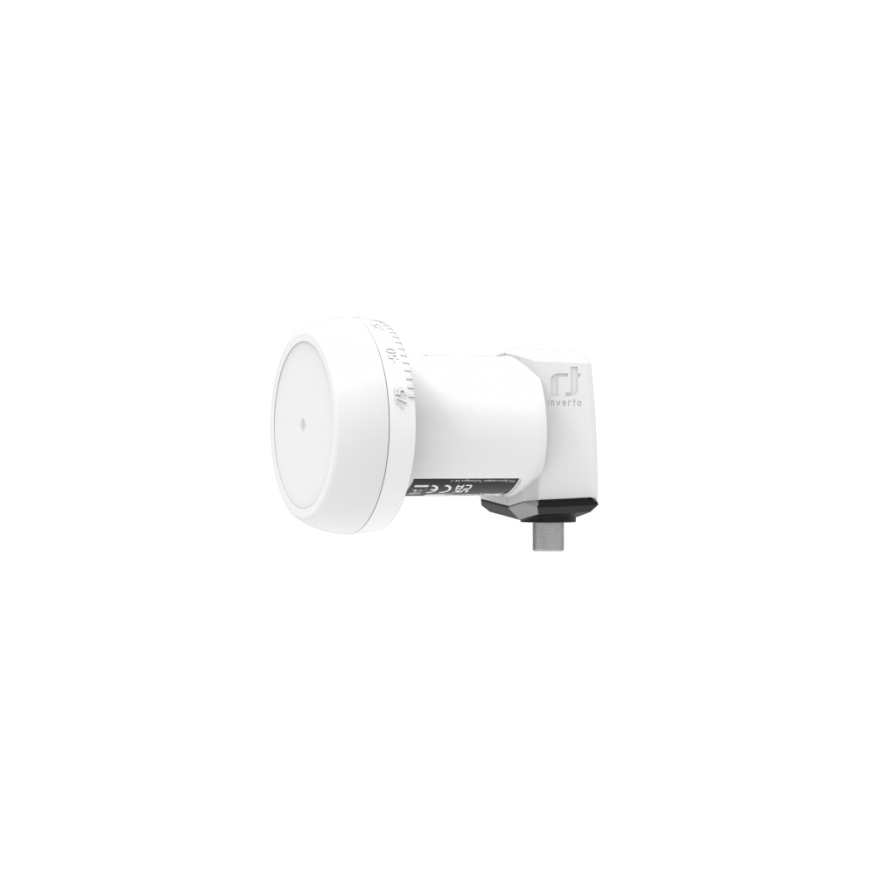

Inverto Home Pro Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz White
15.12 €
4140158 6540 / 24660
5453002616833
Shipping 11-14 b.d.
You are interested in this product?
All about the product
Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE/5G transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.Technical details | |
| Output frequency range | 950 - 2150 MHz |
| Input frequency range | 10.7 - 12.75 GHz |
| Noise figure | 0.4 dB |
| Voltage Standing Wave Ratio (VSWR) | 2.5 : 1 |
| Conversion gain | 65 dB |
| Conversion gain range | 58 - 65 dB |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Output impedance | 75 Ω |
| Spurious emission | -60 dBmW |
| Local Oscillator (LO) phase noise (10 kHz) | -80 dBc/Hz |
| Gain ripple (±) | 0.75 dB |
| Control signal Cc (band switching) | 22 kHz |
| Supply voltage Ca (vertical polarization) | 11 - 14 V |
| Supply voltage Cb (horizontal polarization) | 16 - 20 V |
| Cross-polarization isolation | 22 dB |
| Compression point (1 dB) | 0 dBmW |
| Compliance certificates | CE, UKCA |
Colour | |
| Product colour | White |
Ports & interfaces | |
| RF connector type | F |
Weight & dimensions | |
| Weight | 66 g |
| Package width | 131 mm |
| Package depth | 81 mm |
| Package height | 76 mm |
Packaging data | |
| Package weight | 182 g |
Power | |
| Power consumption | 105 mA |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
Packaging content | |
| Quantity | 1 |
