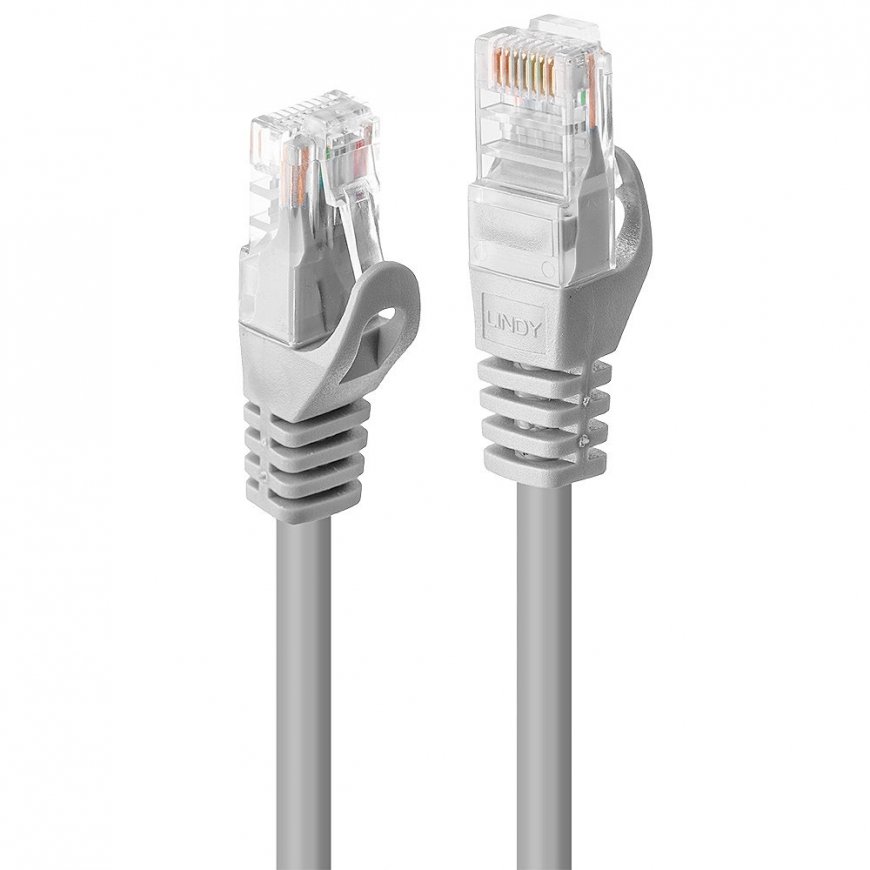

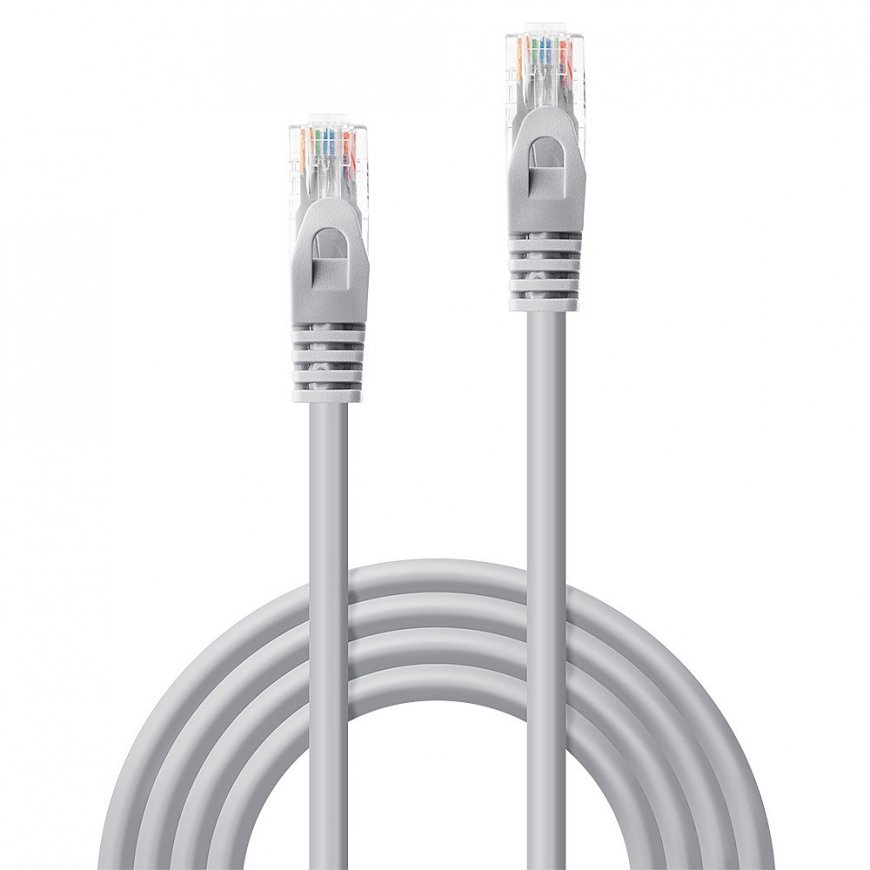

Lindy 48404 networking cable Grey 5 m Cat5e U/UTP (UTP)
13.86 €
4140114 48404
4002888484046
Shipping 24-26 b.d.
You are interested in this product?
All about the product

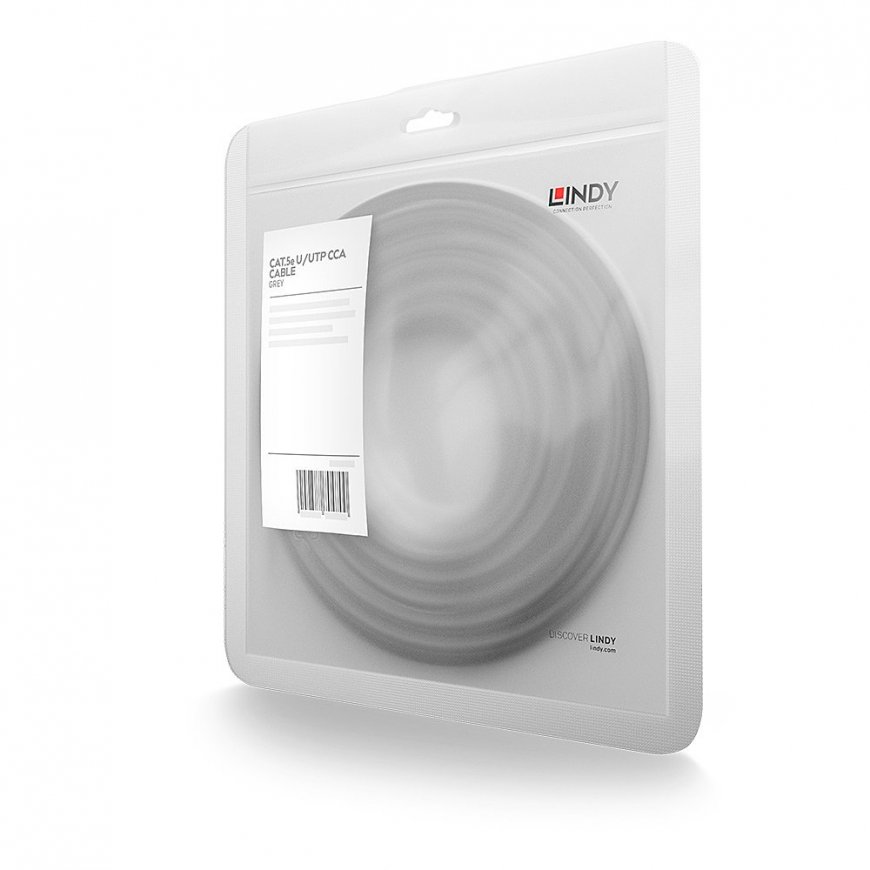

Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the skin effect , while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.5m, 1m, 2m, 3m, 5m, 10m.
Features | |
| Cable length | 5 m |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat5e |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26 |
| Frequency | 100 MHz |
| Conductor material | Copper-Clad Aluminium (CCA) |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Weight & dimensions | |
| Bend radius (min) | 5.7 cm |
| Outer diameter | 4.8 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 22.8 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
