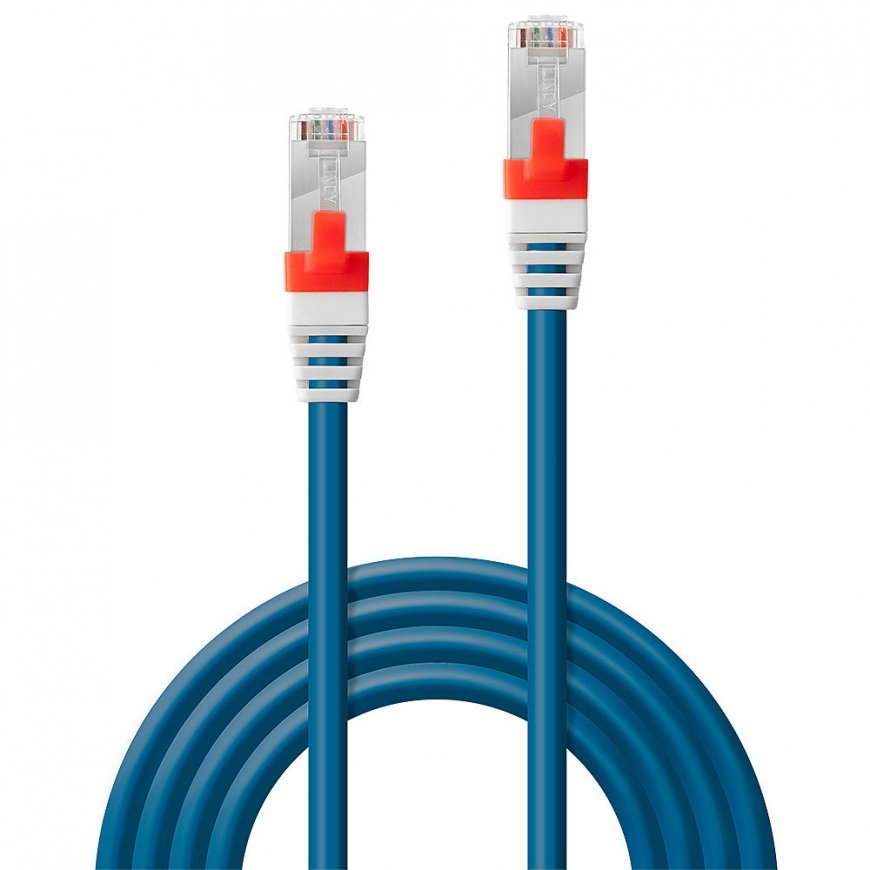

Lindy 45374 networking cable Blue 1 m Cat6a S/FTP (S-STP)
21.13 €
4131680 45374
4002888453745
Shipping 24-26 b.d.
You are interested in this product?
All about the product

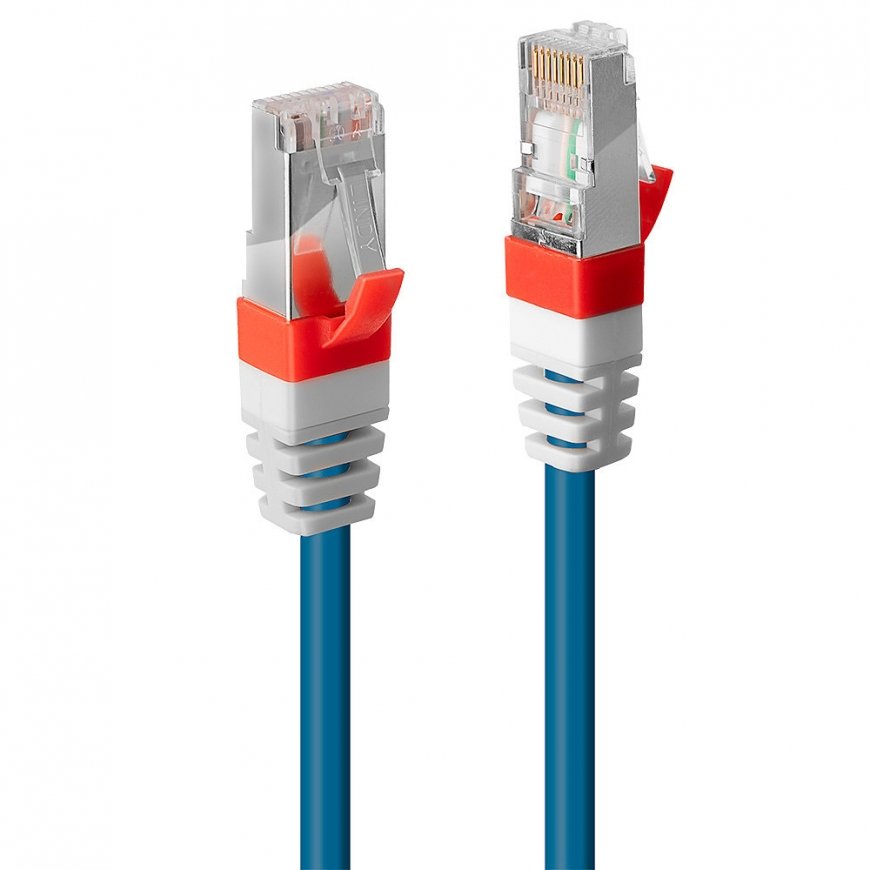

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP).
Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The 100% Component test slip included in each polybag ensures flawless compatibility between devices, each component of the cable is individually tested helping to eliminate problems such as insertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red.
Features | |
| Cable length | 1 m |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| AWG wire size | 26 |
| Frequency | 500 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium/Polyester |
| Conductor material | Copper |
| Product colour | Blue |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Weight & dimensions | |
| Bend radius (min) | 1.86 cm |
| Outer diameter | 6.2 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
Packaging data | |

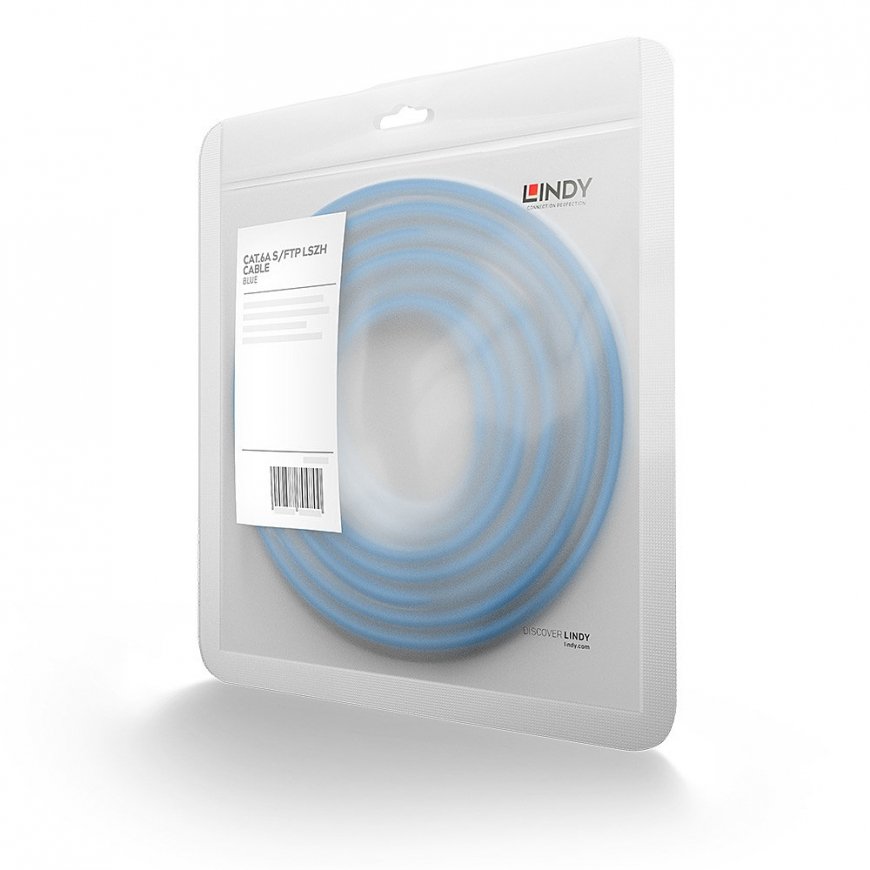

| Package type | Polybag |
Operational conditions | |
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -25 - 60 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH, UL |
