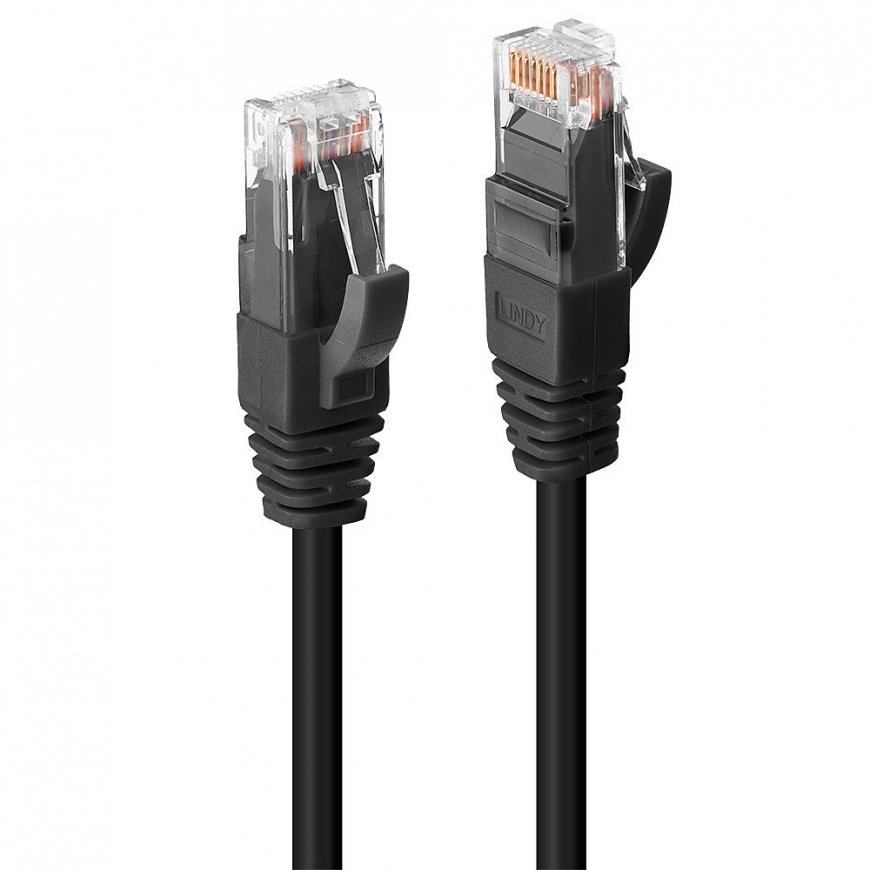

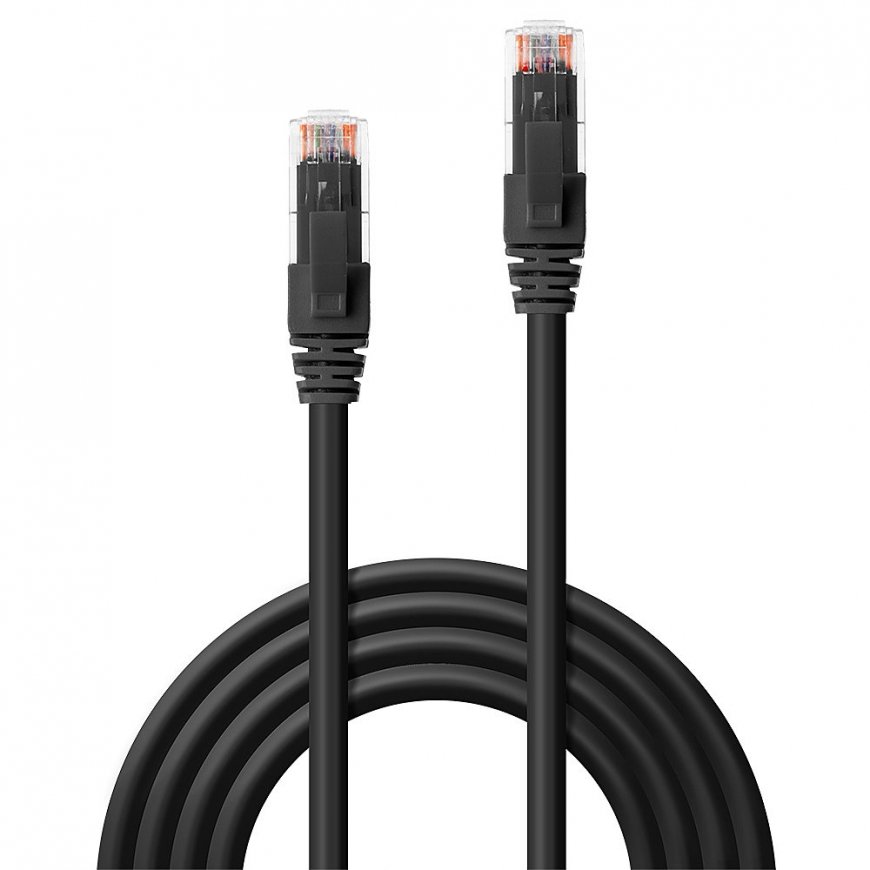

Lindy 45431 networking cable Black 0.5 m Cat6 U/UTP (UTP)
19.00 €
4128884 45431
4002888454315
Shipping 24-26 b.d.
You are interested in this product?
All about the product
Cat.6 U/UTP LSZH network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Grey, Blue, Red, Black.
Features | |
| Cable length | 0.5 m |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| AWG wire size | 26 |
| Frequency | 250 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium/Polyester |
| Conductor material | Copper |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Weight & dimensions | |
| Bend radius (min) | 1.8 cm |
| Outer diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
Packaging data | |

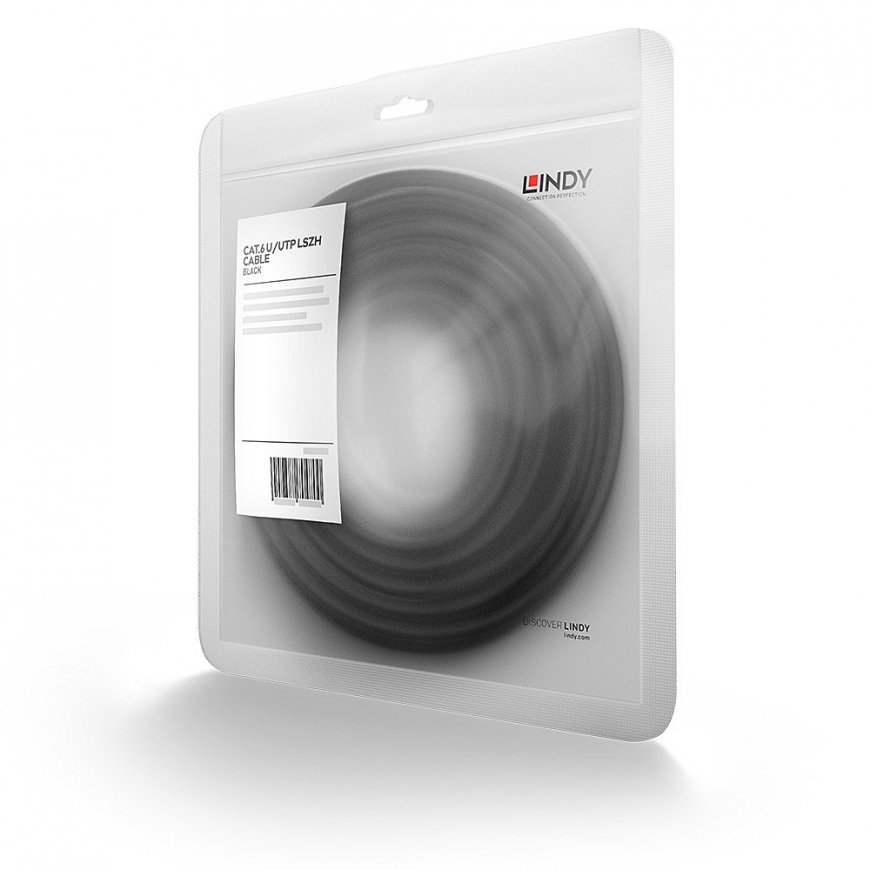

| Package type | Polybag |
Operational conditions | |
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -25 - 60 °C |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
Certificates | |
| Certification | RoHS, REACH & UL |
