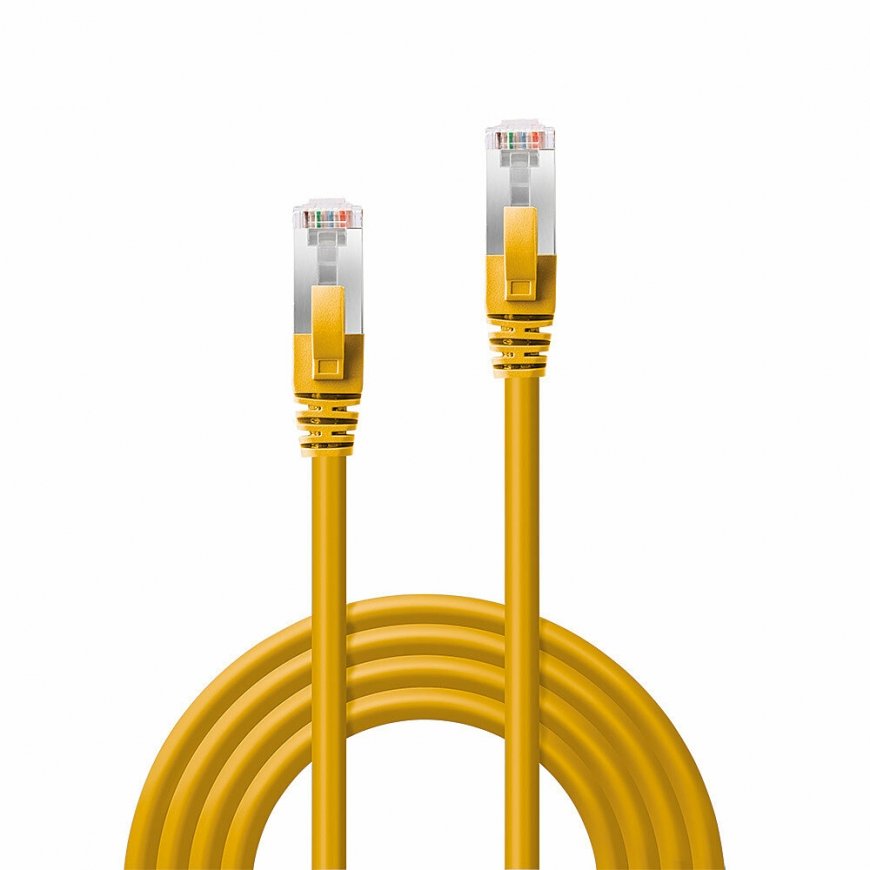

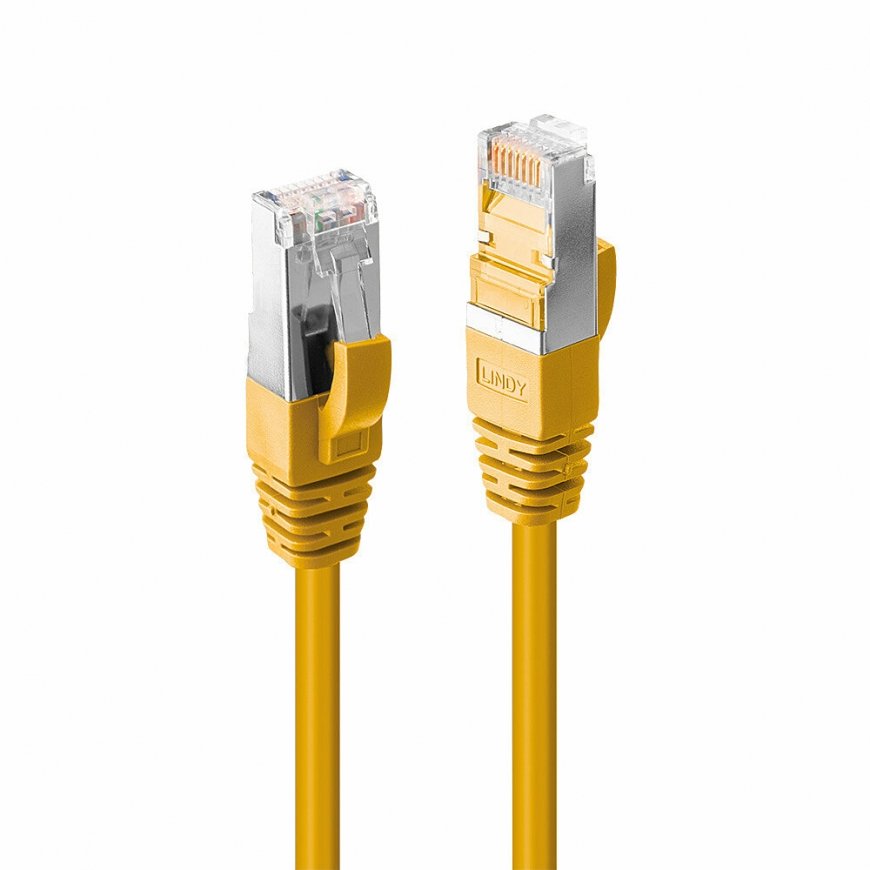

Lindy 47868 networking cable Yellow 10 m Cat6a S/FTP (S-STP)
29.00 €
4121967 47868
4002888478687
Shipping 24-26 b.d.
You are interested in this product?
All about the product
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White, Yellow, Green
Features | |
| Cable length | 10 m |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Nickel/Gold |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable standard | Cat6a |
| Cable shielding | S/FTP (S-STP) |
| AWG wire size | 27 |
| Frequency | 500 MHz |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Conductor material | Copper |
| Cable shape | Round |
| Product colour | Yellow |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector housing material | Polycarbonate (PC) |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
Weight & dimensions | |
| Bend radius (min) | 7.2 cm |
| Depth | 21.5 mm |
| Height | 8.3 mm |
| Width | 11.6 mm |
| Outer diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
| Connector 2 dimensions (WxDxH) | 11.6 x 21.5 x 8.3 mm |
Packaging data | |
| Package type | Polybag |
Sustainability | |
| Sustainability compliance | Yes |
Operational conditions | |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 75 °C |
Certificates | |
| Compliance certificates | RoHS, REACH |
| Certification | RoHS, REACH |
