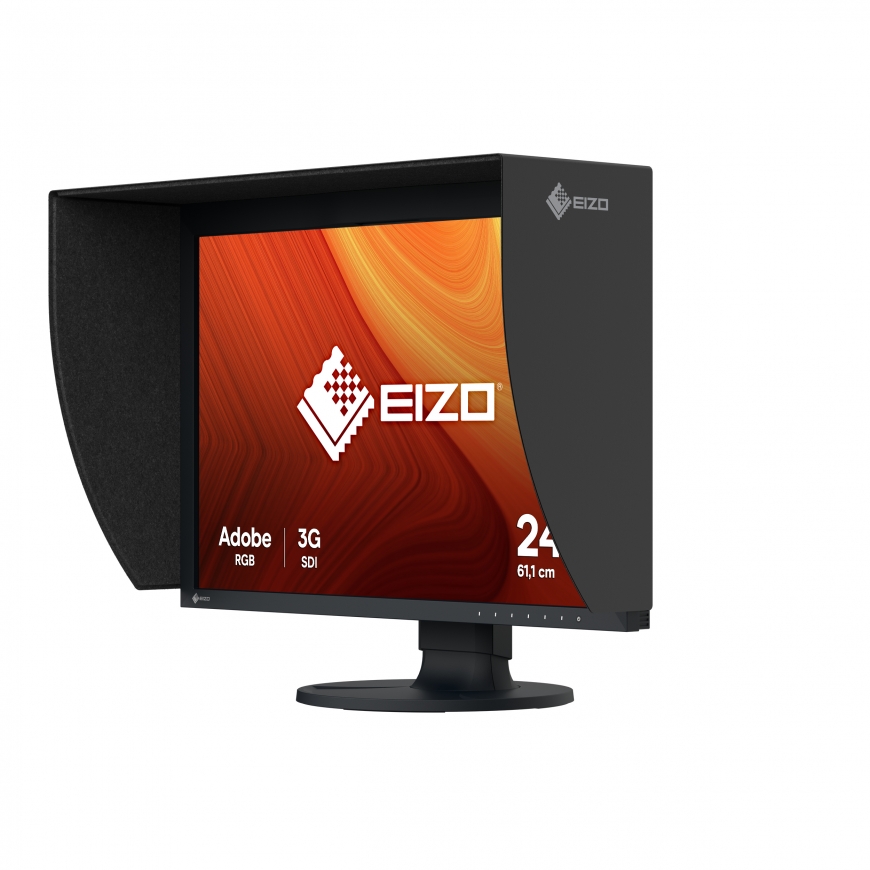

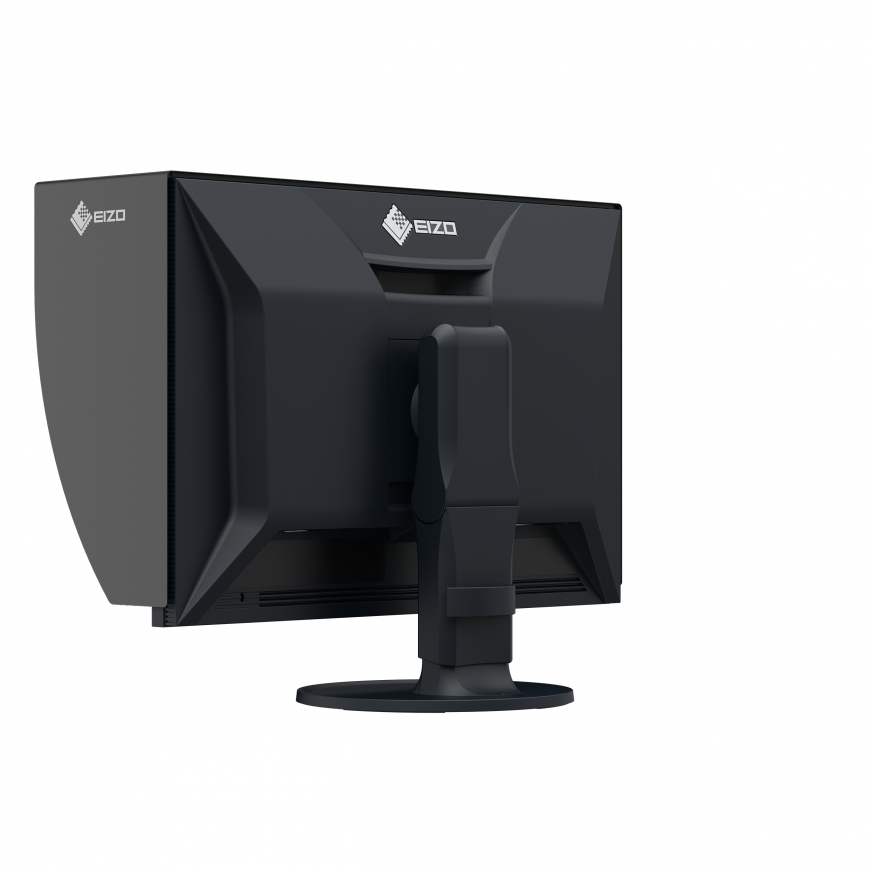

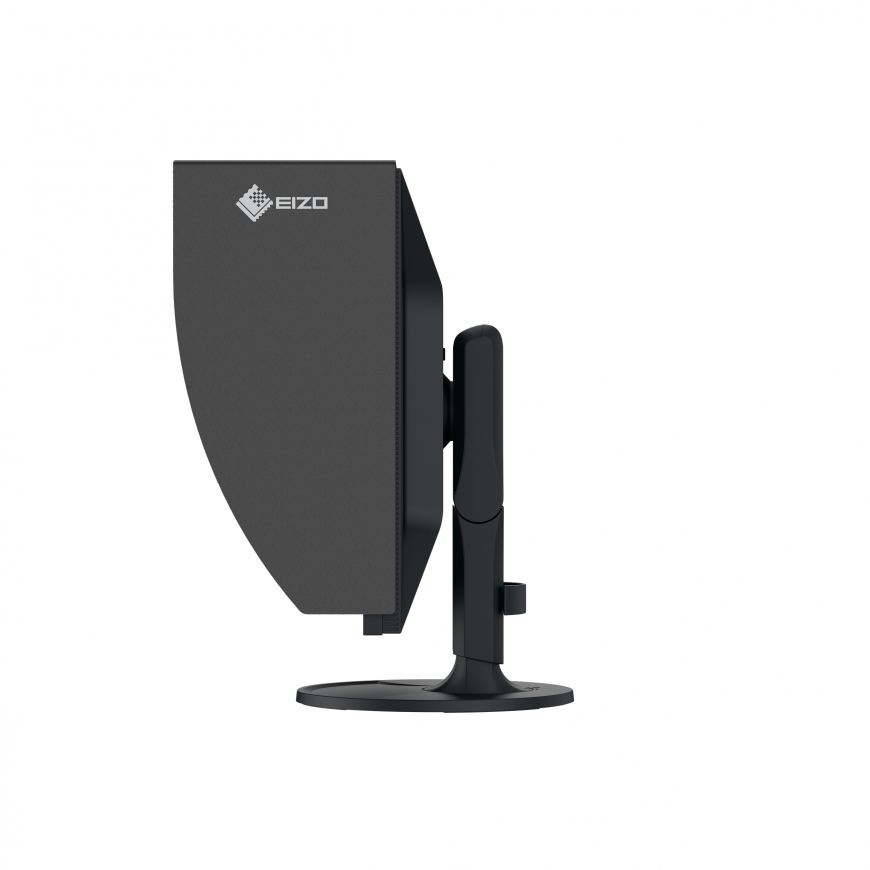

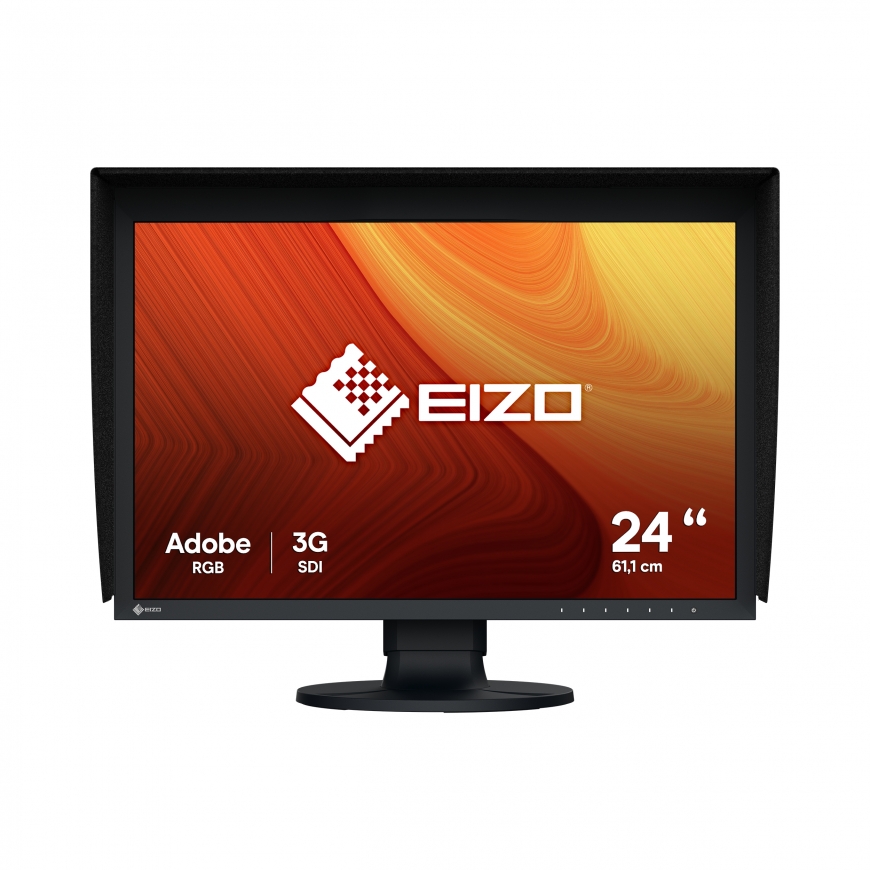

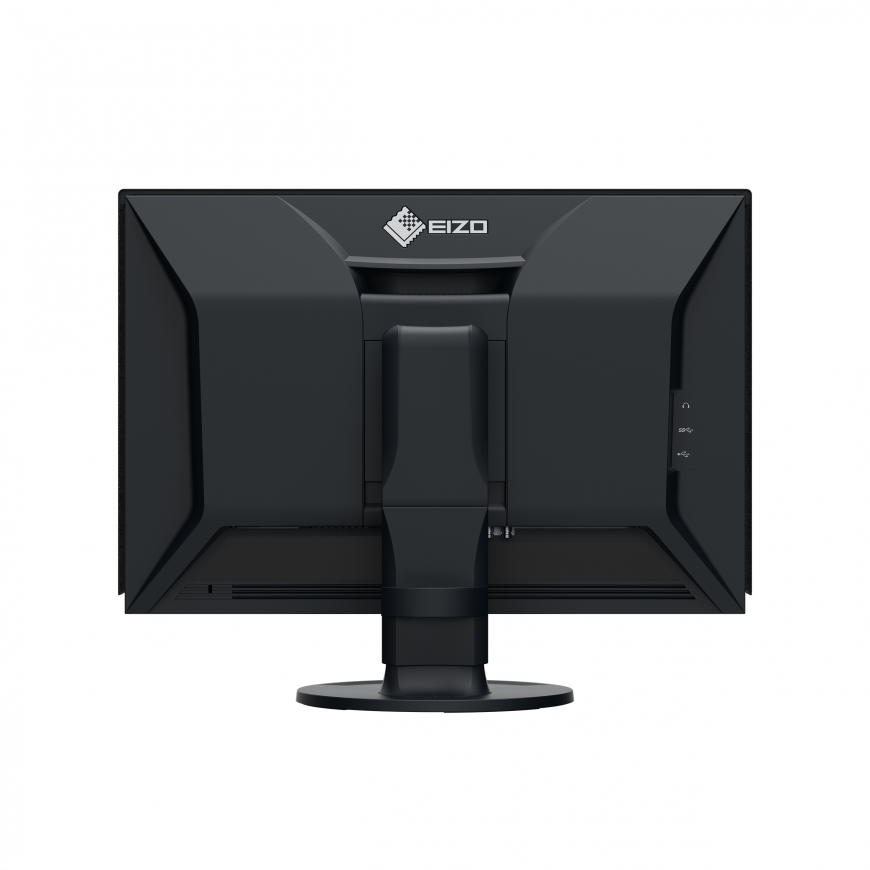

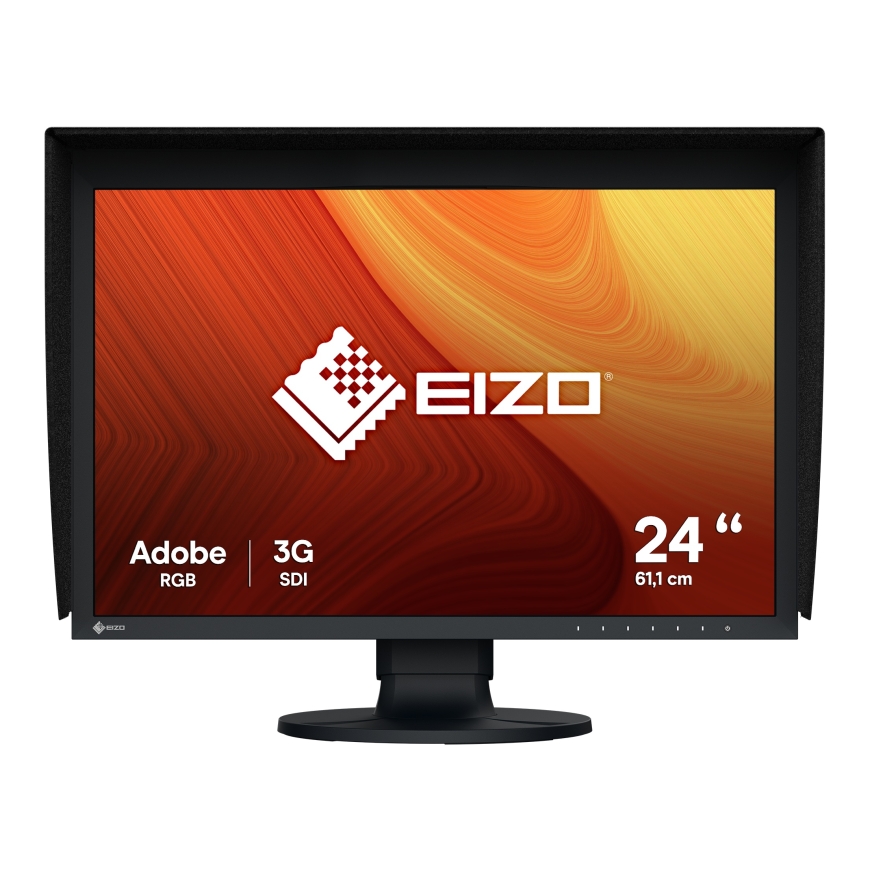

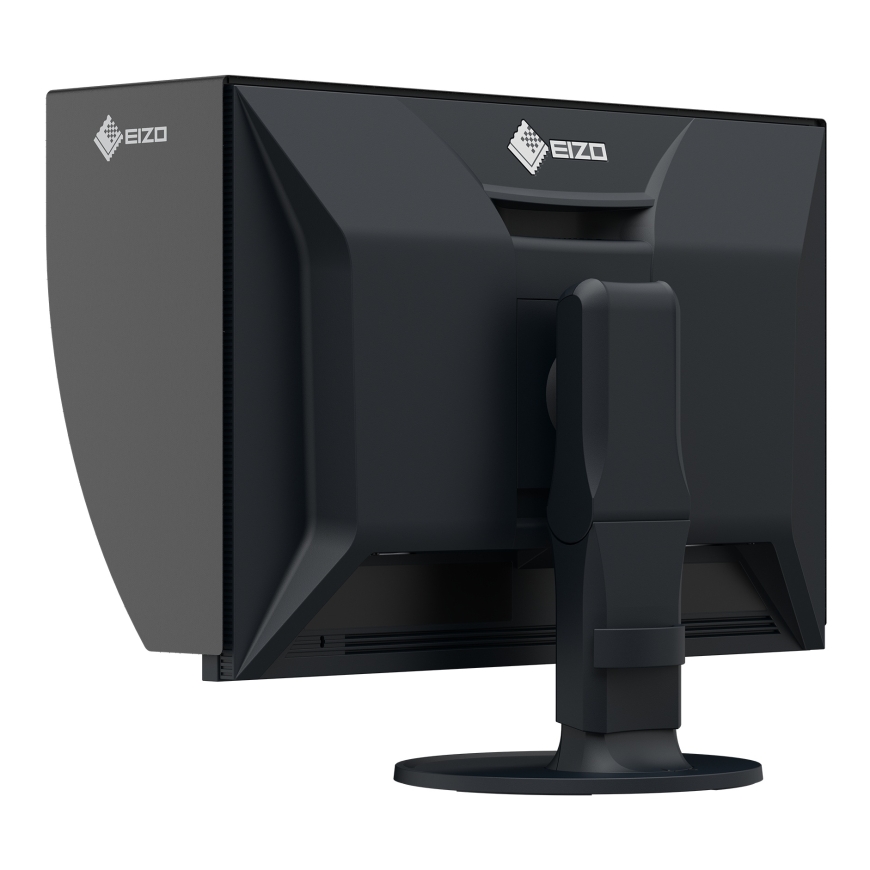

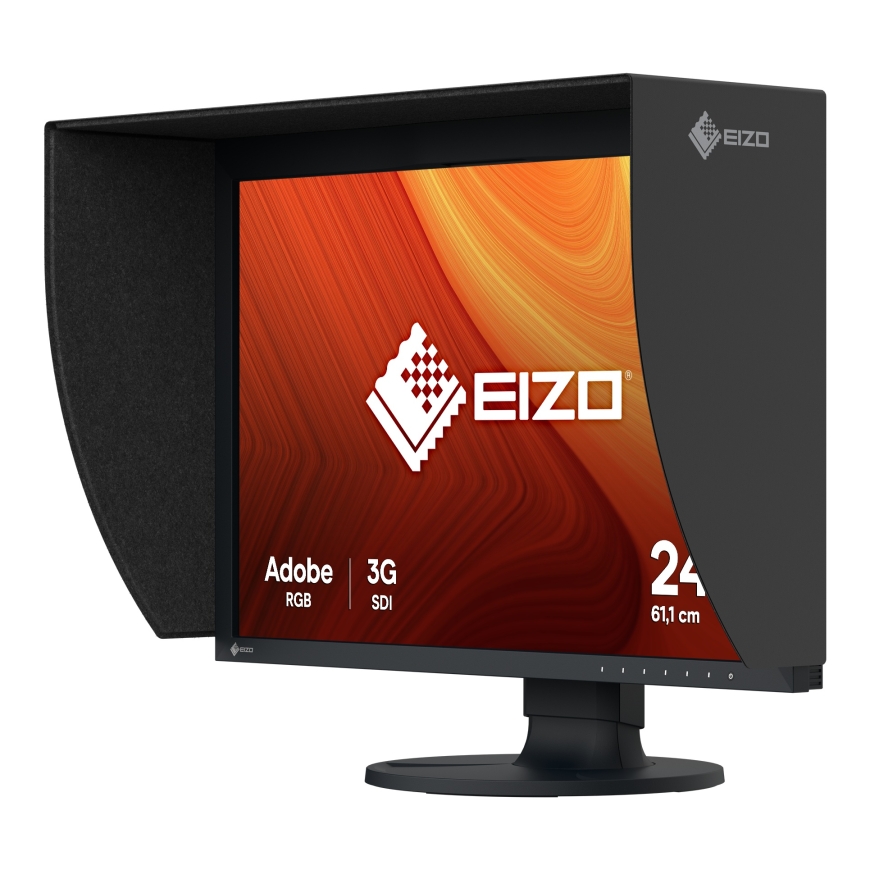

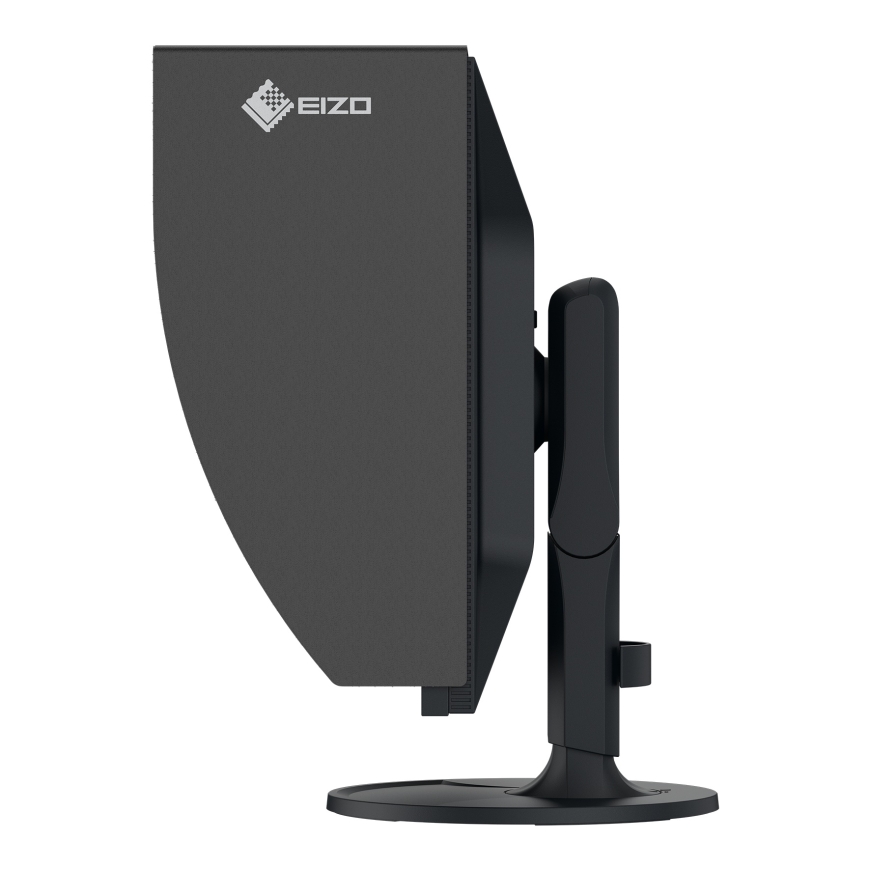

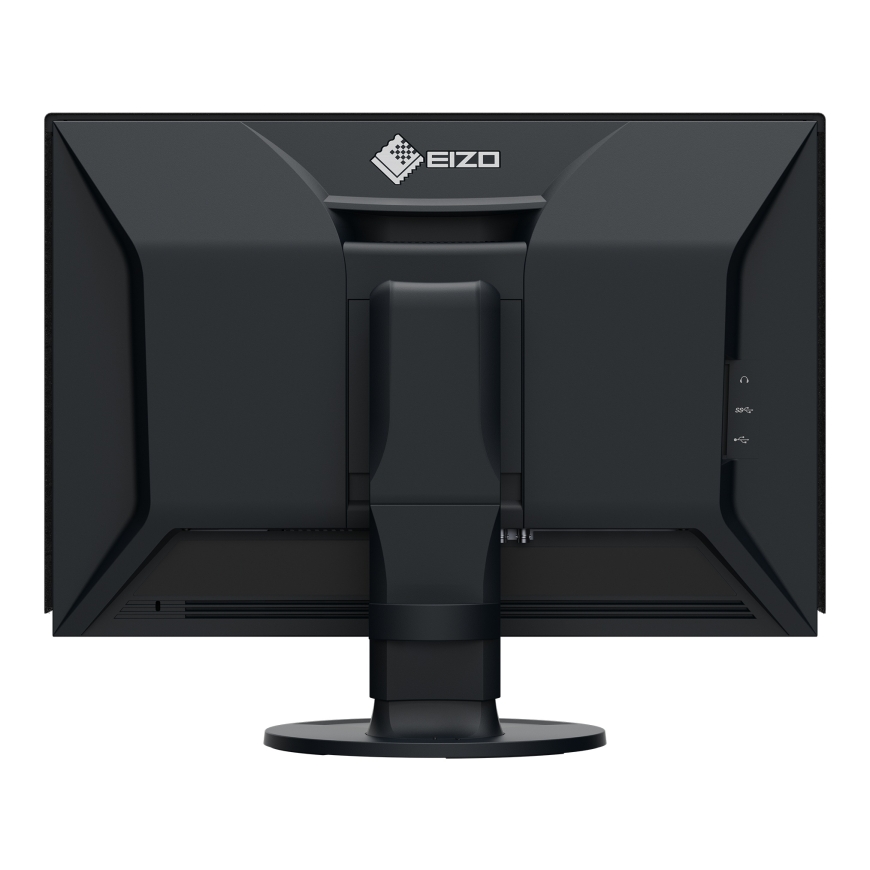

EIZO ColorEdge CG2400SV computer monitor 61.2 cm (24.1") 1920 x 1200 pixels WUXGA LCD Black
1 879,00 €
1 839.00 €
Monthly payment from 48,25 €
4112098 CG2400SV
4995047070078, 0690592063073
Shipping 12-13 b.d.
You are interested in this product?
All about the product
With its compact 24" size, SDI connectivity, and HDR support, the ColorEdge CG2400SV is the ideal monitor for editing suites, studios, and mobile productions in the film and broadcast industry. The SDI input and output (3G-SDI Level A and HD-SDI) enable loss-free transmission of uncompressed video signals ś perfect for use with camera systems and live feeds. HDMI and DisplayPort are also available. With a maximum brightness of 400 cd/m² and a contrast ratio of 1800:1, the CG2400SV meets the requirements of the DCI standard. Support for HLG and PQ gamma curves ensures accurate HDR display ś ideal for postproduction and on-set monitoring. The Wide Gamut IPS panel covers 98% of the DCI-P3 color space and supports the BT.2020 standard. With 10-bit display and a 16-bit 3D LUT, the monitor delivers accurate color reproduction and smooth transitions - essential for color-critical applications. The integrated calibration sensor enables effortless, automatic calibration. With the Pixel Inspection function, users can directly check whether the signal processing is correctly set throughout the entire workflow. The integrated USB hub, headphone jack, and included light shield round out the CG2400SV’s extensive features.Features
| Display diagonal | 61.2 cm (24.1") |
| HD type | WUXGA |
| Display resolution | 1920 x 1200 pixels |
| Screen shape | Flat |
| Native aspect ratio | 16:10 |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| High Dynamic Range (HDR) supported | Yes |
| HDMI ports quantity | 1 |
| Energy efficiency class (SDR) | Not available |
| Energy efficiency class (HDR) | Not available |
| Width (with stand) | 554.4 mm |
| Depth (with stand) | 245 mm |
| Height (with stand) | 408.1 mm |
| Weight (with stand) | 8.5 kg |
| Width (without stand) | 554.4 mm |
| Depth (without stand) | 70.2 mm |
| Height (without stand) | 374.1 mm |
| Weight (without stand) | 5.5 kg |
| Touchscreen | No |
| Display number of colours | 1.07 billion colours |
| Maximum refresh rate | 60 Hz |
| Headphone connectivity | 3.5 mm |
| Cables included | AC; HDMI; USB Type-A to USB Type-B |
| Supported video modes | 720p; 1080p; 480i; 480p; 1080i; 576i; 576p; 1200p |
| Quick start guide | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Certification | CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including; ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B),; TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 18 W |
| Built-in speaker(s) | No |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 64 W |
| Stand included | Yes |
| Display technology | LCD |
| Contrast ratio (typical) | 1800:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 61.1 cm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German; English; Spanish; French; Italian; Swedish |
| Tilt angle range | -5 - 35° |
| LED backlight | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG) |
| HDCP | Yes |
| Power consumption (standby) | 0.5 W |
| Storage relative humidity (H-H) | 10 - 90% |
| Pixel density | 94 ppi |
| Height adjustment | Yes |
| Backlight type | W-LED |
| Swivel angle range | 0 - 344° |
| Anti-glare screen | Yes |
| Market positioning | Graphics design |
| Panel type | IPS |
| Display brightness (typical) | 400 cd/m² |
| Pixel pitch | 0.27 x 0.27 mm |
| Built-in USB hub | Yes |
| HDMI | Yes |
| Headphone out | Yes |
| DisplayPorts quantity | 1 |
| Pivot | Yes |
| Harmonized System (HS) code | 85285210 |
| Response time | 11 ms |
| Built-in camera | No |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 2 |
| Flicker-free technology | Yes |
| Swivelling | Yes |
| Digital horizontal frequency | 26 - 76 kHz |
| Digital vertical frequency | 23 - 61 Hz |
| Pivot angle | -90 - 90° |
| Viewable size, horizontal | 51.8 cm |
| Viewable size, vertical | 32.4 cm |
| USB Type-A downstream ports quantity | 4 |
| Colour depth | 10 bit |
| sRGB coverage (typical) | 100% |
| Feet colour | Black |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| Number of USB Type-B upstream ports quantity | 2 |
| Adjustable height (max) | 15.5 cm |
| DCI-P3 coverage | 99% |
| Adobe RGB coverage | 97% |
| Built-in KVM switch | Yes |
| Sun hood included | Yes |
| Tilt adjustment | Yes |
| Warranty period | 5 year(s) |
| Hardware calibration | Yes |
| Built-in calibration sensor | Yes |
| Colour gamut standard | DCI-P3; Rec. 709; sRGB; Adobe RGB; EBU |
| Compliance certificates | CE; RoHS; WEEE; Federal Communications Commission (FCC); UKCA; PSE; TÜV mark; VCCI; CB; RCM; CCC; China RoHS; ICES |
| Look-up table (LUT) bit depth | 16 |
