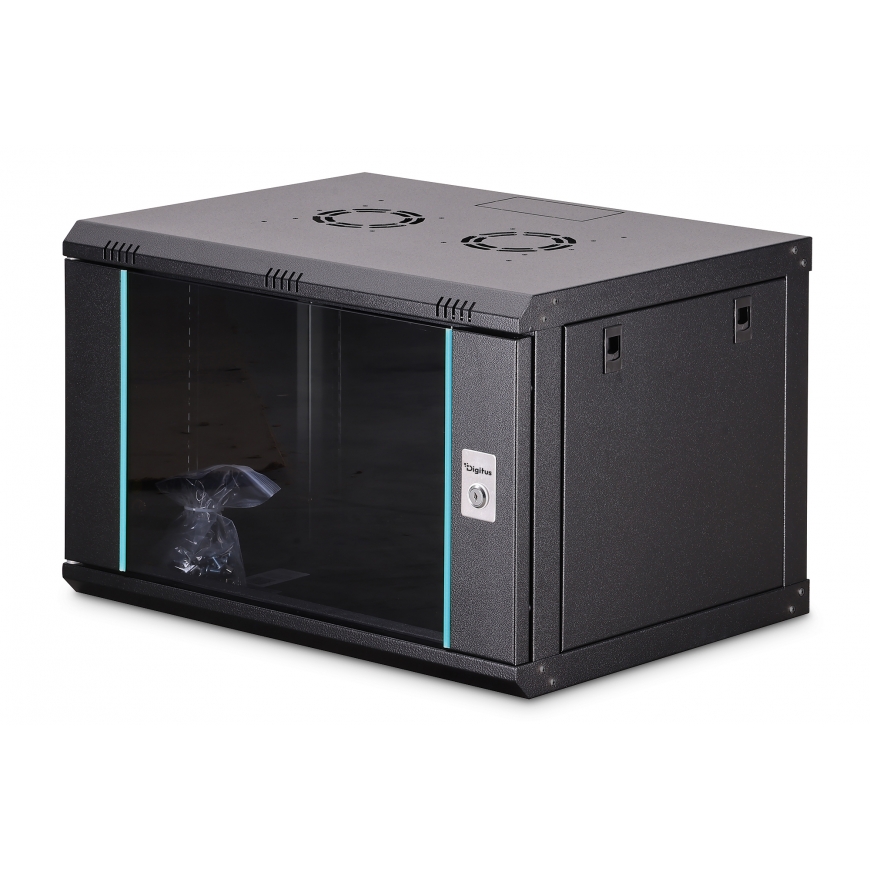

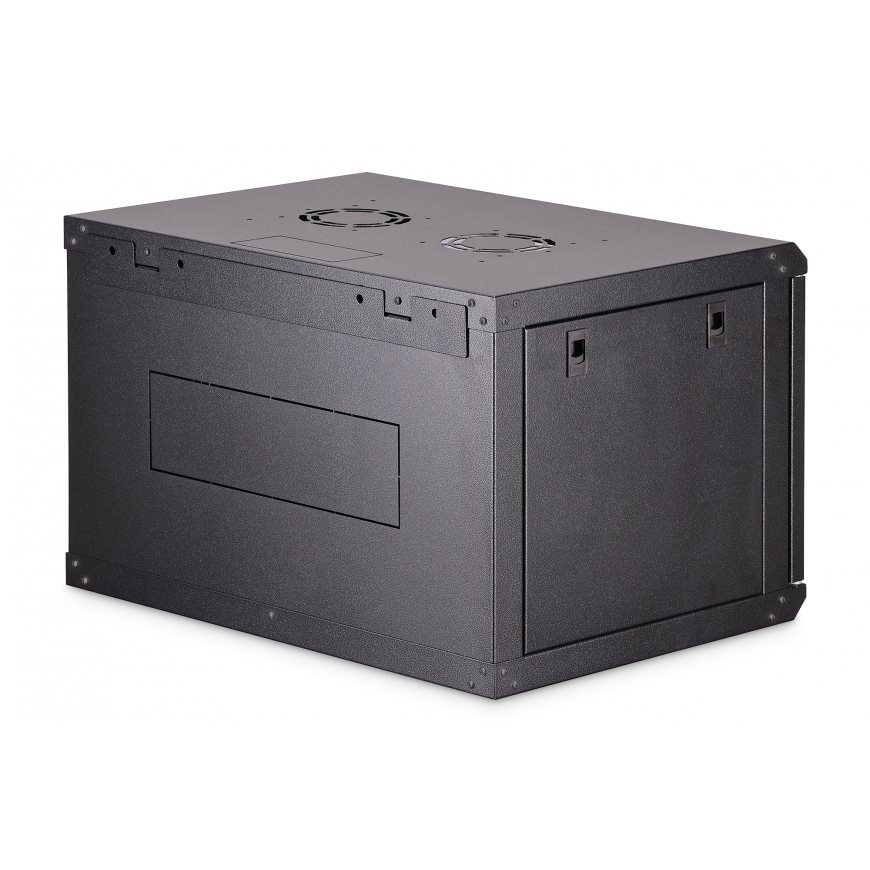

Digitus Dynamic-N series wall-mounted enclosure - 600x450 mm (WxD), unassembled
99.00 €
Monthly payment from 3,45 €
4103292 DN-37101
4016032488545
This product is no longer in stock
You are interested in this product?
All about the product
The unassembled delivery of the wall-mounted enclosures ensures optimized transport options. Assembly can be carried out quickly and easily.- Optimum ventilation and air extraction
- Lockable safety glass door with steel frame
- 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
- Supplied unassembled
The Dynamic-N series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.
Features
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Weight | 14.8 kg |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 385 mm |
| Type | Wall mounted rack |
| Material | Steel; Glass |
| Cooling type | Active |
| Package width | 650 mm |
| Package depth | 520 mm |
| Package height | 280 mm |
| Package weight | 17 kg |
| Manual | Yes |
| Master (outer) case width | 650 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 17 kg |
| Products per master (outer) case | 1 pc(s) |
| Maximum weight capacity | 60 kg |
| Assembly required | Yes |
| Cable management | Yes |
| Products per shipping (inner) case | 1 pc(s) |
| Preassembled | No |
| Mounting kit | Yes |
| Rack capacity | 7U |
| Front door construction | Glass/Steel |
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Side panels included | Yes |
| Key lock | Yes |
| Front door key lock | Yes |
| Back door construction | Steel |
| Side panel construction | Steel |
| Removable front door | Yes |
| Removable side panels | Yes |
| Shipping (inner) case width | 65 cm |
| Shipping (inner) case length | 52 cm |
| Shipping (inner) case height | 28 cm |
| Removable back door | Yes |
| Rack rails | Yes |
| Door opening angle | 230° |
| Side panel style | Blind |
| Back door style | Blind |
| Front door style | Glass door |
| Grounding kit | Yes |
| Locking points | 1 |
