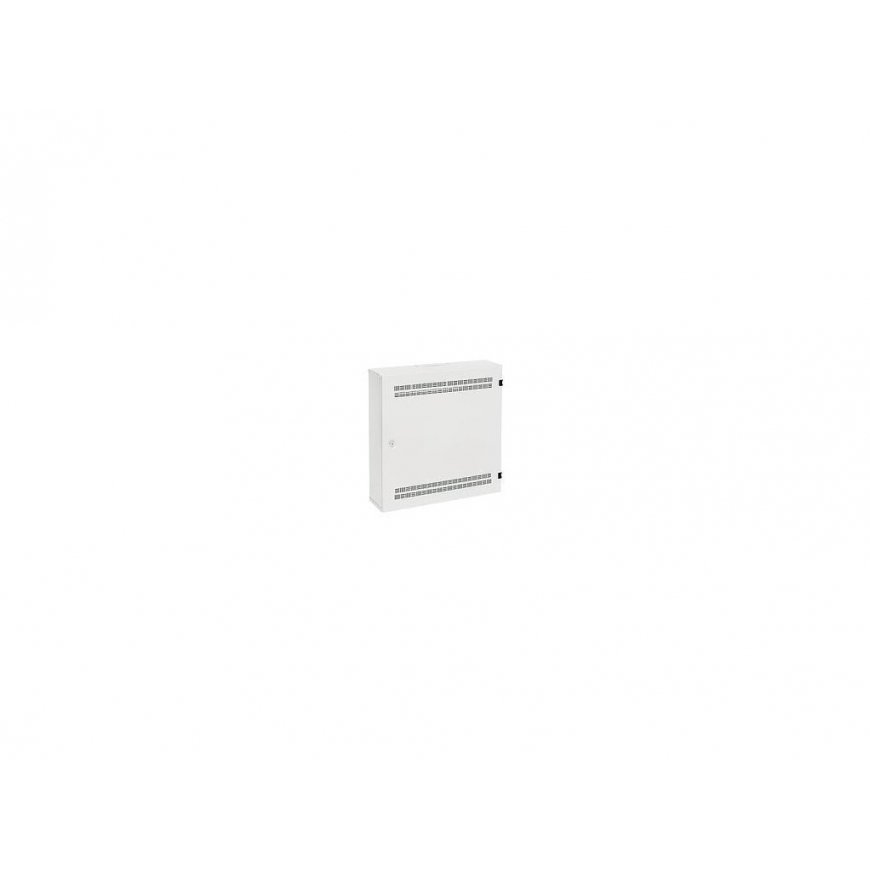

Solarix SOHO LC-18 Distribution Box with 2U, 4U, and 11U Rails, 550x550x150mm, White RAL 9003 LC-18-55-15-W
4094907 86000572
8595684710700
Shipping 9-13 b.d.
All about the product
Solarix LC-18-55-15-W
SOHO LC-18 rack on 2U, 4U, and 11U rails, 550x550x150 mm, white RAL 9003
The modern wall-mounted SOHO data distribution cabinet is designed for the installation of network cable elements or telecommunications distribution elements on a smaller scale.
The Solarix LC-18 rack is made of a frame characterized by high strength and rigidity. The front of the rack is equipped with metal doors with two hinges and a lock with a patented key. These metal doors are supplemented with perforations for passive ventilation of the equipment inside the rack. Cable entry is possible through pre-prepared holes at the back and on all sides of the rack. There are prepared holes for wall mounting on the back of the rack. The dimensions of the 19-inch frames are 4U and 11U vertically and 2U horizontally. There are prepared holes on the cabinet and frame that define positions during assembly. If the frame is level with the door, the opening angle of the door is approximately 110 degrees, or if the door is extended from the frame, the opening angle is 180 degrees.
Surface treatment : Powder coating for outdoor conditions according to the RAL color palette. Standard colors are RAL 7035 (light gray), RAL 9005 (black), and white (RAL) 9003.
Accessories Many accessories can be ordered for the cabinet, such as closing covers, mounting plates, and many others, including special accessories upon customer request.
Standard version:- External dimensions 550x550x150 mm
- Includes 3 pairs of vertical 19-inch rails for mounting devices 2U, 4U, and 11U
- Doors can be opened at a 180° angle, closing direction can be selected to the right or left
- perforated front doors with a single-point patented key lock
- cable entries at the bottom, top, and back
- 4 holes with a diameter of 6.5 mm at the back for wall mounting
- grounding cable connecting the cabinet body with the doors
- Maximum load 30 kg
- Protection class: IP 20
Product page: https://www.solarix.cz/product.jsp?artno=86000572
Technical specifications:
| Height: | 2U horizontally, 4U vertically, 11U vertically |
| Height: | 550 mm |
| Width: | 550 mm |
| Depth: | 150 mm |
| Weight: | 10 kg |
| Color: | RAL 9003 |
