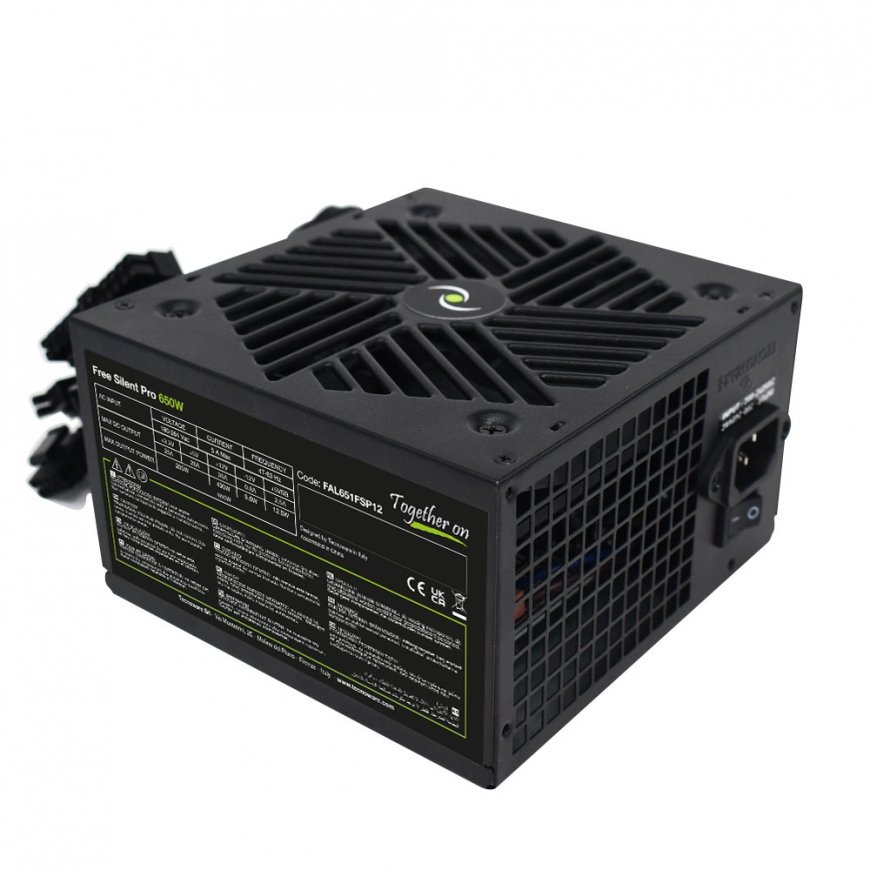

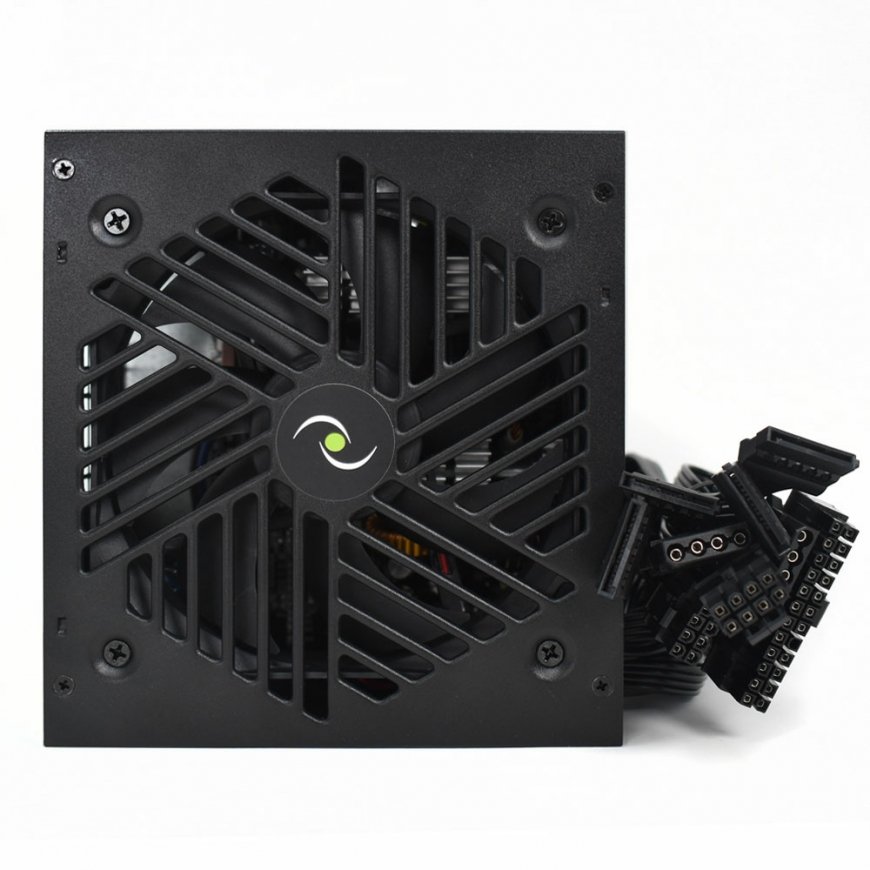

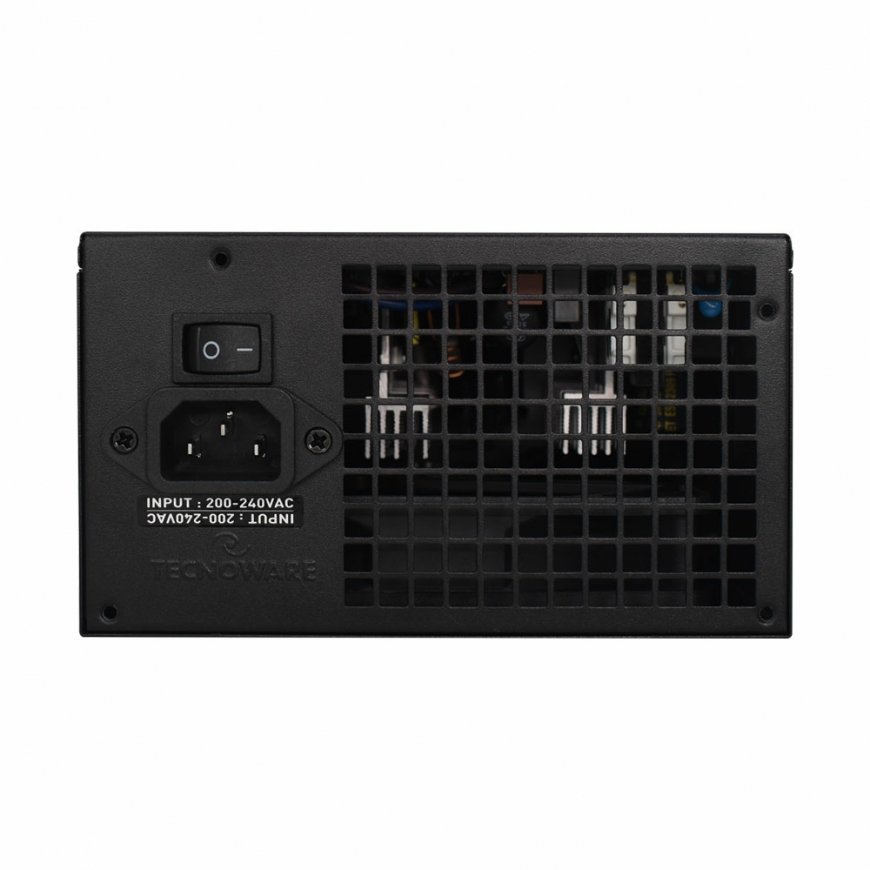

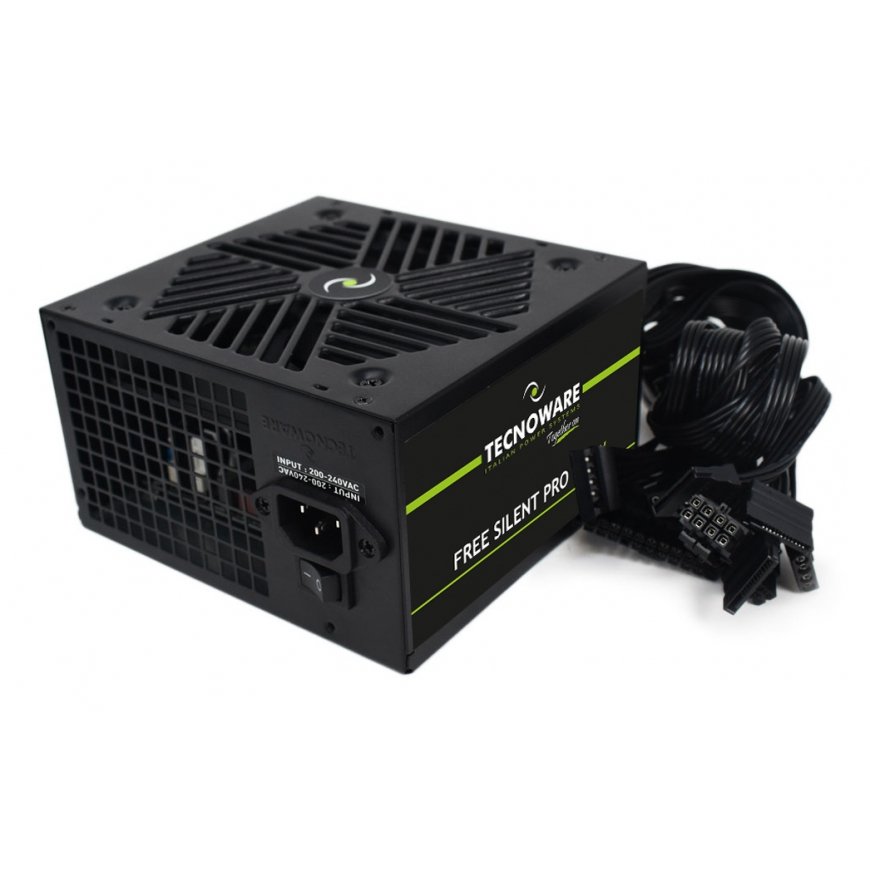

Tecnoware FAL651FSP12 power supply unit 650 W 24-pin ATX ATX Black
35.94 €
4078307 FAL651FSP12
8026475179944
Shipping 2-3 b.d.
You are interested in this product?
All about the product
Internal power supply for personal computer, power 650W, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.Power | |
| Efficiency | 85% |
| Power protection features | Overload, Short circuit, Surge protection |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 26 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.8 A |
| AC input voltage | 180 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Total power | 650 W |
Performance | |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | No |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| Motherboard power connector | 24-pin ATX |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
Weight & dimensions | |
| Weight | 1 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
