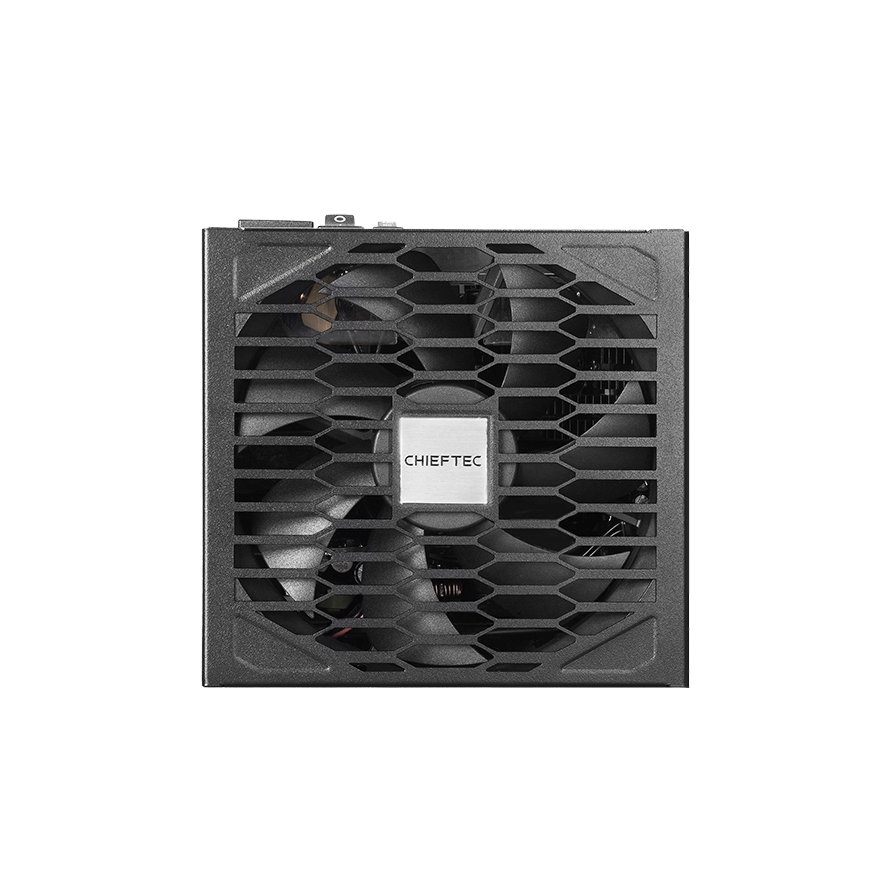

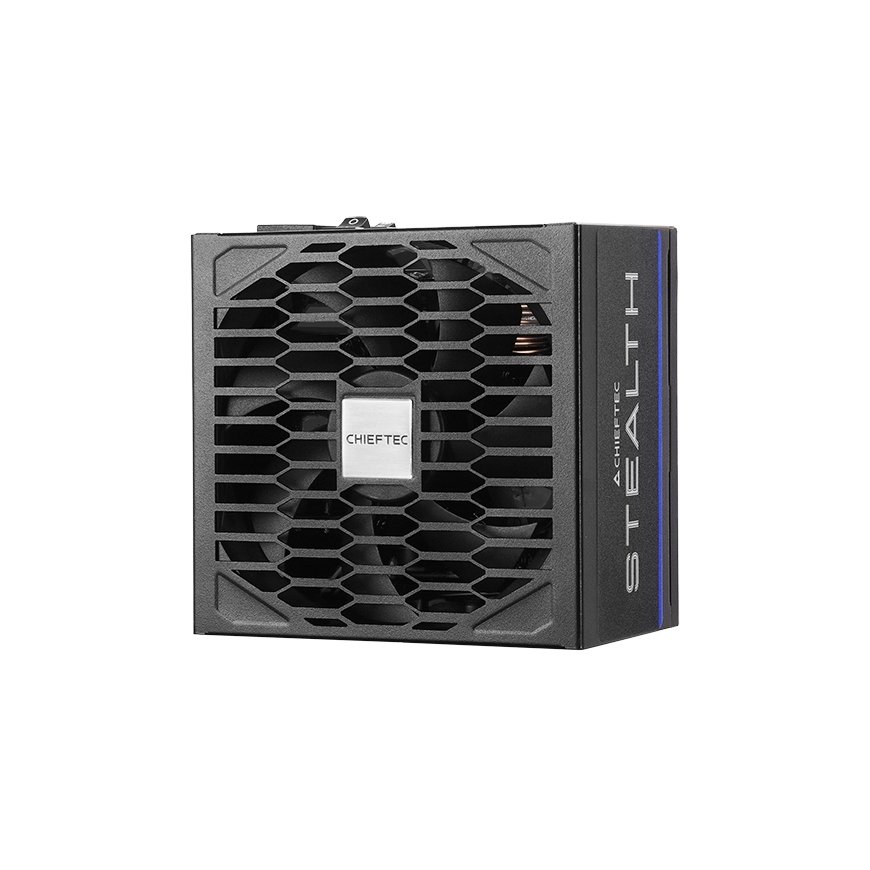

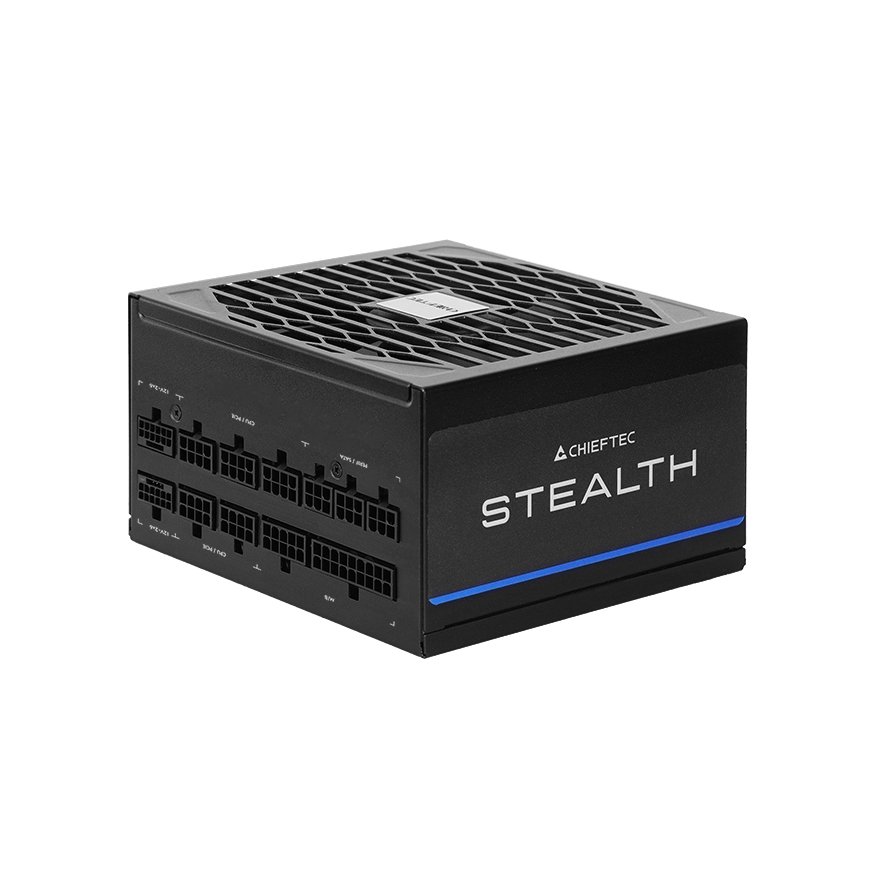

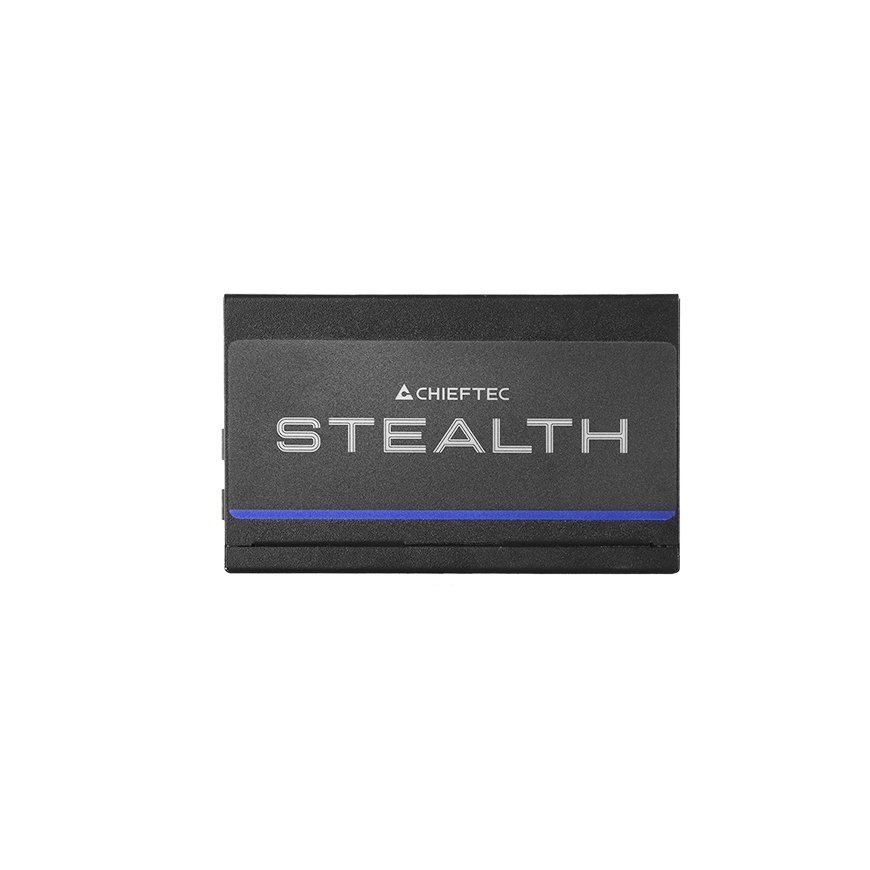

Chieftec Stealth 1200W Vega M Series SPX-1200-FC 80+ Platin power supply unit 24-pin ATX ATX Black
181.65 €
Monthly payment from 5,58 €
4077673 SPX-1200-FC
0753263079268
2026-09-29
You are interested in this product?
All about the product
Chieftec Stealth 1200W Vega M Series SPX-1200-FC 80+ Platin. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mmPower | |
| Input current | 15.0-7.5 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage, Surge and inrush |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 1200 W |
Performance | |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA power connectors | 8 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 150 |
| Peripheral (Molex) power cable length | 150, 500 |
| PCI Express power cable length | 65 cm |
| EPS power connector (4+4 pin) | Yes |
| Number of EPS connectors | 1 |
| Number of SATA power cables | 10 |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
