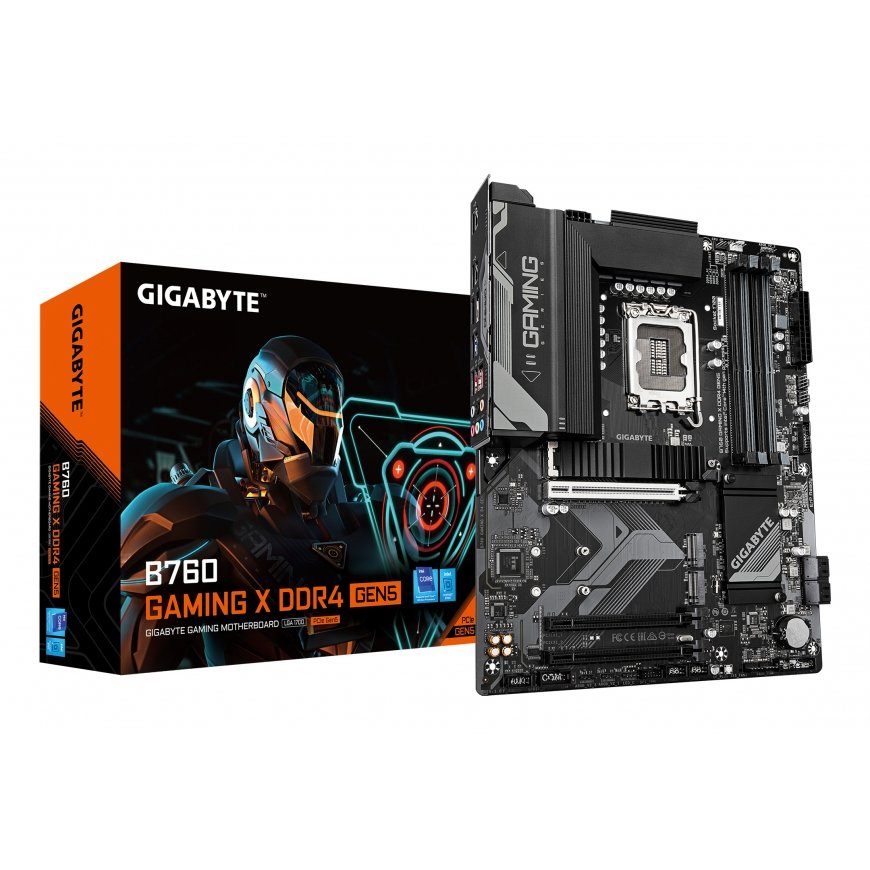

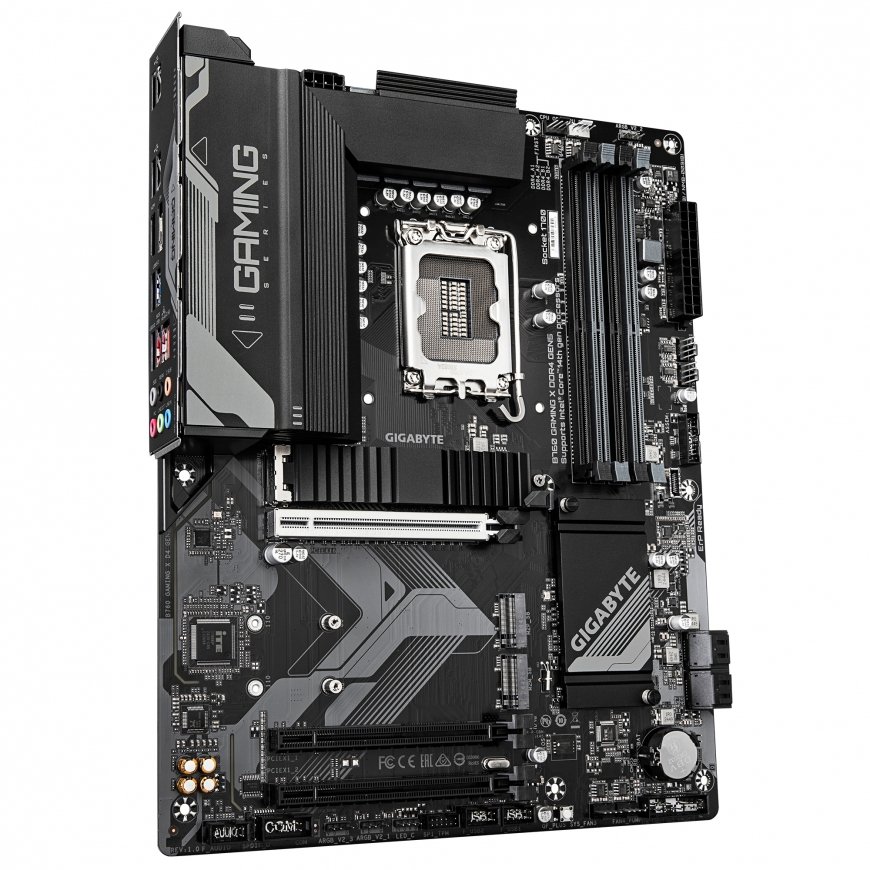

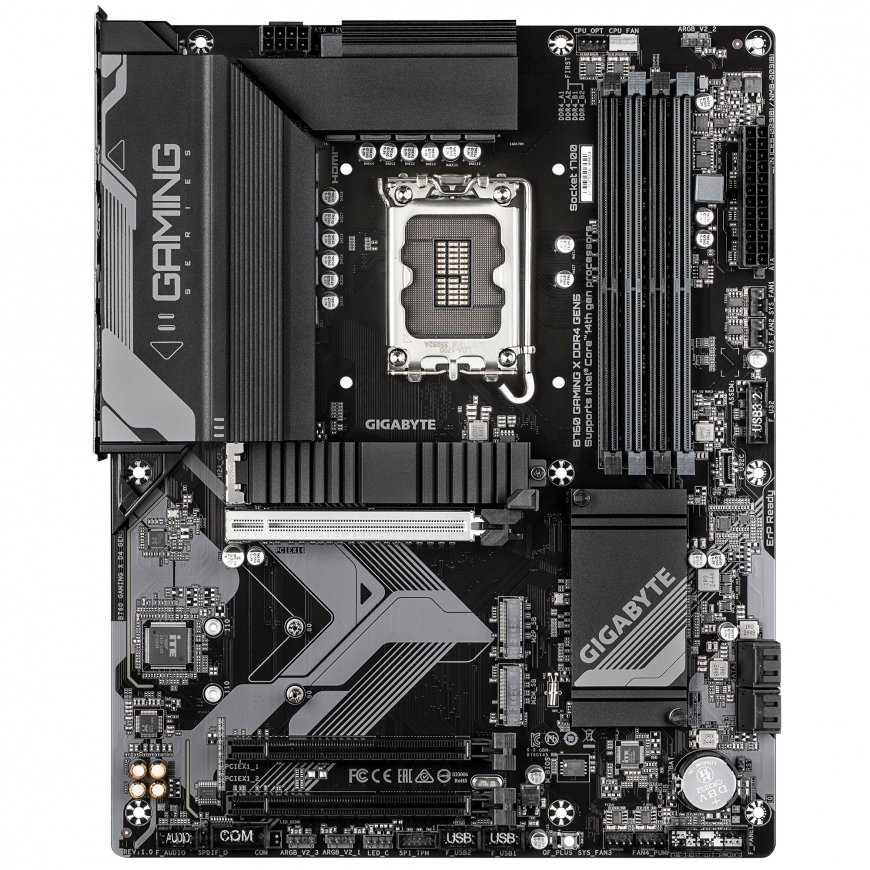

GIGABYTE B760 GAMING X DDR4 GEN5
137,35 €
Monthly payment from 4.44 €
4076743 B760 GAMING X D4 GEN5
4719331873448
Shipping 2-3 b.d.
You are interested in this product?
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Pentium®, Intel Core i9 14th Gen, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i3 14th Gen, Intel Core i5 14th Gen, Intel Core i7 14th Gen |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2933, 3000, 3200, 3466, 3600, 3866, 4000, 4133, 4400, 4600, 4700, 4800, 4933, 5000, 5133, 5333, 3333, 3400, 3666, 3733, 3800, 4266, 3300, 4300, 4500 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory per slot | 32 GB |
| ECC сompatibility | ECC & Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, PCI Express 4.0 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2304 pixels |
Internal I/O | |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |

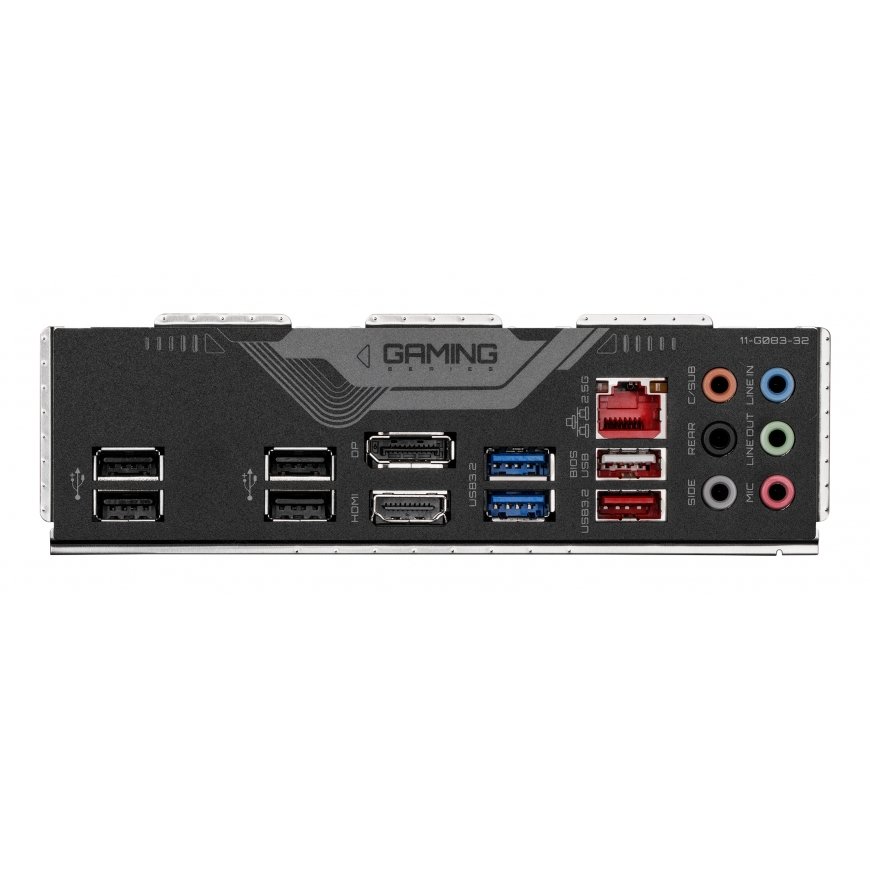

Rear panel I/O ports | |
| USB 2.0 ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Line-in | Yes |
Network | |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
Other features | |
| Weight | 1.59 kg |
Technical details | |
| Warranty period | 3 year(s) |
Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.8 kg |
Logistics data | |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
