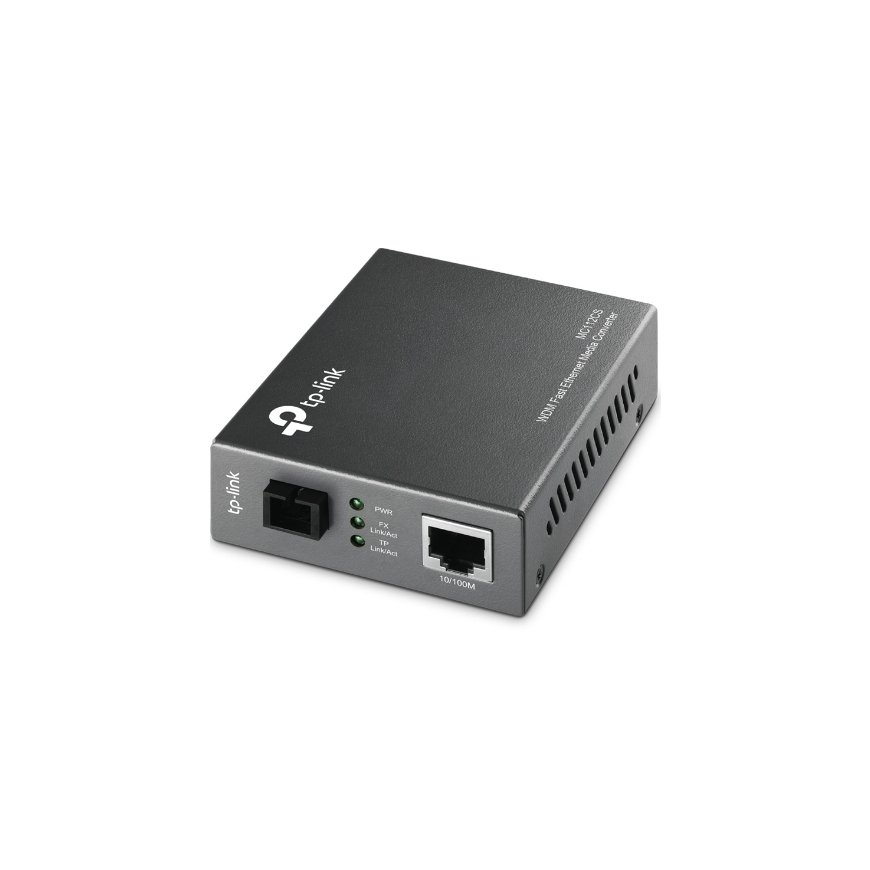

TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black
TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black
TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black
TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

TP-Link MC112CS network media converter 100 Mbit/s Single-mode Black

39.00 €
Monthly payment from 1,90 €
4056276

MC112CS

1210002608831, 0191120078397, 0230494832966, 0389880943356, 0799599496447, 0834958230598, 0845973030421, 1210002618984, 5053866223088, 5054533135284, 5054629099773, 7337331848838, 8459730304216

Shipping 11-15 b.d.

You are interested in this product?
(Read terms of service)

All about the product

The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media and vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers (12.5 miles).
Features
Networking standards IEEE 802.3, IEEE 802.3u
Product colour Black
Maximum data transfer rate 100 Mbit/s
Fiber mode structure Single-mode
Maximum transfer distance 20000 m
Weight & dimensions
Depth 73 mm
Height 27 mm
Width 95 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Logistics data
Harmonized System (HS) code 85176990
Other features
LED indicators Yes
Certificates
Compliance certificates RoHS
