Avatto bi-directional energy meter ZWPM16-1
4052845 ZWPM16-1
6976037362302
Shipping 3-5 b.d.
All about the product

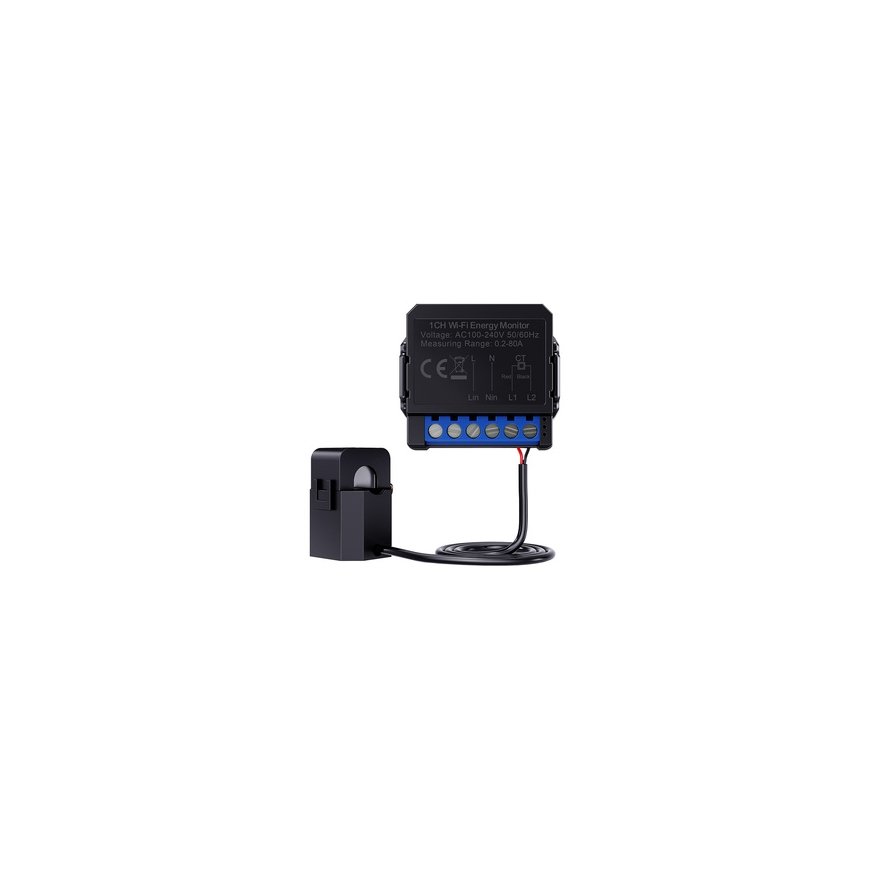

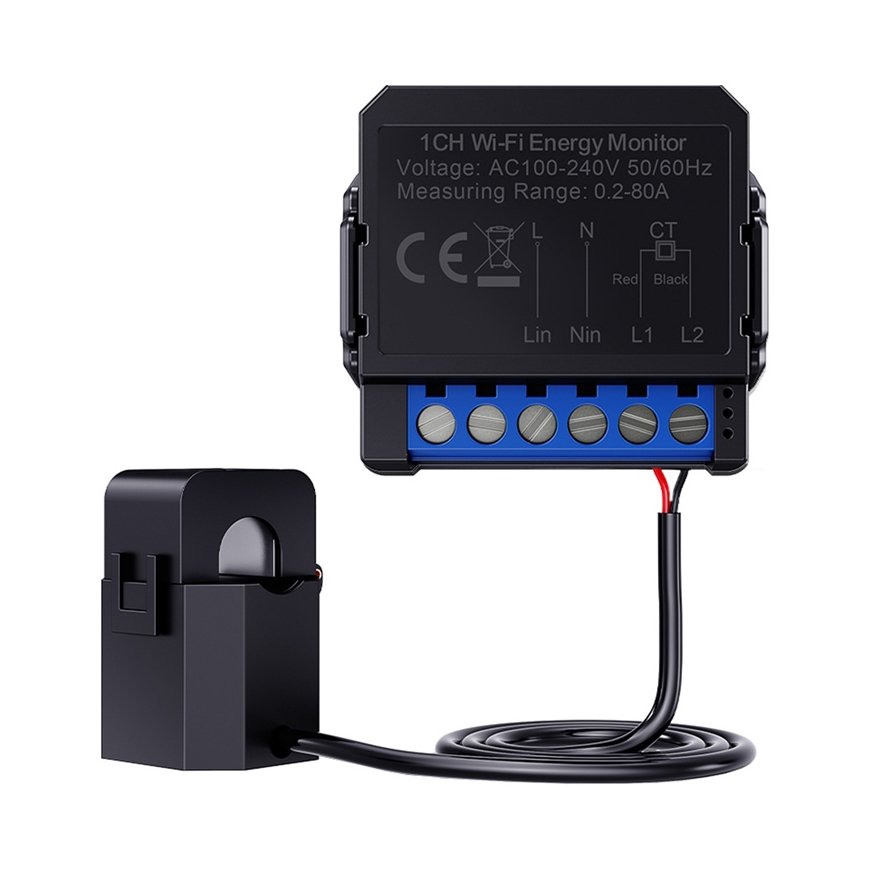

Avatto ZigBee ZWPM16-1 smart two-way energy meter
The Avatto ZigBee ZWPM16-1 smart two-way energy meter allows you to monitor your power consumption and production in real time. With a ZigBee connection, you'll get access to accurate hourly, daily, monthly and yearly statistics directly in the app, making it easy to analyze and plan savings for your home or office.
Accurate measurement and convenient operation
The Avatto ZWPM16-1 supports measurement from 0.2 to 80 amps and works with single-phase 100-240V installations. The precise CT sensor guarantees reliable results, and the data automatically synchronizes with the app for quick viewing of current and total energy consumption.
Compact form, easy installation
The device has compact dimensions, so it will easily fit into the switchboard. Installation is reduced to connecting the wires according to the markings. Robust housing made of flame-retardant PC plastic ensures safety and long life of the device.
Included
- Avatto ZigBee ZWPM16-1 smart energy meter
- CT current sensor
- User manual
| Manufacturer | Avatto |
|---|---|
| Model | ZWPM16-1 |
| Type | single-phase |
| Operating voltage | AC 100-240 V (50/60 Hz) |
| Measurement range | 0,2-80 A |
| Communication | ZigBee |
| Measurement type | Bidirectional (energy consumption and production) |
| Module dimensions | 38.8 × 38.5 × 40 mm |
| CT sensor dimensions | 25.6 × 40 mm |
| Housing material | PC flame retardant |
| Data in the application | Hourly, daily, monthly, annual and total (kWh) measurement |
