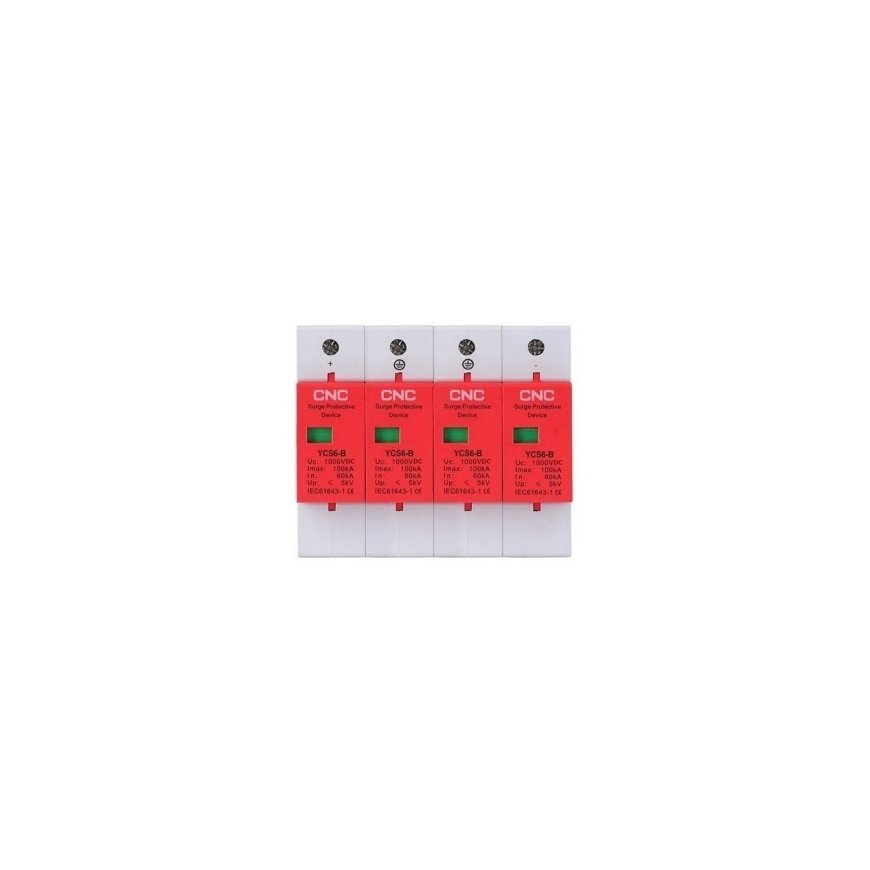

CNC DC overvoltage limiter, 4P, Class B, 60-1000kA, 1000VDC
CNC DC overvoltage limiter, 4P, Class B, 60-1000kA, 1000VDC
CNC DC overvoltage limiter, 4P, Class B, 60-1000kA, 1000VDC

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

CNC DC overvoltage limiter, 4P, Class B, 60-1000kA, 1000VDC

88,99 €
Monthly payment from 3.19 €
4048188

NV821754

6942108715247

Shipping 2-4 days

Quantity

You are interested in this product?
(Read terms of service)
Surge Protection Device, 4P, Class B, 60-100 kA, 1000V DC  Features:  Widely used in induction thunder and influence of direct lightning or other transient overvoltage surge protection, to protect DC power system, photovoltaic system, wind power generation and other industrial DC power equipment safe to use. Standards: IEC 61643-1, CE.
 Specifications:  Number of contacts: 4. Class: B. Maximum continuous operating voltage (Uc): 1000V DC. Maximum discharge current (Imax): 100 kA. Nominal discharge current (In): 60 kA. Voltage protection level (Up): < / = 5 kV. Response time: <25 ns. Frequency: 50/60 Hz. Operating temperature: -40°C to +85°C. Relative humidity (at 25°C): <95%. Installation: on DIN rail (35mm). Wires cross-section: 4-6 mm². Dimensions: 107 x 90 x 67 mm.
 Warranty: 24 months.
