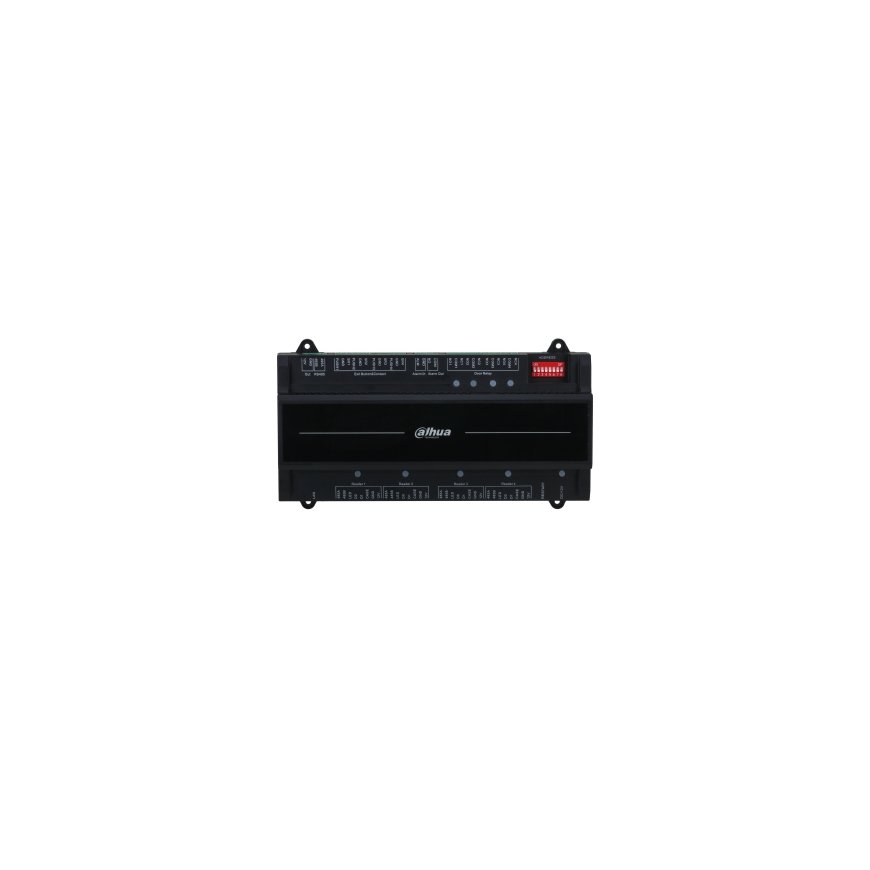

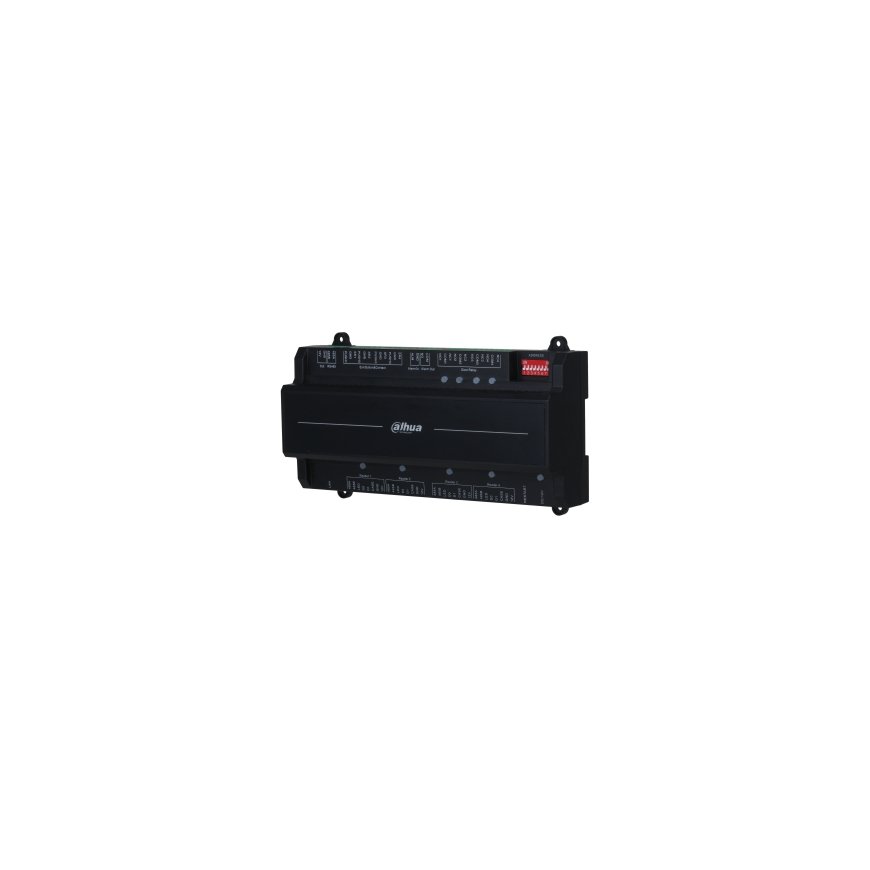

Dahua Technology ASC2204B-S security door controller Bare 4 door(s) RS-485
169,00 €
Monthly payment from 5.25 €
4037142 DHI-ASC2204B-S
6939554993411
2026-07-22
You are interested in this product?
| Width | 210 mm |
| Depth | 50 mm |
| Height | 106 mm |
| Package width | 255 mm |
| Package depth | 87 mm |
| Package height | 166 mm |
| Package weight | 600 g |
| Certification | CE/FCC/UL |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Power consumption (typical) | 41.6 W |
| Interface | RS-485 |
| Supported network protocols | IPv4; TCP; UDP |
| Operating voltage | 12 V |
| Alarm input channels | 1 |
| Number of users | 100000 user(s) |
| Operating current | 1.4 A |
| Case design | Bare |
| RS-485 ports | 5 |
| Active tampering alarm | Yes |
| Maximum number of doors | 4 door(s) |
| Wiegand interface | Yes |
| Built-in UPS | No |
| Power consumption (no load) | 0.8 W |
| Exit button supported | Yes |
| Number of Wiegand readers supported | 4 |
