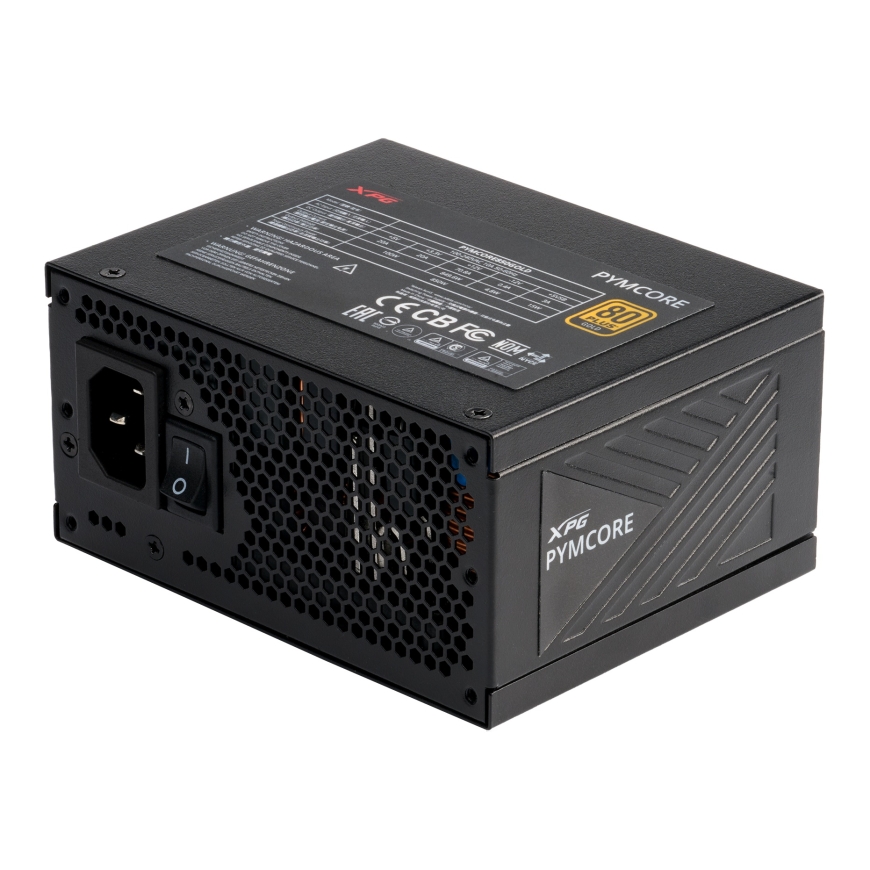

XPG PYMCORE 750w SFX GOLD Power Supply
159.01 €
Monthly payment from 4,99 €
4033874 75261729
4711658152886, 0842243036312
Shipping 13-14 b.d.
You are interested in this product?
All about the product
PYMCORE SFXUNDERSIZED. OVERPOWERED.
Introducing PYMCORE SFX PSU, the high power-density solution for your Small Form Factor PC. PYMCORE features High-Duty Capacitor Array, a ground-breaking topology of multiple premium Japanese capacitors that significantly improves power stability and delivers 128% higher power density within 56% smaller dimensions. 80 PLUS and Cybenetics GOLD certified plus ATX 3.1 compliant, this undersized PSU is going to overpower your SFF-Ready build!
Small Yet Powerful
PYMCORE SFX PSU comes in a compact size which is 56% smaller than the regular ATX PSU, while delivering 128% higher power density, making it perfect match for Small Form Factor PC with limited space.
Certified But Not Statisified
PYMCORE SFX PSU is certified as GOLD rating by 80 PLUS and Cybenetics. Moreover, it upholds the commitment by XPG to provide even higher efficiency than the GOLD standards.
High-Duty Capacitor Array
PYMCORE SFX PSU features High-Duty Capacitor Array, a ground-breaking topology consisted of multiple premium Japanese capacitors that significantly reduces ripple and optimizes circuit layout. As a result, it delivers 235% power excursion with top quality and reliability.
Cool And Quiet
With the FDB Fan, PYMCORE SFX PSU keeps the components cool while maintaining at low noise level and offers proven durability.
Futureproof: ATX 3.1 Compliant
PYMCORE SFX PSU is fully compliant with the ATX 3.1 guidelines and includes the latest 12V-2x6 (600W) PCIe cable for all the power-demanding components on your next-gen platforms.
Match For SFF-Ready
PYMCORE SFX PSU is the perfect match for the SFF-Ready compatible cases to empower your SFF-Ready enthusiast RTX 50 series graphics cards and unleash uncompromising performance.
Power | |
| Input current | 10 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, No load operation, Surge & inrush protection (SIP) |
| Power factor | 0.99 |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.4 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.4 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 9.2 cm |
| Fan speed | 0 - 2300 RPM |
| Cooling type | Active |
| On/off switch | Yes |

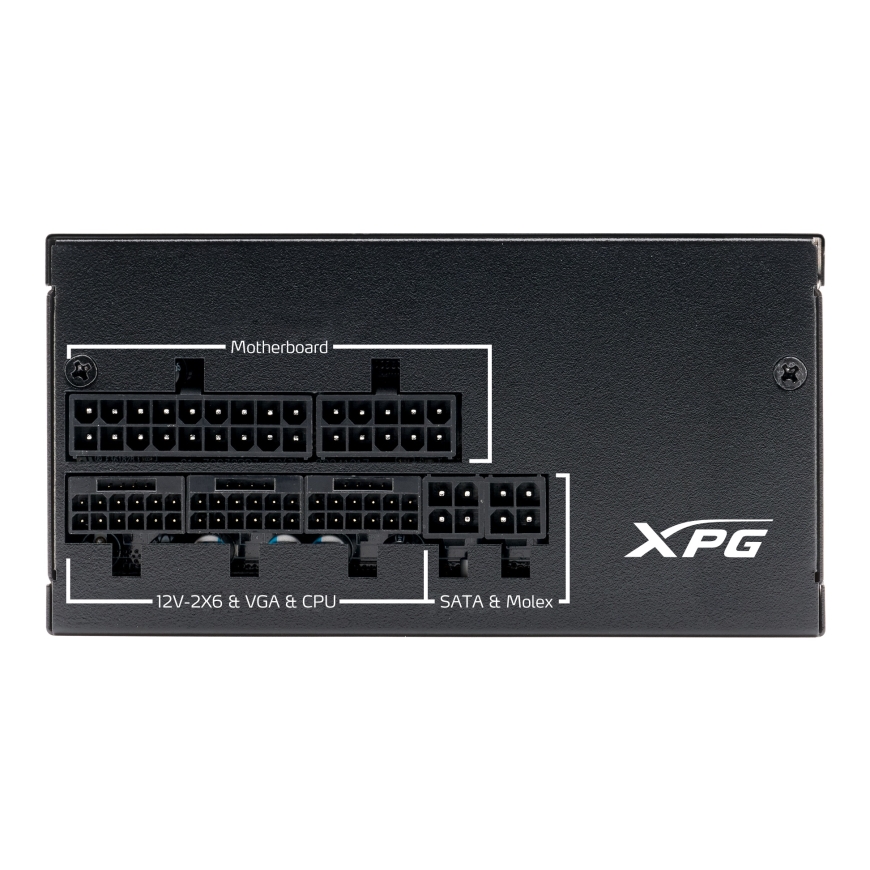

Ports & interfaces | |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| PCI Express power connectors (12+4 pin) | 1 |
Weight & dimensions | |
| Weight | 1.84 kg |
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
