The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

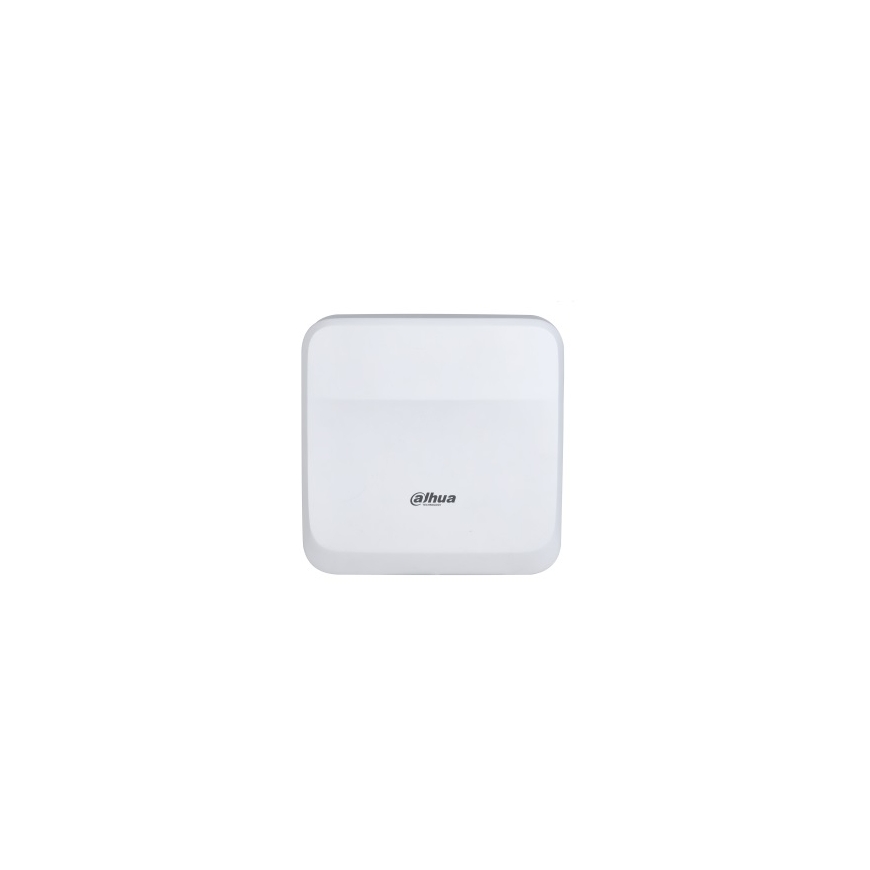

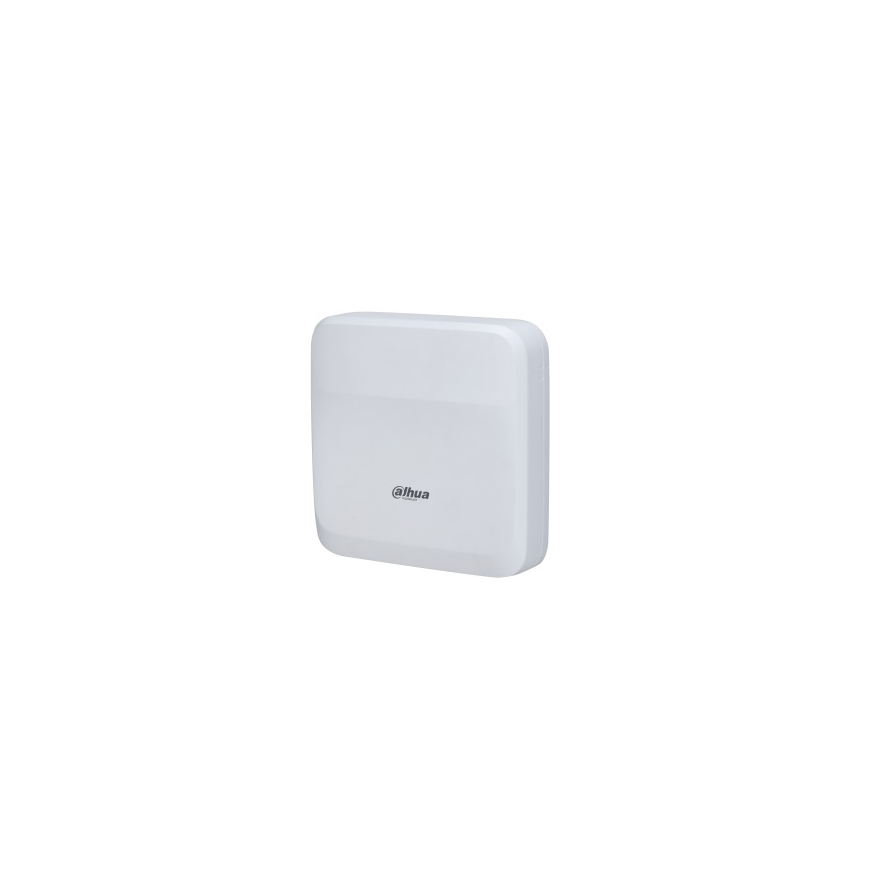

Dahua Technology DHI-ASC3202B access control reader Basic access control reader White
309,00 €
Monthly payment from 8.86 €
4033813 DHI-ASC3202B
6923172500106
2026-07-22
You are interested in this product?
| Product colour | White |
| Fingerprint reader | Yes |
| Weight | 990 g |
| Width | 185.8 mm |
| Depth | 186.4 mm |
| Height | 58.3 mm |
| Type | Basic access control reader |
| Package width | 243 mm |
| Package depth | 254 mm |
| Package height | 86 mm |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100 |
| Housing material | Polycarbonate (PC); Acrylonitrile butadiene styrene (ABS) |
| Built-in display | No |
| Buzzer | Yes |
| Power over Ethernet (PoE) | Yes |
| Supported network protocols | P2P; IPv4; DNS; DDNS; TCP; UDP |
| IK code | IK06 |
| Cabling technology | 10/100 |
| Front camera | No |
| Power consumption | 1700 mA |
| Web-based management | Yes |
| Authentication type | Access chip/card; Password |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Sustainability compliance | Yes |
| DC voltage range | 12 V |
| RS-485 ports | 3 |
| Access chip/card reader | Yes |
| Access code reader | No |
| Wiegand interface | Yes |
| Cards capacity | 5000 cards |
| Tamper protection | Yes |
| Fingerprint capacity | 3000 |
| User capacity | 1000 user(s) |
| Record capacity | 300000 |
| Interoperability | ONVIF; CGI |
| Software development kit (SDK) support | Yes |
| Exit button | Yes |
| Lock control | Yes |
| Duress alarm | Yes |
| Unlock function | Yes |
| Real-time surveillance | Yes |
| Compliance certificates | CE; Federal Communications Commission (FCC) |
