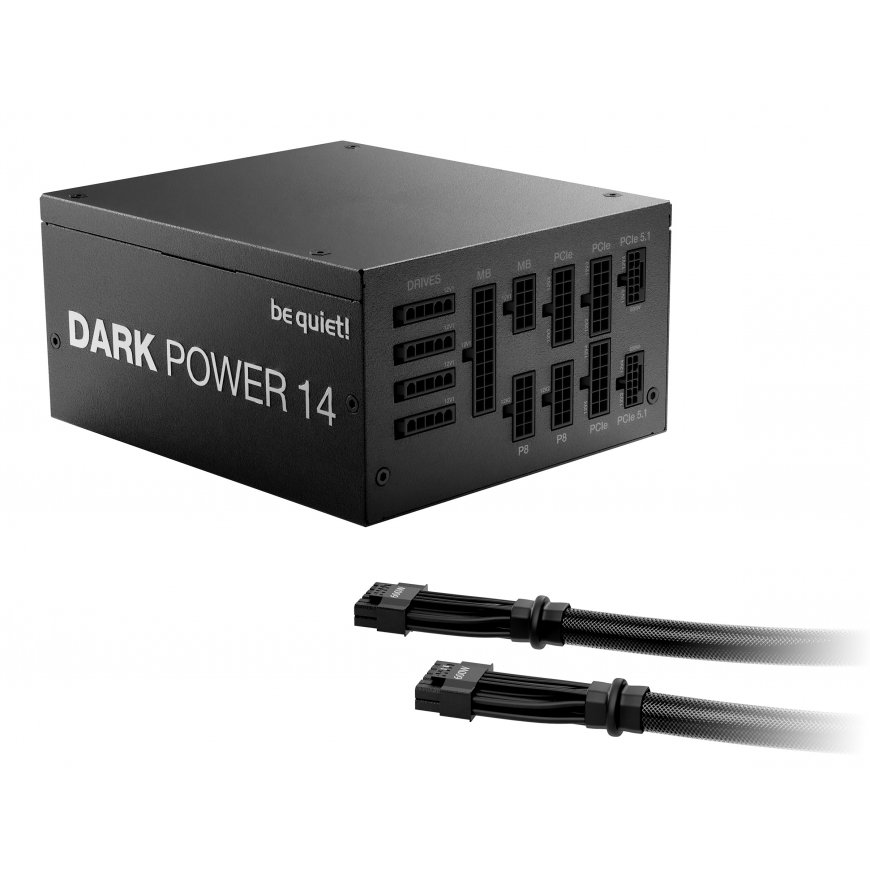

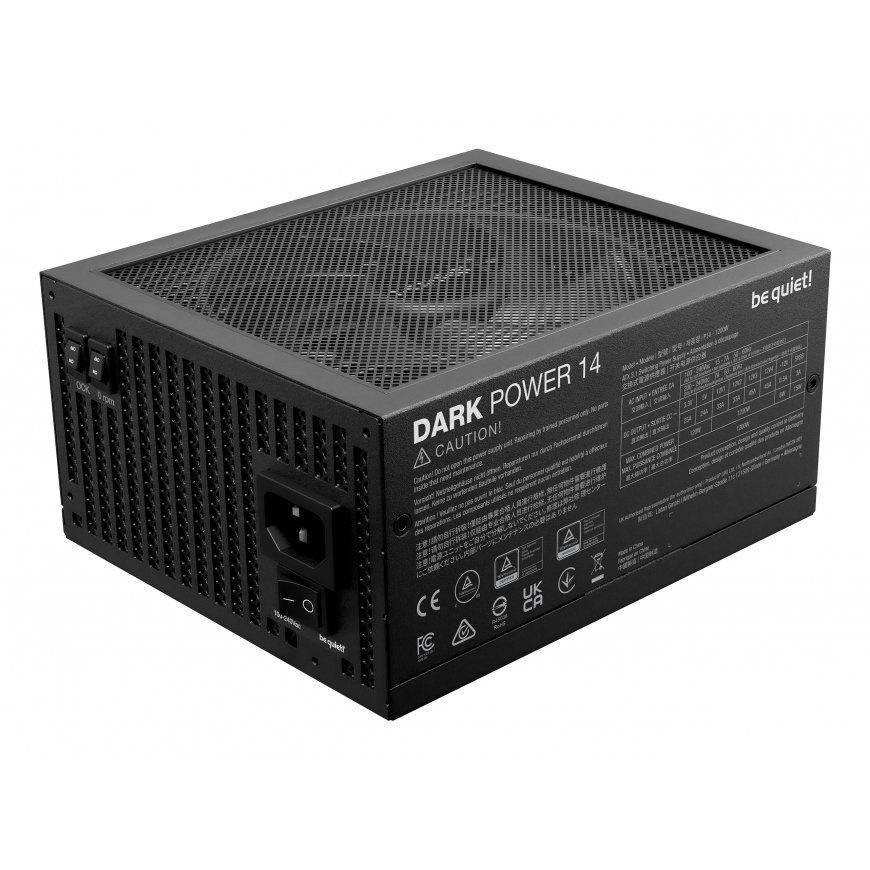

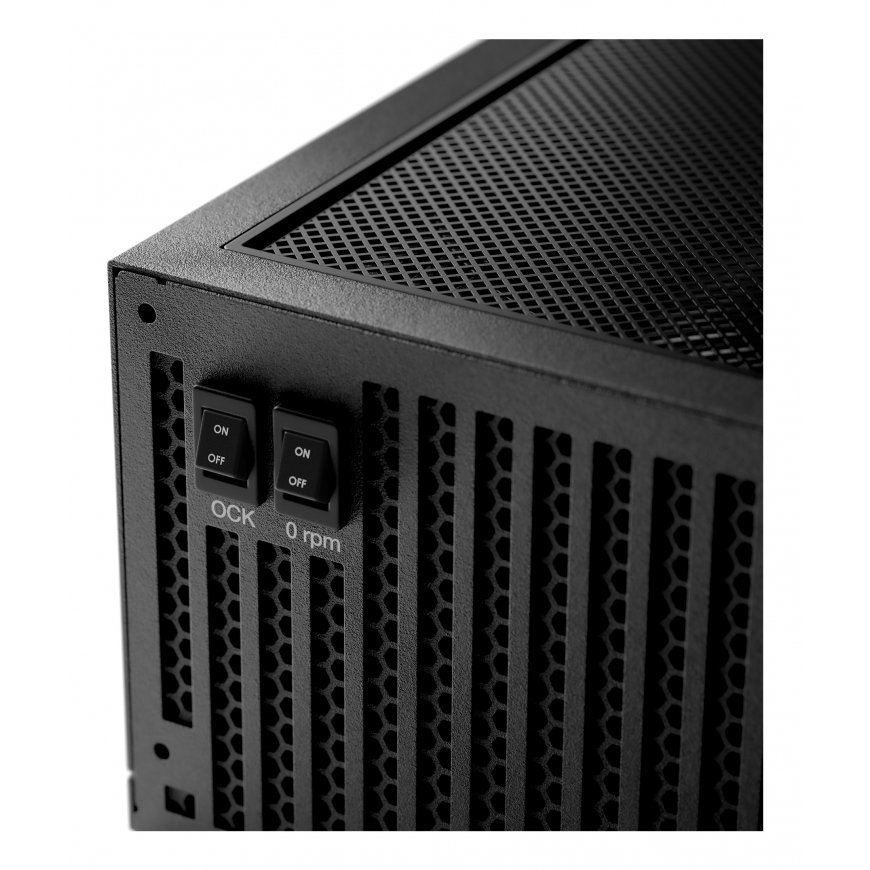

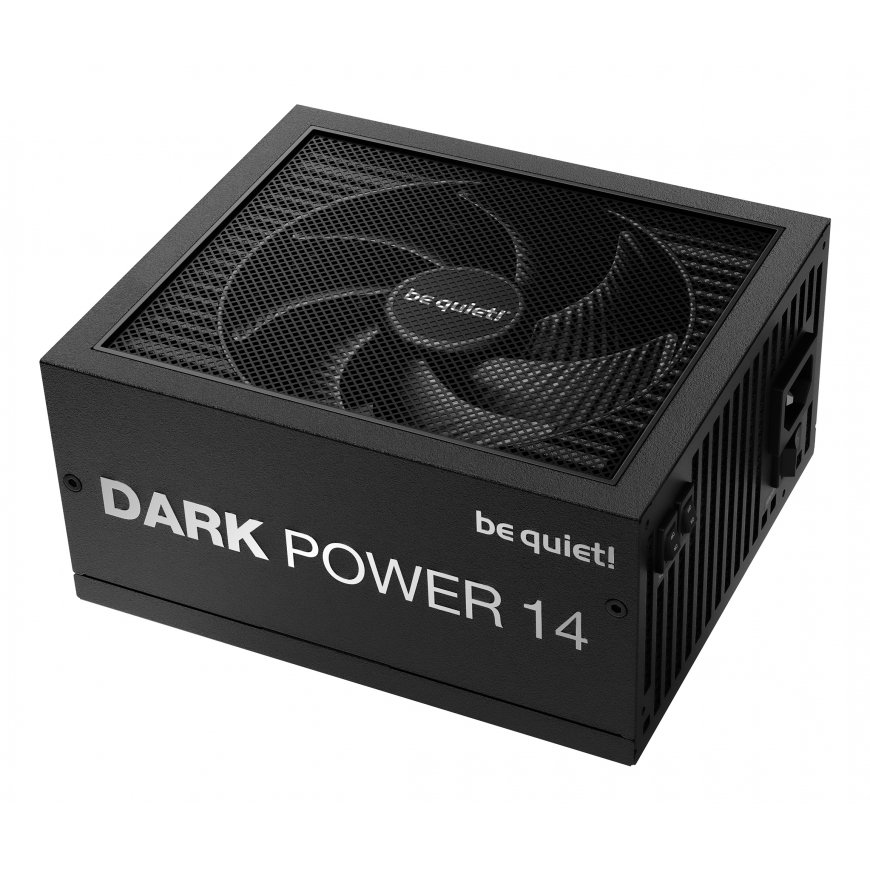

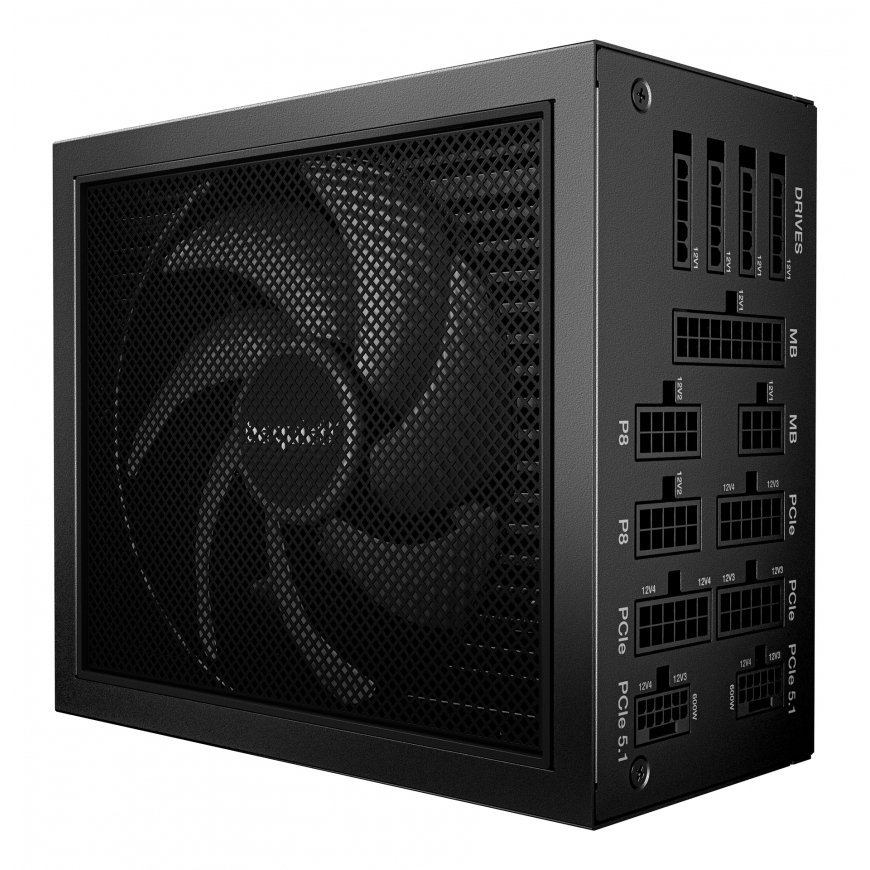

be quiet! Dark Power 14 1200 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
359,00 €
Monthly payment from 10.14 €
4029922 BP021EU
4260052192030, 4260052192061
Shipping 6-8 b.d.
You are interested in this product?
Power | |
| Hold time | 19.5 ms |
| Efficiency | 93.1% |
| Peak power | 1300 W |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage, Surge & inrush protection (SIP) |
| Power factor | 0.98 |
| Maximum input current (@110V) | 10 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 33 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Maximum input current (@220V) | 5 A |
| Total power | 1200 W |
| Number of +12V rail(s) | 4 |
Performance | |
| Noise level | 21.1 dB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Titanium |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan speed | 0 - 2100 RPM |
| Cooling type | Active |
| On/off switch | Yes |
| On/off fan switch | Yes |
Ports & interfaces | |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 600, 750, 900, 1050 |
| Peripheral (Molex) power cable length | 900, 1050 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12-pin) | 2 |
| Number of SATA power cables | 13 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 2.3 kg |
| Width | 150 mm |
| Depth | 175 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
Packaging data | |
| Package weight | 3.7 kg |
| Manual | Yes |
| Package height | 355 mm |
| Package width | 230 mm |
| Package depth | 126 mm |
| Manual languages | English, Spanish, French, Italian, Russian, German, Polish, Simplified Chinese, Ukrainian, Japanese, Thai |
Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
Logistics data | |
| Shipping (inner) case length | 52.8 cm |
| Shipping (inner) case width | 36.8 cm |
| Shipping (inner) case height | 26 cm |
| Shipping (inner) case net weight | 20.1 kg |
| Products per shipping (inner) case | 4 pc(s) |
Certificates | |
| Compliance certificates | RoHS, WEEE, Federal Communications Commission (FCC), UKCA, TÜV mark, CB, cTUVus |
