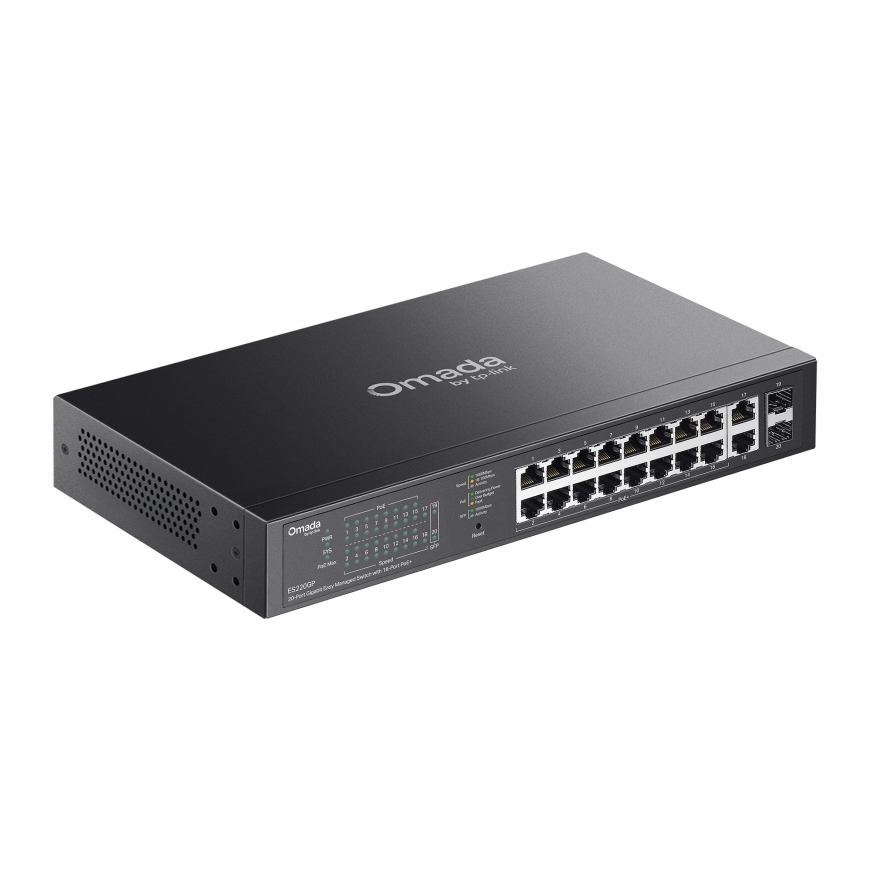

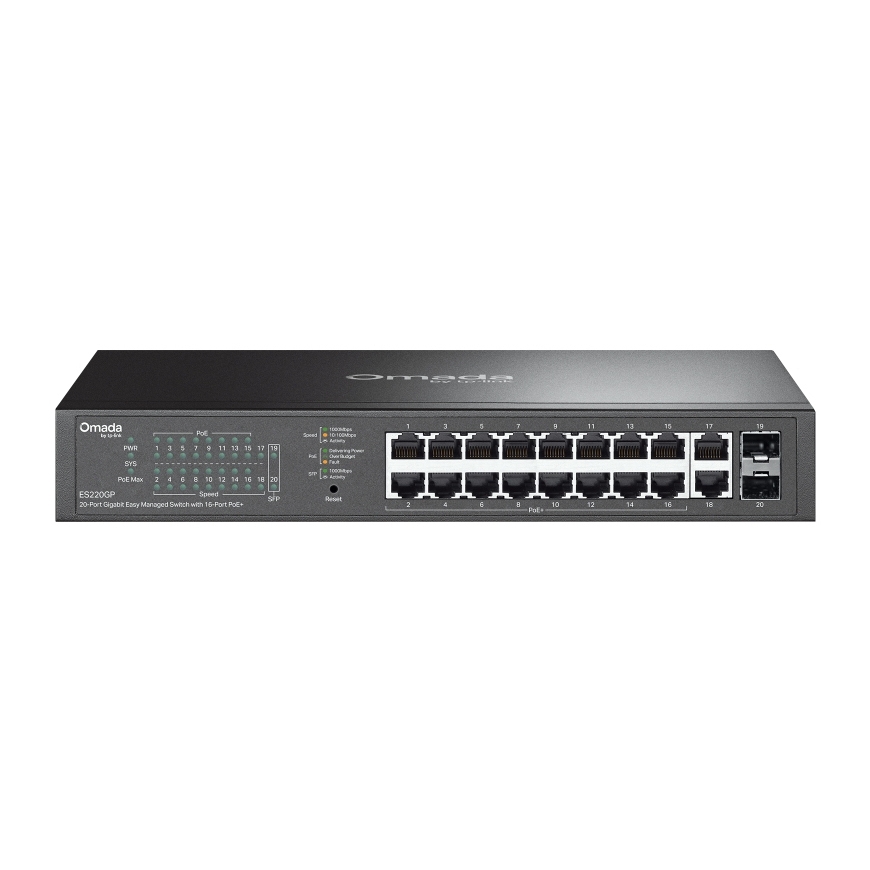

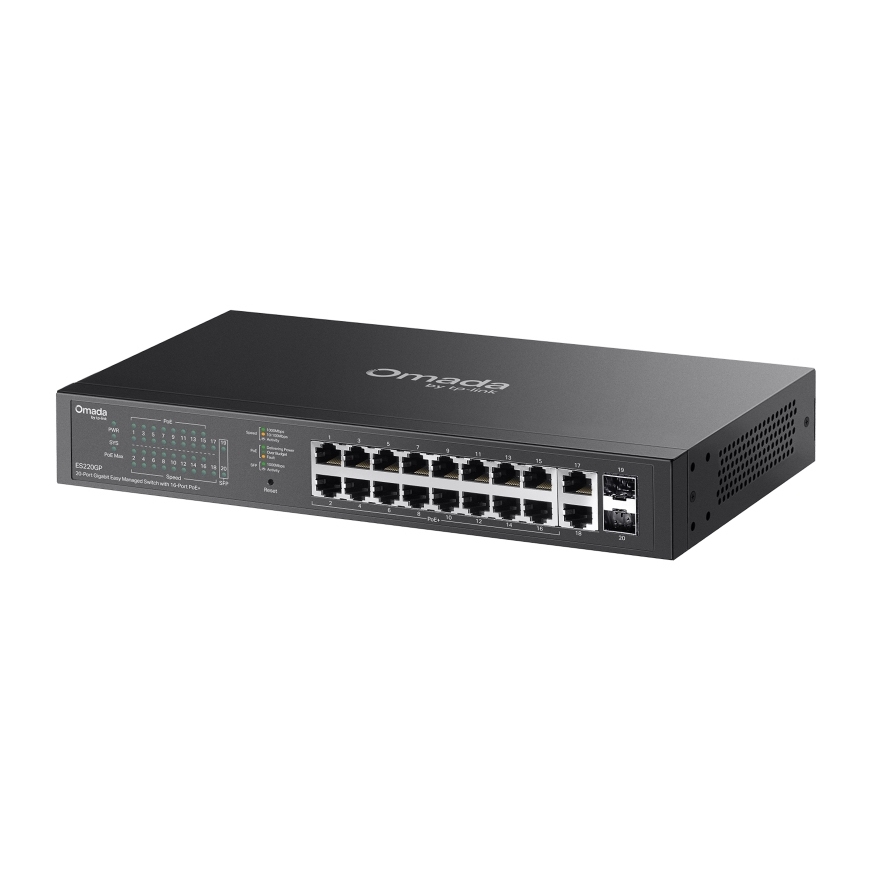

OMADA ES220GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
199.94 €
Monthly payment from 6,05 €
4018489 ES220GP
1210002609746, 0840460603621, 1210002609753
This product is no longer in stock
You are interested in this product?
All about the product
Omada Central Essentials — A Free and Easy Cloud-Based Network ManagementOmada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralised management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1p |
| Flow control support | Yes |
| Ethernet LAN data rates | 10, 100, 1000 |
| Auto MDI/MDI-X | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
Security | |
| MAC address table | 8000 entries |
| IGMP snooping | Yes |
Design | |
| Product colour | Black |
| Housing material | Metal |
Features | |
| Mean time between failures (MTBF) | 320156 h |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
Other features | |
| Input current | 2.5 A |
| Rack mounting | Yes |
Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
Packaging content | |
| Cables included | AC |
