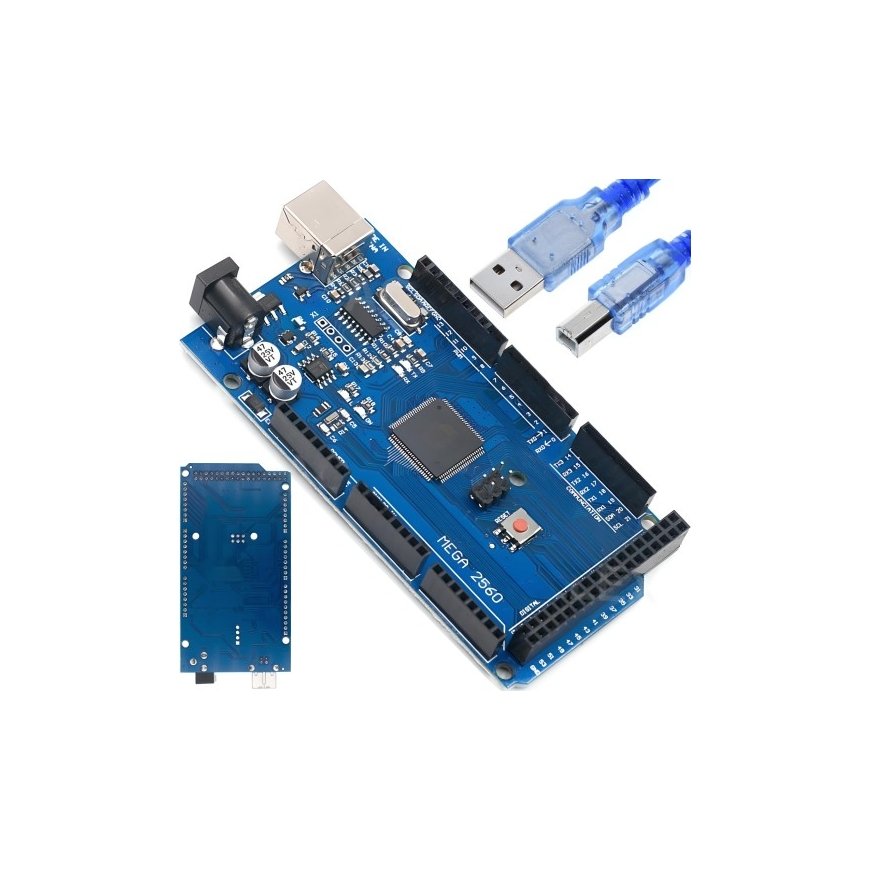

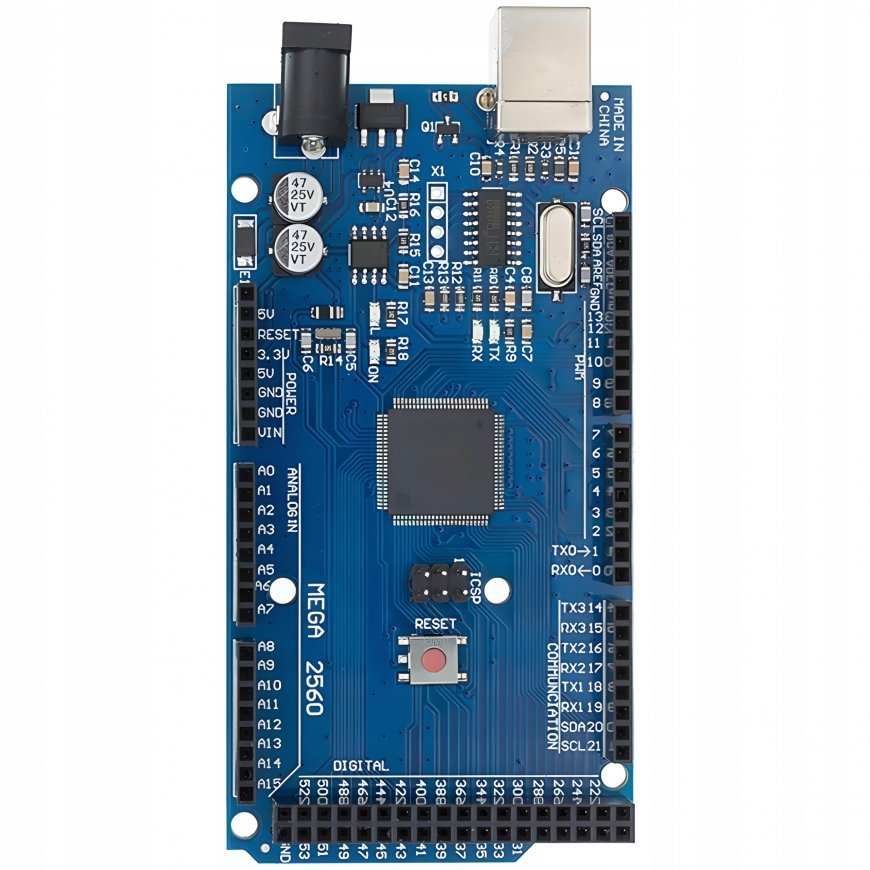

Retoo MEGA2560 R3 robotics electronics programming board
4017489 E421
5904806161949
Shipping 8-13 b.d.
All about the product
PRODUCT DESCRIPTION
The "MEGA2560 R3" module with the "ATmega2560" microcontroller is a powerful control board designed for projects requiring a high number of inputs and outputs, such as robotics, CNC, home automation, monitoring systems, and 3D printing. With high processing power, ample memory, and multiple serial interfaces, it is suitable for complex applications and advanced projects. Many digital and analog input/output lines facilitate the connection of sensors, motors, communication modules, and other system components. This board is a popular choice among hobbyists and those learning to program microcontrollers, allowing them to easily create and expand their electronics projects.
TECHNICAL SPECIFICATIONS
Supply voltage: from 7 V to 12 V
Processor: ATmega2560
Microcontroller: ATmega2560 - operating voltage 5V
Maximum clock frequency: 12 MHz
SRAM memory: 8 kB
Flash memory: 256 kB (5 kB reserved for bootloader)
EEPROM memory: 4 kB
54 input-output pins, including 15 PWM
Contact current efficiency 40mA
Number of analog inputs: 16 (A/D converter channels)
Serial interfaces: UART, SPI, I2C
External interrupts
Connector: USB TYPE B port
Internet Service Provider connection available
Dimensions: 11 cm x 53 cm x 10 cm
Distance between pins: 2.54 mm
INCLUDED IN THE PACKAGE
Module with ATmega2560 microcontroller
USB-B to USB-A cable
User manual
