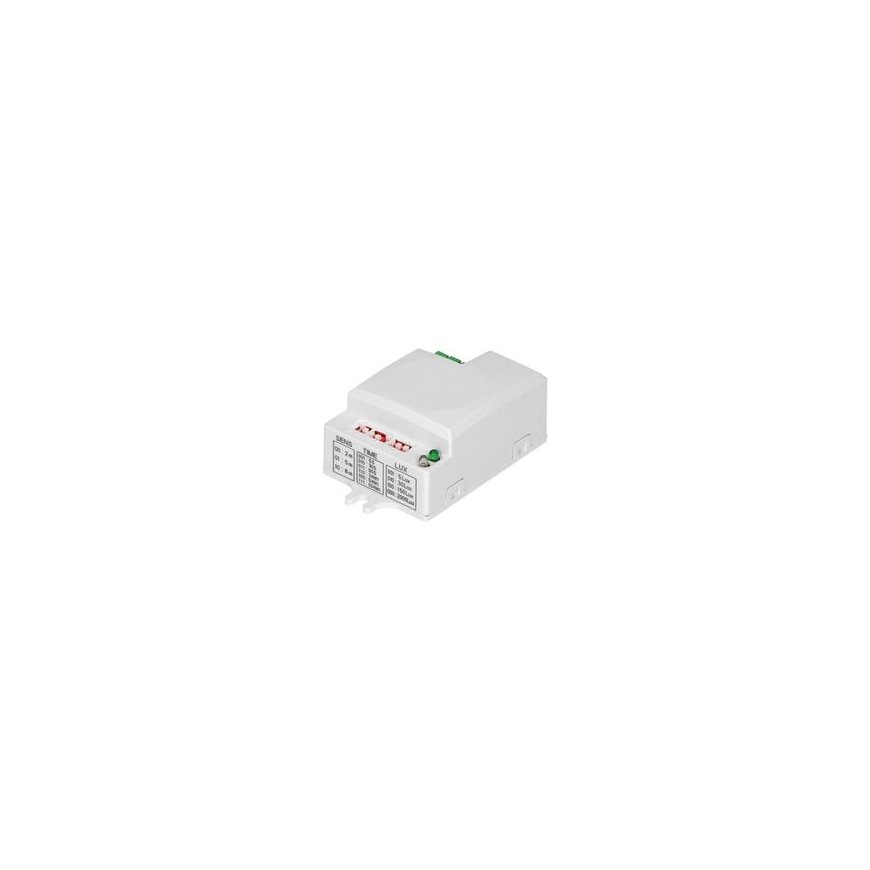

Orno Mini Microwave Motion Sensor, 360°/180°, with Connector, IP20, 1200W
17.30 €
4008140 OR-CR-282
5908254847486
Shipping 8-13 b.d.
You are interested in this product?
All about the product
Mini microwave motion sensor, 360°/180°, with jumper adjustment, IP20, 1200WThe mini microwave motion sensor is an advanced device that combines functionality and versatility. This model, equipped with a high-frequency sensor, features a scanning angle of 360° and a horizontal detection angle of 180°, ensuring full coverage of the monitored area.
The device operates at a frequency of 5.8 GHz and detects motion at speeds ranging from 0.6 to 1.5 m/s. The sensor is equipped with sensitivity adjustment and a threshold value for light intensity (5, 30, 150, 2000 lux), allowing adaptation to the prevailing lighting conditions. Sensitivity adjustment enables the definition of the distance change for motion detection to trigger the sensor. The device also allows time-on adjustment within the range of 5s-10min.
The maximum connection power is 1200W, allowing for the connection of various lighting or LED devices with a total power of 300W. The sensor is designed for a nominal voltage of 230V AC and a frequency of 50Hz, and its low energy consumption of only 0.9W makes it an energy-efficient solution. The sensor operates within a wide temperature range from -20°C to +50°C.

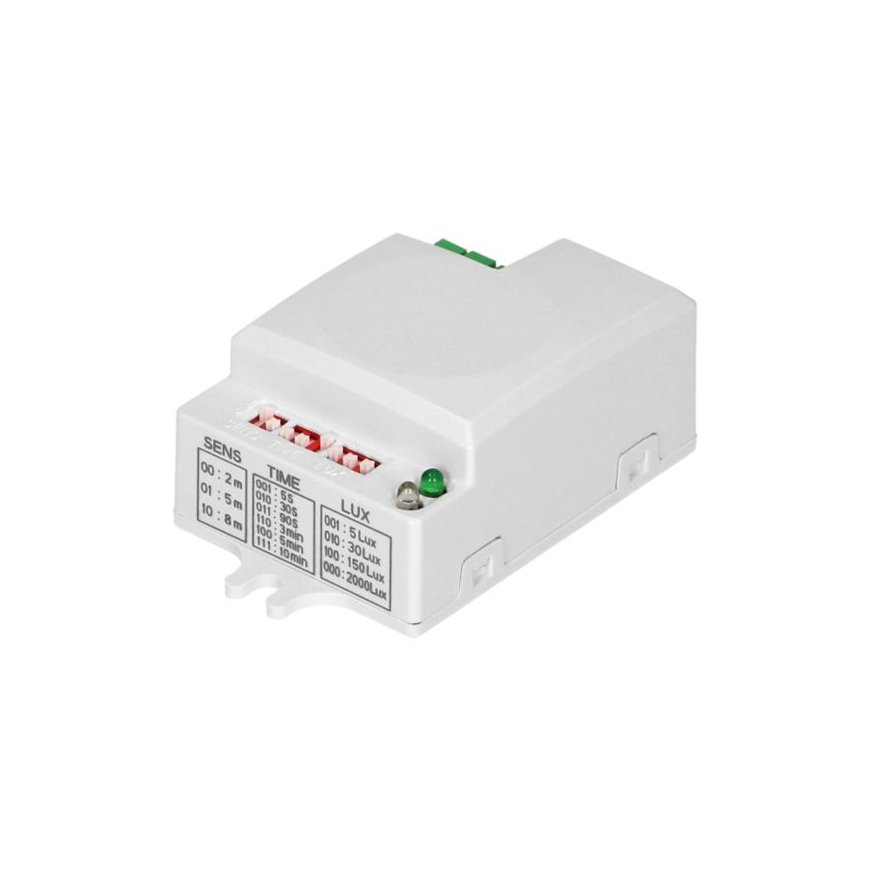

Built-in jumper adjustment ensures easy and quick parameter settings without the need for additional tools. The device is equipped with push-fit connectors, simplifying its installation.
The high-quality housing made of polycarbonate ensures durability and resistance to mechanical damage. Designed for indoor use (IP20)
The sensor is intended for installation in light fixtures, plastic housings, above suspended ceilings, behind lightweight partition walls, etc., with dimensions of 56x40x25 mm. The optimal mounting height is from 1.5 to 2.5 m, and the direct detection range is 1-8 m. The white sensor casing blends perfectly with almost any environment.
