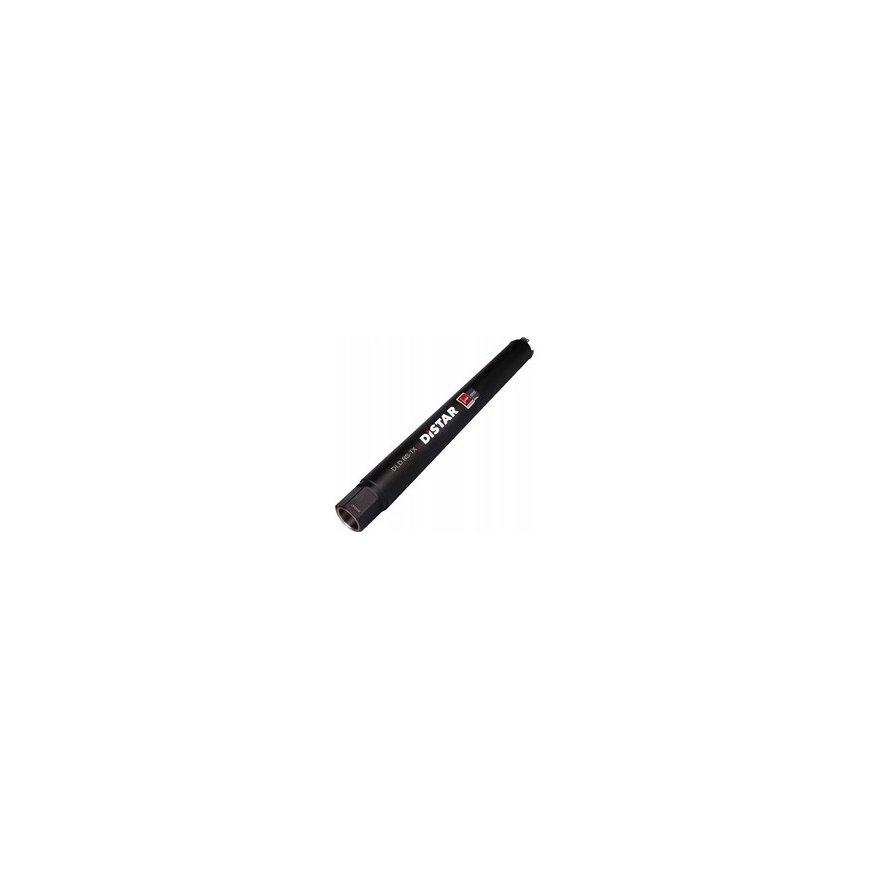

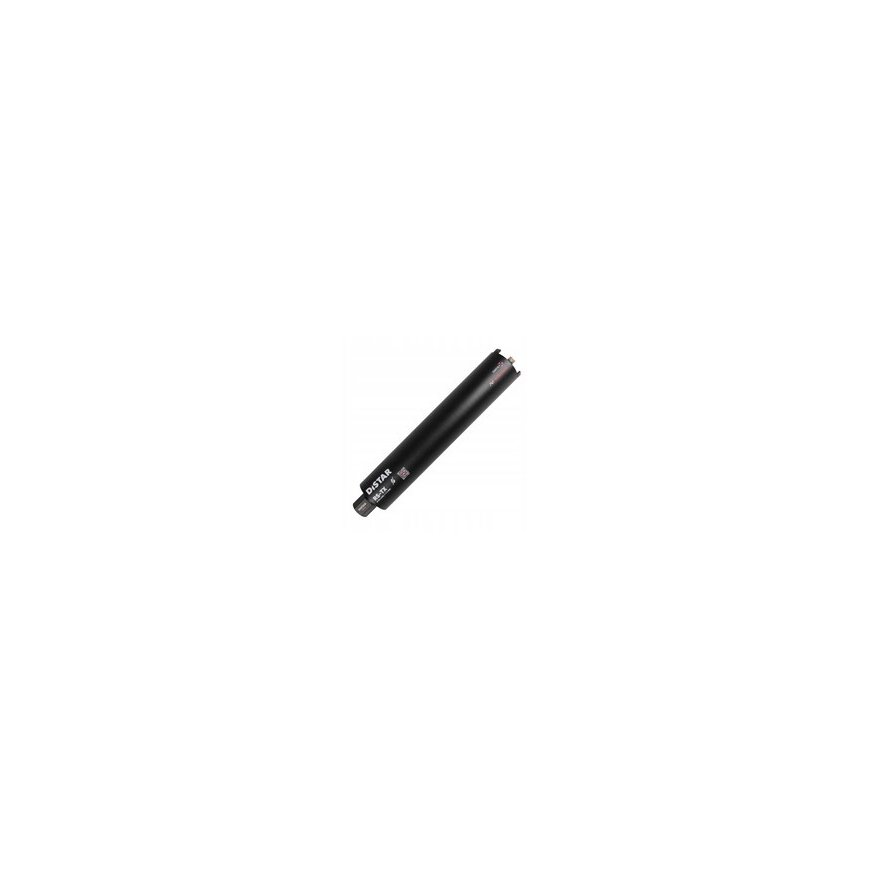

Diamond drilling crown DISTAR 10170085491 1/4'' 72x450 mm
3998060 10170085491
4820245283077
Shipping 7-13 b.d.
All about the product
Diamond Core Drill for Dry Drilling Distar RS-TX 72 mm Diameter, 450 mm Length
Drilling holes in concrete walls for air conditioning, ventilation, or other purposes without cooling is a very challenging and time-consuming process.
Manufacturers and craftsmen are constantly looking for methods to speed up this work.
RS-TX is currently the fastest diamond core drill designed for drilling reinforced concrete in dry mode using drills with micro-impact.
The special drill housing with grooves is designed to easily remove dust from the drilling area during drilling.
Diamond segments are laser-welded to the housing, making them much more resistant to overheating and breakage.
The drilling speed for a 82 mm hole in M300 grade concrete, 20 cm thick - 2.5 minutes.
RS-TX drills are an excellent solution for renovated rooms or renovations where water cannot be used.
The drilling core RS-TX (450 mm working drilling length) is produced in the following diameters: 32, 42, 52, 62, 72, 82, 92, 102, 112, 122 mm, and up to 200 mm.
Distar RS-TX Drill Core Characteristics | |
| Rotation Frequency | 1100 - 2100 rpm |
| Impact Amplitude | 0.25 - 0.5 mm |
| Number of Impacts | 28000 - 45000 bpm |
| Power | 1.8 - 3.0 kW |
72 mm diamond drill for reinforced concrete, concrete, masonry ADTnS RS-TX
