Lindy 4x4 USB 3.2 Gen 1 Matrix Switch
559.00 €
Monthly payment from 15,29 €
3985828 43406
4002888434065
Shipping 17-19 b.d.
You are interested in this product?
All about the product

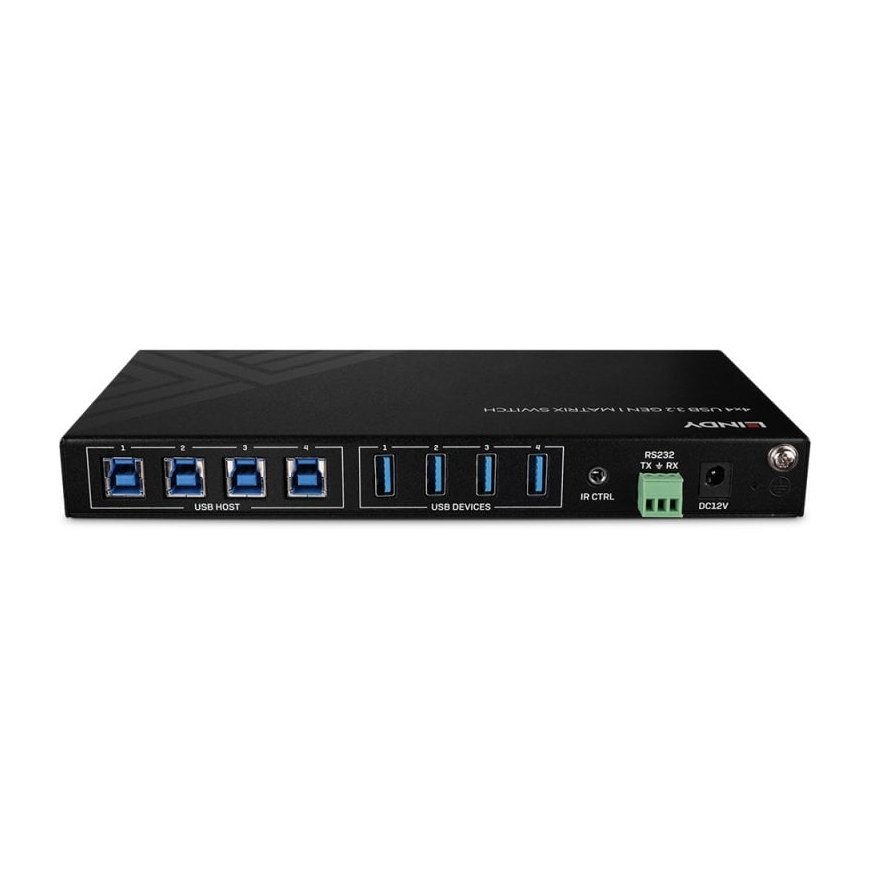

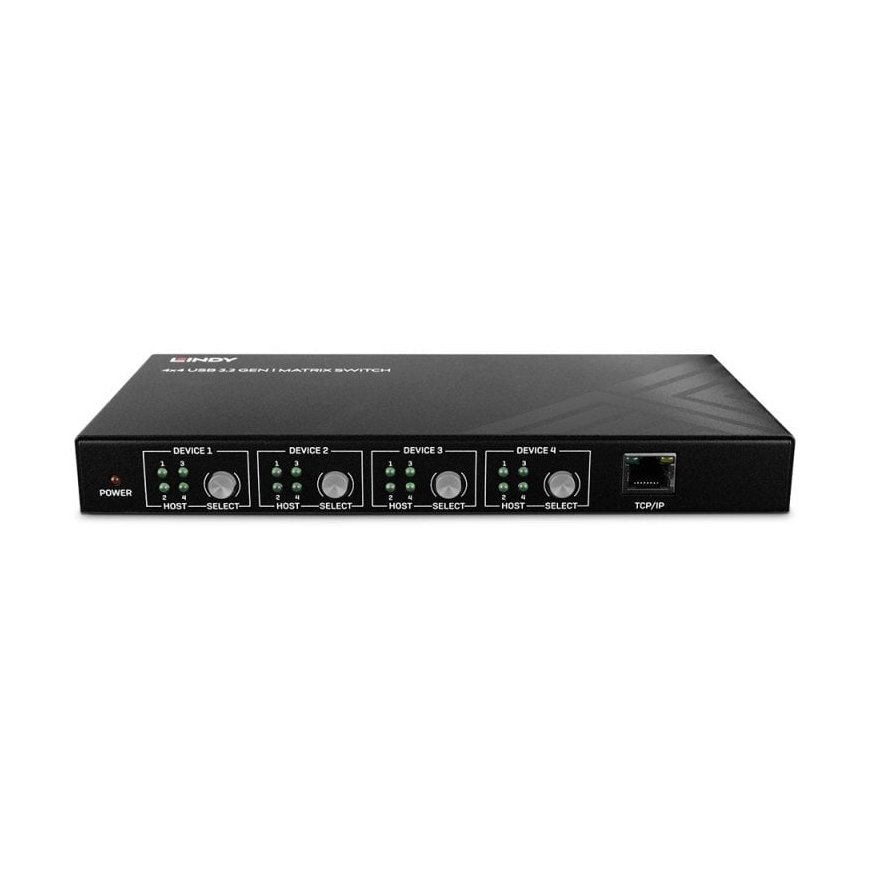

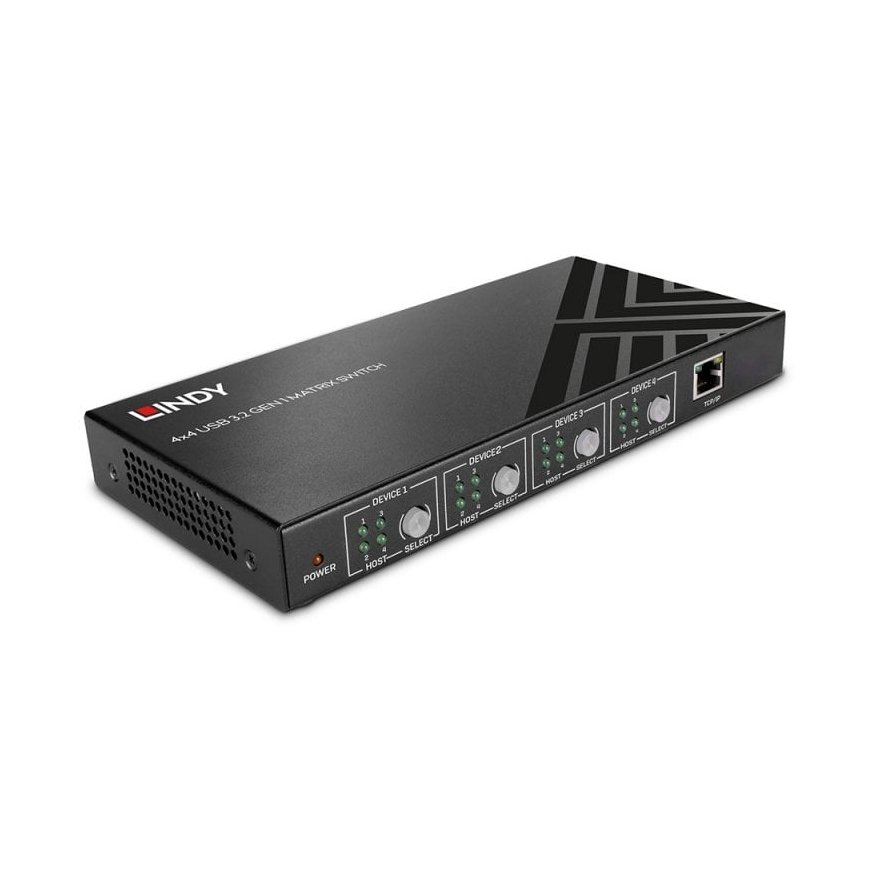

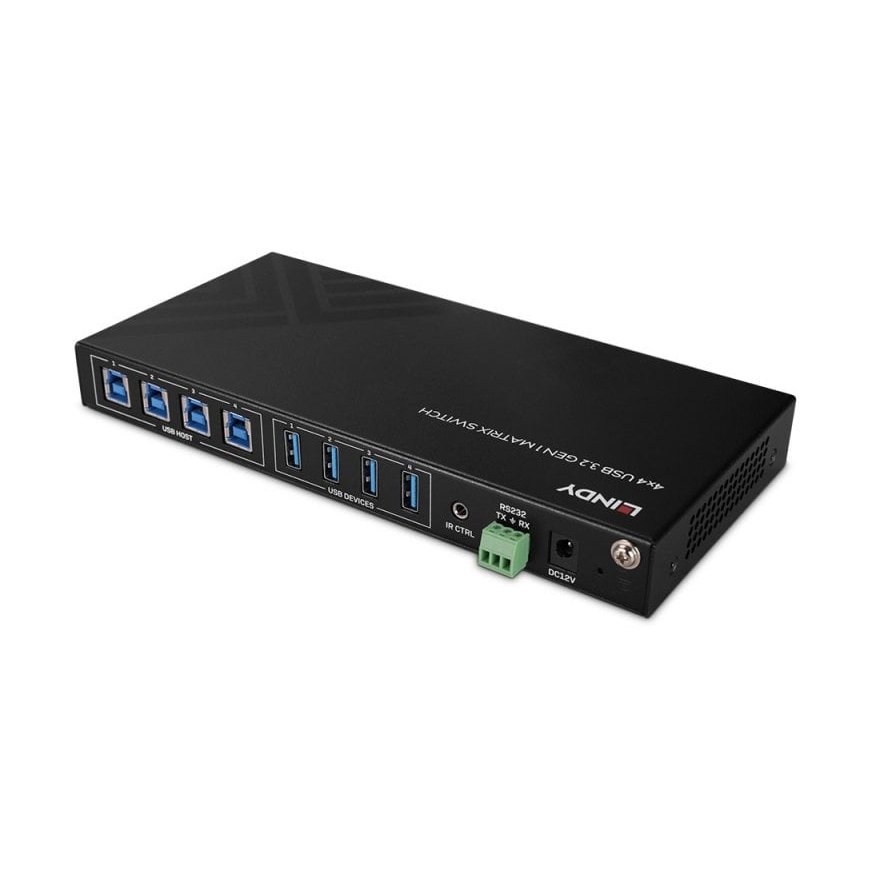

The Lindy USB 3.2 Gen 1 Matrix Switch allows the user to share up to 4 USB devices to up to 4 hosts in many different ways: by pushing the buttons on the front panel, via web GUI and using RS-232 commands.It's possible to save up to 8 preset configurations, change the name of hosts and devices from the GUI and with the commands, for smooth and easy operations.
This matrix switch is ideal for sharing printers, storage devices or webcam in office environments, for conference room presentation systems, KVM or industrial applications. It can support USB 3.2 Gen 1 with data transfer rates up to 5Gbps, USB 2.0 and USB 1.1 devices, perfect for use with multiple PCs or Macs.
Each USB Type-A port provide up to 900mA power to the connected device.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Packaging data | |
| Package height | 70 mm |
| Package width | 260 mm |
| Package weight | 1.45 kg |
| Package depth | 173 mm |
| Package type | Box |
Weight & dimensions | |
| Weight | 1.15 kg |
| Depth | 105 mm |
| Height | 26 mm |
| Width | 221 mm |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Features | |
| Built-in display | No |
Other features | |
| LED indicators | Yes |
| Cables included | USB |
| USB connector type | USB Type-A, USB Type-B |
| DC-in jack | Yes |
Technical details | |
| Control type | Rotary |
| Housing material | Metal |
Power | |
| Input current | 3 A |
| AC input voltage | 12 V |
Packaging content | |
| Manual | Yes |
Certificates | |
| Certification | CE, FCC, RoHS & REACH |
