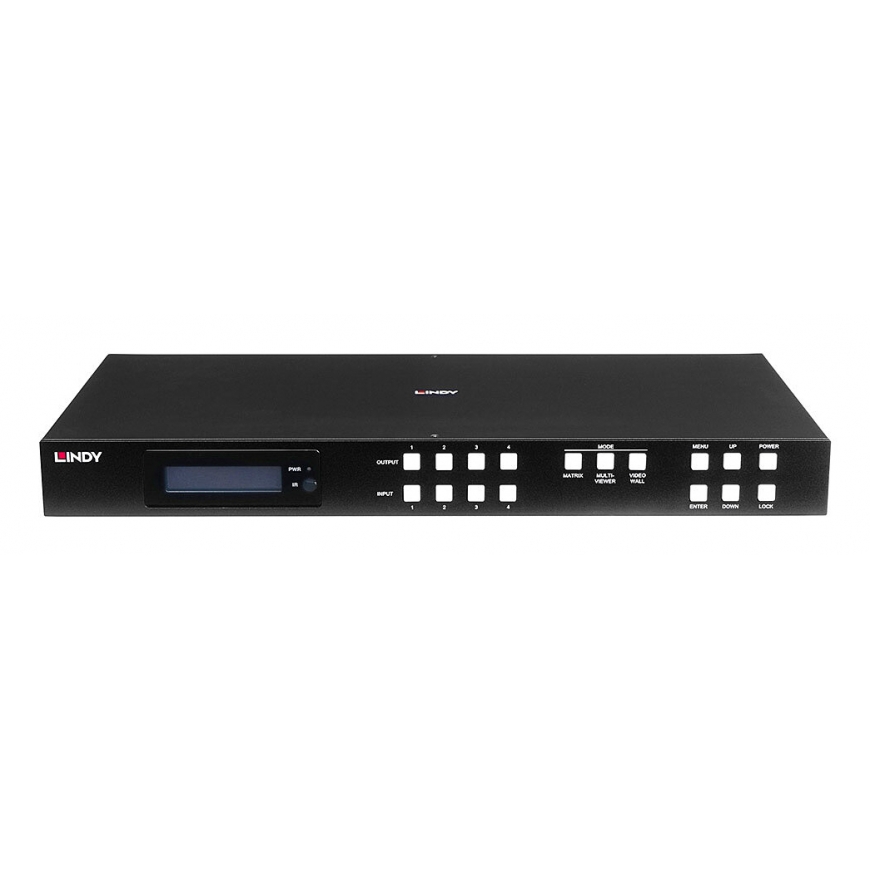

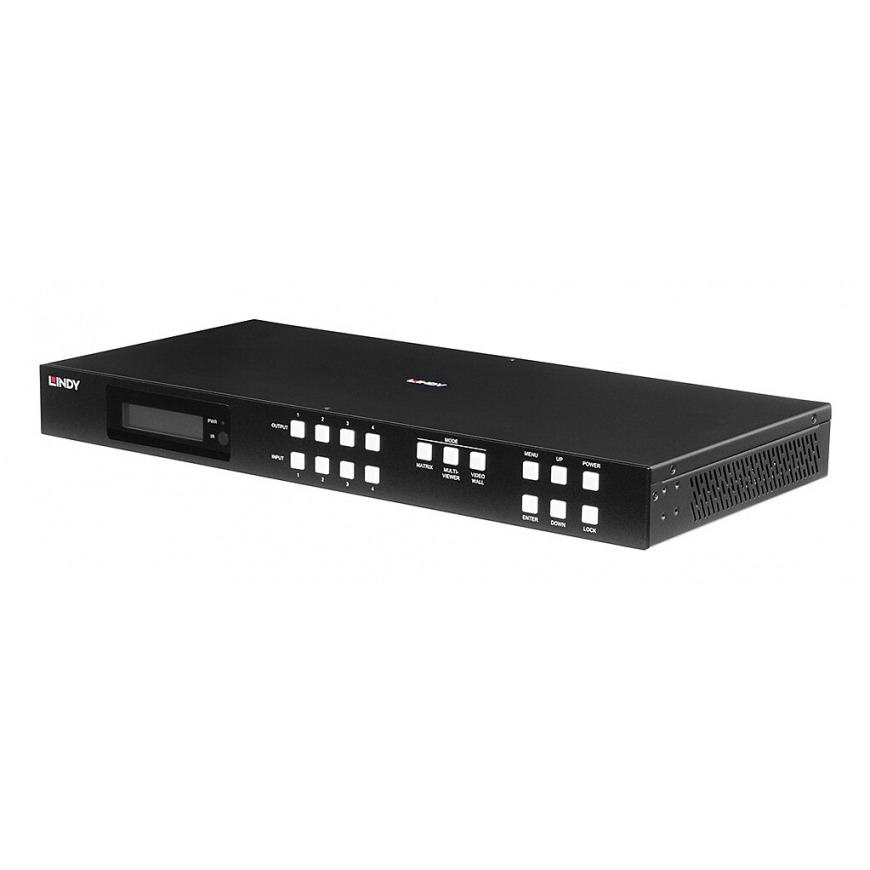

Lindy 4x4 HDMI 4K60 Seamless Multi-View Matrix with Video Wall Scaling
2 529.00 €
Monthly payment from 66,02 €
3984425 38390
4002888383905
Shipping 17-19 b.d.
You are interested in this product?
All about the product
Seamlessly switch between 4 displays & 4 source devices, or create single or multiple video wallsThe Lindy 4x4 HDMI® 4K60 Multi-View Matrix with Video Wall Scaling is the professional solution for distributing content from several source devices to many HDMI® displays, or for creating eye-catching video wall setups.
Supporting resolutions up to 4K@60Hz, content can be shown in excellent clarity, great for ensuring a high-quality video experience in sports bars, retail stores or multiple consecutive locations in larger installations. Resolutions can easily be scaled and controlled by the user to ensure the optimum, or consistent, resolution is always displayed.
As well as providing a professional 4x4 matrix switching function, this device can create customisable wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.
The Multi-View function offers high performance video switching which allows signals from four different sources to be integrated for simultaneous display on a single monitor. Featuring multiple different viewing modes (e.g. Quad-View, Full Screen, Picture and Picture & Dual Video) the Multi-view function allows for the monitoring of multiple video sources in different viewing configurations to meet the requirements of standard installations.

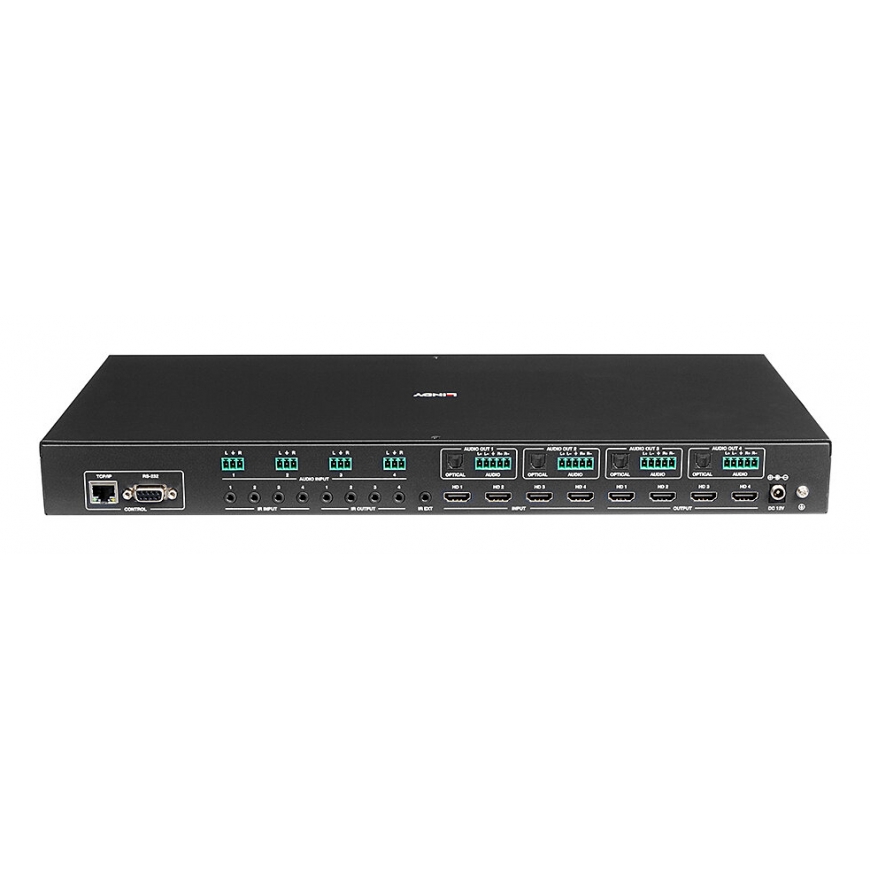

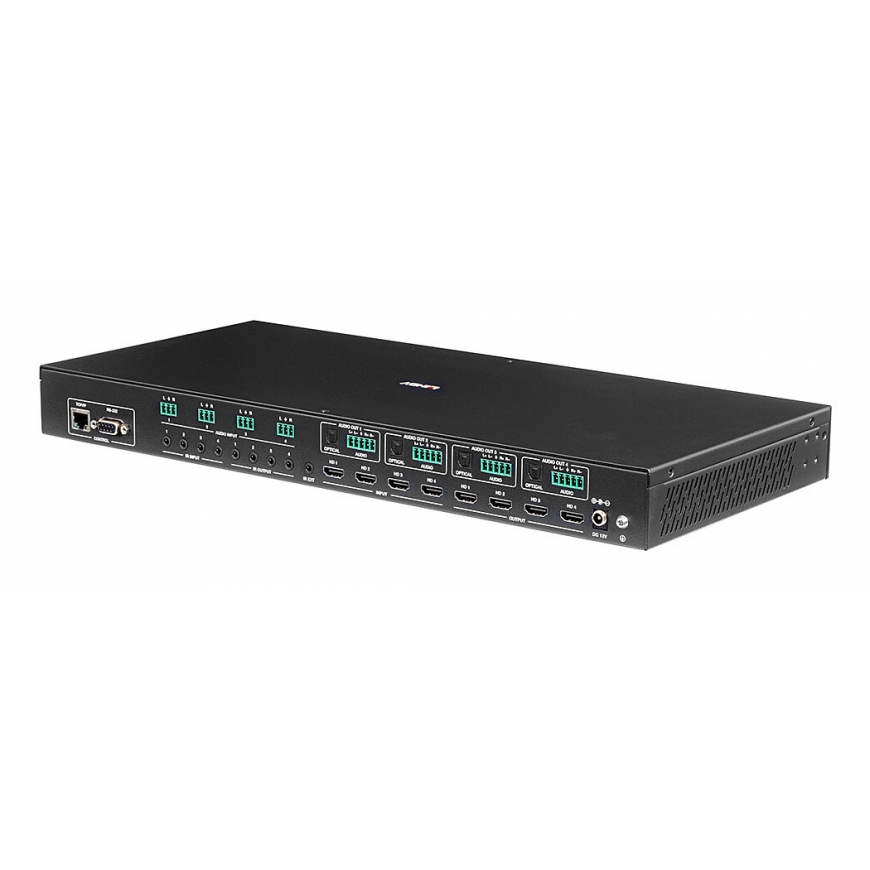

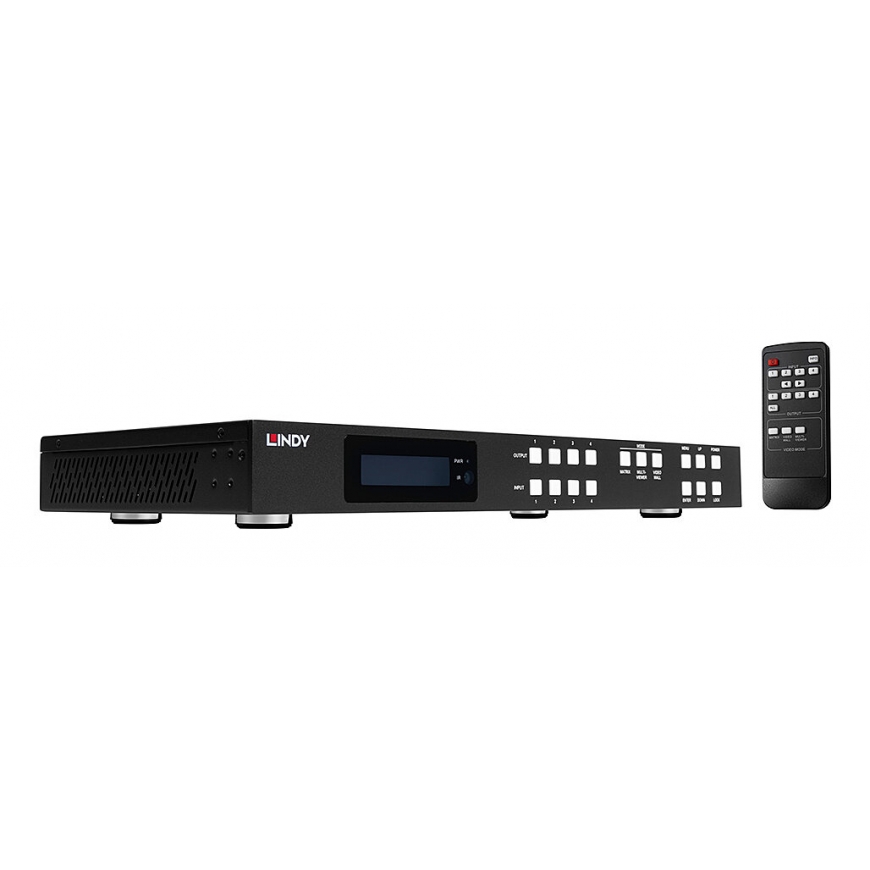

The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.
Professional EDID management ensures maximum compatibility with both the source devices and displays.
Features | |
| Housing material | Metal |
| Certification | CP65 |
Packaging data | |
| Package type | Box |
| Package width | 524 mm |
| Package depth | 316 mm |
| Package height | 119 mm |
| Package weight | 4.06 kg |
Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, REACH, Federal Communications Commission (FCC), UKCA |
Other features | |
| Warranty period | 2 year(s) |
Weight & dimensions | |
| Width | 440 mm |
| Depth | 203 mm |
| Height | 44.5 mm |
| Weight | 2.55 kg |
