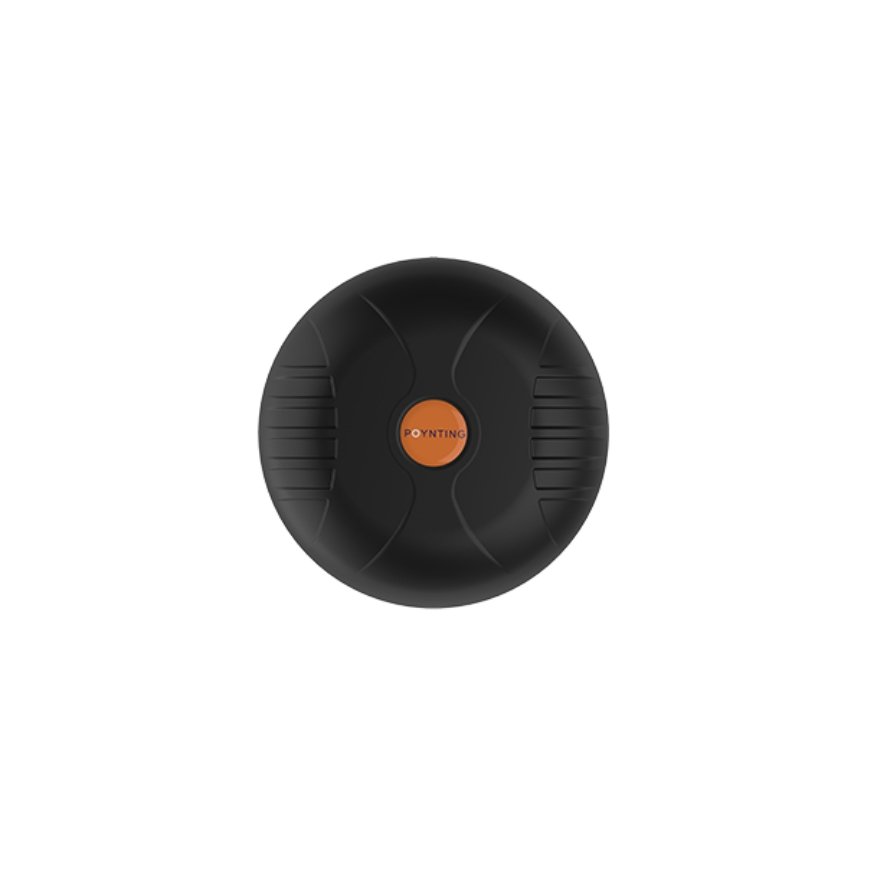

Poynting A-MIMO-0004-V1-15-B network antenna MIMO directional antenna SMA 21 dBi
239.41 €
Monthly payment from 7,06 €
3978738 A-MIMO-0004-V1-15-B
6009710925386
Shipping 11-14 b.d.
You are interested in this product?
All about the product
The MIMO-4-15 is a 5-in-1 high performance, multi frequency antenna within a single housing. The antenna provides two cellular, two Wi-Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation. The ultra-wideband performance of the cellular antennas allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz. The antenna also provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability. The MIMO-4-15 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for. Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.Design | |
| Product colour | Black |
| Housing material | Acrylonitrile styrene acrylate (ASA) |
| International Protection (IP) code | IP69K |
Antenna | |
| Antenna connector type | SMA |
| Antenna gain level (max) | 21 dBi |
| Antenna type | MIMO directional antenna |
Power | |
| Power source type | DC |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Height | 65 mm |
| Weight | 740 g |
Packaging data | |
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 150 mm |
| Package weight | 1.24 kg |
Other features | |
| Input voltage | 2.7 - 3.3 V |
| Frequency band | 0.617 – 7.2 |
| Cable length | 2 m |
Technical details | |
| Compliance certificates | CE, RoHS |
