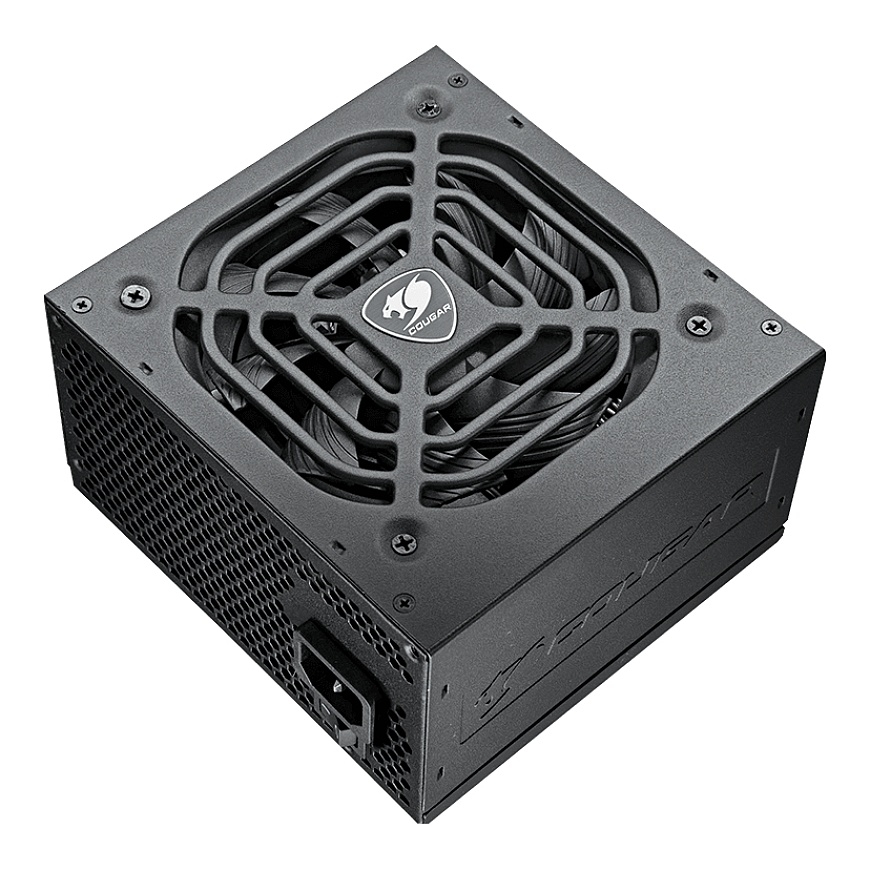

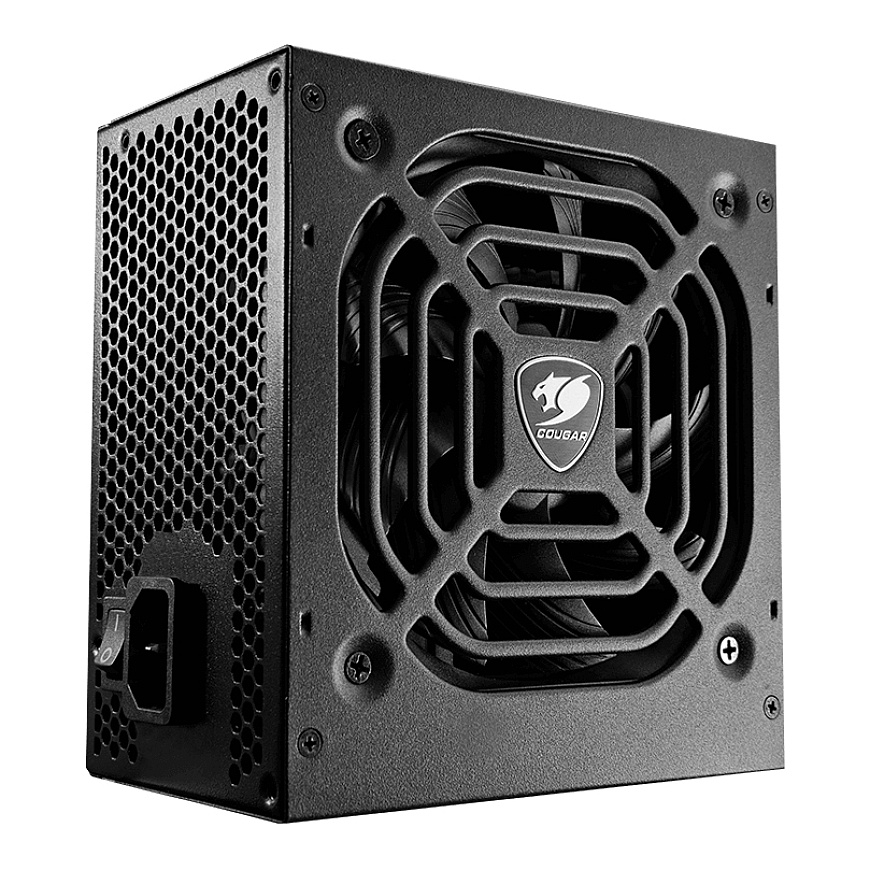

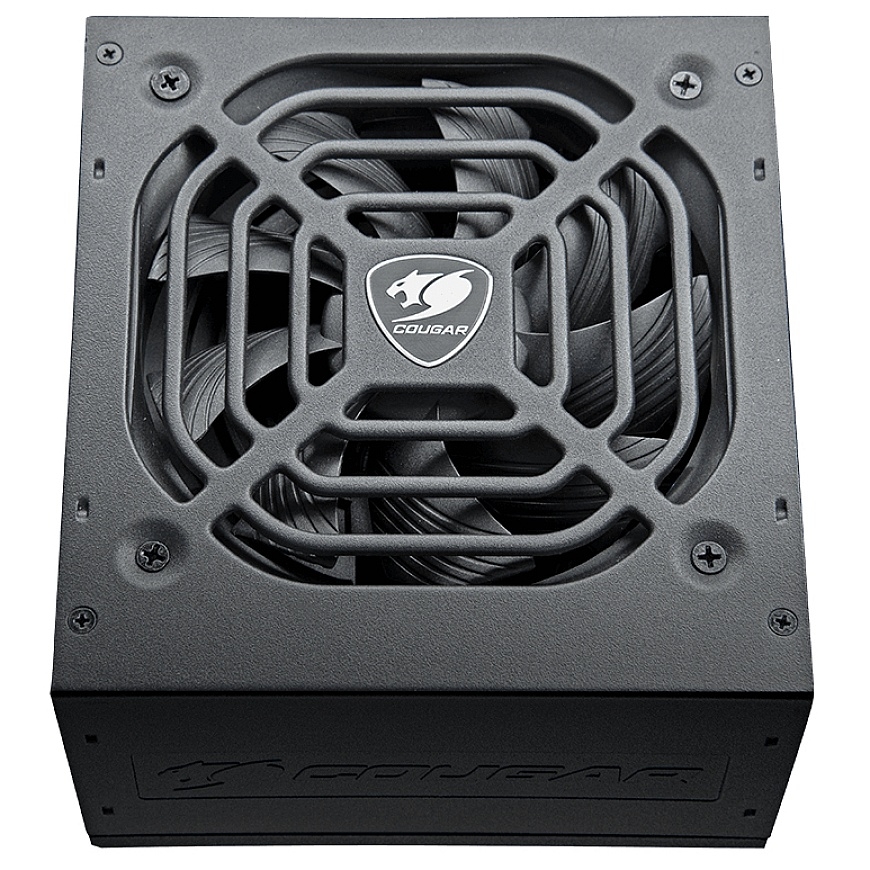

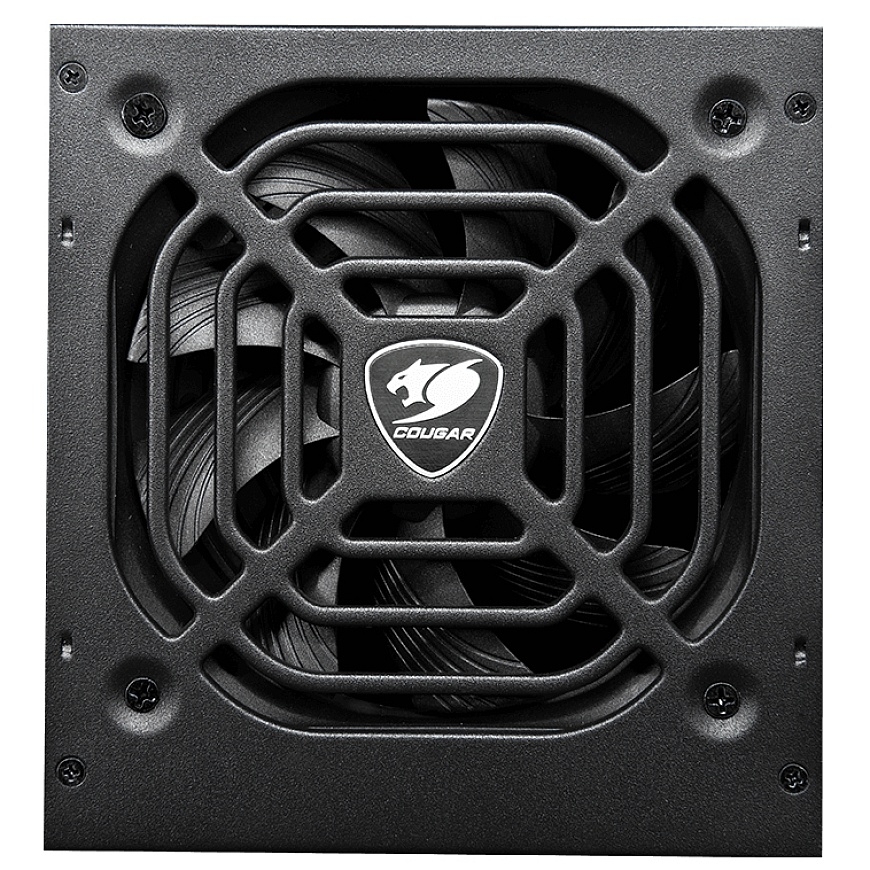

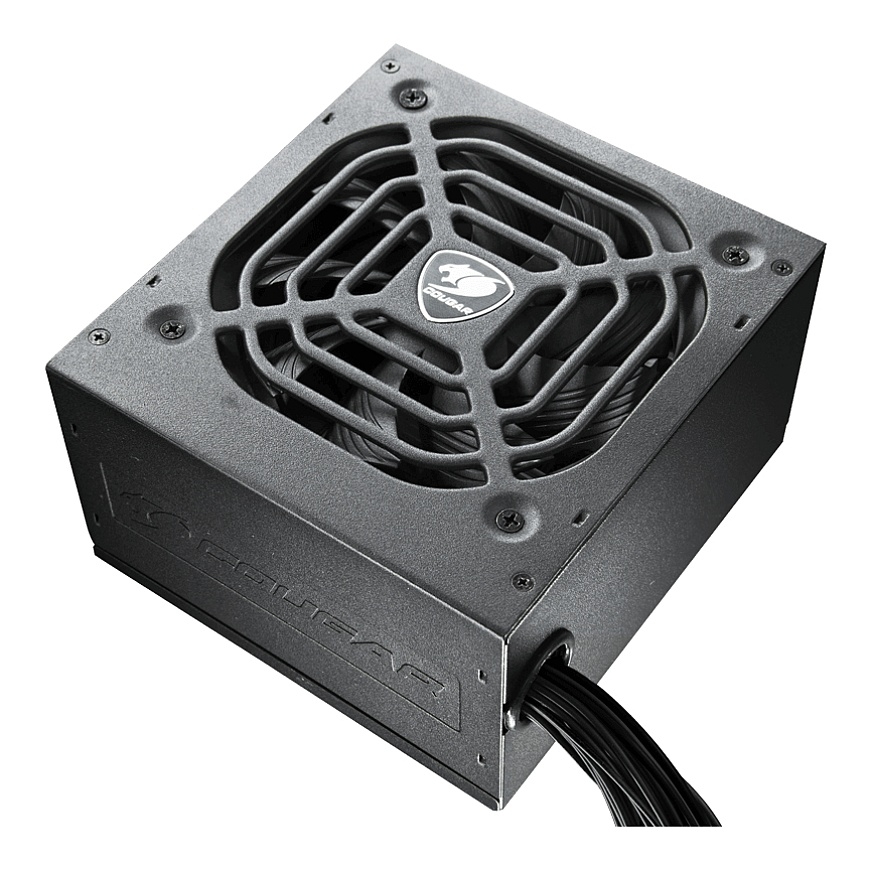

COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU
59.00 €
Monthly payment from 2,42 €
3958710 31SC060001P01
4710483776441, 4710483774324
Shipping 14-15 b.d.
You are interested in this product?
All about the product
Rigid Reliability, Extreme SilenceCOUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.
Power Conversion Efficiency
Up to 86% efficiency under 230V. A guaranteed highly reliable power supply.
Active Power Factor CorrectionHigh power conversion efficiency. PF value up to 99%, provides clean and reliable power
120mm Extreme Temperature Control
Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience.
Assigned Japanese Components
STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
The Japanese polypropylene capacitor minimize the noise during the voltage transition.
Power | |
| Input current | 5 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 588 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 49 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Total power | 600 W |
Performance | |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
Ports & interfaces | |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Motherboard power cable length | 45 cm |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power cable length | 450 mm |
| CPU power cable length | 65 cm |
Weight & dimensions | |
| Weight | 1.52 kg |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 1.8 kg |
| Package height | 165 mm |
| Package width | 187 mm |
| Package depth | 158 mm |
Other features | |
| Commodity Classification Automated Tracking System (CCATS) | 8504401300 |
Logistics data | |
| Country of origin | China |
Certificates | |
| Compliance certificates | CE, RoHS, EAC |
